Telwin Spare Parts for Motoinveter 204 CE HONDA

Telwin Spare Parts for Motoinveter 204 CE HONDA

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Telwin gasoline or diesel Motoinverter 204 CE HONDA cod. 815793.

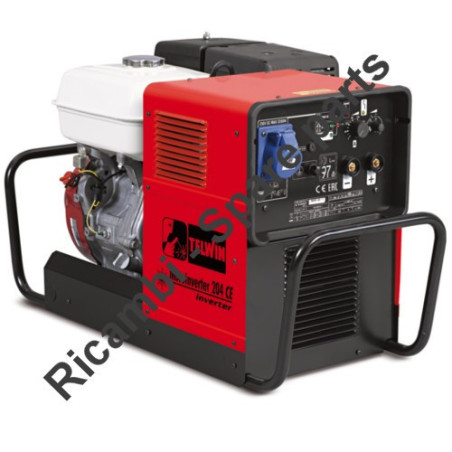

Inverter technology, petrol engine-driven (HONDA engine) welding machine with high frequency permanent magnets alternator for electrode MMA and TIG-DC welding with scratch striking. Use with a wide range of electrodes: rutile, basic, cellulosic, stainless steel, cast iron, etc. It can also beused as direct current (DC) generator for powering electrical tools such as drills, sanders, etc. Characteristics: 4-stroke, air cooled petrol engine with recoil starter * shutdown for lack of oil *over-fast engine safeguard * continuous welding current adjustment * high current stability by variations in engine revs * arc-force, hot start, anti-stick devices * welding machine-generator selector switch * thermostatic protection.

In the following table, look for the model of the drill and the respective parts of the code.

MOTOINVERTER 204 CE HONDA cod. 815793
#	Description	Part Num.
1	RADDRIZZATORE	116369
2	POTENZIOMETRO	116865
3	PRESA	121220
4	DEVIATORE	121268
5	FUSE	122410
6	MOTORE	154002
7	TIRANTE FILETTATO	242128
8	ASSIEME STATORE	314176
9	KIT ASSIEME SCHEDA PRIMARIO	980129
10	CORNICE	322666
11	VENTOLA	322722
12	ANTIVIBRANTE	322723
13	ANTIVIBRANTE	322724
14	DIAFRAMMA	483661
15	SCUDO ALTERNATORE	522042
16	FLANGIA	522045
17	COPRIVENTOLA	645142
18	FONDO	645223
19	FRONTALE	645224
20	RETRO	645359
21	GOLFARO	645226
22	MANICO	645227
23	FIANCO SINISTRO	645228
24	FIANCO DESTRO	645229
25	CRUSCOTTO	649906
26	MANTELLO	651092
27	FIANCO SUPERIORE DESTRO	655932
28	FIANCO SUPERIORE SINISTRO	655933
29	PRESA DX 25	712035
30	KIT ROTORE COMPLETO	980128
31	KIT ASSIEME SCHEDA SECONDARIO	980130
32	KIT MORSETTO DI CARICA NERO	990073
33	MANOPOLA	121395
34	MANOPOLA	121424
35	KIT VENTILATORE	990976
36	SCHERMO	645244
37	KIT SCHEDA CONTROLLO	980690
