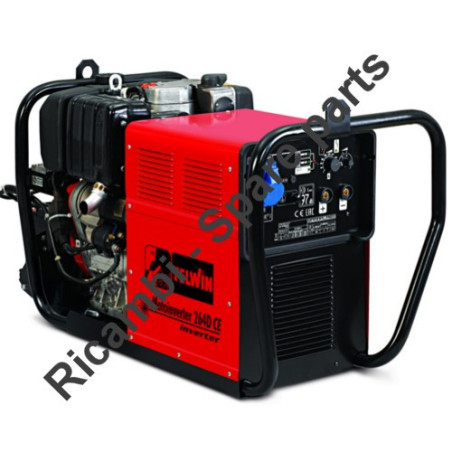

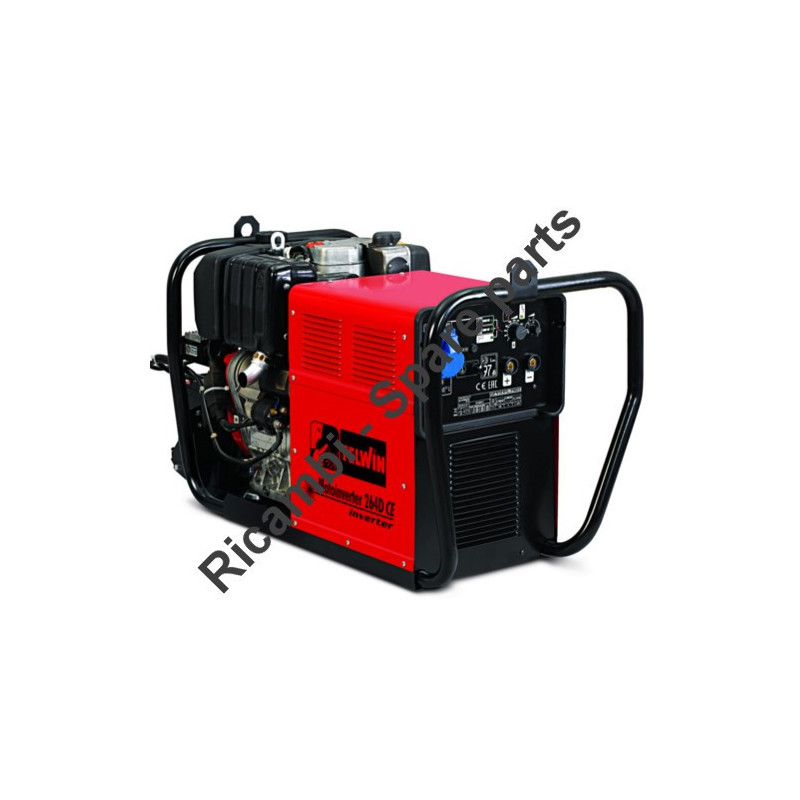

Telwin Spare Parts for Motoinveter 264D CE LOMBARDINI

Telwin Spare Parts for Motoinveter 264D CE LOMBARDINI

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for  gasoline or diesel Motoinverter 264D CE LOMBARDINI cod. 815980

Inverter technology, petrol engine-driven (HONDA engine) welding machine with high frequency permanent magnets alternator for electrode MMA and TIG-DC welding with scratch striking. Use with a wide range of electrodes: rutile, basic, cellulosic, stainless steel, cast iron, etc. It can also beused as direct current (DC) generator for powering electrical tools such as drills, sanders, etc. Characteristics: 4-stroke, air cooled petrol engine with recoil starter * shutdown for lack of oil *over-fast engine safeguard * continuous welding current adjustment * high current stability by variations in engine revs * arc-force, hot start, anti-stick devices * welding machine-generator selector switch * thermostatic protection.

In the following table, look for the model of the drill and the respective parts of the code.

MOTOINVERTER 264D CE LOMBARDINI cod.815980
1	RECTIFIER	116369
2	POTENTIOMETER	116865
3	POWER OUTLET	121220
4	SWITCH	121268
5	KNOB	121395
6	KNOB	121424
7	FUSE 8A	122112
8	POWER CORD	124054
9	DIESEL ENGINE	154006
10	TRASFORMER	169574
11	THREADED TIE ROD	242125
12	FRAME	322666
13	FAN	322722
14	BELT	322858
15	DAMPER	322875
16	DIAPHRAGM	483818
17	ALTERNATOR SHIELD	522042
18	FLANGE	522045
19	FAN COVER	645142
20	FRONT	645333
21	RIGHT REINFORCEMENT	645376
22	LEFT REINFORCEMENT	645377
23	BATTERY SUPPORT BRAKET	645378
24	BACK	645379
25	BASE ASSY	645394
26	DASHBOARD	649987
27	MANTLE	651119
28	LEFT COVER	655953
29	RIGHT COVER	655954
30	PLUG DX 25	712035
31	KIT ROTOR COMPLETE	980490
32	KIT PRIMARY CARD	980491
33	KITSECONDARY CARD	980492
34	KIT FEET	980493
35	KIT CONTROL CARD	980693
36	BATTERY	980775
37	KIT BLACK CHARGE CLAMP	990073
38	KIT FAN	990976
