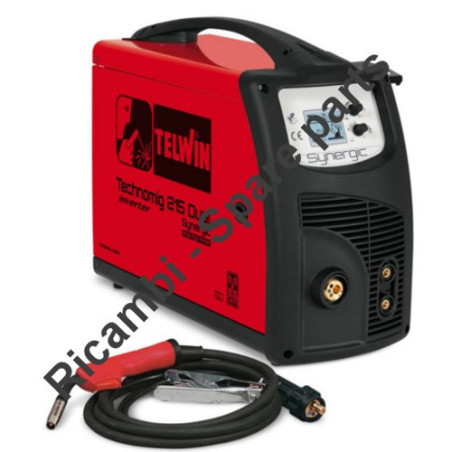

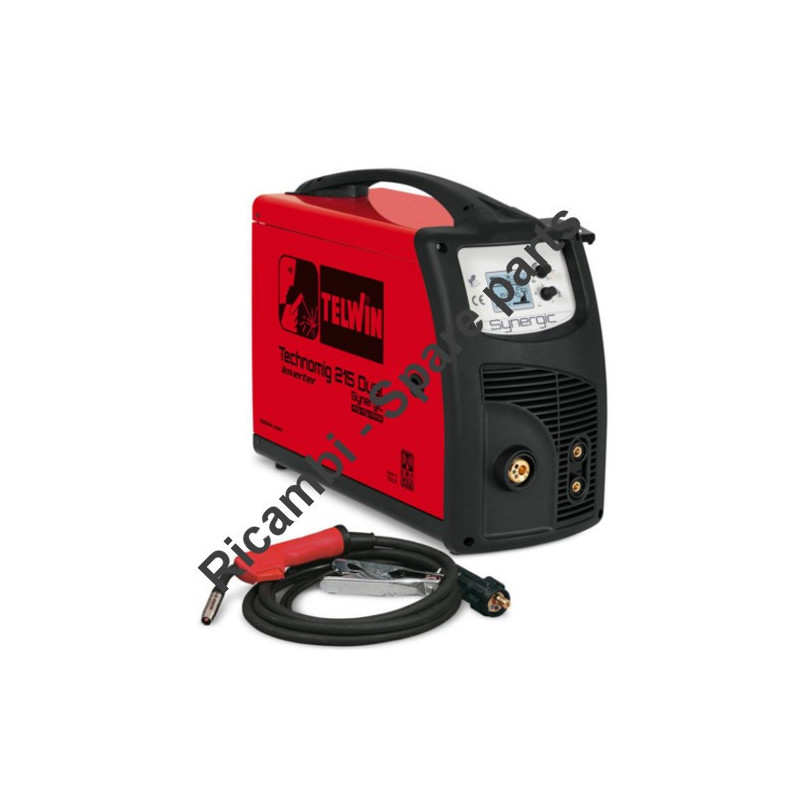

Telwin Spare Parts for Flux Welding Technomig 215 DUAL SYNERGIC 230V
€2.92
Tax included
Telwin Spare Parts for Flux Welding Technomig 215 DUAL SYNERGIC 230V
TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to solve any maintenance and repair issues for welding Technomig 215 DUAL SYNERGIC 230V- 816053.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Spare Parts for Flux Welding Technomig 215 DUAL SYNERGIC 230V
TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for welding machine Flux and Mig-mag Technomig 215 DUAL SYNERGIC 230V- 816053.
In the following table, look for the model of the welding machine and theirs spare parts codes.
| TECHNOMIG 215 DUAL SYNERGIC 230V- 816053 Pag.1 |
||
| # | Part Num. | Description |
| 2 | 112048 | RESISTANCE |
| 3 | 112357 | SINGLE-PHASE RECTIFIER |
| 4 | 112694 | CAPACITOR |
| 5 | 116320 | RELAIS |
| 6 | 116839 | DIODE |
| 7 | 121248 | SWITCH |
| 8 | 121315 | ENCODER KNOB D.15 |
| 9 | 121800 | ELECTROVALVE |
| 10 | 123437 | CABLE 16 MMQ 3 M - 25 |
| 11 | 132157 | MAINS CABLE |
| 12 | 152230 | CURRENT TRANSFORMER |
| 13 | 152269 | FAN |
| 14 | 153033 | MOTOR |
| 15 | 164741 | FILTER INDUCTANCE |
| 16 | 169700 | TRANSFORMER X FLYBACK |
| 17 | 169808 | OUTPUT INDUCTANCE |
| 18 | 169822 | POWER TRAFO |
| 19 | 312105 | TORCH CONNECTION PROTECTION |
| 20 | 321135 | FRONT PANEL |
| 21 | 321196 | CARD HOLDER |
| 22 | 321142 | HANDLECOVER |
| 23 | 321194 | SHIELD |
| 24 | 322883 | HANDLE |
| 25 | 323001 | FOOT |
| 26 | 645787 | SOCKET HOLDER |
| 27 | 645624 | DIAPHRAGM |
| 28 | 645704 | TORCH HOOK |
| 29 | 981996 | COVER KIT |
| 30 | 656142 | DOOR |
| 31 | 656143 | SIDE PANEL |
| 32 | 712030 | TOLEDO 250 WORK CLAMP 250A |
| 33 | 712035 | SOCKET DX 25 |
| 34 | 712039 | PLUG DX 25 |
| 35 | 722112 | FEED ROLL D. 0,6-0,8 MM FE |
| 36 | 723229 | TORCH CONNECTION |
| 37 | 742064 | WIRE GUIDE INLET |
| 38 | 742090 | FEED ROLL D. 0,8-1 MM AL |
| 39 | 742096 | ANCHOR FOR PRESSURE ROLLER |
| 40 | 742180 | MT15 MIG TORCH 3 M |
| 41 | 742365 | WIRE CONDUIT Ø 2X5 |
| 42 | 742397 | ROLLERFIXING SCREW |
| 43 | 980990 | IGBT + DIODE KIT |
| 44 | 981383 | CLAMP KIT |
| 45 | 981494 | COMPLETE PCB KIT |
| 46 | 981495 | KIT FRONT PANEL CARD |
| 47 | 981496 | KIT 2 ROLLS WIREFEEDER |
| 48 | 981703 | REEL KIT 15KG |
| 49 | 981498 | BOTTOM KIT |
| 50 | 981499 | BACK PANEL KIT |
| 51 | 981500 | FRONT PANEL KIT |
| 52 | 990046 | KIT CABLE BUSHING + RING NUT |
| 53 | 990097 | GAS HOSE KIT |
| 54 | 321210 | REEL SPACER |
| 55 | 122353 | SWITCH COVER |
| TORCH TECHNOMIG 215 DUAL SYNERGIC 230V- 816053 Pag.2 |
||
| 1 | 722007 | RING NUT |
| 2 | 722013 | LINER NUT |
| 3 | 722305 | SWAN NECK DIFFUSER |
| 5 | 722319 | NOZZLE SPRING |
| 6 | 722326 | DIFFUSER INSULATION |
| 7 | 742172 | TORCH HOLDER |
| 8 | 722415 | CONTACT TIP D. 0,8 MM FE |
| 8 | 722416 | CONTACT TIP D. 0,6 MM FE |
| 10 | 722423 | CONICAL NOZZLE |
| 10 | 722149 | CONICAL NOZZLE |
| 11 | 722689 | WIRE GUIDE HOSE Ø 1,0-1,2 3 M RED |
| 11 | 722437 | WIRE GUIDE HOSE Ø 0,6-0,8 MM 3 M BLUE |
| 13 | 722441 | TORCH ASSY |
| 14 | 742175 | TORCH CONNECTION |
| 15 | 742171 | TORCH RING NUT |
| 16 | 722325 | TORCH CONNECTION |
| 17 | 722693 | TORCH CONNECTION INSULATION |
