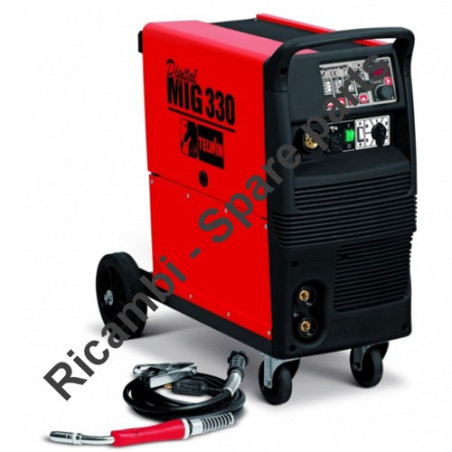

Telwin Parts for Flux Welding Digital Mig 330 Synergic
€74.26
Tax included
Telwin Parts for Flux Welding Digital Mig 330 Synergic
TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding machine Flux and Mig-mag Digital Mig 330 Synergic - 820030.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Parts for Flux Welding Digital Mig 330 Synergic
TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding machine Flux and Mig-mag Digital Mig 330 Synergic - 820030.In the following table, look for the model of the welding machine and theirs spare parts codes.
| DIGITAL MIG 330 230-400V cod. 820030 Pag.1 | ||
| # | Description | Part Num. |
| 1 | CHANGING VOLTAGE CARD | 112165 |
| 2 | RECTIFIER | 112170 |
| 3 | RECTIFIER PROTECTION | 112182 |
| 4 | SWITCH | 121182 |
| 5 | THERMOSTAT | 122132 |
| 6 | SWITCH | 122400 |
| 7 | CONTACTOR | 122585 |
| 8 | ELECTRO-VALVE | 122682 |
| 9 | CONTACTOR | 122459 |
| 10 | SWITCH | 122725 |
| 12 | FUSE | 122879 |
| 13 | MAINS CABLE 4G2.5 2 M | 132244 |
| 14 | MOTOR | 152083 |
| 15 | FAN BLADE | 152113 |
| 16 | CABLE BUSHING KIT | 990439 |
| 17 | WIRE FEED MOTOR | 153033 |
| 18 | TRANSFORMER | 164089 |
| 19 | AUXILIARY TRANSFORMER | 164991 |
| 20 | REACTANCE | 169339 |
| 21 | TORCH CONNECTION PROTECTION | 312105 |
| 22 | REEL HANDWHEEL | 312137 |
| 23 | HANDLE | 312328 |
| 24 | FRONT PANEL + MODULE KIT | 980661 |
| 25 | REEL | 322081 |
| 26 | SPACER | 322180 |
| 27 | FIXED WHEEL | 322200 |
| 28 | WHEEL | 322246 |
| 29 | UPPER SIDE FRAME | 322638 |
| 30 | LOWER SIDE FRAME | 322639 |
| 31 | SUPPORT | 422817 |
| 32 | SWIVEL SUPPORT | 422969 |
| 33 | ARGON GAS BOTTLE IT ADAPTOR | 432036 |
| 34 | REEL SPRING | 452057 |
| 35 | BRACKET FOR BOTTLE | 644606 |
| 36 | CARD COVER | 644832 |
| 37 | DIAPHRAGM | 645239 |
| 38 | BACK PANEL | 645113 |
| 39 | FRONT PANEL | 642143 |
| 40 | BOTTOM | 644996 |
| 41 | SIDE PANEL | 651034 |
| 42 | COVER KIT | 980924 |
| 43 | DOOR KIT | 980911 |
| 44 | WHEELS AXLE | 681092 |
| 45 | SOCKET DX 50 | 712036 |
| 46 | PLUG DX 50 | 712040 |
| 47 | TOLEDO 300 WORK CLAMP | 712231 |
| 48 | CABLE 25MMQ 3M-WORK CLAMP-DX 50 | 713192 |
| 49 | FEED ROLL D. 0,6-0,8 MM FE | 722225 |
| 50 | GAS REGULATOR 2 MANOMETERS | 722119 |
| 51 | BRAKET | 645240 |
| 52 | TORCH CONNECTION | 980127 |
| 53 | ROLLERFIXING SCREW | 742397 |
| 54 | WIRE GUIDE INLET | 742064 |
| 55 | FEED ROLL D. 0,8-1 MM FE | 722227 |
| 56 | LEFT ANCHOR FOR PRESSURE ROLLER | 742307 |
| 57 | MT25 MIG TORCH 3 M 270 A | 742183 |
| 58 | WIRE CONDUIT Ø 2X5 | 742357 |
| 59 | BLACK KNOB SET | 980772 |
| 60 | GAS HOSE KIT | 990097 |
| 61 | REEL KIT | 990264 |
| 62 | WIRE FEED ASSY | 723198 |
| 63 | FEED ROLL D. 1,2-1,6 MM FE | 722241 |
| 64 | RIGHT ANCHOR FOR PRESSURE ROLLER | 742308 |
| 65 | FEED ROLL D. 1-1,2 MM FE | 742366 |
| 66 | PANEL | 645241 |
| 67 | COVER | 322814 |
| 68 | ADAPTER | 742166 |
| 69 | MOTOR DRIVE GEAR | 742348 |
| 70 | GEAR | 742495 |
| TORCH DIGITAL MIG 330 230-400V cod. 820030 Pag.2 | ||
| 1 | RING NUT | 722007 |
| 2 | LINER NUT | 722013 |
| 3 | TORCH CONNECTION | 742175 |
| 4 | CONTACT TIP D. 0,8 MM FE | 722680 |
| 4 | CONTACT TIP D. 0,6 MM FE | 722415 |
| 4 | CONTACT TIP D. 1 MM FE | 722681 |
| 4 | CONTACT TIP D. 1 MM AL/FLUX | 722552 |
| 4 | CONTACT TIP D. 1,2 MM FE | 722682 |
| 4 | CONTACT TIP D. 1,2 MM AL/FLUX | 722553 |
| 5 | WIRE GUIDE HOSE D. 0,6-0,8 MM 3 M | 722437 |
| 5 | WIRE GUIDE HOSE D. 1-1,2 MM 3 M | 722689 |
| 5 | WIRE GUIDE HOSE D. 1-1,2 MM 3 M AL | 722516 |
| 6 | CONICAL NOZZLE | 722685 |
| 6 | CYLINDRICAL NOZZLE | 722684 |
| 6 | THIN HEADED NOZZLE | 722686 |
| 6 | SPOT WELDING NOZZLE D. 18 MM | 722687 |
| 7 | WIRE GUIDE LOCKING NIPPLES | 722598 |
| 8 | OR RING | 722601 |
| 8 | OR RING | 722606 |
| 10 | WIRE GUIDE LOCKING TUBE | 722600 |
| 11 | GAS DIFFUSER | 722688 |
| 13 | NOZZLE SPRING | 722690 |
| 15 | TORCH CONNECTION INSULATION | 722693 |
| 16 | SWAN NECK | 722696 |
| 17 | TORCH ASSY | 722441 |
| 18 | TORCH RING NUT | 742171 |
| 19 | TORCH HOLDER + SPRING | 742173 |
| 20 | TORCH SPRING | 742174 |
