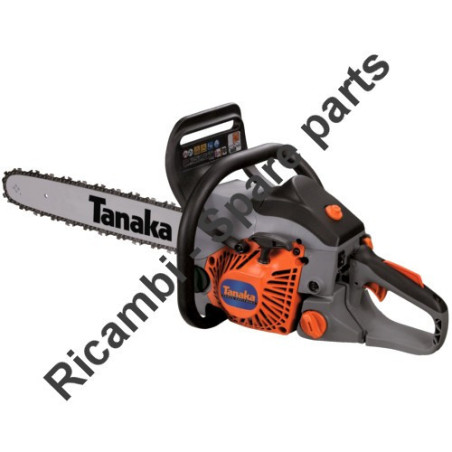

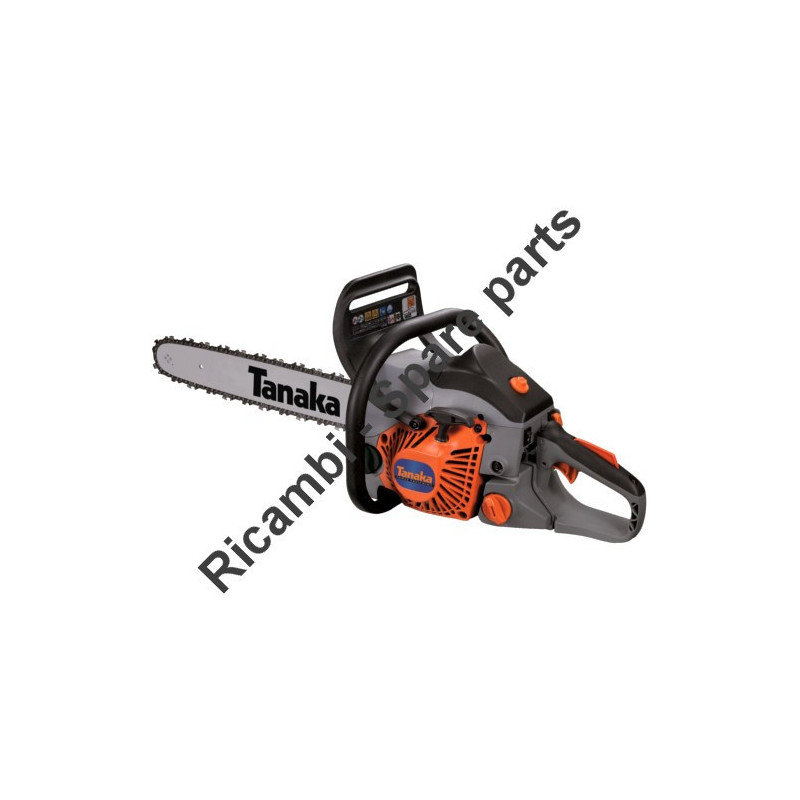

Tanaka Spare Parts for Chain Saw TCS-40EA
€25.83
Tax included
Tanaka Spare Parts for Chain Saw TCS-40EA
HITACHI-HIKOKI TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw TCS40-EA.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Tanaka Spare Parts for Chain Saw TCS-40EA
HITACHI-HIKOKI TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw TCS40-EA.
In the following table, look for the model of the Chain Saw and the respective parts of the code.
| Chain Saw TCS-40EA | ||
| # | Part Num. | Description |
| 1 | 6698424 | CLEANER COVER |
| 2 | 6696908 | CLEANER ELEMENT (B) |
| 3 | 6696907 | CLEANER ELEMENT (A) |
| 4 | 6696891 | CLEANER ELEMENT ASS'Y |
| 10 | 6696835 | SEAL LOCK SCREW M4X10 |
| 12 | 6696852 | COVER PACKING |
| 14 | 6696895 | INTAKE PACKING |
| 15 | 6698419 | INTAKE MANIFOLD |
| 17 | 6698524 | ALUMINUM TAPE (B) |
| 19 | 6696896 | CARB. INSULATOR RUBBER |
| 20 | 6698433 | CARBURETOR ASS'Y |
| 21 | 6685210 | SCREW |
| 23 | 6685212 | PUMP GASKET |
| 24 | 6685213 | PUMP DIAPHRAGM |
| 25 | 6684700 | INLET SCREEN |
| 26 | 6685215 | NEEDLE VALVE |
| 28 | 6685220 | DIAPHRAGM PACKING-METERING |
| 29 | 6684690 | METERING DIAPHRAGM |
| 31 | 6690766 | IDLE ADJUST SPRING |
| 32 | 6685298 | IDLE ADJUST SCREW |
| 33 | 6685218 | HINGE PIN SET SCREW |
| 34 | 6685217 | CONTROL LEVER |
| 35 | 6685219 | HINGE PIN |
| 36 | 6685223 | SET SCREW |
| 37 | 6685224 | IDLE SPONGE |
| 38 | 6685311 | CLIP |
| 40 | 6698427 | CLEANER SUPPORT |
| 45A | 6698700 | GLASS WASHER |
| 50 | 6696841 | IGNITION COIL ASS'Y |
| 51 | 6696326 | HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 |
| 52 | 6698457 | CORD INSULATION TUBE |
| 61 | 6698412 | MUFFLER PACKING |
| 63 | 6698430 | CYLINDER ASS'Y |
| 64 | 6696864 | CYLINDER PACKING |
| 66 | 6696854 | CIR CLIP |
| 67 | 6698526 | PISTON |
| 68 | 6696855 | PISTON PIN |
| 69 | 6698441 | CRANK CASE SET |
| 71 | 6685328 | BALL BEARING |
| 73 | 6698445 | NEEDLE BEARING (A) |
| 74 | 6696863 | CRANK CASE PACKING |
| 76 | 6685412 | SEAL LOCK HEX. SOCKET HD. BOLT M5 |
| 77 | 6696853 | CRANK SHAFT |
| 80 | 6698414 | MAGNETO SUB ASS'Y |
| 82A | 6699405 | STARTER PAWL SPRING (B) |
| 84 | 6696877 | STARTER PAWL |
| 86 | 6696880 | BOLT WASHER D7 |
| 87 | 6696879 | FLYWHEEL NUT M7 |
| 88 | 6696329 | SPIKE SET |
| 90A | 6699012 | ENGINE CASE ASS'Y |
| 91 | 6685369 | CHOKE ROD RUBBER |
| 93 | 6685364 | STOP SWITCH |
| 94 | 6685139 | PRIMING PUMP COMP. |
| 96 | 6685370 | AIR VENT VALVE (B) |
| 97 | 6685371 | AIR VENT SPONGE |
| 98A | 6685179 | TANK CAP PACKING |
| 99A | 6698854 | FUEL TANK CAP ASS'Y (VERMILION) |
| 99B | 6698358 | FUEL TANK CAP ASS'Y (BLACK) |
| 100 | 6685202 | INLET MANIFOLD SPACER |
| 113 | 6698409 | SPRING HOLDER |
| 114 | 6696872 | FLANGED TAPPING SCREW D6 |
| 115 | 6698408 | ANTIVIBRATION SPRING |
| 116 | 6696873 | FRONT DAMPER |
| 118A | 6697846 | RETURN GROMMET |
| 119 | 6698401 | FUEL PIPE (PINK) |
| 120A | 6685351 | INNER CAP |
| 123A | 6698931 | FUEL GROMMET |
| 124A | 6698718 | FUEL PIPE |
| 126A | 6698805 | REAR HANDLE GRIP |
| 127 | 6685350 | TRIGGER LOCKOUT (VERMILION) |
| 129 | 6685282 | SPRING PIN 5X25 |
| 130A | 6698990 | REAR HANDLE |
| 131 | 6698429 | SPRING HOLDER |
| 133 | 6698428 | ANTIVIBRATION SPRING |
| 136 | 6685388 | BRAKE LINK |
| 139 | 6685391 | NEEDLE ROLLER D3 |
| 142A | 6698989 | FRONT HANDLE |
| 143 | 6696893 | OIL PUMP COVER |
| 144 | 6696892 | OIL PIPE |
| 145 | 6696887 | OIL PUMP |
| 146 | 6685374 | BRAKE LEVER SPRING |
| 148 | 6685373 | BRAKE HANDLE |
| 150 | 6685416 | CHAIN BAR CLAMP NUT |
| 151B | 6699721 | SIDE CASE SUB ASS'Y (VERMILION) |
| 153B | 6698986 | CHAIN PULLER |
| 154 | 6696902 | GUIDE PLATE (B) |
| 155 | 6685415 | TAPPING SCREW D3X8 |
| 157 | 6698423 | BRAKE BAND - DISCONTINUED |
| 159 | 6696882 | CLUTCH WASHER (B) |
| 160 | 6696881 | CLUTCH HOUSING |
| 161 | 6696884 | NEEDLE BEARING |
| 162 | 6696886 | WORM |
| 165 | 6696898 | GUIDE PLATE (A) |
| 166 | 6696868 | OIL GROMMET (A) |
| 167A | 6698719 | FUEL PIPE |
| 168 | 6685407 | BOLT WASHER D5 |
| 169 | 6698455 | OIL FILTER |
| 170 | 6698536 | OIL FILTER BODY |
| 171 | 6698456 | FLANGED TAPPING SCREW D5X15 |
| 172 | 6696894 | CHAIN CATCHER |
| 173 | 6696906 | AIR DEFLECTOR |
| 174A | 6699497 | RECOIL STARTER ASS'Y |
| 176 | 6698825 | THROTTLE ASS'Y |
| 178 | 6699003 | PISTON RING |
| 179 | 6699004 | PISTON (M) |
| 181 | 6699478 | CAM PLATE - DISCONTINUED |
| 182 | 6699479 | DAMPER SPRING |
| 183 | 6699485 | REEL |
| 184 | 6699480 | SPIRAL SPRING CASE |
| 188 | 6699473 | STARTER HANDLE ASS'Y |
| 501 | 6685439 | CHAIN COVER 14" |
| 501 | 6696909 | CHAIN COVER 16" |
| 501 | 6696910 | CHAIN COVER 18" |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
