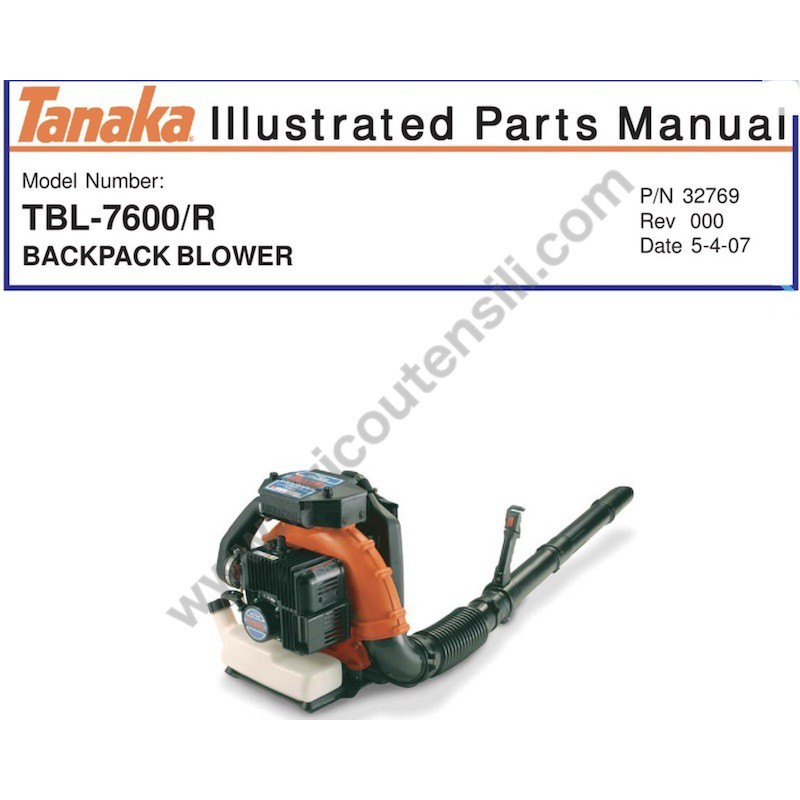

Tanaka Spare Parts for BackPack Blower TBL-7600R
€10.47
Tax included
Tanaka Spare Parts for BackPack Blower TBL-7600R
Tanaka Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for BackPack Blower TBL-7600R.Fix Your BackPack Blower. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Tanaka Spare Parts for BackPack Blower TBL-7600R
Tanaka Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for BackPack Blower TBL-7600R.
In the following table, look for the model of the Hedgecutter and the respective parts of the code.
| Tanaka BackPack TBL-7600R PARTS DIAGRAM pag.1 | ||
| # | Part Num. | Description |
| 2 | 6685499 | CYLINDER SET |
| 4 | 6685756 | GASKET,CYLINDER |
| 9 | 6693523 | BOLT |
| 14 | 6685905 | PISTON SET |
| 15 | 6686021 | PIN,PISTON |
| 16 | 6686135 | RING,PISTON SET (No Longer Available) |
| 17 | 6686238 | CRANKSHAFT |
| 18 | 6693414 | BEARING,NEEDLE |
| 20 | 6686036 | CIRCLIP |
| 21 | 6686374 | SPACER |
| 22 | 6685698 | COVER,CYLINDER |
| 23 | 6692824 | PROTECTOR,MUFFLER |
| 24 | 6693519 | BOLT |
| 25 | 6693505 | SCREW |
| 26 | 6693594 | WASHER |
| 27 | 6693592 | WASHER,A |
| 28 | 6692823 | COVER,PLUG |
| 30 | 6688326 | CAP,SPARK PLU |
| 31 | 6688328 | TERMINAL,SPARK PLUG |
| 36 | 6693642 | TUBE,PROTECTION |
| 37 | 6685782 | SPARK PLUG NGK BPMR7A |
| 39 | 6688041 | GROMMET,B |
| Tanaka TBL-7600R PARTS DIAGRAM pag.2 | ||
| 3 | 6686729 | GASKET,CRANKCASE |
| 5 | 6686605 | CRANKCASE |
| 7 | 6693426 | BEARING,BALL |
| 8 | 6686139 | SEAL,OIL |
| 10 | 6693471 | SCREW,A |
| 11 | 6693528 | SCREW |
| 12 | 6693641 | KNOCK PIN |
| 13 | 6693552 | PACKING |
| 19 | 6693431 | SHIM,CRANKSHAFT |
| 29 | 6687358 | MAGNETO |
| 32 | 6687634 | Ignition Coil |
| 33 | 6693643 | WIRE |
| 34 | 6693644 | WASHER,S |
| 35 | 6686461 | KEY,WOODRUFF |
| 38 | 6688058 | GROMMET,A |
| 40 | 6693533 | BOLT |
| 41 | 6693586 | NUT |
| 54 | 6693411 | Starter Pulley Assembly |
| 55 | 6688367 | RING,STOP |
| 56 | 6693005 | SPRING,STARTER PAWL |
| 57 | 6693001 | Starter Pawl |
| 58 | 6685966 | NUT,SPECIAL |
| 59 | 6693600 | WASHER,C |
| Tanaka TBL-7600R PARTS DIAGRAM pag.3 | ||
| 1 | 6693550 | GASKET,MANIFOLD |
| 2 | 6693551 | INTAKE MANIFOLD SET |
| 3 | 6693548 | SCREW |
| 4 | 6689902 | GASKET,INSULATOR |
| 5 | 6693583 | NUT |
| 6 | 6693572 | BOLT |
| 7 | 6689984 | INSULATOR,SET |
| 8 | 6689848 | GASKET,CARBURETOR |
| 9 | 6690525 | Carburetor Set |
| 42 | 6692504 | MUFFLER SET |
| 43 | 6693497 | SCREW |
| 44 | 6692703 | ARRESTER,SPARK |
| 45 | 6692889 | GASKET,TAIL PIPE |
| 46 | 6693572 | BOLT |
| 47 | 6692751 | GASKET,MUFFLER |
| 48 | 6693581 | SCREW,O |
| 49 | 6690203 | BASE,CLEANER |
| 50 | 6693478 | SCREW |
| 51 | 6690850 | BOARD,CHECK |
| 52 | 6693486 | SCREW,D |
| 55 | 6693611 | WASHER, F |
| Tanaka TBL-7600R PARTS DIAGRAM pag.4 | ||
| 0 | 6692998 | Starter Assembly |
| 1 | 6693145 | GUIDE,ROPE |
| 2 | 6693604 | STOP,ROPE |
| 3 | 6692997 | STARTER BODY |
| 4 | 6693000 | PLATE,RECOIL |
| 5 | 6693244 | Starter Handle |
| 6 | 6693180 | Starter Rope |
| 7 | 6693011 | REEL,STARTER ROPE |
| 8 | 6693126 | SPRING,STARTER |
| 9 | 6693474 | SCREW,SET |
| 10 | 6693606 | WASHER, E |
| 11 | 6693540 | SCREW K M4xX16 |
| Tanaka TBL-7600R PARTS DIAGRAM pag.5 | ||
| 0 | 6690525 | Carburetor Set |
| 10 | 6684879 | BODY,PUMP |
| 11 | 6684700 | SCREEN, INLET TBL 780 |
| 17 | 6684691 | GASKET,DIAPHRAGM WYA |
| 18 | 6690827 | DIAPHRAGM, METERING CO |
| 19 | 6684687 | PUMP,PRIMING WYA 64 T |
| 20 | 6684689 | Primer Bulb |
| 21 | 6684688 | COVER,DIAPHRAGM WYA 6 |
| 22 | 5482515 | 120 9SCREW,SET |
| 23 | 6684870 | SCREW,THROTTLE SET WY |
| 24 | 6684873 | STAY, ADJUST,CABLE WYA |
| 25 | 6684871 | CABLE ADJUSTER 5PC/P |
| 26 | 6684872 | NUT,6 |
| 27 | 6684695 | O RING WYA 64 CG22EAB |
| 28 | 6691903 | JET,MAIN 52 |
| 29 | 6684697 | SWIVEL WYA 64 TBL 780 |
| 30 | 6684874 | WASHER,THRUST WYA 64 |
| 31 | 4892510 | 0200 RING,STOP |
| 32 | 6684875 | PACKING,CLEANER |
| 33 | 5772510 | 0200 GASKET,PUMP |
| 34 | 6684693 | Diaphragm |
| Tanaka TBL-7600R PARTS DIAGRAM pag.6 | ||
| 16 | 6685909 | CUSHION,RUBBER, BOTTOM |
| 26 | 6685819 | STRAP,SHOULDER BLOWER |
| 27 | 6693521 | SCREW,G,M6X16 |
| 28 | 83531900200 | NUT,F.M6 |
| 29 | 6685700 | STAY,BAND (No Longer Available) |
| 30 | 6685862 | NUT,SPECIA |
| 31 | 6685813 | PAD,CUSHION |
| 32 | 6686242 | FASTENER |
| 34 | 6691639 | TANK, FUEL |
| 35 | 6691785 | CAP, TANK |
| 36 | 6688177 | PIPE, FUEL ASSY |
| 37 | 6693535 | SCREW, J,M5X14 |
| 38 | 6693593 | WASHER,A |
| 40 | 6685804 | FRAME |
| 41 | 303130 | 7200 CUSHION |
| 42 | 6686376 | COLLAR |
| 43 | 6693595 | WASHER PACKING |
| 44 | 6753190 | 0900 FILTER,FUEL ASSY |
| 46 | 6692320 | CLIP |
| Tanaka TBL-7600R PARTS DIAGRAM pag.7 | ||
| 4 | 6690210 | TUBE,CLEANER |
| 5 | 6693012 | CLAMP,A |
| 6 | 6693015 | CLAMP,B |
| 7 | 6693499 | BOLT,E,M6X30 |
| 8 | 6687881 | WIRE,GROUND |
| 9 | 6686874 | CLAMP,WIRE |
| 10 | 8133190020 | SCREW,TAPPING |
| 11 | 6685603 | CASE,FAN E |
| 12 | 6685635 | CASE,FAN S |
| 13 | 6693506 | SCREW,TAPPING |
| 14 | 6688232 | RING O, 85 |
| 15 | 6688425 | PIPE,ELBOW |
| 17 | 6687174 | Fan |
| 18 | 6685857 | PLATE,SPECIAL |
| 19 | 6693531 | BOLT,1,M6X40 |
| 21 | 6690135 | AIR CLEANER ASSY |
| 22 | 6690330 | Element Assembly |
| 24 | 6693663 | KNOB,AIR FILTER |
| 25 | 6688185 | PACKING,RUBBER |
| 39 | 6691702 | PACKING |
| 44 | 6693542 | SCREW,TAPPING |
| 48 | 6688251 | BAND,RUBBER |
| 49 | 6689112 | JOINT COLLAR |
| Tanaka TBL-7600R PARTS DIAGRAM pag.8 | ||
| 2 | 6688322 | ARM,THROTTLE LEVER |
| 3 | 6688387 | LEVER,THROTTLE |
| 4 | 6689248 | SPRING,THROTTLE LEVER |
| 5 | 6689249 | BALL,STEEL 5/32 |
| 6 | 6688291 | COVER,THROTTLE LEVER |
| 7 | 6695245 | SCREW,TAPPING,4X10 |
| 8 | 6694938 | SCREW,6X25 |
| 9 | 6695219 | WASHER, S,6 |
| 10 | 6695183 | WASHER,SMALL,6 |
| 11 | 6688341 | COLLAR |
| 12 | 6684792 | NUT,M6 CG22EAB |
| 13 | 6686053 | BRACKET, THROTTLE LEVE |
| 14 | 6689262 | KNOB |
| 15 | 6695165 | NUT,8 |
| 16 | 6695241 | PIN, SPLIT |
| 17 | 6687501 | SWITCH,STOP |
| 18 | 6694934 | SCREW,6X20 |
| 19 | 6684639 | WASHER,6 CG22EAB THB |
| 20 | 6695164 | NUT,LOCK,6 |
| 21 | 6685758 | BRACKET STAY |
| 22 | 6693936 | WIRE,THROTTLE |
| Tanaka TBL-7600R PARTS DIAGRAM pag.9 | ||
| 1 | 6688300 | HANDLE GRIP ASSY |
| 2 | 6688299 | HANDLE GRIP |
| 3 | 6688383 | GRIP BAND ASSY |
| 4 | 6693487 | SCREW,TAPPING |
| 5 | 6686815 | Flexible Pipe |
| 7 | 6686797 | Swivel Pipe |
| 8 | 6686820 | Straight Pipe |
| 9 | 6686825 | Blow Pipe |
| 10 | 6686785 | BAND,HOSE, 82 |
| 11 | 6694896 | SCREW,5X25 |
| 12 | 6688415 | BAND,HOSE 100 |
| 14 | 6684979 | SPANNER R B 6693588 |
| 15 | 6694252 | DECAL,MODEL TBL 7600 |
| 16 | 6694703 | DECAL,SYMBOL |
| 17 | 6694435 | DECAL,CHOKE |
| 18 | 6694440 | DECAL,CAUTION |
| 19 | 6694533 | DECAL,CAUTION A |
| Tanaka TBL-7600R PARTS DIAGRAM pag.10 | ||
| 2 | 6685671 | THROTTLE LEVER SWIT |
| 3 | 6688297 | GRIP,THROTTLE |
| 4 | 6688383 | GRIP BAND ASSY |
| 5 | 6695253 | SCREW,TAPPING,5X18 |
| 6 | 6694003 | THROTTLE WIRE HARNESS |
| 7 | 6688544 | TUBE,6X8X20 |
| 8 | 6688221 | CLAMP |
| 0 | 6693780 | THROTTLE KIT,TBL 7600 |
