Tanaka Spare Parts for Engine Brush Cutter TBC 340 PF
Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Brush Cutter TANAKA TBC 340 PF
In the following table, look for the model of the Brush Cutter and the respective parts of the code.

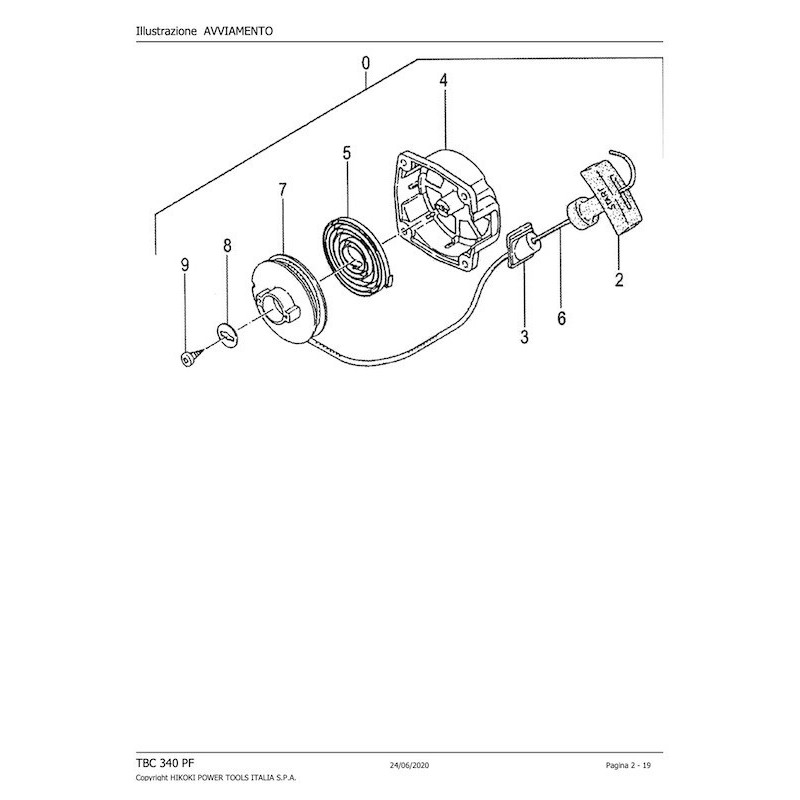

| Petrol Brushcutter Tanaka TBC 340 PF pag.1 | ||
| # | Part Num. | Description |
| 0 | 6692969 | STARTER ASSY |
| 2 | 6693227 | KNOB |
| 3 | 6693135 | CABLE |
| 4 | 6693036 | STARTER HOUSING |
| 5 | 6693111 | STARTER SPRING |
| 6 | 6693157 | ROPE |
| 7 | 6693057 | STARTER PULLEY |
| 8 | 6693419 | WASHER |
| 9 | 6693632 | SCREW |
| Petrol Brushcutter Tanaka TBC 340 PF pag.2 | ||
| 2 | 6684879 | BODY PUMP |
| 3 | 6684687 | PRIMER HOLDER PLATE |
| 4 | 6684688 | LITTLE COVER |
| 5 | 6684689 | PRIMER |
| 6 | 6690830 | MEMBRANE |
| 7 | 6684691 | SEAL |
| 8 | 6684693 | MEMBRANE |
| 9 | 6691457 | SEAL |
| 10 | 599-2001W-38 | JET |
| 11 | 6684695 | O-RING |
| 12 | 6684696 | RING |
| 13 | 6684697 | SCREW |
| 15 | 6684870 | SCREW |
| 16 | 6684873 | SUPPORT |
| 17 | 6684872 | NUT |
| 18 | 6684871 | BOLT |
| 19 | 6684875 | RING |
| 20 | 6684699 | ADJUST SCREW |
| 21 | 6684874 | WASHER |
| 201 | 6684700 | FILTER |
| Petrol Brushcutter Tanaka TBC 340 PF pag.3 | ||
| 1 | P289-0143C-800B | CLUTCH DRUM |
| 2 | 6695532 | BEARING |
| 3 | 1070001A1 | SEEGER |
| 4 | 6689696 | FLANGE |
| 5 | 6691824 | SHOCK |
| 6 | 6695042 | SCREW |
| 7 | P1020056 | WASHER |
| 8 | 6695048 | SCREW |
| 9 | P1020056 | WASHER |
| 10 | 6689222 | CLUTCH COVER |
| 11 | P1010261 | SCREW |
| 12 | 1020008A1 | WASHER |
| 13 | P1010207 | SCREW |
| 14 | P1020056 | WASHER |
| 15 | P249-0165A-21 | PLATE |
| Petrol Brushcutter Tanaka TBC 340 PF pag.4 | ||
| 19 | 6689177 | THICKNESS 0.10 ON REQUEST |
| 19 | 6689178 | THICKNESS 0.15 ON REQUEST |
| 19 | 6684604 | THICKNESS 0,20 ON REQUEST |
| 19 | 6684605 | THICKNESS 0.30 ON REQUEST |
| 24 | 6687375 | FLYWHEEL |
| 25 | 6684612 | NUT |
| 27 | 6695184 | WASHER |
| 31 | 6686586 | ENGINE CRANCK CASE ASSY |
| 32 | 6684607 | OIL-SEAL |
| 33 | 6695535 | BALL BEARING |
| 34 | 6686723 | GASKET |
| 36 | 6684903 | BOLT 5X16S |
| 54 | 6684611 | WASHER |
| 55 | 6693394 | STARTER CUP ASSY |
| 56 | 6693299 | PAWL |
| 57 | 6693345 | SPRING |
| 61 | 6695508 | BOLT |
| Petrol Brushcutter Tanaka TBC 340 PF pag.5 | ||
| 1 | 6687468 | SPARK PLUG CAP |
| 2 | 6685775 | SPARK PLUG CAP |
| 6 | 6685491 | CYLINDER AND GASKET |
| 7 | 6684903 | BOLT 5X16S |
| 9 | 6685749 | GASKET |
| 11 | 6685081 | PISTON RING |
| 12 | 6685898 | PISTON ASSY |
| 13 | 6685078 | CIRCLIP |
| 14 | 6686008 | PISTON PIN |
| 16 | 6696499 | CRANKSHAFT |
| 17 | 6695592 | BEARING |
| 18 | 6684899 | KEY |
| 40 | 6687874 | CABLE |
| 43 | 6687663 | IGNITION COIL |
| 46 | 6684599 | SCREW |
| 50 | 6687666 | IGNITION COIL COMPL. |
| 55 | 6687889 | CABLE |
| 56 | 6684602 | CABLE |
| 57 | 6684600 | WASHER |
| Petrol Brushcutter Tanaka TBC 340 PF pag.6 | ||
| 1 | P5160028 | COMPLETE PROTECTION |
| 2 | P4010614 | FIXED CUP |
| 3 | P5160029 | COMPLETE FREE CUP |
| 4 | P1050040 | NUT |
| 6 | P3040575 | LOWER BLADE SUPPORT |
| 7 | P2090045 | COMPLETE GEAR BOX |
| 8 | P1010237 | NUT |
| 9 | P4010353BR | BLADE |
| 10 | 6684748 | LOWER SUPPORT |
| 11 | P2020404 | LOWER PROTECTION |
| 12 | 2020502 | UPPER CARTER |
| 13 | 6695334 | SCREW |
| 14 | 60133411201 | FREE CUP |
| 15 | 6695537 | BEARING |
| 16 | P3040578 | PIN |
| 17 | 1020008A1 | WASHER |
| 18 | P4010615 | CUP |
| 19 | 6695285 | SEEGER |
| 20 | P602-33411-201 | FLANGE |
| 21 | P1010066 | SCREW |
| 23 | 3060198 | CROWN + SPINDLE |
| 24 | P3030052 | BALL BEARING |
| 25 | P3030053 | BALL BEARING |
| 26 | P3030051 | BALL BEARING |
| 27 | 3050140 | SPROKET |
| 28 | P1010322 | GREASE |
| 29 | 1020008A1 | WASHER |
| 30 | P1070035 | SEEGER |
| 31 | P1070034 | SEEGER |
| 32 | P1070014 | SEEGER |
| 33 | P3040574 | UPPER BLADE SUPPORT |
| 34 | P3050142 | CARTER HEAD |
| 35 | P1010361 | SCREW |
| 36 | P1010207 | SCREW |
| 37 | P1010361 | SCREW |
| 38 | 1020008A1 | WASHER |
| Petrol Brushcutter Tanaka TBC 340 PF pag.7 | ||
| 1 | P3080051 | COMPLETE CONTROL HANDLE |
| 2 | 6696224 | THROTTLE CABLE AND STOP SWITCH |
| 3 | 6696233 | THROTTLE CABLE |
| 4 | 6697028 | STOP SWITCH |
| 5 | 6687527 | GUARD |
| 6 | 6684721 | SAFETY LEVER |
| 7 | 6684722 | SPRING |
| 8 | 6684724 | PLATE |
| 9 | 6684803 | SCREW |
| 10 | 6684727 | NUT |
| 11 | 6684725 | SCREW |
| 12 | 6684804 | THROTTLE LEVER |
| 13 | 1020013A1 | WASHER |
| 14 | 1050003A1 | NUT |
| 15 | P1010226 | SCREW |
| 16 | P2020394 | PROTECTION ROD |
| 17 | 6691049 | HANDLE ROD |
| 18 | P3040577 | TRANSMISSION SHAFT |
| 19 | P2090014 | RUBBER |
| 20 | P2090020 | RUBBER ROD |
| 21 | 6692859 | HARNESS |
| 22 | 6689274 | BRACKET SUPPORT |
| 23 | 6689258 | HOLDER STOP |
| 24 | 6695052 | SCREW |
| 25 | P1020099 | WASHER |
| 26 | 6689100 | PLATE |
| 27 | 6691098 | HANDLE |
| 28 | P1020055 | WASHER |
| 29 | P1010179 | SCREW |
| Petrol Brushcutter Tanaka TBC 340 PF pag.8 | ||
| 80 | 6689895 | SEAL |
| 81 | 6689972 | MANIFOLD + GASKET |
| 82 | 6695515 | SCREW |
| 85 | 6684616 | GASKET |
| 86 | 6691276 | LEVER |
| 88 | 6690120 | AIR FILTER BODY |
| 89 | 6690365 | AIR FILTER ELEMENT |
| 90 | 6690402 | AIR FILTER COVER |
| 91 | 6690384 | SCREW |
| 94 | 6695056 | BOLT |
| 95 | 6684662 | WASHER |
| 96 | 6684864 | WASHER |
| 98 | 6690465 | CARBURETOR + GASKET |
| 99 | 6691239 | AIR LEVER |
| 100 | 6691598 | TANK |
| 109 | 6684623 | COLLAR |
| 110 | 6697846 | RUBBER |
| 111 | 6684880 | HOSE |
| 112 | 6698874 | FUEL FILTER |
| 113 | 6684619 | HOSE CLAMP |
| 114 | 6684618 | HOSE |
| 115 | 6695494 | SCREW |
| 116 | 6684634 | SCREW |
| 117 | 6685049 | TANK CAP |
| 118 | 6695280 | SCREW |
| 119 | 6685070 | WASHER |
| 120 | 6684918 | WASHER |
| 121 | 6692183 | COLLAR |
| 125 | 6694786 | ENGINE SUPPORT |
| 200 | 6692059 | CAP CHAIN |
| Petrol Brushcutter Tanaka TBC 340 PF pag.9 | ||
| 1 | 6697010 | CYLINDER HEADSET |
| 4 | 6695504 | SCREW |
| 5 | 6695067 | SCREW |
| 6 | 6684639 | WASHER |
| 7 | 6692572 | MUFFLER - S / N B050500 |
| 7 | 6692573 | MUFFLER - S / N B050501- |
| 10 | 6692715 | EXHAUST |
| 11 | 6684651 | SCREW |
| 13 | 6692701 | HEAT GUARD |
| 14 | 6692888 | GASKET |
| 16 | 6687263 | HEAT PROTECTION |
| 21 | 6692811 | MUFFLER PROTECTION |
| 24 | 6695508 | BOLT |
| 30 | 6688351 | LCOVER |
| 31 | 6689645 | WASHER |
| 32 | 6688610 | CLUTCH ARM |
| 33 | 6689420 | CLUTCH SPRING |
| 35 | 6689628 | BOLT |
| 36 | 6684647 | SCREW |
| 38 | 6695203 | WASHER |
| 39 | 6684682 | SCREW |
| 43 | 6687021 | FLYWHEEL COVER |
| 71 | 6688057 | RUBBER |
