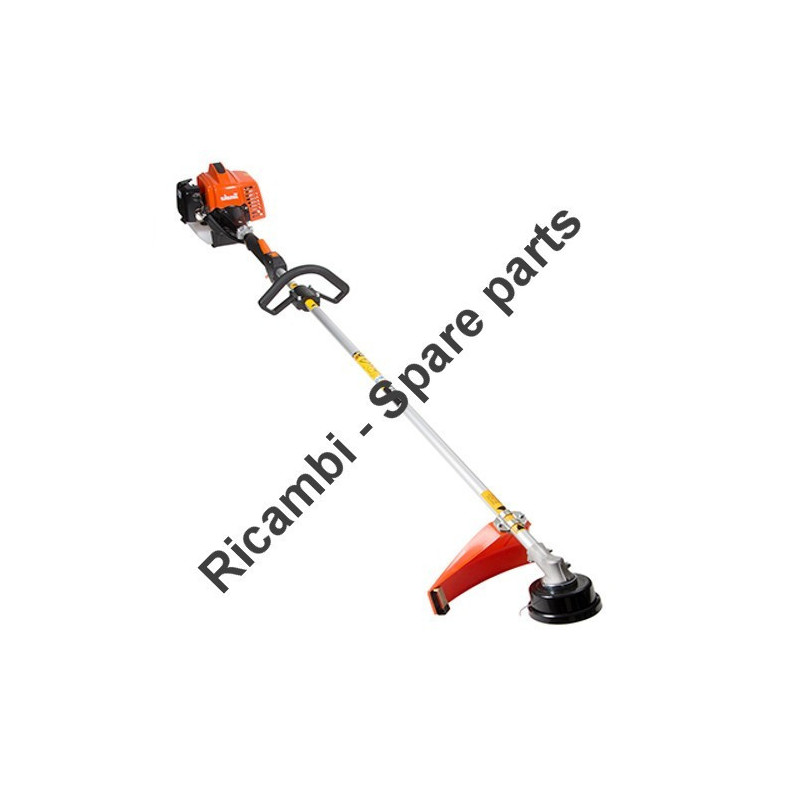

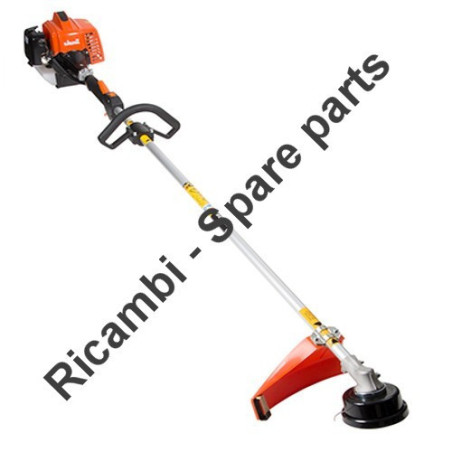

Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
€33.63
Tax included
Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
Original spare parts Tanaka recommended for you, at the lowest prices with quick delivery, for to make maintenance or repair Engine Brush Cutter TBC-225CS.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
Original spare parts Tanaka recommended for you, at the lowest prices with quick delivery, for to make maintenance or repair Engine Brush Cutter TBC-225CS.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.
| Engine Brush Cutter TBC-225CS | ||
| # | Part Num. | Description |
| 1 | 6687468 | SPARK PLUG CAP ASS'Y |
| 2 | 6699317 | SPARK PLUG ASS'Y BPM6A |
| 3 | 6685489 | CYLINDER SET |
| 4 | 6684586 | HEX.HOLE BOLT M5X18/S |
| 5 | 6685709 | CYLINDER GASKET |
| 6 | 6686118 | PISTON RING |
| 7 | 6685869 | PISTON ASS'Y |
| 8 | 6684590 | CIR CLIP |
| 9 | 6696944 | PISTON PIN |
| 10 | 6686217 | CRANK SHAFT COMP. |
| 11 | 6687888 | HIGH TENSION CORD 140L |
| 13 | 6684682 | HEX. HOLE BOLT 4X15/PS |
| 14 | 6699772 | IGNITION COIL ASS'Y - DISCONTINUED |
| 15 | 6684602 | RUBBER CAP |
| 31 | 6684604 | GEAR SHAFT SHIM 0.20 |
| 31 | 6684605 | GEAR SHAFT SHIM 0.30 |
| 32 | 6686585 | CRANK CASE ASS'Y |
| 33 | 6684607 | OIL SEAL TB 12227 |
| 34 | 6684608 | BALL BEARING 6001 C3 |
| 35 | 6686719 | CRANK CASE GASKET |
| 36 | 6684586 | HEX.HOLE BOLT M5X18/S |
| 38 | 6684611 | BOLT WASHER M8 |
| 39 | 6684612 | HEX. NUT M8 |
| 51 | 6689890 | INLET MANIFOLD GASKET |
| 52 | 6689914 | CARB INSULATOR SET |
| 53 | 6684615 | CARBURETOR GASKET |
| 54 | 6695514 | HEX.HOLE BOLT 5X22/WS |
| 57 | 6688174 | SHIELD TUBE |
| 58 | 6684619 | CLIP,6.3 DIA. |
| 61 | 6691748 | TANK CAP D ASS'Y |
| 62 | 6692244 | COLLAR 5.8 |
| 63 | 6690512 | CARBURETOR SET WYL182 |
| 64 | 6691337 | SWIVEL CAP |
| 65 | 6695504 | HEX. HOLE BOLT 5X16/PS |
| 68 | 6684880 | FUEL PIPE 3X5X85 |
| 69 | 6697846 | RETURN GROMMET |
| 91 | 6692809 | MUFFLER PROTECTOR BLACK |
| 94 | 6684637 | TAPPING SCREW D4.5X12 |
| 95 | 6685114 | HEX. SOCKET HD. BOLT M5X50 |
| 96 | 6684918 | WASHER M5 (BLACK) |
| 100 | 6692745 | MUFFLER GASKET |
| 101 | 6687253 | HEAT SHIELD |
| 103 | 6684642 | CLUTCH WASHER B |
| 104 | 6688616 | CLUTCH SHOE COMP.,T-16 |
| 105 | 6689430 | CLUTCH SPRING |
| 106 | 6684645 | CLUTCH PLATE A 0.5 |
| 107 | 6689627 | STEP BOLT |
| 108 | 6684648 | BENT WASHER 8 |
| 110 | 6684647 | HEX. HOLE BOLT M5X18/WS |
| 112 | 6684973 | HEX.HOLE BOLT M5X30/WS |
| 113 | 6688011 | CORD CLAMP COMP. |
| 114 | 6692883 | MUFFLER SPECIAL GASKET |
| 116 | 6685109 | MACHINE SCREW (W/SP. WASHER) M4X8 |
| 131B | 6601570 | RECOIL STARTER BODY ASS'Y |
| 133 | 6684674 | STARTER ROPE 3.5X860 |
| 134 | 6684675 | RECOIL SPRING |
| 135A | 6699997 | STARTER ROPE REEL |
| 136 | 6684677 | DAMPER SPRING |
| 137A | 6699996 | CAM PLATE |
| 138 | 6684679 | SET SCREW |
| 139 | 6684680 | STARTER HANDLE |
| 140 | 6684681 | STARTER PULLEY ASS'Y |
| 141 | 6695508 | HEX. HOLE BOLT 4X18WS |
| 142 | 6684683 | STOP RING E-5 |
| 143 | 6684684 | STARTER PAWL SPRING |
| 144 | 6684685 | STARTER PAWL |
| 145 | 6699691 | CAMPLATE ASS'Y |
| 171 | 6690005 | AIR CLEANER ASS'Y |
| 172 | 6690139 | AIR CLEANER CAP |
| 173 | 6690347 | CLEANER ELEMENT |
| 175 | 6690801 | COLLAR |
| 191 | 6684879 | PUMP BODY COMP. |
| 192 | 6684687 | PRIMING PUMP COMP. |
| 194 | 6684689 | PRIMING BODY |
| 195 | 6690830 | METERING DIAPHRAGM COMP. |
| 196 | 6684691 | DIAPHRAGM GASKET |
| 197 | 6684693 | PUMP DIAPHRAGM |
| 198 | 6691457 | PUMP GASKET |
| 199 | 6691844 | MAIN JET #38 |
| 200 | 6684695 | O-RING |
| 201 | 6684696 | STOP RING |
| 202 | 6684697 | SWIVEL |
| 203 | 6684698 | THROTTLE SET SCREW |
| 205 | 6684700 | INLET SCREEN |
| 222 | 6685152 | TAPPING SCREW D4.5X14 |
| 223 | 6684973 | HEX.HOLE BOLT M5X30/WS |
| 267 | 6695547 | BALL BEARING 608 ZZ C3 |
| 272 | 6684971 | S.WASHER 8 |
| 277 | 6684639 | BOLT WASHER 6 |
| 281 | 6685074 | TAPPING SCREW D5X16 |
| 282 | 6689501 | HOLDER, PIPE BLK |
| 322 | 6685075 | NUT M5 (BLACK) |
| 331 | 6685076 | MACHINE SCREW M5X30 |
| 332 | 6684965 | NUT M5 |
| 333 | 6685275 | TAPPING SCREW D5X14 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka TBC-225CS
12 Items
