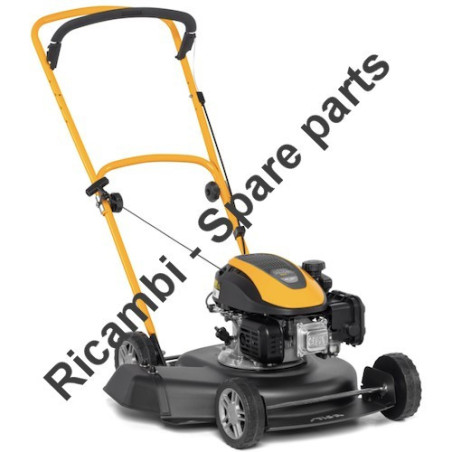

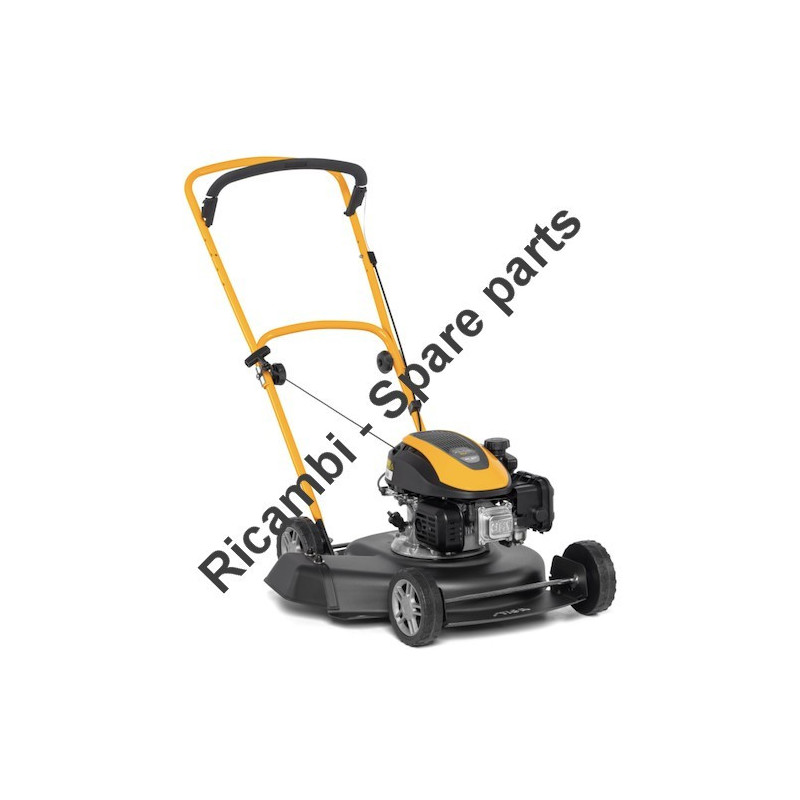

STIGA Spare Parts for Lawnmower DINO 47 (2019)
€206.08
Tax included
STIGA Spare Parts for Lawnmower DINO 47 (2019) 292470148/S16
STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower DINO 47 (2019) [292470148/S16.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
STIGA Spare Parts for Lawnmower DINO 47 (2019) 292470148/S16
STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawnmower DINO 47 (2019) 292470148/S16.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| Lawnmower DINO 47 (2019) 292470148/S16 pag.1 | ||
| # | Part Num. | Description |
| 1 | 381004733/0 | Grey Deck |
| 6 | 322600159/0 | Stone Guard, Black |
| 7 | 381008502/0 | Outfit, Screws |
| 8 | 322041958/0 | Bushing |
| 9 | 112793701/0 | Screw |
| 10 | 122671651/0 | Washer |
| 11 | 322551577/0 | Isolation Plate |
| 12 | 112155000/0 | Nut |
| 13 | 381007548/0 | Handle, Lower Part Yellow |
| 14 | 112361005/0 | Nut |
| 15 | 322399810/0 | Knob |
| 16 | 112521350/0 | Washer |
| 17 | 122430311/0 | Starting Rope Guide Spring |
| 18 | 112820655/0 | Screw |
| 19 | 322545137/0 | Handle, Upper Part Plate |
| 38 | 322192001/0 | Clamp |
| 39 | 112728691/0 | Screw |
| 40 | 114367494/2 | Logo STIGA |
| DINO 47 (2019) 292470148/S16 pag.2 | ||
| 1 | 381006632/1 | Handle, Upper Part Yellow |
| 2 | 381003298/0 | Lever, Engine Brake To 31-August-2004 |
| 2 | 381003298/1 | Lever, Engine Brake From 01-September-2004 |
| 3 | 181000685/0 | Cable, Thread Engine Brake From 01-September-2014 |
| 4 | 322551640/0 | Plate To S/N 20AA2WBH066503 |
| 4 | 322551685/0 | Plate Cable ø22 From S/N 20AA2WBH066504 |
| 5 | 112727783/0 | Screw |
| 6 | 112154510/0 | Nut |
| DINO 47 (2019) 292470148/S16 pag.3 | ||
| 1 | 322033375/0 | Axle To 31-August-2006 |
| 1 | 322033395/0 | Axle |
| 2 | 122450442/0 | Spring, Right |
| 3 | 122450441/0 | Left Spring |
| 4 | 122671654/0 | Washer |
| 5 | 112521370/0 | Washer From 01-September-2015 |
| 5 | 122671659/0 | Washer To 31-August-2015 |
| 6 | 322600095/0 | Protection, Wheel |
| 7 | 122122200/0 | Bearing From 01-September-2006 To 31-August-2019 |
| 7 | 122122202/0 | Bearing To S/N 20BA2WBH028059 |
| 7 | 122122206/0 | Bearing From S/N 20BA2WBH028060 |
| 8 | 322686091/1 | Wheel Ø 165 From 01-September-2006 |
| 8 | 381007346/0 | Wheel To 31-August-2006 |
| 10 | 122020050/0 | Ring |
| 11 | 322110491/0 | Hub Cap Grey |
| 12 | 122430215/0 | Spring |
| DINO 47 (2019) 292470148/S16 pag.4 | ||
| 1 | 1111-9066-01 | Hub Stiga Packed into 122465617/0 |
| 1 | 122465617/0 | Hub |
| 2 | 1111-9502-02 | Blade Standard Stiga Packed into 181004124/1 |
| 2 | 181004124/0 | Blade Standard To 31-August-2007 |
| 2 | 181004124/1 | Blade Standard From 01-September-2007 |
| 3 | 112530140/0 | Washer |
| 4 | 112735694/0 | Screw |
| 5 | 112139100/0 | Key |
| 6 | 112735108/0 | Screw To 31-August-2007 |
| 6 | 112735108/1 | Screw From 01-September-2007 |
| 7 | 112521355/0 | Washer |
| DINO 47 (2019) 292470148/S16 pag.5 | ||
| 1 | 118550941/1 | Engine Assembly |
| 2 | 112292102/0 | Nut |
| 3 | 118551467/0 | Starter Assy Cover |
| 4 | 118551619/0 | Starter handle |
| 5 | 118550779/0 | Starter rope |
| 6 | 118551621/0 | Starter spring |
| 7 | 118551620/0 | Starter Pulley |
| 8 | 118551626/0 | Spring |
| 9 | 118551622/0 | Starter Pawl |
| 10 | 118551625/0 | Spring |
| 11 | 118551623/0 | Cover |
| 13 | 118551624/0 | Recoil Pulley Bolt |
| 14 | 118550908/0 | Fan Cover |
| 15 | 118550907/0 | Pin |
| 16 | 118550906/0 | Pin |
| 17 | 112791500/0 | Screw |
| 18 | 118551475/0 | Electronic Ignition coil |
| 20 | 9400-0244-00 | Spark Plug |
| 21 | 112789000/0 | Screw |
| 22 | 118551456/0 | Auto-Choke Control |
| 23 | 118551459/0 | Choke Control Rod |
| 24 | 118551352/0 | Retaining Clip |
| 25 | 118551451/1 | Carburetor |
| 26 | 118550930/0 | Stud Bolt |
| 27 | 118550929/0 | Gasket |
| 28 | 118550928/0 | Carburettoe Insulator |
| 29 | 118550927/0 | Gasket |
| 30 | 118550924/0 | Gasket |
| 31 | 118551461/0 | Air Filter Assembly |
| 32 | 118550946/0 | Filter element |
| 33 | 118550945/0 | Filter element |
| 34 | 118550944/0 | Air Filter Cover |
| 35 | 112292102/0 | Nut |
| 36 | 118551481/0 | Fuel Pipe |
| 37 | 118550918/0 | Pipe Clip |
| 38 | 118550314/0 | Fuel Filter |
| 39 | 118551454/0 | Fuel Tank |
| 40 | 118550943/0 | Tank Tank cap |
| 41 | 112792099/0 | Screw |
| 42 | 118550920/0 | Breather fuel pipe |
| 43 | 118550933/0 | Governor Arm |
| 44 | 118550931/0 | Plate |
| 45 | 112789000/0 | Screw |
| 46 | 118550932/0 | Spring |
| 47 | 118550805/0 | Screw |
| 48 | 118550806/0 | Nut |
| 49 | 118550925/0 | Governor rod |
| 50 | 118550898/0 | Muffler gasket |
| 51 | 118551464/0 | Muffler |
| 52 | 112792425/0 | Screw |
| 53 | 118550900/0 | Muffler Guard |
| 54 | 118551277/0 | Bolt |
| DINO 47 (2019) 292470148/S16 pag.6 | ||
| 1 | 118550336/0 | Nut |
| 2 | 118550905/0 | Flywheel Ass.Y |
| 3 | 118551277/0 | Bolt |
| 4 | 112791500/0 | Screw |
| 5 | 118551483/0 | Flywheel Brake/Stop Switch |
| 6 | 118550911/0 | Spring |
| 7 | 118550300/0 | Oil Seal |
| 9 | 112789000/0 | Screw |
| 10 | 118550904/0 | Cover |
| 11 | 118550903/0 | Oil Breath gasket |
| 12 | 118550902/0 | Valve |
| 13 | 118551447/0 | Crankshaft |
| 14 | 118550288/0 | Woodruff key |
| 15 | 118550283/0 | Washer |
| 16 | 118550890/0 | Camshaft |
| 18 | 112789000/0 | Screw |
| 19 | 118550888/0 | Speed Governor |
| 20 | 118550936/0 | Governor Arm shaft |
| 21 | 118550666/0 | Washer |
| 22 | 118550935/0 | Oil Seal |
| 23 | 118550856/0 | Cotter pin |
| 24 | 118550379/0 | Oil Seal |
| 25 | 118551209/0 | Engine crankcase |
| 26 | 118550887/0 | Oil Dipstick Assy |
| 27 | 112791500/0 | Screw |
| 28 | 118551276/0 | Bolt |
| 29 | 118550891/0 | Head Cover |
| 30 | 118550892/0 | Gasket |
| 31 | 118550893/0 | Rocker Valve Arm Set |
| 32 | 118550894/0 | Plate |
| 33 | 118550895/0 | Retainer Valve Spring |
| 34 | 118550896/0 | Spring |
| 35 | 118550910/0 | Intake + Exhaust Valve Kit |
| 36 | 118550291/0 | Valve lifter assy |
| 37 | 118550912/0 | Push Rod |
| 38 | 118551482/0 | Piston |
| 39 | 118551445/0 | Piston Ring Set |
| 40 | 118550915/0 | Piston pin |
| 41 | 118550914/0 | Circlip |
| 42 | 118550916/0 | Connecting rod |
| 43 | 118551223/0 | Dowl pin |
| 45 | 118550940/0 | Engine Gaskets Set |
| DINO 47 (2019) 292470148/S16 pag.7 | ||
| 1 | 322055629/0 | Engine Cover Insert Grey] |
| 2 | 322055630/0 | Stiga Ext.Insert Cover St120-140 Yellow |
| 3 | 322055627/0 | Premium Insert Cover Grey] |
