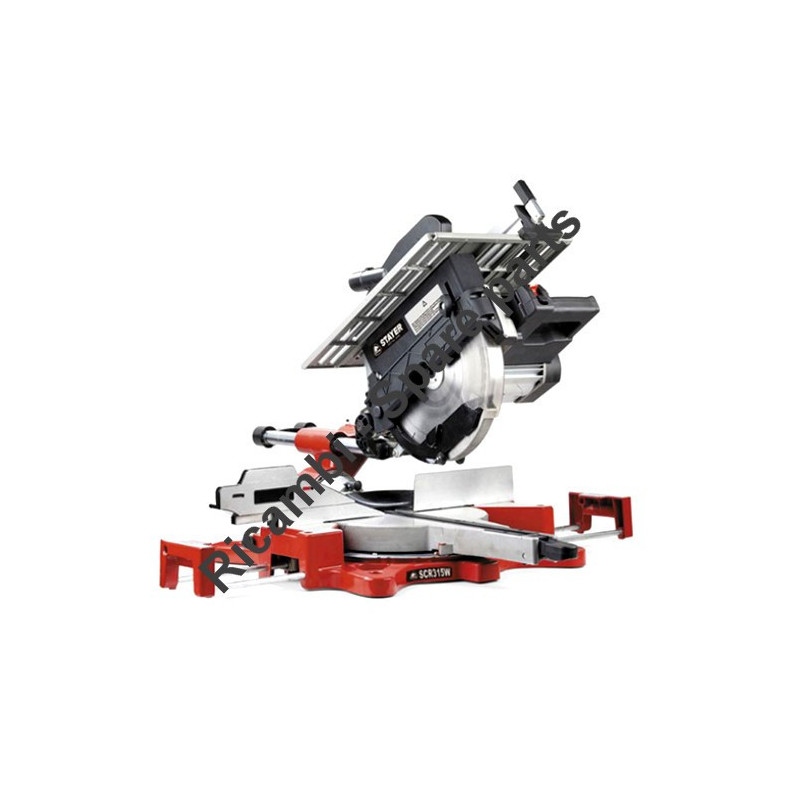

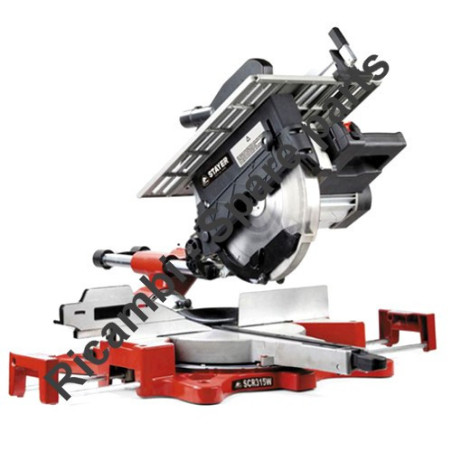

Stayer Spare Parts for Miter Saw SCR 315W
€18.76
Tax included
Stayer Spare Parts for Miter Saw SCR 315W
Stayer Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Miter Saw SCR 315W.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Stayer Spare Parts for Miter Saw SCR 315W
Stayer Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Miter Saw SCR 315W.In the following table, look for the model of the Miter Saw and the respective parts of the code.
| Miter Saw SCR 315W | ||
| # | Part NUm. | Description |
| 1 | 41041032 | HANDLE UPPER |
| 2 | 41041033 | SCREW |
| 3 | 41041034 | PRESSING SPRING |
| 4 | 41041035 | INTERNAL HEXAGON |
| 5 | 41041036 | CAPACITOR |
| 6 | 41041037 | SWITCH |
| 7 | 41041038 | SOFT START |
| 8 | 41041039 | PAN HEAD SCREW |
| 9 | 41041040 | STRAIN RELIEF |
| 10 | 41041041 | WIRE HOLDER |
| 11 | 41041042 | SCREW |
| 12 | 41041043 | LOCKING HANDLE |
| 13 | 41041044 | HANDLE |
| 14 | 41041045 | PAUSE BUTTON |
| 15 | 41041046 | SWITCH PRESSING BOARD |
| 16 | 41041047 | CYLINDER PIN |
| 17 | 41041048 | BIG FLAT PLATE |
| 18 | 41041049 | LOCKING LEVER |
| 19 | 41041050 | LOXKING NUT |
| 20 | 41041051 | FLAT PLATE |
| 21 | 41041052 | FLAT PLATE |
| 22 | 41041053 | SPRING PLATE |
| 23 | 41041054 | FRAME |
| 24 | 41041055 | BACK PLATE |
| 25 | 41041056 | ANGLE LOXATED SPRING |
| 26 | 41041057 | BOLT |
| 27 | 41041058 | SHAFT |
| 28 | 41041059 | PIN SHAFT |
| 29 | 41041060 | PRESSING SPRING |
| 30 | 41041061 | ROUND PLATE |
| 31 | 41041062 | SET SCREW |
| 32 | 41041063 | SAUCER |
| 33 | 41041064 | SPRING PLATE |
| 34 | 41041065 | PAN HEAD SCREW |
| 35 | 41041066 | PRESSING SPRING |
| 36 | 41041067 | PLATE |
| 37 | 41041068 | NUT |
| 38 | 41041069 | HANDLE |
| 39 | 41041070 | POSITION ROD |
| 40 | 41041071 | POSITION ROD |
| 41 | 41041072 | CLIPPING BOARD |
| 42 | 41041073 | BIG SCREW |
| 43 | 41041074 | ASSISTANT WIRE |
| 44 | 41041075 | SET SCREW |
| 45 | 41041076 | SHAFT |
| 46 | 41041077 | SHAFT2 |
| 47 | 41041078 | HANDLE |
| 48 | 41041079 | PUSH BUTTON |
| 49 | 41041080 | PRESSING SPRING |
| 50 | 41041081 | PAN HEAD SCREW |
| 51 | 41041082 | FIXED BASE |
| 52 | 41041083 | SLIDING CORE |
| 53 | 41041084 | NUT |
| 54 | 41041085 | BOTTON |
| 55 | 41041086 | PAN HEAD SCREW |
| 56 | 41041087 | BIG FLAT PLATE |
| 57 | 41041088 | LOCKING NUT |
| 58 | 41041089 | METER PLATE |
| 59 | 41041090 | NUT |
| 60 | 41041091 | BASE |
| 61 | 41041092 | HANDLE |
| 62 | 41041093 | SHAFT |
| 63 | 41041094 | SPACING BOARD |
| 64 | 41041095 | ASSISTANT TABLE |
| 65 | 41041096 | PLATE |
| 66 | 41041097 | LEVER |
| 67 | 41041098 | PIN SHAFT |
| 68 | 41041099 | BOLT |
| 69 | 41041100 | POINTER2 |
| 70 | 41041101 | HANDLE |
| 71 | 41041102 | FLAT PLATE |
| 72 | 41041103 | PAN HEAD SCREW |
| 73 | 41041104 | COVER |
| 74 | 41041105 | PAN HEAD SCREW |
| 75 | 41041106 | POINTER2 |
| 76 | 41041107 | PAN HEAD SCREW |
| 77 | 41041108 | FENCE |
| 78 | 41041109 | SET SCREW |
| 79 | 41041110 | HANDLE |
| 80 | 41041111 | IDLER WHEEL |
| 81 | 41041112 | PLASTIC GUARD |
| 82 | 41041113 | PULLING SPRING |
| 83 | 41041114 | SLOT RING |
| 84 | 41041115 | METAL GUARD |
| 85 | 41041116 | LWFT BACK GUARD |
| 86 | 41041117 | FENCE |
| 87 | 41041118 | SHAFT RING |
| 88 | 41041119 | CONNECTING BAR |
| 89 | 41041120 | BLADE |
| 90 | 41041121 | BLADE POSITION RING |
| 91 | 41041122 | INTERNAL HEXAGON |
| 92 | 41041123 | FLAT PLATE |
| 93 | 41041124 | INTERNAL HEXAGON |
| 94 | 41041125 | SPRING PLATE |
| 95 | 41041126 | PUSH BUTTON |
| 96 | 41041127 | PAN HEAD SCREW |
| 97 | 41041128 | NUT |
| 98 | 41041129 | BODY |
| 99 | 41041130 | SPRING |
| 100 | 41041131 | RIGHT BACK GUARD |
| 101 | 41041132 | BLADE PRESSING BOARD |
| 102 | 41041133 | SPRING PLATE |
| 103 | 41041134 | TORSION SPRING |
| 104 | 41041135 | INTERNAL HEXAGON |
| 105 | 41041136 | BIG GUARD |
| 106 | 41041137 | PAN HEAD SCREW |
| 107 | 41041138 | INTERNAL HEXAGON |
| 108 | 41041139 | SQUARE GUARD |
| 109 | 41041140 | BIG SCREW |
| 110 | 41041141 | PULLING ROD |
| 111 | 41041188 | PAN HEAD SHOULDER SCREW |
| 112 | 41041142 | PAN HEAD SCREW |
| 113 | 41041143 | BIG FLAT PLATE |
| 114 | 41041144 | HANDLE |
| 115 | 41041145 | UPPER WORKING TABLE |
| 116 | 41041146 | BLADE BOARD |
| 117 | 41041147 | LEFT COVER |
| 118 | 41041148 | BIG SCREW |
| 119 | 41041149 | RIGHT COVER |
| 120 | 41041150 | PAN HEAD SCREW |
| 121 | 41041151 | PAN HEAD SCREW |
| 122 | 41041152 | GUIDING SHAFT |
| 123 | 41041153 | BIG FLAT PLATE |
| 124 | 41041154 | STRAIN RELIEF |
| 125 | 41041155 | PAN HEAD SCREW |
| 126 | 41041156 | SPACING BOARD |
| 127 | 41041157 | PAN HEAD SXREW |
| 128 | 41041158 | SET SCREW |
| 129 | 41041159 | LINING |
| 130 | 41041160 | BIG TORSION SPRING |
| 131 | 41041161 | LOCKING LEVER |
| 132 | 41041162 | LINING FOR SPRING |
| 133 | 41041163 | O RING |
| 134 | 41041164 | SET SCREW |
| 135 | 41041165 | SLIDING SUPPORT |
| 136 | 41041166 | ANGLE HEAD |
| 137 | 41041167 | SQUARE NUT |
| 138 | 41041168 | HANDLE |
| 139 | 41041169 | ANGLE |
| 140 | 41041170 | ANGLE ALUMINIUM |
| 141 | 41041171 | ANGLE HEAD |
| 142 | 41041172 | ANGLE SPRING PLATE |
| 143 | 41041173 | BASE |
| 144 | 41041174 | POSITION LIMITED WHEEL |
| 145 | 41041175 | SCREW |
| 146 | 41041176 | MAIN SLIDING SHAFT |
| 147 | 41041177 | BACK SUPPORT |
| 148 | 41041178 | CABLE SHEATH |
| 149 | 41041179 | ASSITANT SLIDING SHAFT |
| 150 | 41041180 | SCREW |
| 151 | 41041181 | LINE BEARING |
| 152 | 41041182 | SCREW |
| 153 | 41041183 | ADJUSTING BLOCK |
| 154 | 41041184 | PRESSING SPRING |
| 155 | 41041185 | HANDLE |
| 156 | 41041186 | SCREW |
| 157 | 41041187 | INDUCTIVE MOTOR |
| 80-83+84 | 40141323 | CARTER SET |
| 2+3+12 | 40141324 | HANDLE SET |
| 158 | 41041488 | GUIDE SET |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
