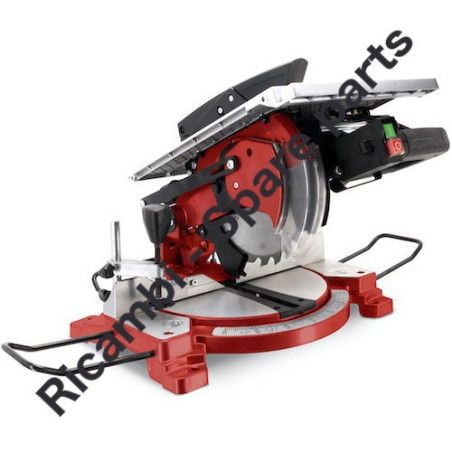

Stayer Mitre Saw SC210CW Parts
€4.66
Tax included
Stayer Spare Parts for Mitre Saw SC210CW
Stayer genuine spare parts for Wood Miter Saw SC210CW. Select and purchase the components you need for a quick and professional repair. Download the Technical Data Sheet PDF to help you choose the right spare parts.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Stayer Spare Parts for Mitre Saw SC210CW
Stayer genuine spare parts for Wood Miter Saw SC210CW. Select and purchase the components you need for a quick and professional repair. Download the Technical Data Sheet PDF to help you choose the right spare parts.In the following table, look for the model of the Mitre Saw and the respective parts of the code.
|
Mitre Saw Stayer SC210CW
|
||
|
#
|
Part Num.
|
Description
|
|
1
|
8110.3750
|
CONNECTING ROD |
|
2
|
8110.3751
|
M6X14 CROSS COUNTERSUNK HEAD SCREWS |
|
3
|
8110.3752
|
BASE |
|
4
|
8110.3753
|
FOOT-PAD |
|
5
|
8110.3754
|
M4X12 SCREWS |
|
6
|
8110.3755
|
BASE SCALE |
|
7
|
8110.3756
|
Φ8X24X2 FLAT WASHER |
|
8
|
8110.3757
|
M8 LOCK NUT |
|
9
|
8110.3758
|
Φ8 STEEL BALL |
|
10
|
8110.3759
|
LOCKING COMPRESSION SPRING (PLASTIC BOTTOM) |
|
11
|
8110.3760
|
M8X8 HEXAGON SOCKET SET SCREWS |
|
12
|
8110.3761
|
M5X10 CROSS PAN HEAD SCREWS |
|
13
|
8110.3762
|
FALL PREVENTION SUPPORT |
|
14
|
8110.3763
|
FRICTION PLATE（BIG） |
|
15
|
8110.3764
|
CROSS-BAR |
|
16
|
8110.3765
|
M6X12 SMALL KNOB |
|
17
|
8110.3766
|
Φ6 SPRING WASHER |
|
18
|
8110.3767
|
M6X25 SOKET HEAD CAP SCREW |
|
19
|
8110.3768
|
M6X35 SMALL KNOB |
|
20
|
8110.3769
|
M4X8 CROSS COUNTERSUNK HEAD SCREWS |
|
21
|
8110.3770
|
BOTTOM FENDER |
|
22
|
8110.3771
|
ANGLE POSITIONING PLATE |
|
23
|
8110.3772
|
M6 HEX NUT |
|
24
|
8110.3773
|
TURNTABLE |
|
25
|
8110.3774
|
M8X30 CENTRAL SHAFT OF THE TURNTABLE |
|
26
|
8110.3775
|
AUXILIARY INCISION |
|
28
|
8110.3776
|
TABLE SAW SHIELD |
|
29
|
8110.3777
|
M8X30 SQUARE NECK BOLT |
|
30
|
8110.3778
|
SCALE BLOCK (SUPPORT) |
|
31
|
8110.3779
|
M6X20 OUTER HEXAGON BOLT |
|
32
|
8110.3780
|
M6X18 HEXAGON SOCKET SCREW |
|
33
|
8110.3781
|
M6X16 OUTER HEXAGON BOLT |
|
34
|
8110.3782
|
SHORT SHAFT |
|
35
|
8110.3783
|
M5X6 CROSS PAN HEAD SCREWS |
|
36
|
8110.3784
|
M5X22 CROSS PAN HEAD SCREWS |
|
37
|
8110.3785
|
M5 NUT |
|
38
|
8110.3786
|
Φ SPRING WASHER |
|
39
|
8110.3787
|
M5X14 CROSS PAN HEAD SCREWS |
|
40
|
8110.3788
|
CONNECTING ROD SUPPORT PLATE |
|
41
|
8110.3789
|
M6X12 NON-STANDARD STEP SCREWS |
|
42
|
8110.3790
|
M6 LOCK NUT |
|
43
|
8110.3791
|
SCALE POINTER |
|
44
|
8110.3792
|
M4X8 CROSS PAN HEAD SCREWS |
|
45
|
8110.3793
|
Φ8 X22X2 FLAT WASHER |
|
46
|
8110.3794
|
ANGLE LOCKING HANDWHEEL |
|
47
|
8110.3795
|
HOLDER |
|
48
|
8110.3796
|
SELF-LOCK PIN |
|
49
|
8110.3797
|
Φ8.5X1.9 O-RING |
|
50
|
8110.3798
|
DRAW KNOB |
|
51
|
8110.3799
|
BIG TORSIONAL SPRING |
|
52
|
8110.3800
|
HEAD PIN |
|
53
|
8110.3801
|
SOCKET SPANNER |
|
54
|
8110.3802
|
M8X18 HEXAGON BOLT WITH LEFT FLANGE |
|
55
|
8110.3803
|
OUTER CLAMP |
|
56
|
8110.3841
|
SAW BLADE POSITIONING RING |
|
57
|
8110.3804
|
SAW BLADE |
|
58
|
8110.3805
|
INNER CLAMP |
|
59
|
8110.3806
|
M5X16 CROSS PAN HEAD SCREWS |
|
60
|
8110.3807
|
BEARING GLAND |
|
61-67
|
8110.3808
|
PLETINA DE COJINETE |
|
68
|
8110.3809
|
HK0910 NEEDLE BEARING |
|
69
|
8110.3810
|
DUST BLOCK CONNECTION PIN |
|
70
|
8110.3811
|
DUST BLOCK |
|
71
|
8110.3812
|
DUST BLOCK TORSION SPRING |
|
72
|
8110.3813
|
DUST BLOCK CONNECTION BLOCK |
|
73
|
8110.3814
|
HEAD COVER |
|
74
|
8110.3815
|
M5X8 CROSS PAN HEAD SCREWS |
|
75
|
8110.3816
|
HEAR COVER |
|
76
|
8110.3817
|
Φ4 FLAT WASHER |
|
77
|
8110.3818
|
SELF-LOCK LEVER |
|
78
|
8110.3819
|
LEVER SLEEVE |
|
79
|
8110.3820
|
M6X16 HEXAGON HEAD BOLT |
|
80
|
8110.3821
|
SLAN KNIFE |
|
81
|
8110.3822
|
M5X8 HEXAGON SOCKET SET SCREWS |
|
82
|
8110.3823
|
DUST MOUTH ON HEAD COVER |
|
83
|
8110.3824
|
M4X18 CROSS PAN HEAD SCREWS |
|
84
|
8110.3825
|
RUBBER PAD |
|
85
|
8110.3826
|
NON-STANDARD SCREWS |
|
86
|
8110.3827
|
LIFT SPRING |
|
87
|
8110.3828
|
POSITIONING BEAD SPRING |
|
88
|
8110.3829
|
6200 BEARING |
|
89
|
8110.3842
|
(ROTOR) SELF-LOCK |
|
90
|
8110.3830
|
SELF-LOCK SLEEVE |
|
91
|
8110.3831
|
WINDSHIELD |
|
92
|
8110.3832
|
ROTOR |
|
93
|
8110.3833
|
608 BEARING |
|
94
|
8110.3834
|
ST4.8X60 CROSS PAN HEAD TAPPING SCREWS |
|
95
|
8110.3835
|
STATOR |
|
96
|
8110.3836
|
HOUSING |
|
97
|
8110.3837
|
BRUSH HOLDER COVER |
|
98
|
8110.3838
|
CARBON BRUSHES ( 2 PCS ) |
|
99
|
8110.3839
|
BRUSH HOLDER |
|
100
|
8110.3840
|
HOUSING LABEL |
|
102
|
8110.3895
|
M5X25 CROSS PAN HEAD SCREWS |
|
103
|
8110.3843
|
ST3.9X14 CROSS PAN HEAD TAPPING SCREWS |
|
104
|
8110.3844
|
HANDLE(LOWER) |
|
105
|
8110.3845
|
SWITCH KJD17 |
|
106
|
8110.3846
|
CAPACITANCE |
|
107
|
8110.3847
|
INDUCTANCE |
|
108
|
8110.3848
|
HANDLE(UPPER) |
|
109
|
8110.3849
|
CABLE CLIP |
|
110
|
8110.3850
|
CABLE PLUG |
|
111
|
8110.3851
|
CONNECTING ROD SUPPORT PLATE |
|
112
|
8110.3852
|
M5X8 CROSS COUNTERSUNK HEAD SCREWS |
|
113
|
8110.3853
|
TRANSPARENT COVER REINFORCEMENT PLATE |
|
114
|
8110.3854
|
TRANSPARENT COVER |
|
115
|
8110.3855
|
M5X8 SCREWS |
|
116
|
8110.3856
|
M6X7 FLAT HEAD CROSS NON-STANDARD SCREWS |
|
117
|
8110.3857
|
TRANSPARENT HOOD TORSION SPRING |
|
118
|
8110.3858
|
TRANSPARENT COVER POSITIONING PLATE |
|
119
|
8110.3859
|
M8X8 FLANGE HEXAGON HEAD BOLTS |
|
120
|
8110.3860
|
TRANSPARENT HOOD SPRING PLATE (LARGE HOOD) |
|
121
|
8110.3861
|
TABLE LIFTING BASE |
|
122
|
8110.3862
|
Φ8X16X1 FLAT WASHER |
|
123
|
8110.3863
|
FIXED ROD CASING |
|
124
|
8110.3864
|
TABLE FIXING ROD |
|
125
|
8110.3865
|
TIGHTEN HANDLE |
|
126
|
8110.3866
|
BENCH LIFTING BLOCK |
|
127
|
8110.3867
|
M8X65 DOUBLE END STUD |
|
128
|
8110.3868
|
M4X6 CROSS PAN HEAD SCREWS |
|
129
|
8110.3869
|
CABLE CLIP(SMALL) |
|
130
|
8110.3870
|
RULER |
|
131
|
8110.3871
|
SAW BLADE GUARD (LEFT) |
|
132
|
8110.3872
|
SAW BLADE GUARD (RIGHT) |
|
133+136
+137+166+167
+168 |
8110.3873
|
UPPER CARTER SET |
|
135
|
8110.3874
|
M5 ANTI-LOOSE NUT |
|
138
|
8110.3875
|
M6X10 CROSS COUNTERSUNK HEAD SCREWS |
|
139
|
8110.3876
|
ST4.6X10 SCREWS |
|
140
|
8110.3877
|
WORKING TABEL |
|
141+142
+143+
144+145+ 146+147+ 148+149
+150+173+176
+180+181 +182 |
8110.3878
|
TABLE GUIDE SET |
|
151
|
8110.3879
|
CHARGING RAM |
|
152
|
8110.3880
|
TORSION SHAFT |
|
153
|
8110.3881
|
M4X8 SCREWS |
|
154
|
8110.3882
|
M6X8 CROSS COUNTERSUNK HEAD SCREWS |
|
155
|
8110.3883
|
LEVER TORSIONAL SPRING |
|
156+157
+158+159+160
+161+162+ 163+164
+170+179
|
8110.3884
|
GONIOMETER SET |
|
171
|
8110.3885
|
ACTIVITY BACKER (LEFT) |
|
172
|
8110.3886
|
M6X11 NON-STANDARD SCREW |
|
174
|
8110.3887
|
OPPOSITE SIDE 3MM HEX WRENCH |
|
175
|
8110.3888
|
ST3.9X10 CROSS PAN HEAD TAPPING SCREWS |
|
183
|
8110.3889
|
TOP COVER OF JUNCTION BOX |
|
184
|
8110.3890
|
LOWER COVER OF JUNCTION BOX |
|
185
|
8110.3891
|
LIFTING BLOCK ACCESSORY |
|
186
|
8110.3892
|
CABLE CLIP |
|
187
|
8110.3893
|
SWITCH MX11 |
|
1-7
|
8110.3894
|
CAMPLING SET |
