Stayer Parts for Burnishing & Polisher LS1200B - LU260CE
€0.86
Tax included

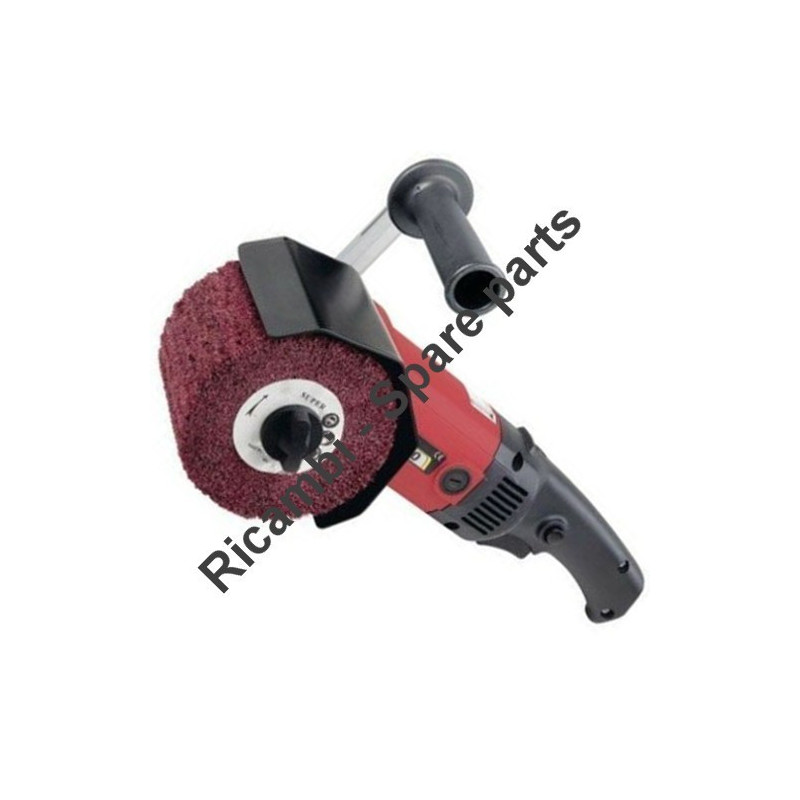

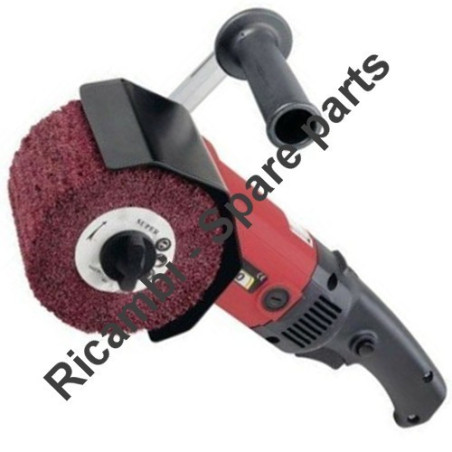

Stayer Parts for Burnishing & Polisher Machine LS1200B - LU260CE
STAYER Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Burnishing & Polisher Machine LS1200B - LU260CE.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Stayer Parts for Burnishing & Polisher Machine LS1200B - LU260CE
STAYER Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Burnishing & Polisher Machine LS1200B - LU260CE.In the following table, look for the model of the Burnishing Machineand the respective parts of the code.
| Burnishing Machine LS 1200 B - Polisher LU 260 CE | ||
| Modelo / Model | Codigo / Code | Description |
| LS 1200 B | 8180.750 | HEXAGON SCREW |
| LS 1200 B | 8180.751 | WASHER |
| LS 1200 B | 8180.752 | GRINDING GUARD |
| LU 260 CE | 8180.301 | SPINDLE |
| LS 1200 B | 8180.753 | ALLEN SCREW |
| LU 260 CE/LS 1200 B | 8180.711 | PAN HEAD SCREW M4X16 |
| LS 1200 B | 8180.754 | NUT M6 |
| LS 1200 B | 8180.755 | PIN |
| LU 260 CE | 8180.302 | GEAR BOX COVER |
| LS 1200 B | 8180.756 | GEAR BOX COVER |
| LS 1200 B | 8180.757 | SPINDLE |
| LU 260 CE/LS 1200 B | 8180.713 | BALL BEARING |
| LU 260 CE/LS 1200 B | 8180.714 | KEY |
| LU 260 CE | 8180.712 | SPRING LOCK WASHER |
| LU 260 CE/LS 1200 B | 8180.758 | GEAR |
| LU 260 CE/LS 1200 B | 8180.716 | CHECK RING |
| LU 260 CE/LS 1200 B | 8180.717 | NEEDLE BEARING |
| LU 260 CE/LS 1200 B | 8180.718 | SPINDLE LOCK PIN |
| LU 260 CE/LS 1200 B | 8180.719 | TAPPING SCREW |
| LU 260 CE | 8180.720 | HEXAGON SCREW |
| LU 260 CE | 8180.721 | HEX,THICK SCREW SPANNER |
| LU 260 CE | 8180.722 | AUXILIARY HANDLE |
| LU 260 CE/LS 1200 B | 8180.723 | SPINDLE LOCK BUTTON |
| LU 260 CE/LS 1200 B | 8180.724 | SPINDLE LOCK SPRING |
| LU 260 CE/LS 1200 B | 8180.725 | GEAR BOX |
| LU 260 CE/LS 1200 B | 8180.726 | STOPER WASHER |
| LU 260 CE/LS 1200 B | 8180.727 | CIRCLIP FOR SHAFT |
| LU 260 CE/LS 1200 B | 8180.109 | ARMATURE |
| LU 260 CE/LS 1200 B | 8180.728 | DUSTPROOF WASHER |
| LU 260 CE/LS 1200 B | 8180.729 | BALL BEARING |
| LU 260 CE/LS 1200 B | 8180.730 | BEARING BUSH |
| LU 260 CE/LS 1200 B | 8180.731 | BAFFLE |
| LU 260 CE/LS 1200 B | 8180.732 | TAPPING SCREW |
| LU 260 CE/LS 1200 B | 8180.104 | STATOR |
| LU 260 CE/LS 1200 B | - | RATING LABEL |
| LU 260 CE/LS 1200 B | 8180.733 | HOUSING |
| LU 260 CE/LS 1200 B | 8180.734 | CARBON BRUSHES |
| LU 260 CE/LS 1200 B | 8180.735 | BRUSH HOLDER |
| LU 260 CE/LS 1200 B | 8180.736 | SPRING |
| LU 260 CE/LS 1200 B | 8180.737 | TAPPING SCREW F |
| LU 260 CE/LS 1200 B | 8180.738 | BRUSH COVER |
| LU 260 CE/LS 1200 B | 8180.739 | ORNAMENT RING |
| LU 260 CE/LS 1200 B | 8180.741 | REAR COVER(RIGHT)+REAR COVER(LEFT) |
| LU 260 CE/LS 1200 B | 8180.742 | TAPPING SCREW F |
| LU 260 CE | - | BRAND LABEL |
| LS 1200 B | - | BRAND LABEL |
| LU 260 CE/LS 1200 B | 8180.740 | SWITCH |
| LU 260 CE/LS 1200 B | 8180.743 | CAPACITOR |
| LU 260 CE/LS 1200 B | 8180.744 | CORD CLAMP |
| LU 260 CE/LS 1200 B | 8180.745 | TAPPING SCREW |
| LU 260 CE/LS 1200 B | - | CORD |
| LU 260 CE/LS 1200 B | 8180.746 | CORD SLEEVE |
| LS 1200 B | 8180.759 | SPANNER 5 |
| LS 1200 B | 8180.760 | SPANNER 6 |
| LS 1200 B | 8180.761 | DRAWING CAPSTAN |
| LU 260 CE/LS 1200 B | 8180.747 | MAGNETIC RING |
| LU 260 CE/LS 1200 B | 8180.748 | TAPPING SCREW |
| LU 260 CE/LS 1200 B | 8180.749 | SPEED CONTROLLER |
| LS 1200 B | 8180.762 | AUXILIARY HANDLE |
| LS 1200 B | 8180.763 | CONNECTING POLE |
