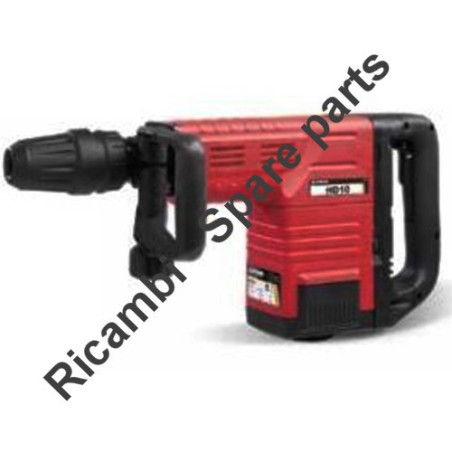

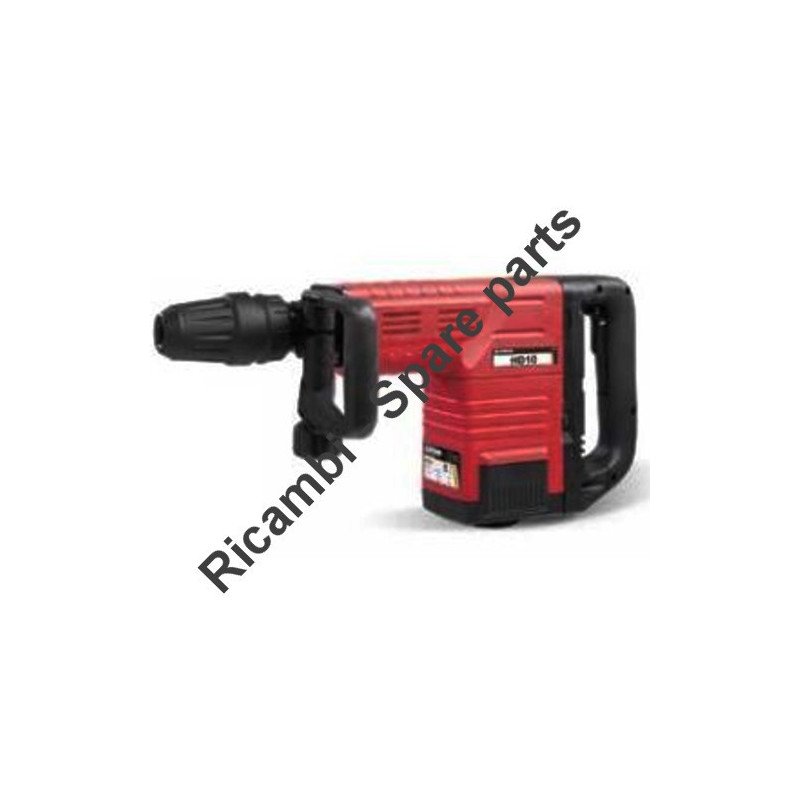

Stayer Spare Parts for Rotary Hammer HD10BK

Stayer Spare Parts for Rotary Hammer HD10BK

We have the original Spares STAYER for Rotary Demolition Hammer HD10BK the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Demolition Hammer HD10BK. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the hammerr and the respective parts of the code.

DEMOLITION HAMMER HD10BK
1	1125115	HAMMER ROD PROTECTOR
2	1125116	PROTECTIVE LINING
3	1125117	SPRING RING
4	1125118	SUPPORT PATCH
5	1125119	SHOCK ABSORPTION RING
6	1125120	MOVE LIMITED RING
7	1125121	INSERT BLOCK
8	1125122	CHANGE PLATE
9	1125123	SUPPORT RING SPRING
10	1125124	SUPPORT RING
11	1125125	MOVE LIMITED RING
12	1125126	STEEL BALL
13	1125127	SOCKET BOLT
13 A	1125128	WASHER
14	1125129	FLANGE COVER
15	1125130	O-RING
16	1125131	HAMMER ROD SLEEVE
17	1125132	O-RING
18	1125133	RETAINING RING
19	1125134	OIL SEAL RING
20	1125135	IMPACT PIN
21	1125136	O-RING
22	1125137	CONTROL PLATE
23	1125138	FIXED DISTANCE SLEEVE
24	1125139	O-RING
25	1125140	IMPACT BLOCK
26	1125141	O-RING
27	1125142	COVER
28	1125143	CONTROL SLEEVE
29	1125144	SPRING
30	1125145	CYLINDER
31	1125146	PIN
32	1125147	PISTON
33	1125148	CONNECTING ROD ASSY
34	1125149	IMPACT BODY
35	1125512	TAPPING SCREW ST6.3X32
36	1125513	OIL TANK COVER
37	1125514	O-RINGΦ20×Φ2
38	1125515	FELT RING
39	1125516	HEX .SOCKET BOLTM5×12
40	1125517	SHELL COVER
41	1125518	O-RINGΦ79×Φ2.8
42	1125519	ECCENTRIC GEAR SUBASSEMBL
43	1125520	BORING WASHER
44	1125521	NEEDLE BEARING RMAO16×22×16
45	1125522	NEEDLE FERRULE
46	1125523	NEEDLE BEARING NK20×28×13
47	1125524	SEAL RING SUBASSEMBLY
48	1125525	HOUSING ASS'Y
49	1125526	CORD CLIP
50	1125527	ST4.2×18 TAPPING SCREW
51	1125528	SPEED ADJUSTER TSQ 03
52	1125529	MAIN HANDLE COVER
53	1125530	SWITCH
54	1125531	INDICATOR
55	1125532	MAIN HANDLE
56	1125533	ST5.5×45 TAPPING SCREW
58	1125534	CORD ARMOR
59	-	CORD
60	1125535	0.18ΜH ELECTRICITY FEELS
61	1125536	RIVET
62	1125537	STATOR 220-240V
63	1125538	ST4.8×58 TAPPING SCREW
64	1125539	CARBON BRUSH BRACKET
65	1125540	HELICAL SPRING
66	1125541	METAL CONTACT PLATE
67	1125542	TAPPING SCREW ST3.5X16
68	1125543	METAL INSERT
69	1125544	CARBON BRUSH
70	1125545	CARBON BRUSH WIRE
71	1125546	SCREW SEAL RING
71 A	1125547	ARMATURE SLEEVE
72	1125548	ARMATURE 220-240V
73	1125549	BEARING SLEEVE
74	1125550	6200 2RS BALL BEARING
75	1125551	Φ10 RETAINING RING
76	1125552	O-RING Φ30×Φ2
77	1125553	SCREW RING
78	1125554	PROTECTED COVER
79	1125555	SCREW
80-87	1125556	AUX HANDLE
88	1125557	10MM HEX BAR WRENCH
89	1125558	DUAL SCREW DRIVER
91	1125559	OIL BOTTLEΦ35×135
92	1125560	FIXED PLATEN
93	1125561	MAIN HANDLE SEAT
94	1125562	SHOCK ABSORPTION JACKET
95	1125563	SHOCK ABSORPTION FERRULE
96	1125564	SHOCK ABSORPTION SPRING
97	1125565	SPRING RACK
98	1125566	CROSS RECESSED PAN HEAD M6×50(Φ18)
99	1125567	O-RINGΦ16×Φ3
