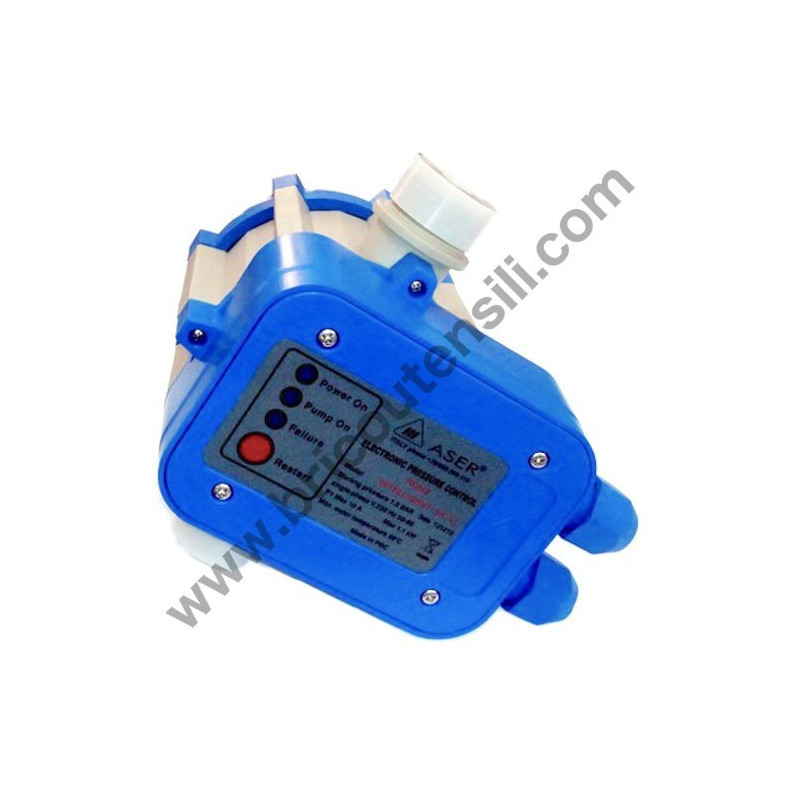

Electronic Pressure Control Matra

Electronic Pressure Control Matra

The pressure control is an automatic electronic device, designed to control the operation of electric without the use of surge tanks.
It performs the following functions:
1) Controls the automatic and continuous operation of the pump with constant pressure and during withdrawal from one or more points of the distribution network. The electric start is when the pressure is less than that required (std 1.5 bar).
If you wish to change this value pi can act on the adjustment screw on the front bezel protector under the sheet.
The bus stop is when the controller no longer detects an appreciable outflow.
2) keeps the pump running for a short period of time (5 "approx) after the cessation of the levy, among other things, avoiding water hammer caused by the abrupt halt of the flow.
3) In case of lack of water intake, the system goes into block without use of level sensors or float switches. The operation is restored by a manual reset button.
4) It has a built-in check valve for water hammer.
5) Report by special lights phases of operation:
-Green LED connected to the electrical system in place
- Yellow led on-pump function
- Red LED-block conditions for lack of water in inspiration

Technical data:

• Model: Matracontrol: Intelligent SK-X
• Connections: Male 1''
• Maximum operating pressure: 10 BAR
• Calibration standard ignition: 1.5 BAR
• Maximum liquid temperature: 60 ° C
• Power supply voltage: 230V + - 10% - 50:60 Hz
• Maximum intensity of current: 10 A Ix Cos Ø> 0.7
• Degree of protection: IP 65
