Lavor Original Parts for Pressure Cleaner TYPHOON 23
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner TYPHOON 23 230/50-60-G/N/S-TS EU 2L AVV.+2SPAZZ.+SLIDER LWS - 8.065.X621.
In the following tables, look for the spare part and its respective code.

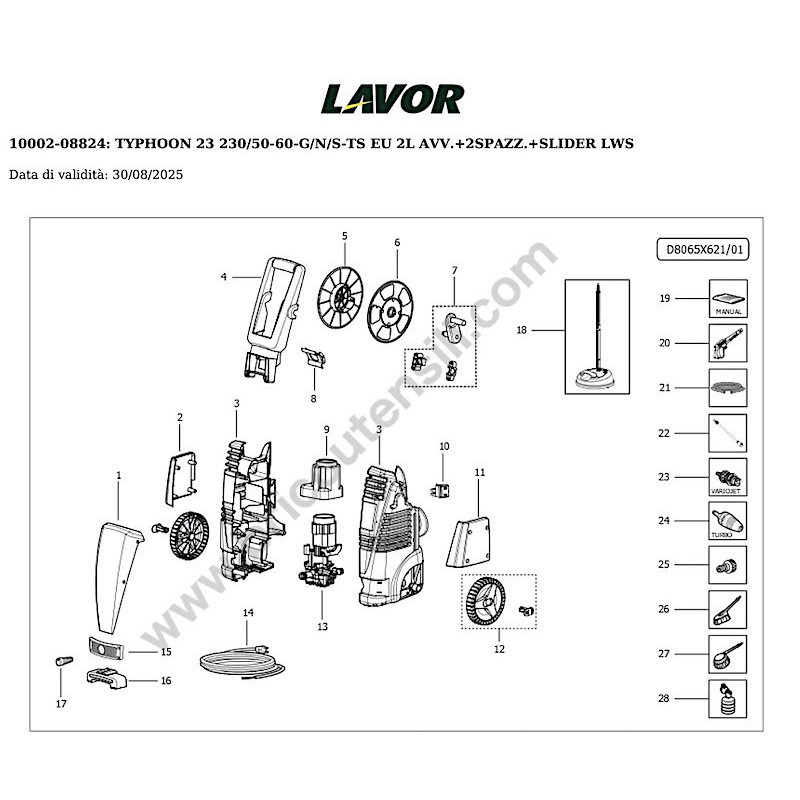

| Pressure Cleaner Lavor TYPHOON 23 - 8.065.X621 | ||
| Chassis Pag.1 | ||
| # | Part Num | Description |
| 0 | 5.001.0762C | MTP.SP.PT03 230/50 7'10 W/TERM.-TS 14.5KG TEST.T.FIL.(8850) |
| 1 | 4.008.1123 | COBRA AESTHETIC COVERING-G-PANT.108C (P80.0432) |
| 2 | 4.008.1159 | COBRA LEFT SIDE COVER, GREY RAL.7046 (P80.0432) |
| 3 | 4.013.0508 | CAREN. RH-LH COBRA BRUSH - BLACK - |
| 4 | 4.008.1056 | COBRA HANDLE FOR HOSE REEL |
| 5 | 4.008.1219 | HALF-REEL, INLET SIDE VERSION '10, LOWERED, WITH RECESSED PIN FOR HANDLE |
| 6 | 4.008.1216 | HALF-REEL, HANDLE SIDE VERSION '10 |
| 7 | 5.012.0252 | SCREW CORNER + HANDLE + HOSE REEL LOCK (PRO WINDOW) |
| 8 | 4.008.1067 | HIGH PRESSURE HOSE HOOK FOR HOSE REEL, WIDTH 80 |
| 9 | 4.008.0721 | RH MOTOR HOUSING (NOT FOR U96 FL. ALL./9655) |
| 10 | 5.009.0213 | 0/1 BEEP SWITCH ASSEMBLY, 12(10)A + TRANSPARENT PROTECTION |
| 11 | 4.008.1124 | RH SIDE SHELL, COBRA GREY RAL.7046 (80.0432) |
| 12 | 6.005.0231 | KIT 214 LW WHEELS + COBRA PIN |
| 13 | 5.001.0762C | MTP.SP.PT03 230/50 7'10 W/TERM.-TS 14.5KG TESTED T.FILTER (8850) |
| 14 | 4.012.0174 | H05VV-F CABLE 2X1 5.4M SCHUKO ANTI-SPRING F/F |
| 15 | 4.008.1125 | COBRA MASK, GREY RAL. 7046 (P80.0432) |
| 16 | 4.008.1065 | BLACK FRONT FOOT FOR COBRA WITH HOSE REEL |
| 17 | 4.008.0031 | WATER SUCTION FILTER, D.16 CONICAL |
| 18 | 5.012.0444 | SLIDER BRUSH CURRENT WITHOUT ADJUSTMENT - G- |
| 19 | 7.100.1622 | SPECIFIC MANUAL FOR LI/RAPTOR/JAGUAR/MIRAGE+CE LAVOR 27L A5 12F |
| 20 | 6.001.0073 | S'09 GUN WITH INTEGRATED QUICK COUPLER WITH LEVER-G-PANT. 108C LAVOR |
| 21 | 4.018.0096 | TUBO 1/4 18MPA 8M GIR.M22X1,5 D15-INN.RAP.X S'09 C/MAN.SPIR. |
| 22 | 6.002.0340 | LANCIA S'12 S/TESTINA C/ATT.RAP.-COGETIL |
| 23 | 6.002.0343 | NOZZLE HEAD LANCE S'12 D.1,00 -L.BLUE- W/QUICK COUPLING (FIX |
| 24 | 6.002.0346 | NOZZLE ROTOX LANCIA S'12 D.1,025 -NERO- C/ATT.RAP. |
| 25 | 3.100.0082 | QUICK COUPLING 3/4 BLACK CON GUARNIZ. (FILETTO L=11.5) |
| 26 | 3.601.0033 | IDROSPAZZ.FISSA CON ATTACCO COGETIL GRANDE |
| 27 | 3.601.0074 | BLACK/YELLOW ROTATING BRUSH |
| 28 | 6.002.0358 | FOAM SPRAYER (D.2.75) W/TRANSPARENT TANK |
| MTP.SP.PT03 230/50 7'10 C/TERM.-TS 14.5KG TEST.T.FIL.(8850) Pag.2 | ||
| 0 | 5.009.1024C | GR.C.GUIDA C/TS 14.5KG+TEST.TAPPI FIL.PT'03-TPAV |
| 1 | 5.009.0924 | ASS.MOT.SPAZZ.03 230/50 C/ANTID.-THERMICO 17AM-D 140G(8850) |
| 2 | 6.005.0180 | KIT 166 LW RALLE+GABBIA RULL INI 3047 PT03-SD |
| 3 | 4.007.0205 | BOLT 10X70 X PARTNER-ED SPAZZ.'98 |
| 4 | 5.009.1020 | ASSIEME PIATTELLO 7'10 PT03 C/INS.PL.+CORONA Z 50 |
| 5 | 4.007.0328 | 35X55X12 BALL BEARING FOR PT03 |
| 6 | 5.009.1024C | GR.C.GUIDA C/TS 14.5KG+TEST.TAPPI FIL.PT'03-TPAV |
| GR.C.GUIDA C/TS 14.5KG+TEST.TAPPI FIL.PT'03-TPAV Pag.3 | ||
| 1 | 5.007.0280C | C.GUIDA PT03 PIST.D.12 C/TS 14.5KG |
| 2 | 6.005.0282 | KIT 257 LW RINGS APP.HOLD ALL.+SPACERS PT D.12 |
| 3 | 5.008.0298C | TESTATA PT'03 (TPAV) D.12 C/TAPPI FIL.ALL. |
| C.GUIDA PT03 PIST.D.12 C/TS 14.5KG Pag.4 | ||
| 1 | 5.009.1022 | PT03 COMPLETE VALVE ASSEMBLY WITH TS, CABLE L=530, SPRING 14.5KG (WHITE COVER) |
| 2 | 6.005.0281 | KIT 256 LW CHECK VALVE ASSEMBLY WITHOUT SUCTION PT03C |
| 3 | 6.005.0226 | O-RING KIT FOR PT03 |
| 4 | 6.005.0079 | KIT 79 LW OIL SEAL RINGS FOR PARTNER D.12/FIBER |
| 5 | 4.005.0234 | WITH PT03 PISTON GUIDE WITHOUT SUCTION HOLE |
| 6 | 6.005.0181 | 167 LW 3-PISTON KIT + PT03 SPRINGS |
| 7 | 4.007.0314 | 3.5X30 ZNT CYLINDRICAL PIN |
| TESTATA PT'03 (TPAV) D.12 C/TAPPI FIL.ALL. Pag.5 | ||
| 1 | 6.005.0595 | INTAKE/DELIVERY VALVE KIT + THREADED ALUMINUM CAPS PT' 03 |
| 2 | 4.005.0302 | PT03 HEAD WASHED WITH THREAD FOR VALVE CAPS (TPAV) |
| 3 | 6.005.0133 | PARTNER WATER SEAL KIT OF 124 RINGS, D.12 |
