Lavor Pressure Cleaner SUPERWASH '07 Parts

€29.18
Tax included

Lavor Genuine Parts for Pressure Cleaner SUPERWASH '07 8.062.0911

Genuine Lavor Original Parts for Pressure Cleaner SUPERWASH '07 230/50  8.062.0911, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Cleaner SUPERWASH '07. All Spares are original and can be supplied at Low and discounted prices and Come with a Guarantee
ITEM CODE: 3.404.0016
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Lavor Original Parts for Pressure Cleaner SUPERWASH '07 230/50  8.062.0911

Fix Your Pressure Cleaner SUPERWASH '07 230/50  8.062.0911. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

Open PDF File in this Page to choose Spare Parts for Pressure Washer Lavor.
Lavor SUPERWASH '07 230/50 8.062.0911
LAVOR PRESSURE CLEANER SUPERWASH '07 230/50 - 8.062.0911

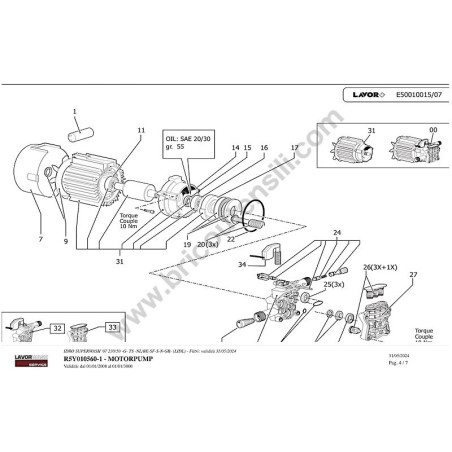

Motor Pump Pag.1
# Part Num Description
0 5.001.0679 MOTOP.PT'03 125h100 230/50 D.1 2 12' TS IN.1,7 (MACH)
1 3.404.0016 CAPACITOR 45mF 450V D.45x90 F/M
7 4.008.0922 FAN COVER FOR '96 MOTOR WITHOUT GRID WITHOUT WINDOWS
9 6.005.0251 KIT 234 LW FAN+RING
11 3.001.0020 RADIAL BALL BEARING 6203 2RS
14 4.X05.0226 FRONT FLANGE MOTOR D.125H100 PT'03 WASHED WITH THREADS
15 3.201.0001 SEAL RING 20/35/6/6.5 BABS L
16 3.001.0031 RADIAL BALL BEARING 6304 (20X52X15)
17 4.005.0225 PLATE 12GR FOR PT'03 THRUST BEARING BALLS
19 4.007.0328 EXT THRUST BEARING A BALLS 35X55X12 FOR PT'03
20 6.005.0181 KIT 167 LW 3 PISTONS + SPRINGS PT'03
22 6.005.0226 KIT "O-RING FOR PT'03"
24 6.005.0183 KIT 169 LW INJECTOR 1.7 + HOLDER + CHECK VALVE PT'03
25 6.005.0079 79 LW OIL SEAL RINGS FOR PARTNER D.12/FIBER
26 6.005.0184 170 LW VALVE INSP./DELIVERY PT' 03
27 4.005.0210 HEAD PT'03 WASH
28 6.005.0133 KIT 124 WATER SEAL RINGS PARTNER D.12
29 6.005.0134 KIT 125 LW BRASS SEAL RINGS + SPACERS PT D.12
30 4.005.0211 PISTON GUIDE BODY PT'03 W/SUCTION HOLE DET.
31 5.009.0777 ASS.MOTORE99 D.125H100 230/50 2P C/TER. CUS.RIG.PT03+PIATT.FERRE
32 5.007.0229 GUIDE BODY PT'03 PIST.D.12 C/ TS-ASP.- SPRING 17kg
33 5.008.0182C HEAD PT'03 D.12
34 5.009.0596 ASSEMBLY TS COMPENSATED VALVE PT'03 CABLE L=510 (SPRING 17KG)
Chassis Pag.2
1 4.008.0988 BLACK COBRA WHEEL D.180 FOR AXLE FIXING PIN
2 4.008.0989 COBRA WHEEL INTERLOCKING CAP FOR AXLE FIXING -G- PANT.108C
3 4.007.0290 MACH WHEEL FIXING AXLE LENGTH 287 DIAM.8
4 4.008.0986 MACH REAR FAIRING FOR WHEELS D.180
5 4.013.0493 MACH'05 FRONT FAIRING W/SUPERWASH 160 PAD
6 4.008.0967 MACH LOWER LANCE HOLDER
8 6.005.0235 MACH SIDE LANCE HOLDER REF. BLACK
10 5.009.0213 EXT SWITCH ASSEMBLY 0/BIP. 12(10)A + TRANSPARENT PROTECTION
11 4.008.0785 ACCESSORIES HOLDER MACH BLACK
12 4.008.0947 TIGER HANDLE'05
13 5.011.0081 CRANK ASSEMBLY W/ PIN L=33.5 + LONG SET '05
14 4.008.0517 HALF CRANK SIDE
15 6.005.0312 HALF REEL ASSEMBLY W/ EYELET + 10m HOSE FOR MACH
16 4.008.0172 TRANSPARENT HOSE 6x9 L=510mm
17 4.007.0334 HOSE REEL SUPPORT BRACKET FOR SUPERWASH
19 5.011.0084 BLACK TANK ASSEMBLY + CAP
20 4.008.0786 MACH BLACK SIDE CABLE REEL
21 6.001.0087 GUN S'01DM METAL PROTECTION W/ PRESSURE GAUGE W/ QUICK CONNECTOR VER.'03
23 3.601.0066 HYDRO BRUSH ROTARY '05 FIXED HANDLE W/ REDUCTION (BLACK CORNER-YELLOW RING)
24 3.601.0075 CAR PACK LT0.5 LWS +CB 8013298011490 NL/BE-SF-S-N-GR
25 3.100.0082 QUICK CONNECTOR 3/4 BLACK WITH SEAL (THREAD L=11.5)
26 3.100.0342 QUICK CONNECTOR FOR PIPE 1/2G W/AQUASTOP -N/G- PANT.108C
27 4.007.0114 NOZZLE CLEANING NEEDLE D.0.8
28 6.002.Z304 LANCE PRESS.REGOL.MANOP.NERA SY'03R D.1.15 -G- (NARROW)*
29 6.002.0223 LANCE ROTOX S97 1.10 (YELLOW) BRASS
30 5.009.0595 BAYONET NOZZLE ASSEMBLY D.1.15 (YELLOW) +OR
31 4.014.0003 SEAT FOR NOZZLE DIAM.11X3.2
32 4.014.0004 CERAMIC NOZZLE RADIUS 2.5
33 4.012.0150 CABLE H05VV-F 3X1.5 MT.5.4 SP.SCHUKO ANTI-SPLASH F/F
34 4.018.0078 PIPE 1/4 16MPa L=315 X AVV. MACH
35 7.100.1369 LIB.ISTR.SUPERWASH 160 LIDL'08 -GR-GB/IRL-N-S-SF-BE/NL
