Lavor Pressure Cleaner LKX30TS Parts
€1.73
Tax included
Lavor Original Parts for Pressure Cleaner LKX 30 TS 8.611.0001
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner LKX 30 TS 8.611.0001Fix Your Pressure Cleaner LKX 30 TS 8.611.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner LKX 30 TS 8.611.0001
Fix Your Pressure Cleaner LKX 30 TS 8.611.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following tables, look for the spare part and its respective code.
| Pressure Cleaner LKX 30 TS 8.611.0001 | ||

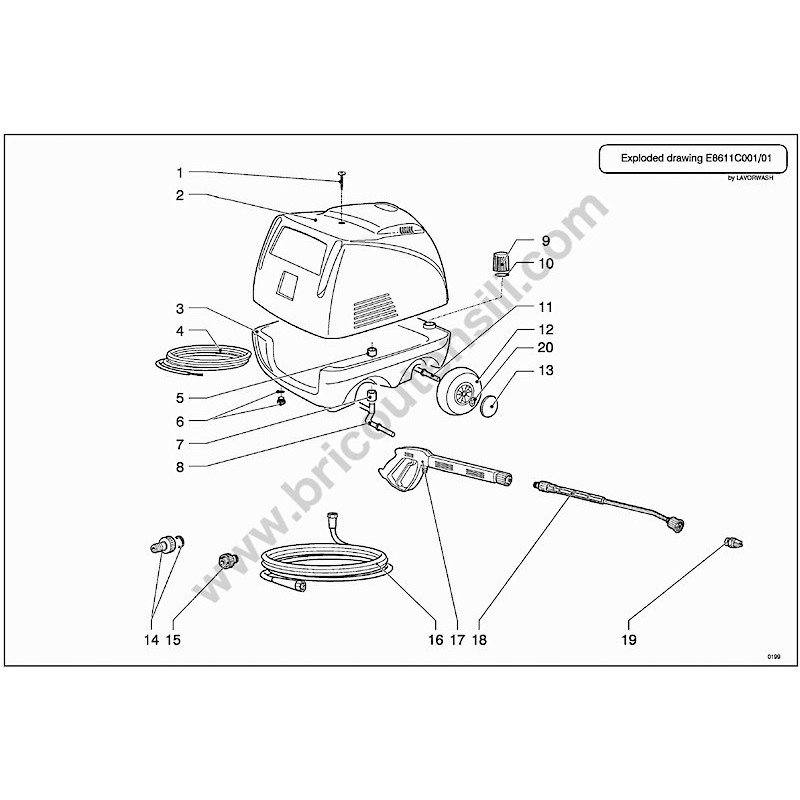

| Cover Pag.1 | ||
| # | Part Num | Description |
| 1 | 3.002.0122 | WIDE BOWL HEAD SCREW CROSS TAG M6X12ZNT |
| 2 | 4.613.0111 | UPPER FAIRING JOLLY 5/LKX YELLOW |
| 3 | 4.608.0203 | DIESEL/DETERGENT TANK JOLLY 5/LKX EXP.04 |
| 4 | 4.612.0046 | POWER CABLE H05VV-F 3X1.5 L=6000S/FASTON EXP.01 |
| 5 | 4.608.0073 | SHORT SPACER FOR JOLLY TANK 4/93 |
| 6 | 5.009.0159 | OIL CAP 3/8G COMPLETE WITH GASKET |
| 7 | 4.608.0074 | LONG SPACER FOR TANK JOLLY 4/93 mm575 |
| 8 | 5.613.0096 | BOILER AXLE JOLLY 4/93 EXP.05 |
| 9 | 4.608.0082 | DIESEL TANK CAP-CHEM |
| 10 | 3.200.0038 | OR SEAL 53.65x2.62 REF.3212 |
| 11 | 5.613.0115 | REAR AXLE JOLLY 5/LKXPAINTED EXP.05 |
| 12 | 3.006.0026 | WHEEL D.260X85 FULL BLACK |
| 13 | 3.099.0794 | STUD D.135 WHEEL COVER BLACK WHEEL D.260 |
| 14 | 5.009.0340 | HOSE HOLDER ASSEMBLY SUCTION OT+OR + RING NUT |
| 15 | 3.100.0043 | ATT. QUICK SWIVEL 3/8 M MVG8 (461) 26075050 |
| 16 | 4.618.0016 | TUBE 5/16 210BAR L=10000 C/M AP1031 3/8F |
| 17 | 6.001.0071 | GUN RL200 3/8M+S4 +ATT.RAP30015060 |
| 18 | 3.701.0015 | LANCE L.700 COATED +ROS.+ATT. QUICK M22 41102850 |
| 19 | 3.103.0050 | NOZZLE A.P.15045 1/8M |
| 20 | 3.099.0019 | WHEEL STOP DIAM.250 X 55D.20 |
| Motor Pump Pag.2 | ||
| 00 | 5.601.0150 | MOTOR PUMP LWM 230/50 2P 135 H125 9.30' X HOT |
| 12 | 5.009.0094 | ASS.BEST FINNED GUIDE BODY WITH SEALS |
| 13 | 4.608.0088 | ENGINE FAN COVER D.135 EXP.01 |
| 14 | 3.099.0108 | LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP |
| 15 | 5.606.0046 | CASE LW.M 230/50 2P D.135H.125 THREADED HOLES |
| 16 | 3.001.0001 | RADIAL BALL BEARING 6204-2Z (X MOT.EL.150'C) |
| 17 | 5.605.0030 | ROTOR SHAFT D.70 H125 FOR MOT.D.135 WITH FINNED GUIDE |
| 18 | 3.002.0015 | TCEI SCREW M6X25 TRILOBATE ZNT |
| 19 | 5.609.0072 | MOT.FLANGE 135 FOR FINNED GUIDE BODY EXP.05 |
| 20 | 3.201.0019 | OIL SEAL RING D.25X40X7 DOUBLE LIP |
| 21 | 5.609.0072 | ENGINE FRONT FLANGE 135 X FINNED GUIDE BODY |
| 22 | 3.200.0002 | OR SEAL 90 X 2.5 |
| 23 | 3.001.0029 | ANGLE BALL BEARING 7305-BE (25X62X17) |
| 24 | 4.605.0041 | PLATE 9.30' FOR BALL BEARING EXP.03 |
| 25 | 3.002.0003 | TCEI SCREW M8X25 UNI 5931 ZNT |
| 26 | 4.607.0208 | AXIAL BALL BEARING 30X73X18 FOR PLATE S0610 EXP.0 |
| 27 | 5.009.0088 | ASSEMBLY OF STOP RING-PISTON-SPRING STOP D.15 |
| 28 | 4.007.0011 | PISTON RECALL SPRING D.15 d.3 L.45 EXP.01 |
| 30 | 3.002.0032 | TCEI SCREW M8X30 UNI 5931 ZNT |
| 31 | 3.002.0004 | STEI SCREW 3/8 G.DIN 906 (OIL CAP) |
| 32 | 3.099.0003 | OIL LEVEL INDICATOR SLNS-3/8 HOBBY |
| 33 | 4.005.0184 | BODY GUIDE -> with flaps <- '01ESP.03 |
| 34 | 3.099.0301 | OIL LOAD CAP KNURLED WITH HOLE FOR |
| 35 | 5.009.0207 | ASS. CAP FOR BEST CAMP. OIL CAR.OVERT. + OR sh90 |
| 36 | 3.201.0002 | BADSLSF SEALING RING 15X25,4X5/7 |
| Base Pag.3 | ||
| 2 | 4.608.0079 | DASHBOARD '93 WITH COMPLETE SILKSCREEN PRINTING |
| 3 | 4.608.0019 | THERMOSTAT KNOB-TAP BLACK 3079/1 |
| 5 | 3.403.0091 | THERMOSTAT 30/150 BULB D.5 (2 FASTON) |
| 6 | 3.105.0003 | TAP REG.DET.W/HOLDER D.7 (DIS.N.6990A 3/4 TURN) ESP.02 |
| 7 | 4.608.0065 | DASHBOARD BOX '93 |
| 8 | 4.608.0071 | DASHBOARD CABLE GLAND COVER '93 |
| 9 | 5.009.0165 | HOLDING FRAME FOR HOBBY SWITCH EXP.00 |
| 10 | 5.009.0165 | HOBBY WATERPROOF SWITCH COVER ESP.02 |
| 11 | 3.401.0025 | ABT WK 160 C0S/PROT. MICRODISCONNECTOR |
| 12 | 5.009.0213 | INT. BIP16(8)-12(10)A B412E112000 ON/OFF |
| 15 | 3.107.0004 | MANOMETER D.50 0/315 BAR 1/4 REAR+BRACKET |
| 16 | 4.618.0014 | MANOMETER PIPE 2X380 max630bar1/4 F/GIR-1/4 F/GIR |
| 18 | 3.099.0282 | DOUBLE-WIRE CLAMP FOR PIPE 6x12(15126) |
| 19 | 3.405.0023 | TERMINAL BLOCK PA/32 1730 9 POLES |
| 20 | 4.608.0078 | DASHBOARD GASKET '93 (3x900) EXP.02 |
| 25 | 5.611.0002 | COMPLETE BURNER FLANGE 1.25-60A RH |
| 26 | 4.607.0001 | PLUG STOP PLATE 15x32 SP.3.5 |
| 27 | 4.614.0004 | ELECTRODE 0772589000 EXP.04 |
| 28 | 3.100.0017 | CONNECTOR ELBOW 4 1/8 COPPER PIPE |
| 29 | 3.099.0015 | SEEGER RING I D.21 SP1 DIN 472 |
| 30 | 4.608.0002 | GLASS DIAM.20 SP.1.8 |
| 31 | 4.605.0001 | MACHINED BURNER FLANGE EXP.03 |
| 32 | 3.104.0004 | DIESEL NOZZLE 1.25 60/H |
| 33 | 4.606.0064 | LKX FAIRING FIXING COLUMN |
| 34 | 4.616.0006 | COPER PIPE DIAM.4 COMPACT EXP.02 |
| 35 | 6.605.0102 | IGNITION TRANSFER 230/50 818C/S |
| 36 | 4.607.0011 | MOTOR FOOT FIXING BRACKET |
| 37 | 5.609.0023 | FAN PROTECTION GRILLE ASSEMBLY |
| 38 | 4.608.0036 | POWER CABLE TERMINAL |
| 39 | 4.608.0068 | COMPACT 4P GUIDE HANDLE |
| 40 | 5.613.0119 | LKX HANDLE SUPPORT -PAINTED- |
| 41 | 4.608.0103 | OIL PUMP PROTECTION CASING LKX EXP.01 |
| 42 | 3.099.0028 | FAN 146x72 LEFT.HOLE DM 12.7 |
| 43 | 3.300.0003 | X MOTOR BURNER 100W/230-240/50Hz IP55 |
| 44 | 3.099.0012 | PLASTIC JOINT DIESEL PUMP (BLACK) |
| 45 | 3.100.0015 | STRAIGHT CONNECTOR 1/8 M. FOR COPPER PIPE D.4 |
| 46 | 3.551.0037 | SINGLE PIPE DIESEL PUMP + ELECTRICITY 220V D DX |
| 47 | 3.004.0015 | FLAT WASHER D.22X39 Sp.3 UNI 6592 ZNT |
| 48 | 4.606.0013 | COOLING NUT 1/2 OT SPEC. |
| 49 | 5.611.0067 | DIESEL FILTER GROUP (PAPER)LKX EXP.02 |
| 50 | 4.618.0035 | PIPE R1 PUMP/COOLER L=600 1/2F3/8F EXP.04 |
| 51 | 4.618.0043 | TUBE R1 3/8 L=375 C.1/2F.GIR/C.3/8F GIR |
| 52 | 5.611.0012 | EXTERNAL COVER BOILER DRILLED CONE |
| 53 | 5.611.0099 | CABLE L=480 WITH PROTECTION |
| 54 | 3.003.0010 | BLANK NUT M6 UNI 5721 BRASS |
| 55 | 3.004.0001 | FLAT WASHER D.6X11 Sp.0.8 UNI1736 ZNT |
| 56 | 5.613.0147 | EXTERNAL COVER BOILER STAINLESS STEEL AISI 430 EXP.02 |
| 57 | 5.610.0105 | DEFLECTOR WITH CONE D.82 W/HOLES |
| 58 | 5.613.0122 | INTERNAL COVER CAM.COMB. CAMINOL=90 EXP.04 |
| 59 | 4.604.0001 | TOP COIL H.335 (FE. 35.2) EXP.03 |
| 60 | 5.613.0118 | JOLLY 5/LKX PAINTED BOILER BODY EXP.02 |
| 61 | 4.612.0048 | COFI TRANSFORMER CABLE L=900 EXP.01 |
| 62 | 4.608.0116 | CEMENTED REFRACTORY D.290X20 FOR BOILER EXP.02 |
| 63 | 4.607.0006 | COIL FIXING BAND IN 15/10 AISI 430 STAINLESS STEEL SHEET EXP.0 |
| 64 | 4.608.0162 | BOILER BOTTOM GASKET EXP.04 |
| 65 | 5.613.0116 | JOLLY 5/LKX BOILER BASE -PAINTED- EXP.04 |
| 67 | 3.100.0018 | QUICK CONNECTOR 3/8 M. 08 (465) 26070050 |
| 69 | 4.606.0087 | THERM. BULB BODY PROFESSIONAL ESP.04 |
| 70 | 3.004.0004 | ALUMINUM WASHER 21x30xSP.1.5 |
| 71 | 3.100.0020 | NIPPLE 1/2G-3/8G |
| 72 | 5.613.0191 | JOLLY THERMOSTAT BULB SUPPORT 4/93 ESP.03 |
| 73 | 4.618.0030 | LP TUBE D.20X10 3/8M.-3/8M.L.450 |
| 74 | 4.606.0019 | SUCTION CONNECTOR M22 IDRO COMPACT ESP.01 |
| 75 | 4.008.0031 | H2O SUCTION FILTER D.16 CONICAL ESP.00 |
| 76 | 5.609.0059 | PROFESSIONAL, LKX, NPX BULB BODY ASSEMBLY + SUPPORT |
| 77 | 3.414.0002 | 220/50 COIL FOR FUEL PUMP |
| 78 | 4.612.0043 | CABLE FOR DIESEL PUMP L=1000STRIPPED TERMINALS ESP.01 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor LKX30TS - 8.611.0001
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
