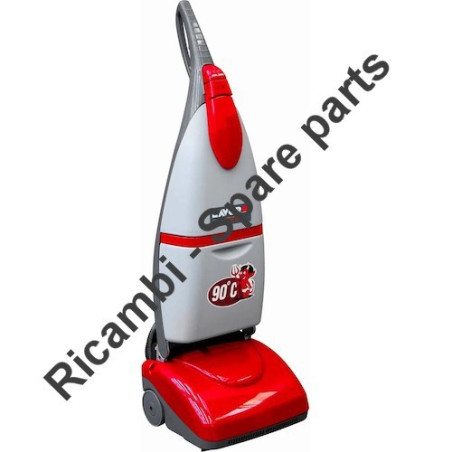

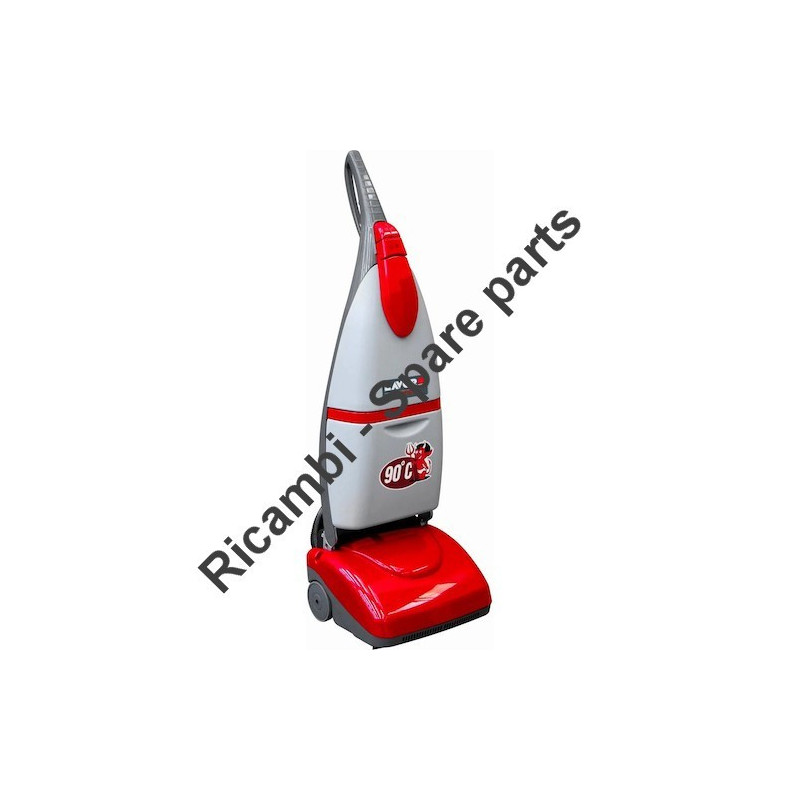

Lavor Pro Original Parts for Floor Scrubber Drier Crystal Clean
€14.15
Tax included
Lavor Pro Original Parts for Floor Scrubber Drier Crystal Clean
Fix Your Floor Scrubber Drier Crystal Clean Lavor Pro - 8.501.0508. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Pro Original Parts for Floor Scrubber Drier Crystal Clean
Fix Your Floor Scrubber Drier Crystal Clean Lavor Pro - 8.501.0508. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| Floor Scrubber Drier 90°C Hot water Power 1500 Watt - 8.501.0508 Crystal Clean | ||
| # | Part Num. | Description |
| 001 | 5.009.0482 | SWITCH + PROTECTION COVER ASSEMBLY |
| 002 | 4.508.0012 | UPPER COVER HANDLE GREY RAL 7043B |
| 003 | 4.508.1474 | SWITCH ON/OFF COVER (RED) |
| 004 | 4.508.1473 | TANK CAP (RED) |
| 005 | 5.509.1838 | ASSEMBLY FOR FILTER (RED) BY-PASS D.10 |
| 006 | 6.505.0041 | VALVE RUBBER GASKET NR-EPDM 55 SH MW |
| 007 | 4.508.0029 | FILTER GASKET 10X12 L=690 |
| 008 | 5.509.0415 | GREY SOLUTION TANK WITH WASHER AND GASKET |
| 009 | 6.505.0041 | SOLUTION TANK GASKET DIAM. 46X18 SP.2 MW |
| 010 | 6.505.0041 | VALVE FOR TANK MW |
| 011 | 4.508.0459 | BLACK WATER TANK (GREY) |
| 012 | 5.509.0008 | ASSY FLEXIBLE HOSE L.800 MW |
| 013 | 3.401.0181 | SWITCH FOR CHEMICAL/WATER |
| 014 | 4.508.0021 | SOLUTION ACTUATOR GREY RAL 7043B |
| 015 | 4.508.1476 | REAR HANDLE COVER (GREY) |
| 016 | 4.508.0023 | CABLE HOLDER MW GREY RAL 7043 B |
| 017 | 3.099.0278 | BELT 336 RPP3-12 |
| 018 | 4.507.0001 | PULLEY Z20 MW |
| 019 | 4.506.0001 | WASHER |
| 020 | 4.508.0042 | PULLEY FOR BRUSH |
| 021 | 3.102.0003 | DIESEL FUEL FILTER TP3 |
| 022 | 3.551.0032 | DETERGENT PUMP 230-240V - 50Hz |
| 023 | 4.508.0034 | DISPENSER CONNECTION |
| 024 | 4.508.0033 | SOLUTION DISPENSER |
| 025 | 5.509.1226 | DIFFUSER ASSY+230V PUMP+ FILTER+SOLUTION HOSE |
| 026 | 5.509.0012 | JOINT ASSY Y+FLEX HOSES MW. |
| 027 | 4.505.0003 | HANDLE SUPPORT |
| 028 | 3.404.0053 | CAPACITOR 8mF D.35X57 F/M |
| 029 | 5.509.0010 | SQUEEGEE + SUPPORT ASSEMBLY |
| 030 | 5.509.0002 | BRUSH + BEARING ASSEMBLY |
| 032 | 4.508.0001 | U BUSH LOCKING |
| 033 | 4.507.0004 | SQUEEGEE SUPPORT SPRING |
| 034 | 4.508.0007 | GREY WHEEL D.100 MW |
| 035 | 5.509.1822 | ASSIEME CAREN.INF.MW TERMORES. NERO C/ISOL.ACUST./SEDE CALDAIA |
| 036 | 4.508.0027 | ACOUSTIC PANEL |
| 037 | 4.508.0030 | EXHAUST AIR FILTER |
| 038 | 4.508.0009 | AIR INTAKE PORTION |
| 039 | 4.508.0032 | AIR INTAKE SEAL |
| 040 | 4.508.0031 | NON SIMMETRIC RING |
| 041 | 6.505.0040 | SUCTION MOTOR 230V/50-60Hz 800 W |
| 042 | 3.200.0092 | OR 139,37x2,62 NBR SH 70 |
| 043 | 4.507.0002 | SUCTION MOTOR SUPPORT |
| 044 | 4.508.0028 | UPPER ACOUSTIC PANEL |
| 045 | 4.508.0004 | PEDAL GREY RAL 7043B |
| 047 | 4.508.0036 | ADHESIVE GASKET |
| 048 | 4.508.0003 | TRACTION MOTOR AIR CONVEYOR |
| 049 | 3.099.0277 | FAN FOR TRACTION MOTOR |
| 050 | 4.505.0002 | FLANGE FOR MOTOR |
| 051 | 3.001.0032 | BEARING 6002 2RS1 |
| 052 | 6.505.0003 | KIT STATOR + ROTOR + SHAFT LWS |
| 054 | 4.505.0001 | MOTOR SUPPORT |
| 055 | 4.506.0004 | SUPPORT FOR PULLEY |
| 056 | 4.508.0041 | BRUSH TRACTOR |
| 057 | 3.004.0007 | PLAIN WASHER D.6X18X2 UNI6593 |
| 058 | 3.004.0035 | WASHER GROWER D.6 UNI1751 ZNT |
| 059 | 3.002.0150 | SCREW M6X35 UNI 5931 |
| 060 | 4.012.0268 | MAIN POWER CABLE 3X1,5 MT.10 SCHUKO PLUG |
| 063 | 3.002.0106 | SELF TAPPING CROSS HEAD SCREW 3.9X16 |
| 064 | 3.002.0068 | SCREW TCEI M6X12 UNI 5931 ZNT |
| 065 | 4.506.0003 | SCREW M3 |
| 066 | 4.506.0002 | SCREW M6 |
| 067 | 3.004.0026 | PLAIN WASHER D.4.3X12 UNI6593 |
| 068 | 3.002.0028 | SCREW TC-TC M4X12 UNI 7687 ZNT |
| 069 | 3.004.0003 | WASHER D.4X8 DIN6798 ZNT |
| 070 | 3.002.0182 | TCEI SCREW M4X55 UNI ZNT |
| 071 | 3.002.0127 | SCREW TC CROSS CUT M5X35 SWAGE FORM ZNT |
| 072 | 5.509.1836 | ASSEMBLY UPPER COVER (RED) |
| 075 | 5.509.0394 | CARPET BRUSH + BEARING ASSEMBLY |
| 076 | 6.505.0087 | KIT CALDAIA CRYSTAL CLEAN |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor Crystal Clean - 8.501.0508
5 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
