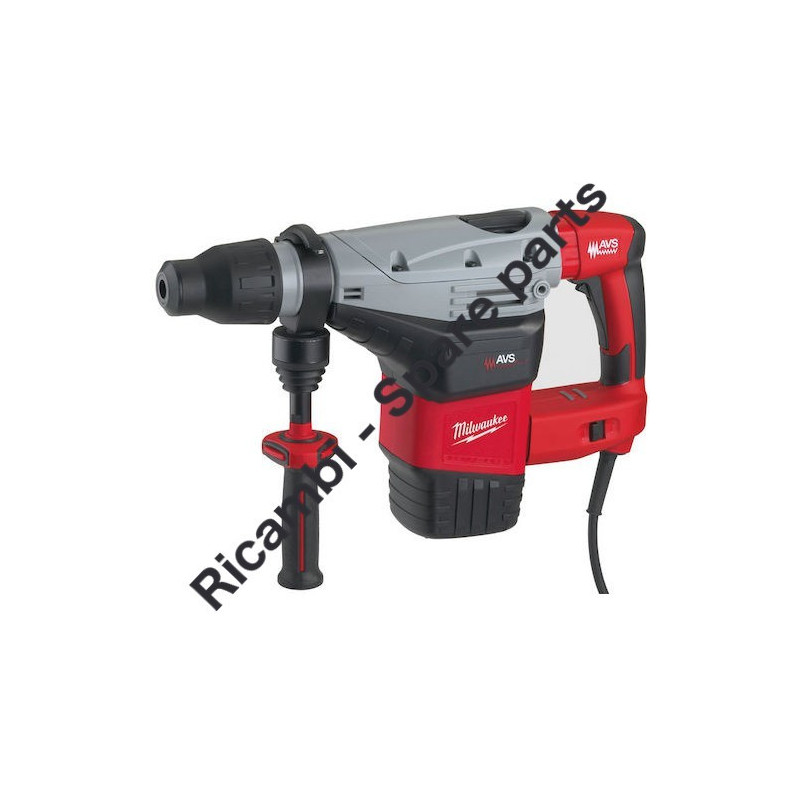

Milwaukee K750S Demolition Hammer Parts
€20.90
Tax included
Milwaukee K750S Demolition Hammer Spare Parts
Fix Your Milwaukee K750S Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Milwaukee K750S Demolition Hammer Spare Parts
Fix Your Milwaukee K750S Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Drill Driver and their spare part.
| Milwaukee K750S COMBI HAMMER SDS IN2 Spare Parts 4933398600 - K750S - 4000463235 Pag.1 |
||
| # | Part Num. | Description |
| 4 | 4931624585 | CONNECTION CABLE |
| 8 | 4931487203 | RATING PLATE |
| 10 | 4931398789 | STRIP-BAND |
| 11 | 4931398596 | HANDLE |
| 12 | 4931449510 | DAMPING ELEMENT |
| 71 | 4931398672 | INSERT |
| 100 | 4931398850 | MOTOR HOUSING |
| 105 | 4931442746 | ELECTRIC FIELD |
| 106 | 4931442688 | ARMATURE |
| 110 | 4931398508 | DUST SEAL |
| 111 | 4931426441 | BEARING END PLATE |
| 112 | 4931624541 | SCREW |
| 114 | 4931890311 | LOCKING RING |
| 115 | 4931398198 | SEAL RING |
| 116 | 4931398612 | AIR DEFLECTOR RING |
| 118 | 4931398613 | MOTOR CAP |
| 119 | 4931624542 | SCREW D7500-1CE M6x60 T30 TAPT 2000 A2F |
| 120 | 4931398208 | PAIR HANDLE SHELLS |
| 121 | 4931364667 | SCREW |
| 123 | 4931624263 | WIRE |
| 124 | 4931624538 | SCREW |
| 125 | 4931256500 | CABLE COLLAR |
| 126 | 4931624538 | SCREW |
| 129 | 4931624517 | SCREW N874101-1 SHR H-K4X22 T15 |
| 130 | 4931381694 | BRUSH HOLDER |
| 131 | 4931624504 | SCREW |
| 132 | 4931398673 | ELECTRIC ELEMENT |
| 133 | 4931398114 | LIGHT PIPE |
| 135 | 4931375454 | SWITCH |
| 136 | 4931398529 | PUSH-BUTTON |
| 140 | 4931398660 | SHOCK ABSORBER |
| 141 | 4931398661 | BRACKET |
| 142 | 4931398665 | AVS-Rear Girder |
| 143 | 4931398662 | AVS-COUNTER WEIGHT |
| 144 | 4931398664 | PRESSURE SPRING |
| 145 | 4931398663 | GUIDE BAR |
| 146 | 4931398666 | NUT |
| 156 | 4931398095 | BEARING |
| 157 | 9170315810 | PROTECTION WASHER |
| 158 | 4931398746 | BEARING BOLT |
| 200 | 4931409533 | GEAR BOX |
| 201 | 4931398624 | GEAR BOX INSULATION |
| 212 | 4931426454 | GEAR BOX COVER |
| 214 | 4931624555 | SCREW |
| 225 | 4931432431 | COUPLING |
| 236 | 4931409601 | CRANK WHEEL |
| 237 | 4931455235 | SPINDLE KIT |
| 238 | 4931455234 | SPINDLE SLEEVE |
| 239 | 4931398031 | BACK-PRESSURE RING |
| 241 | 4931398032 | DISC |
| 246 | 4931455749 | PERC. BODY W SEAL |
| 258 | 4931398792 | PISTON COMPL. |
| 268 | 4931398078 | SET COLLAR |
| 270 | 4931621847 | NEEDLE BEARING |
| 272 | 4931432188 | SPINDLE BEVEL GEAR |
| 273 | 4931398154 | ADJUSTING PIECE |
| 274 | 4931398075 | LOCKING PLATE |
| 275 | 4931398626 | SWITCH |
| 282 | 4931624479 | RING |
| 288 | 4931398749 | THRUST COLLAR |
| 290 | 4931624499 | DISC |
| 291 | 4931398658 | LATCH PLATE |
| 292 | 4931624236 | SCREW |
| 293 | 4931398097 | THRUST PIECE |
| 294 | 4931455748 | WASHER |
| 295 | 4931398099 | PRESSURE SPRING |
| 297 | 4931624535 | DISC |
| 305 | 4931398744 | SLEEVE |
| 306 | 4931426248 | INTERLOCK SLEAVE |
| 309 | 4931398856 | PRESSURE SPRING |
| 310 | 4931426013 | INTERLOCK ELEMENT |
| 400 | 4931432431 | REPAIR KIT |
| 406 | 4931449973 | ARMATURE ASSEMBLY |
| 700 | 4931402576 | CARRYING CASE |
| 705 | 4931398676 | HANDLE ASS'Y |
| 1200 | 4931463239 | MAINTENANCE SET |
| 1201 | 4931398132 | CARBON BRUSH SET |
| 1204 | 4931622166 | O-RING N874701 26X3 |
| 1205 | 4931393422 | PROTECTING COVER |
| 1207 | 4931398748 | DAMPING ELEMENT |
| 1208 | 4931398101 | SEALING SLEEVE |
| 1209 | 4931398085 | RUBBER SLEEVE |
| 1210 | 4931624440 | SEAL RING |
| 1212 | 4931398639 | SNAP DIE |
| 1213 | 4931398297 | O-RING (FKM) |
| 1216 | 4931398539 | SEAL |
| 1219 | 4931624621 | SLEEVE |
| 1220 | 4931398033 | CORE LIFTER RING |
| 1221 | 4931398073 | RING |
| 1222 | 9170319040 | SPRING RING |
| 1223 | 4931398068 | INTERLOCK ELEMENT - Discontinued |
| 1224 | 4931398790 | SEAL RETAINER |
| 1225 | 4931398080 | INTERLOCK DISC |
| 1226 | 4931624495 | SEAL RING |
| 1227 | 4931398064 | RUBBER CAP |
| 1228 | 4931409768 | HOLDING-DOWN DEVICE |
| 1230 | 4931426013 | REPAIR KIT |
| 1231 | 4931398298 | WASHER |
| 1232 | 4931624586 | WASHER |
| 1234 | 4931398189 | GROOVED BALL BEAR. |
| 1235 | 4931341741 | BALL BEARING |
| 1236 | 4931426570 | MAGNETIC DISC |
| 1238 | 4931409781 | STOP WASHER |
| Accessories Pag.2 | ||
| 1500 | 4932343740 | SDS-Max Gouge 300 x 26 |
| 1501 | 4932451354 | SDS-Max ground rod driver 13.3 mm |
| 1502 | 4932343739 | SDS-Max Flat 600 x 25 |
| 1503 | 4932343734 | SDS-Max Pointed 280 mm |
| 1504 | 4932343747 | SDS-Max Spade 400 x 110 |
| 1505 | 4932352918 | SDS-Max Surface treatment / bushing tool 50 mm |
| 1506 | 4932399234 | SDS-Max Tile Removal 300 x 80 |
| 1507 | 4932343743 | SDS-Max Wide 400 x 50 |
| 1508 | 4932343771 | SDS-Max Universal Taper Shank 300 mm |
| 1509 | 9170086960 | Dust guard cap |
| 1510 | 4932399128 | Drill Connect |
| 1511 | 4932359490 | SDS-Max - SDS-Plus |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
