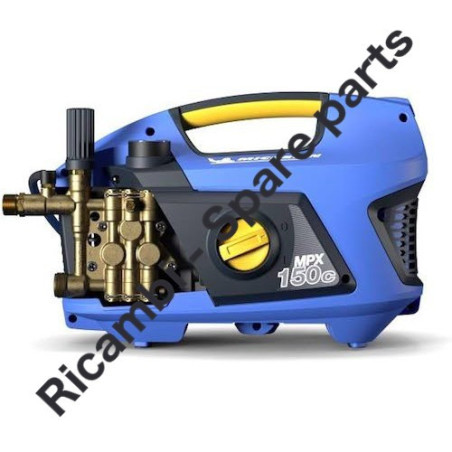

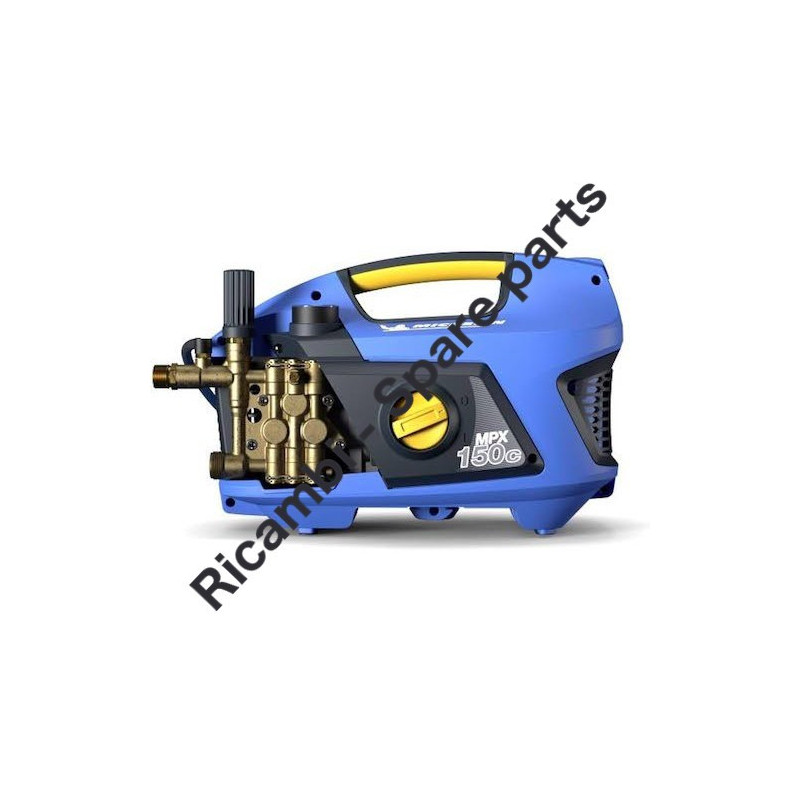

Michelin MPX 150C Spare Parts
€0.93
Tax included
Michelin Pressure Washer MPX 150C Spare Parts
Fix Your Pressure Washer MPX 150C - 14910. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Michelin Pressure Washer MPX 150C Spare Parts
Fix Your Pressure Washer MPX 150C - 14910. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of the Pressure Washer and the respective parts of the code.
| Pressure Washer MPX 150C - 14910 | ||
| Cleaning / Michelin / Idropulitrici / MPX 150C • 14910 / Casing Pag.1 | ||
| # | Part Num. | Description |
| 1 | 880280 | Screw |
| 2 | 1345341 | Handle |
| 3 | 1345351 | Cover |
| 4 | 1345270 | Casing |
| 5 | 1345331 | Guard |
| 6 | 1345421 | Knob |
| 7 | 2100300 | Screw |
| 8 | 4240590 | Screw |
| 9 | 1345311 | Grille |
| 10 | 4240540 | Rubber foot |
| 11 | 1345280 | Casing |
| 12 | 1345293 | Support |
| 13 | 1345301 | Grille |
| 14 | 1261570 | Screw |
| 15 | 1341030 | Filter |
| 16 | 1270960 | Detergent hose |
| 17 | 3082130 | Water coupling k |
| Pump Pag.2 | ||
| Cleaning / Michelin / Idropulitrici / MPX 150C • 14910 / Pump | ||
| 1 | 1349538 | Pump assembly |
| 2 | 1349133 | Head assembly |
| 3 | 1345160 | Head |
| 4 | 2840400 | Fitting |
| 5 | 740290 | O-ring |
| 6 | 2901110 | Injector |
| 7 | 800560 | O-ring |
| 8 | 3780450 | Spring |
| 9 | 2901070 | Shutter |
| 10 | 1460430 | O-ring |
| 11 | 1349056 | Valve |
| 12 | 1465720 | O-ring |
| 13 | 1345040 | Plug |
| 14 | 1344790 | Fork |
| 15 | 850850 | Screw |
| 16 | 1344800 | Plug |
| 17 | 2560870 | O-ring |
| 18 | 1344890 | Plug |
| 19 | 3200690 | Gasket |
| 20 | 3200700 | Ring |
| 21 | 770260 | O-ring |
| 22 | 1345190 | Piston guide |
| 23 | 1260440 | Water seal |
| 24 | 1344760 | Ring |
| 25 | 1344050 | Pump body |
| 26 | 1345210 | Bushing |
| 27 | 1040710 | O-ring |
| 28 | 1344060 | Cover |
| 29 | 1260780 | Screw |
| 30 | 1260780 | Screw |
| 31 | 1349000 | Plug |
| 32 | 1340170 | Shaft |
| 33 | 880111 | Key |
| 34 | 1341070 | Bearing |
| 35 | 480890 | Ring |
| 36 | 111120 | Ring |
| 37 | 1341080 | Ring |
| 38 | 1340060 | Connecting-rod |
| 39 | 1340080 | Pin |
| 40 | 1340070 | Piston |
| 41 | 1260460 | Oil seal |
| 42 | 600180 | O-ring |
| 43 | 1341010 | Plate |
| 44 | 1342740 | Piston |
| 45 | 1341020 | Washer |
| 46 | 850670 | Screw |
| 47 | 1120680 | O-ring |
| 48 | 600180 | O-ring |
| 49 | 2022040 | Pin |
| 50 | 2021630 | Spring |
| 51 | 2021650 | Washer |
| 52 | 1260820 | O-ring |
| 53 | 1344830 | Fitting |
| 54 | 42580 | TSS Retrofit kit |
| 55 | 1560520 | Spring |
| 56 | 1250280 | Ball |
| 57 | 480480 | O-ring |
| 58 | 1344620 | Fitting |
| 59 | 480560 | O-ring |
| 60 | 2320180 | Hose tail |
| 61 | 1342701 | Seat |
| 62 | 600180 | O-ring |
| 63 | 1460151 | Piston |
| 64 | 2021900 | Piston |
| 65 | 1080190 | O-ring |
| 66 | 600180 | O-ring |
| 67 | 1080401 | Ring |
| 68 | 770140 | O-ring |
| 69 | 740290 | O-ring |
| 70 | 1344870 | Piston guide |
| 71 | 1343450 | Wobble plate |
| 72 | 1460190 | Spring |
| 73 | 1980220 | Plate |
| 74 | 1344881 | Insert |
| 75 | 1080070 | Pin |
| 76 | 1980470 | Screw |
| 77 | 1060120 | Nut |
| 78 | 1981780 | Knob |
| 79 | 1981770 | Plug |
| 80 | 42690 | Valve kit adjustment |
| 81 | 1345020 | Plug |
| 82 | 41851 | Pressure gauge |
| 83 | 620301 | Plug |
| A | 42691 | Valve kit |
| B | 2623 | Piston kit |
| C | 42696 | Oil seal kit |
| F | 42697 | Gasket kit O-ring |
| H | 43033 | Water seal kit |
| Motor Pag.3 | ||
| Cleaning / Michelin / Idropulitrici / MPX 150C • 14910 / Motor | ||
| 1 | 45068 | Motor |
| 2 | 1260300 | Fan |
| 3 | 1340350 | Seal |
| 4 | 1260760 | Screw |
| 5 | 1340320 | Shield |
| 6 | 1340340 | Bearing |
| 7 | 1269100 | Clamp |
| 8 | 1340780 | Gasket |
| 9 | 2000210 | Screw |
| 10 | 2901920 | Switch |
| 11 | 3780170 | Box |
| 12 | 1261560 | Screw |
| 13 | 2021480 | Gland |
| 14 | 1263520 | Capacitor |
| 15 | 1982550 | Clamp |
| 16 | 1462900 | Gland |
| 17 | 2029752 | TSS box assembly |
| 18 | 2022201 | Fork |
| 19 | 4240700 | Cable |
| Standard Accessories Pag.4 | ||
| Cleaning / Michelin / Idropulitrici / MPX 150C • 14910 / Accessori standard | ||
| 1 | 43801 | Gun |
| 2 | 391000 | O-ring |
| 3 | 41269 | Lance |
| 4 | 2000770 | O-ring |
| 5 | 3960920 | High pressure reinforced hose |
