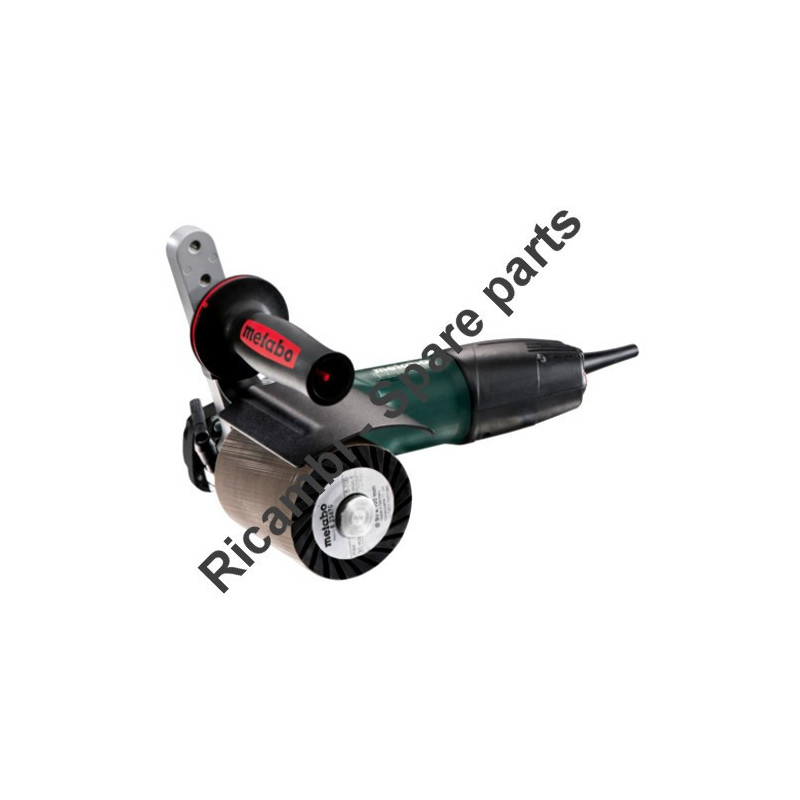

Metabo Spare Parts for Burnishing Machine SE 12-115
€1.58
Tax included
Metabo Spare Parts for Burnishing Machine SE 12-115
Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Burnishing Machine SE 12-115 - 02115000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Burnishing Machine SE 12-115
Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Burnishing Machine SE 12-115 - 02115000.
In the following table, look for the model of the Burnishing Machine and the respective parts of the code.
| Burnishing Machine SE 12-115/02115000 | ||
| # | Part Num. | Description |
| 1 | 31605343 | Sealing set |
| 2 | 31603912 | Gear flange cpl. |
| 3 | 14311565 | Ball bearing, 10x30x9 |
| 4 | 34001247 | spurwheel |
| 5 | 31605650 | Gear flange cpl. |
| 6 | 14311506 | Ball bearing, 8X 22X 7 |
| 8 | 31000878 | Armature 230 V |
| 9 | 31603121 | Fan w. prot. Grid |
| 10 | 34339112 | Tacho disc |
| 11 | 14311490 | Ball bearing, 6X 19X 6 |
| 12 | 14115334 | Washer |
| 13 | 34409526 | Rubber bushing |
| 14 | 33915089 | Baffle |
| 15 | 31605649 | Gear housing cpl. |
| 16 | 34343589 | Push button black |
| 17 | 34200155 | Pressure spring |
| 18 | 33900652 | Sealing washer |
| 19 | 34151379 | Bolt |
| 20 | 34170147 | Self-tap. fill. h. screw |
| 21 | 33906016 | Compensating Washer |
| 22 | 14111986 | Fillister head screw |
| 23 | 34339090 | Insert |
| 24 | 14111957 | Fill. head screw(DIN 7985) |
| 25 | 34337812 | Sealing ring |
| 26 | 31605255 | Arbor compl.,M14 |
| 30 | 31604659 | Side support handle compl. |
| 31 | 31605105 | Wheel guard compl. |
| 32 | 31100989 | Field coil 230 V El |
| 33 | 34449396 | Cable strand |
| 34 | 33804642 | Rating plate |
| 35 | 33908031 | Flat plug |
| 36 | 14111578 | Fillister head screw |
| 37 | 34339418 | Switch slide |
| 38 | 34339188 | Switch rod |
| 39 | 14111602 | Self-tap fill h screw |
| 40 | 34336249 | Cable clip |
| 41 | 34340674 | Switch |
| 42 | 14111699 | Self-tap. fill. h. screw |
| 43 | 34337571 | 2 part motor cap |
| 44 | 34307728 | Light transmission |
| 45 | 34410097 | Cable sleeve |
| 46 | 34449318 | Cable with plug |
| 47 | 34101277 | Spacer sleeve |
| 48 | 31520248 | Flange |
| 49 | 34160392 | Spindle shaft |
| 52 | 34111284 | Knurled screw |
| 55 | 14115623 | Adjusting spring |
| 56 | 33811724 | Label to read instructions |
| 57 | 34307749 | Temperature sensor |
| 58 | 31605220 | Motor housing |
| 60 | 33812216 | M-Label,08 52x22 |
| 61 | 31603551 | Carbon brush |
| 62 | 31603548 | Brush holder cpl. |
| 63 | 34308212 | Electronic unit,230V 50-60Hz |
| 64 | 34416130 | Open-end spanner |
| 65 | 34416152 | Cranked wrench key |
| 66 | 34409744 | Foam rubber cord |
| 880 | 34413084 | Special grease 100Gr 3,6oz |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo SE 12-115 - 02115000
5 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
