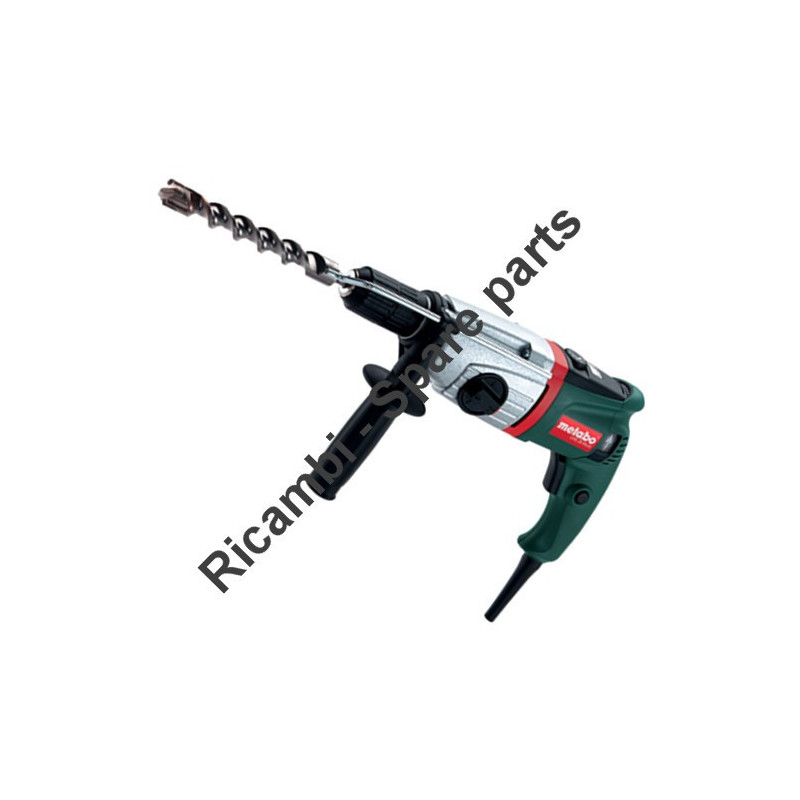

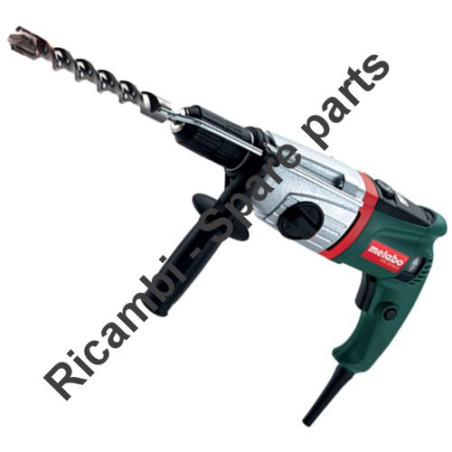

Metabo Spare Parts for Rotary Hammer UHE 28 Multi
€2.05
Tax included
Metabo Spare Parts for Rotary Hammer UHE 28 Multi
METABO service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and fix issues for Rotary Hammer UHE 28 Multi - 00361000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Rotary Hammer UHE 28 Multi
METABO service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer UHE 28 Multi - 00361000.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Rotary Hammer UHE 28 Multi/00361000 | ||
| # | Part Num. | Description |
| 1 | 31602959 | Adaptor SDS -PLUS |
| 2 | 14319491 | Shaft sealing ring |
| 3 | 14311383 | Needle sleeve |
| 4 | 31603053 | Gear housing cpl. |
| 5 | 14115375 | Supporting disc |
| 6 | 34200269 | Pressure spring |
| 7 | 34337444 | Retaining ring |
| 8 | 33811792 | Metabo label |
| 9 | 14112249 | Self-tap. fill. h. screw |
| 10 | 31602951 | Sliding block |
| 11 | 31603056 | Drill driving sleeve cpl. |
| 13 | 31603058 | Intermediate striker cpl. |
| 14 | 14319240 | O-ring |
| 15 | 34101255 | Supporting ring |
| 16 | 14319391 | O-ring |
| 17 | 31603057 | Catching sleeve cpl. |
| 18 | 14319392 | O-ring |
| 19 | 14118184 | Circlip |
| 20 | 31601766 | Striker cpl. |
| 21 | 34409314 | Sealing ring |
| 22 | 34105577 | Exciter sleeve |
| 23 | 32005048 | Ball holder |
| 24 | 34409557 | Seal |
| 25 | 31603054 | Gear flange cpl. |
| 26 | 34407067 | Felt seal |
| 27 | 34409592 | Rubber buffer |
| 28 | 31603262 | Control knob cpl. |
| 29 | 33912961 | Washer |
| 30 | 14311428 | Axial needle bearing |
| 31 | 14115492 | Cup spring |
| 32 | 34000323 | Coupling sleeve |
| 33 | 31603048 | Intermediate gear cpl. |
| 34 | 31602956 | Shift element |
| 35 | 14111944 | Fill. head screw(DIN 7985) |
| 36 | 34151163 | Depth stop |
| 37 | 31400077 | Support handle compl. |
| 38 | 34337604 | Sealing ring |
| 39 | 14311488 | Ball bearing, 8x22x7 |
| 40 | 30100219 | Futuro plus ring S2M 13 mm |
| 41 | 31000788 | Armature cpl.230V (w. tacho gen.) |
| 42 | 14311475 | Ball bearing, 6X 19X 6 |
| 43 | 34337427 | Intermediate flange |
| 44 | 34307802 | Temperature sensor |
| 45 | 33804532 | Rating plate |
| 46 | 34307879 | VTC electronic SIGNAL Code!,230V |
| 47 | 34340688 | poti switch 230V |
| 48 | 14111706 | Self-tap. fill. h. screw |
| 49 | 31604106 | Drill Handle w/overmold green |
| 50 | 34336249 | Cable clip |
| 51 | 14319243 | O-ring |
| 52 | 14111826 | Self-tap. fill. h. screw |
| 53 | 31100981 | Field coil 230V |
| 54 | 31501265 | Motor housing |
| 55 | 33812216 | M-Label,08 52x22 |
| 56 | 33912939 | Brush contact |
| 57 | 31602879 | Brush holder module |
| 58 | 34448673 | Cord with plug |
| 60 | 34410114 | Cable sleeve |
| 61 | 31603496 | Carbon brush set |
| 62 | 31603204 | Maintenance kit |
| 63 | 34170336 | Cap screw |
| 64 | 31603239 | Adaptor |
| 65 | 33913098 | Butting sheet |
| 67 | 34337675 | Seal |
| 68 | 33811541 | Indication label |
| 70 | 34101263 | Ring |
| 71 | 31603574 | Fan w. prot. Grid |
| 72 | 33811788 | Sticker |
| 73 | 31602960 | SSP Cuck w. adaptor |
| 880 | 34413080 | Grease FG 126 |
| 890 | 34413056 | Grease SF 011 50Gr 1,8oz |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo UHE 28 Multi - 00361000
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
