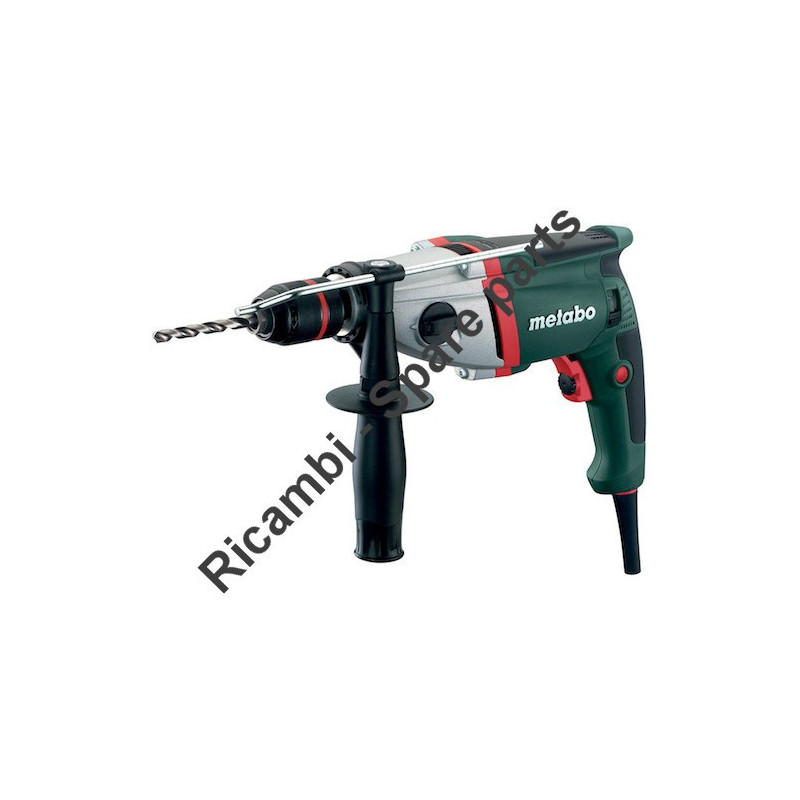

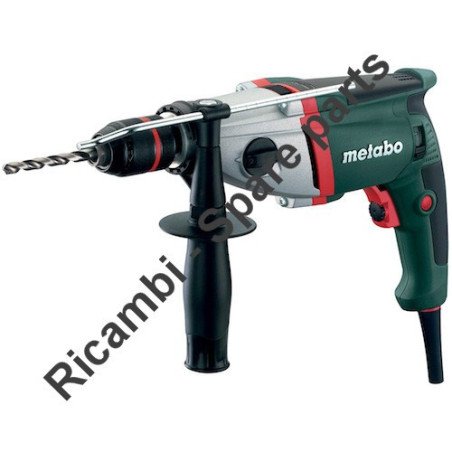

Metabo Spare Parts for Impact Drill SB 710
€1.92
Tax included
Metabo Spare Parts for Impact Drill SB 710
We have the original Spares for METABO Impact Drill SB 710 - 008610000, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Impact Drill SB 710
We have the original Spares for METABO Impact Drill SB 710 - 008610000, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Impact Drill SB 710. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Impact Drill SB 710/00861000 | ||
| # | Part Num. | Description |
| 1 | 34170194 | Cheese-head screw |
| 2 | 14118168 | Retaining ring |
| 3 | 33921092 | Shaft sealing ring |
| 4 | 34151163 | Depth stop |
| 5 | 14112361 | Self-tap. fill. h. screw |
| 6 | 31604279 | Gear housing compl. |
| 7 | 34000401 | Sliding block |
| 8 | 31604194 | Switch housing compl. |
| 9 | 31604282 | Pinion shaft w.slip-clutch |
| 10 | 34409793 | Seal |
| 11 | 31604280 | Gear flange compl. |
| 12 | 34160402 | Drill spindle |
| 13 | 14311579 | BALL BEARING, 15x32x9 |
| 14 | 34105565 | Slotted disc |
| 15 | 31400128 | Side support handle |
| 16 | 14115581 | Ring |
| 17 | 31604196 | Control knob compl. |
| 18 | 34154001 | Guide bolt |
| 19 | 33913307 | Shift fork |
| 20 | 14111699 | Self-tap. fill. h. screw |
| 21 | 34337604 | Sealing ring |
| 22 | 14311580 | Ball bearing, 8x22x7 |
| 23 | 33000182 | Fan |
| 24 | 31000922 | Armature compl.,230 V |
| 25 | 14311581 | Ball bearing, 6X 19X 6 |
| 26 | 34339475 | Intermediate flange |
| 27 | 14111826 | Self-tap. fill. h. screw |
| 28 | 31100980 | Field coil 230V |
| 29 | 33805341 | Rating plate |
| 30 | 34339407 | Cover w.o. electronic |
| 31 | 34409592 | Rubber buffer |
| 32 | 14319243 | O-ring |
| 33 | 34152023 | Cylindrical pin |
| 34 | 31501325 | Motor housing |
| 36 | 31604695 | Carbon brush set,230 V |
| 37 | 31605199 | Brush holder module,230V - V-El. 850W |
| 38 | 34340921 | On-off switch |
| 39 | 14111602 | Self-tap fill h screw |
| 40 | 34339853 | Pistol grip 2-part, gummed |
| 41 | 34409758 | Rubber plug |
| 42 | 14111706 | Self-tap. fill. h. screw |
| 43 | 34336249 | Cable clip |
| 44 | 34339430 | Cable sleeve |
| 45 | 34449318 | Cable with plug |
| 880 | 34413093 | Grease 50Gr 1,8oz |
| 882 | 34413080 | Grease FG 126 |
| 884 | 34413056 | Grease SF 011 50Gr 1,8oz |
| 886 | 34413103 | Grease 50Gr 1,8oz |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
