Metabo Spare Parts for Angle Grinder WE 9-125 SP

€12.25
Tax included

Metabo Spare Parts for Angle Grinder WE 9-125 SP

Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Angle Grinder WE 9-125 SP - 00924001.
ITEM CODE: 31400054
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Angle Grinder WE 9-125 SP

Metabo Original spare parts

 sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Angle Grinder WE 9-125 SP - 00924001.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo WE 9-125 SP - 00924001

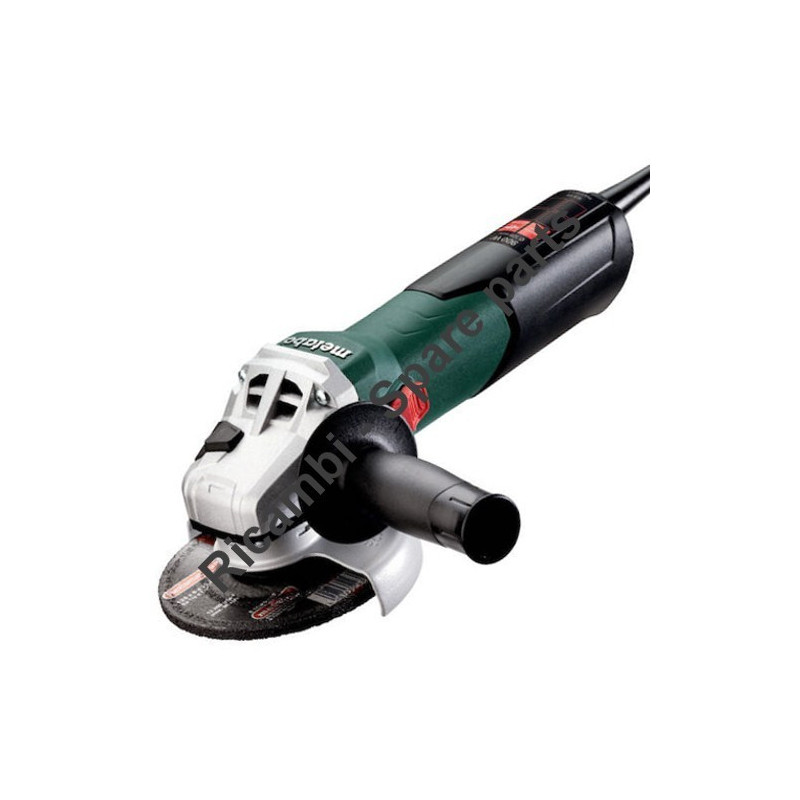

Angle Grinder Metabo WE 9-125 SP - 00924001
# Part Num. Description
1 31400054 Handle cpl.
2 31602931 Gear housing cpl.
3 34110094 Hexagon nut w.recess
4 31602947 Bevel gear
5 33900681 Washer
6 14311518 Ball bearing,8x22x7
7 34337367 Cover
8 31000772 Armature cpl. 230 V El
9 14311517 Ball bearing,6x19x6
10 34409526 Rubber bushing
11 33915088 Baffle
12 14111602 Self-tap fill h screw
13 31602948 Friction washer cpl.
14 14115392 Washer 10,2 X 14,8X 0,5
15 14115112 Washer 10,2 X 14,8X 0,2
16 34105148 Intermediate piece
17 34337721 Flange complete
18 14111986 Fillister head screw
19 34116103 Spindle shaft
20 31603926 Veiligheidskoppeling,230v-900w
21 34110690 Flange nut
22 34103116 Clamping flange
23 31603571 Wheel guard cpl.
24 33906016 Compensating Washer
25 33804638 No longer available
26 34339418 Switch slide
27 34337364 Switch rod
30 34336249 Cable clip
31 14111699 Self-tap. fill. h. screw
32 34337368 No longer available
33 34410097 Cable sleeve
34 34449318 Cable with plug
35 31101023 Field coil assembly w.field coil,230V
36 31501262 Motor housing
37 33812216 M-Label,08 52x22
39 31603548 Brush holder cpl.
40 34340673 Switch
41 34308024 No longer available
43 39999999 No longer available
44 14115230 Washer 10,2 X 14,8X 0,1
45 31603121 Fan w. prot. Grid
47 14115334 Washer
48 34337372 Push button black
49 34200155 Pressure spring
50 33900652 Sealing washer
51 34151379 Bolt
52 31603551 Carbon brush set
54 34409692 Shrink hose
55 33913228 Washer
56 34416392 Pin spanner
880 34413084 Special grease 100Gr 3,6oz
885 34413056 Grease SF 011 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo WE 9-125 SP - 00924001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS
New

Download

Diagram Metabo WE 9-125 SP

Diagram Metabo WE 9-125 SP

Download (357.05KB)
