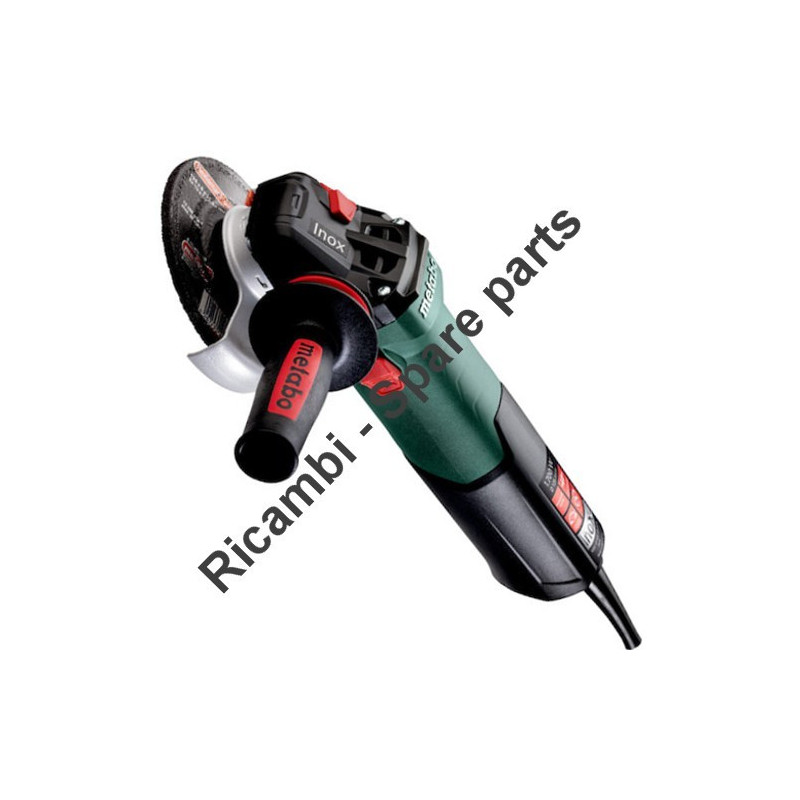

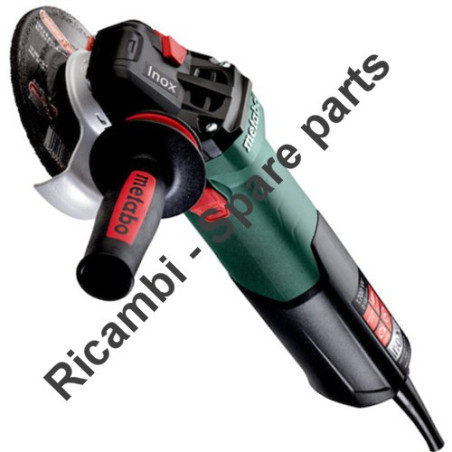

at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WEV 17-125 Quick 00516001.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder WEV 17-125 Quick 00516001 | ||
| # | Part Num. | Description |
| 1 | 31001099 | ARMATURE COMPL., 230V |
| 2 | 31101298 | FIELD COIL ASSEMBLY 230V |
| 3 | 34341012 | Switch 2-pole,X2 |
| 6 | 34336249 | Cable clip |
| 7 | 31501352 | Motor housing |
| 8 | 33915118 | Air Baffle |
| 9 | 33915120 | Air Baffle |
| 10 | 31606852 | Electronic unit w.switch |
| 11 | 14311517 | Ball Bearing, 6x19x6 |
| 12 | 34409787 | Rubber bushing |
| 13 | 33913306 | Washer, 8.05x17x0.4 |
| 14 | 14311518 | Ball Bearing, 8x22x7 |
| 15 | 33900639 | Washer, 7.05x19.5x0.2 |
| 16 | 34110094 | Hexagon Nut W.recess |
| 17 | 34343307 | Switch rod |
| 18 | 34343303 | Cap |
| 19 | 34343310 | End Cap |
| 20 | 34343710 | Switch slider |
| 21 | 34103116 | Clamping flange |
| 23 | 33920450 | Wheel guard, D125 |
| 24 | 31400097 | Anti-vibration handle, M 8 |
| 26 | 34202249 | Spring clip |
| 28 | 14112143 | Fill. Head Screw (DIN 7985) |
| 30 | 33901243 | flat gasket |
| 31 | 14112164 | Screw (DIN 7985) |
| 32 | 14111698 | Screw |
| 33 | 14111706 | Screw |
| 34 | 33806705 | Data plate |
| 40 | 34160442 | Spindle M14 |
| 41 | 31605535 | Clamping nut compl.,M14 |
| 42 | 14115112 | Washer 10.2 X 14.8X 0.2 |
| 43 | 14115230 | Washer 10.2 X 14.8X 0.1 |
| 44 | 14115392 | Washer 10.2 X 14.8X 0.5 |
| 50 | 34343328 | Flange compl. |
| 51 | 34110246 | Nut |
| 52 | 31605498 | Bevel Gear with pinion |
| 53 | 31605508 | Friction Washer Set Compl. |
| 54 | 31605510 | Gear Housing Compl. 33 |
| 55 | 31605426 | Safety clutch with pinion |
| 56 | 31606542 | Brush holder Set |
| 57 | 31605485 | Fan with dust guard |
| 58 | 31606545 | Carbon brush set cut-off |
| 59 | 31606604 | Clamping lever compl. |
| 61 | 14115665 | Retaining ring |
| 62 | 14319600 | O-ring |
| 63 | 34200339 | Pressure Spring |
| 64 | 34343313 | Push button |
| 65 | 34151564 | Bolt |
| 70 | 34343306 | Tacho disc |
| 71 | 34343309 | Pivoting Switch |
| 72 | 33900780 | Washer |
| 75 | 14319249 | O-ring |
| 92 | 14319564 | O-ring |
| 124 | 31606717 | carbonbrush with brusholder Set 230V |
| 880 | 34413092 | 100G GREASE TUBE |
| 885 | 34413056 | TUBE GREASE SF 011 50Gr 1,8oz |
| 1001 | 33850578 | Data plate |
| 1005 | 31606732 | Cable with cable holder sleeve |
