Metabo Spare Parts for Rotary Hammer BH E 6020

€1.66
Tax included

Metabo Spare Parts for Rotary Hammer BH E 6020

Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6020 S R+L 506020002.
ITEM CODE: 14111609
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Rotary Hammer BH E 6020

Metabo Original spare parts

 at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6020 S R+L 506020002.

In the following table, look for the model of the Drill and the respective parts of the code.
BH E 6020 S R+L - 506020002

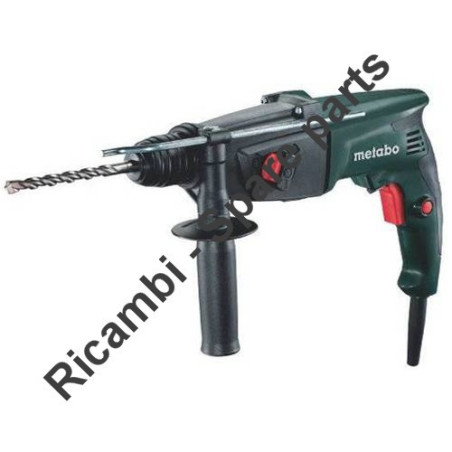

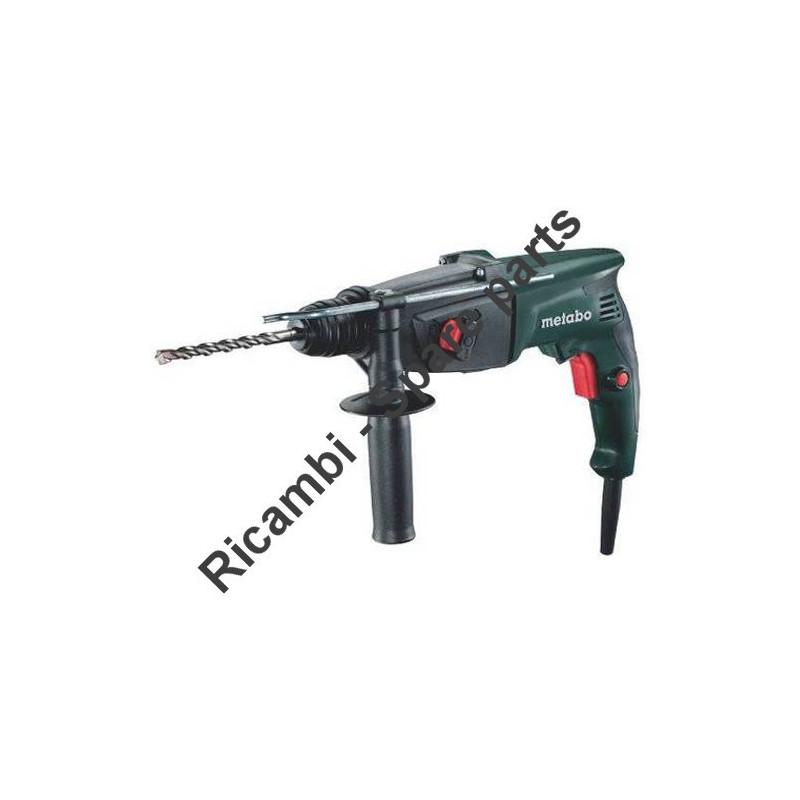

Rotary Hammer Metabo BH E 6020 S R+L 506020002
# Part Num. Description
1 31000515 Armature Complete 220 V
2 31100653 Field 220 V
3 34301118 Carbon Brushe set
4 34307349 Electronic 220V
8 14111616 Hexagonal head screw
9 34335978 Tightening device
10 31400055 Handle
11 63105200 Additional handle
12 34409295 Rubber cap
13 34202104 Torsion spring
14 14118012 Safety ring
15 34336168 Adjustable ring
16 14312032 Ball
17 34200156 Spring ring
18 34336169 Spacer ring
19 14115387 Washer
20 14319053 Impregnated felt ring
21 34170186 Screw for plastic
23 31601568 Gear case
24 14115394 Washer
25 14311375 Bearing. 20x 32x 7
26 14319377 Sealing ring
27 34409309 damper ring
28 14319392 Ring-O
29 31601968 Bumper
31 14118186 Elastic ring
32 31601767 Safety clutch
33 31601766 Hammer
34 34409314 Sealing ring
35 34105139 BUSHING
36 14216053 Cylindrical Bushing
37 33921053 Gasket
38 32005020 ball holder
39 31601768 Gearbox flange
40 14111944 Screw (DIN 7985)
41 34151163 Depth rod
42 34170181 Screw for plastic
43 14319006 Ring-O
44 33912166 Cover
45 14312008 Ball
46 34335345 Switch knob
47 34170238 Cylindrical screw for metal
48 31601508 Switch knob BHE 6020
49 33900272 Safety
50 14112055 Mikrov screw.
51 34200061 Spring
52 14311347 Spacer bearings
53 14115145 Washer
54 14115146 Washers
55 34000216 Pinion gear
56 14311374 Needle Bearing
57 33900372 Washer
58 34200129 Spring
59 34114206 ECCENTRlC BHE 6020/6026
60 34002006 Gear
61 31601496 Pnion gera
62 14311382 Needle Bearing
63 31601736 Support plate
64 34200082 Spring
65 34154007 Guide pin
66 33919105 Gear fork
68 14319257 Ring - O
69 14311340 Bearing 8x22x7
70 33000105 Fan
71 14319243 Ring - O
72 14111609 Screw
73 34300023 Guide brushes
74 34335338 Brush holder
75 34170116 Screw
76 33903482 Cover plate
77 33801715 Label
78 33810521 Information Label
79 34335843 Closing cover
80 31501497 Motor casing with cover
81 34448921 Complete wire
82 34448884 Complete wire
83 34336008 Centrifugal lubrication washer
84 14115340 Washer
85 14311223 Bearing 6x19x6
86 33915065 Air conveyor
37 34448920 Complete wire
38 34448919 Complete wire
89 33610176 Melabo label
90 14111873 Screw
91 34337171 Cable holder
92 34410059 Cable holder sleeve
93 34448906 Cable with CEE plug
94 14111697 Head screw with cap
95 14111706 Screw
96 33811425 Information plates
97 34409311 Rubber disk
95 39999999 NOT NECESSARY
800 34413080 GREASE TUBE GF126
1001 xxxxxxxxx connection scheme
