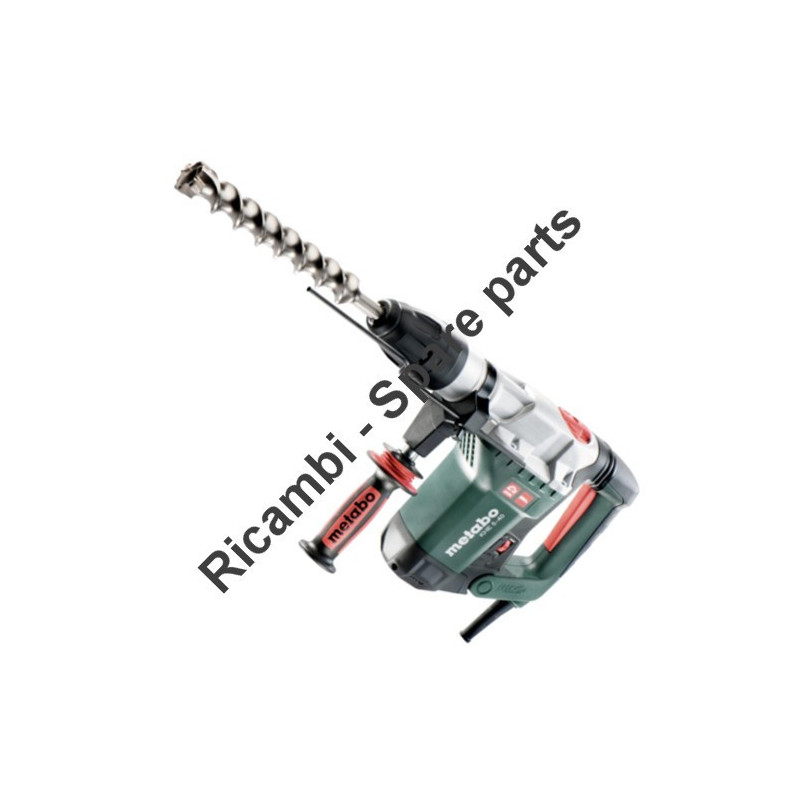

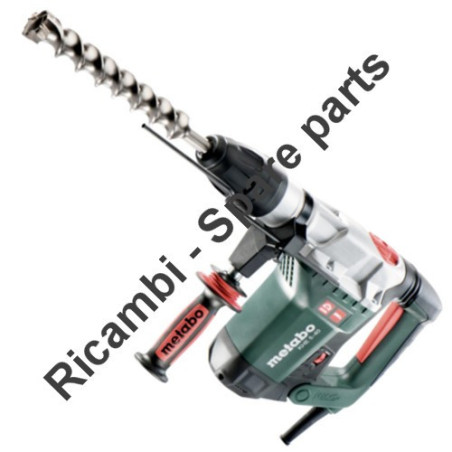

Metabo Spare Parts for Combination Hammer KHE 5-40
€19.23
Tax included
Metabo Spare Parts for Combination Hammer KHE 5-40
METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KHE 5-40 - 00687000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Combination Hammer KHE 5-40
METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KHE 5-40 - 00687000.In the following table, look for the model of the Hammer and the respective parts of the code.
| Combination Hammer KHE 5-40/00687000 | ||
| # | Part Num. | Description |
| 1 | 34410255 | Rubber bushing |
| 2 | 34343651 | Sleeve |
| 3 | 34152034 | Pin |
| 4 | 34101332 | semi ring |
| 5 | 34101333 | Support ring |
| 7 | 14115671 | Retaining ring |
| 8 | 34102009 | Ring |
| 9 | 14319568 | O-ring |
| 10 | 34121088 | Drill driving sleeve,SDS |
| 11 | 14118087 | Circlip |
| 12 | 14319569 | Felt ring |
| 13 | 34411306 | Gasket |
| 14 | 34101334 | Support ring |
| 15 | 14319570 | O-ring |
| 16 | 14319571 | O-ring |
| 17 | 33900932 | Washer |
| 18 | 34121089 | Piston |
| 19 | 14319572 | O-ring |
| 20 | 34121110 | Damping ring |
| 21 | 34121109 | Roller |
| 22 | 34121090 | Drill driving sleeve |
| 26 | 34101336 | Spacing washer |
| 27 | 34344021 | Retaining ring |
| 28 | 34202262 | Spring |
| 29 | 34101335 | Spacing washer |
| 30 | 34121111 | Striker |
| 31 | 14319573 | O-ring |
| 32 | 14319574 | O-ring |
| 33 | 14112441 | Screw |
| 37 | 14112440 | Self-tap. fill. h. screw |
| 38 | 14311572 | Ball |
| 39 | 34202402 | Spring |
| 40 | 34343653 | Control knob slide |
| 41 | 14319575 | O-ring |
| 42 | 31510540 | Gear housing |
| 43 | 34411266 | Sealing ring |
| 44 | 34344022 | Shift fork |
| 45 | 14112443 | Screw |
| 47 | 34101338 | Spacing washer |
| 48 | 34101339 | Spacing washer |
| 49 | 34003739 | Bevel gear |
| 50 | 34121092 | dog clutch |
| 51 | 33914763 | Retaining ring |
| 52 | 31605940 | safety clutch cpl. |
| 56 | 31606127 | Spindle compl. |
| 59 | 32005401 | Bearing |
| 60 | 31606128 | Bearing cover compl. |
| 61 | 33914753 | Spacer sheet |
| 62 | 14112442 | Screw |
| 63 | 14116033 | Cylindrical pin |
| 64 | 34411298 | Rubber buffer |
| 65 | 33915313 | Disc flange cover |
| 66 | 14112439 | Screw |
| 67 | 31101226 | Field w.coil |
| 68 | 34344023 | Motor housing |
| 71 | 31605942 | Brush holder compl. |
| 72 | 34343647 | Motor cap |
| 73 | 34172218 | Screw |
| 75 | 34102010 | Spacing washer |
| 77 | 32005402 | Bearing |
| 78 | 31606114 | Armature compl. |
| 79 | 34411267 | Rubber bushing |
| 80 | 34308446 | Electronic unit |
| 81 | 34344007 | Cover |
| 82 | 31605945 | Connecting set |
| 83 | 34344026 | Ring |
| 84 | 34411268 | Bellows |
| 85 | 34344097 | GUIDE RING |
| 86 | 34172219 | Screw |
| 87 | 34344098 | CAP |
| 88 | 34341059 | Switch compl. |
| 89 | 34343648 | Handle |
| 91 | 34172220 | Screw |
| 92 | 34344024 | CABLE CLAMP |
| 93 | 34411269 | Rubber bushing |
| 94 | 34411270 | Cable sleeve |
| 95 | 34449992 | Cable with plug |
| 97 | 34202264 | Spring |
| 101 | 31400141 | Anti-vibration handle compl. |
| 103 | 31606115 | Clamping piece cpl. |
| 104 | 34151821 | Depth stop |
| 107 | 31606116 | Piston compl. |
| 110 | 31606117 | Maintenance kit |
| 111 | 34344025 | Plate |
| 112 | 31606712 | Carbon brush |
| 113 | 39999999 | Part not needed |
| 880 | 63180000 | Special grease |
| 885 | 13601290 | Gear grease 100g tube |
| 1001 | 33851001 | Wiring diagram |
