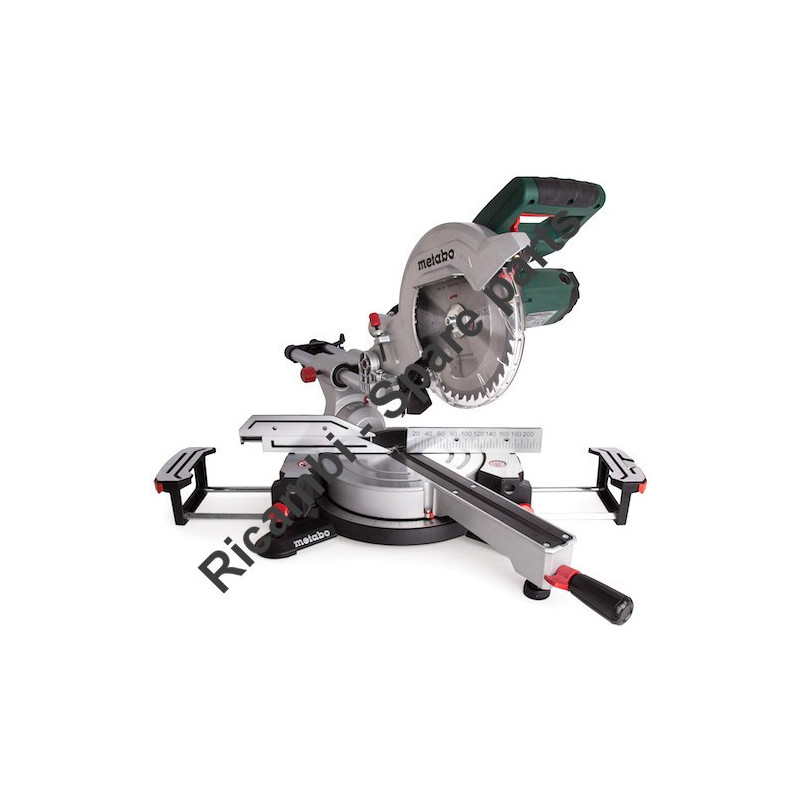

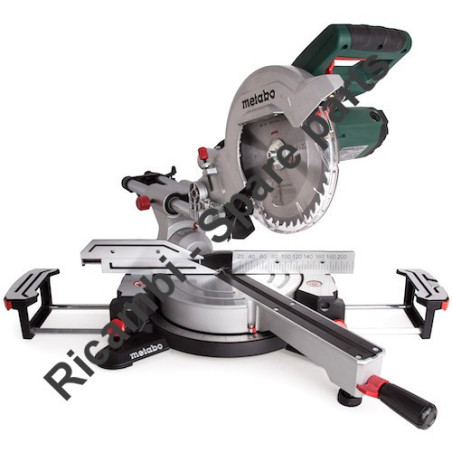

Metabo Spare Parts for Mitre Saw KGS 216 M/0102160400

€1.93
Tax included

Metabo Spare Parts for Mitre Saw KGS 216 M/0102160400

We supply original METABO spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mitre Saw KGS 216 M/0102160400.

Mitre Saw KGS 216 M/0102160400
ITEM CODE: 1010733983
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Mitre Saw KGS 216 M/0102160400

We supply original METABO

 spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mitre Saw KGS 216 M/0102160400.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
Mitre Saw KGS 216 M/0102160400

Miter Saw KGS 216 M/0102160400 10
# Part Num. Description
1 1010734645 Flange compl.
2 1010734602 Gear-box compl.
3 1010734130 Swivel lever compl.
4 141130100 Hexagonal nut
5 141124480 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE
6 1010734564 Depth stop compl.
7 1010734572 Dust etraction kit compl.
10 1010734580 Wheel guard compl.
11 1010734548 Unlock lever compl.
12 1010734165 Strain relief compl.
13 141150010 Washer
14 6172722847 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X13
15 141111420 Fillister head screw
16 1010734190 Handle compl.
17 1010734203 Switch set
18 8106734071 Power supply pack
19 1010734084 Switch compl.
20 8050734103 Condenser
21 1010734173 Handle compl.
22 1010733983 Carbon brush holder compl.
23 1388734023 Carbon brush
24 6172015687 CROSS REC'D PAN HEAD TAP.SCREW
25 1381733960 MOTOR COVER
26 141116770 Fillister head screw
27 141150020 Washer
28 1010734009 Motor housing compl.
29 7057734846 Rubber bushing
30 143115180 Ball bearing,8x22x7
31 8014734059 Stator
32 6174001900 COUNTERSUNK HEAD TAPPING SCREW
33 1331734868 Air guide cover
34 8014734890 Armature
35 1010734815 Spindle lock compl.
36 7100010180 DEEP GROOVE BALL BEARING
37 141151940 Washer
38 1010734807 Bearing compl.
39 1381735660 Cover spring
40 6174188961 COUNTERSUNK HEAD TAPPING SCREW ST 2,9X9,
41 1381734788 Extraction channel
42 141124560 RAISED CHEESE HEAD SCREW
43 1010734629 Safety guard compl.
44 141161150 Tightening pin
45 141124510 HEX. SOCKET SET SCREW, FLAT PT M 6X8 VER
46 6172006963 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X32
48 341701070 Grub screw
50 8402734940 CABLE WITH PLUG
51 9102689833 ALLEN HEXAGON KEY
52 1381734834 Tool holder
53 1382735095 Sliding sheet
54 1010734424 Pivot compl.
55 1010734513 Feed rod compl.
56 141113040 Fillister head screw
58 141110290 Hexagon head screw
59 1010734491 Motor bracket compl.
60 1381734710 Cable hook
62 1010734530 Transport lock compl.
63 8602734766 LED-Lamp
64 6123084703 RAISED CHEESE HEAD SCREW M 4X20 VERZ.
65 1381734974 Cover lighting
66 1482734738 Stop sheet
67 141150750 Lock washer
68 6110000632 CUP SQUARE NECK SCREW M 8X16 VERZ.
69 1010734661 Motor head axle compl.
70 1010734467 Laser with holder
71 1010734742 Thumbscrew compl.
73 1010734408 Scale set compl.
74 1010734440 cover pivot
75 7056734753 Plug in buffer
76 141150050 Washer
78 316056630 pivot
80 141130130 Hexagonal nut
81 6143025088 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO
90 1010734386 Turntable compl.
91 141113440 Hexagon head screw
92 141112180 Countersunk screw
93 1381734966 Table insert
94 141124460 HEX. SOCKET SET SCREW, FLAT PT
95 141131010 Hexagonal nut
96 1010734211 Detent compl.
97 141113890 Cap screw
98 141150410 Serrated lock washer
99 341111630 Thumbscrew
100 341112750 Thumbscrew,M6 x 12
101 1010734351 Workpiece holder compl.
102 1010734319 Table side extension right
103 1010734335 Clamping lever compl. left
104 1010734238 Control grip compl.
105 1010734912 Set screw compl.
106 1010734114 Foot set
108 141150390 Lock washer
109 1010734289 Table side extension left
110 141132030 Hex nut
111 1010734980 Stop compl.
112 1010734254 Table compl.
113 1010734343 Clamping lever compl. right
114 141113200 Fillister head screw
120 1010735609 MOTOR ASSEMBLY 230V KGS 216
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KGS 216 M - 0102160400
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS
New

Download

Diagram Esploso Metabo KGS 216 M

Diagram Esploso Metabo KGS 216 M

Download (451.41KB)
