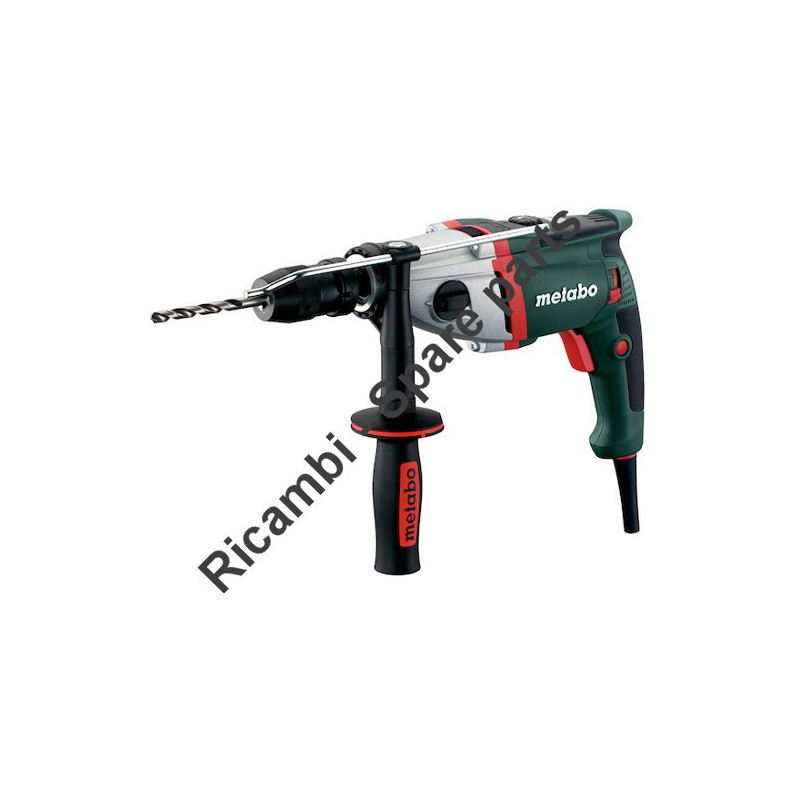

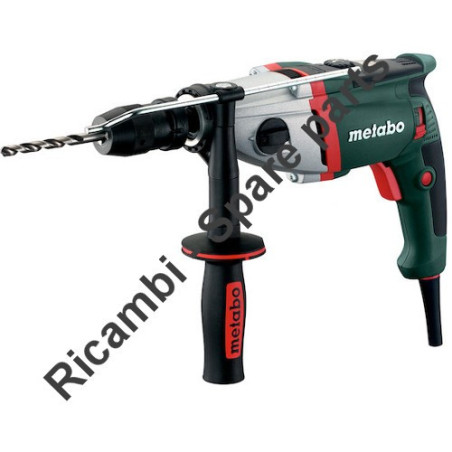

Metabo Spare Parts for Hammer Drill SBE 1100 Plus
€1.82
Tax included
Metabo Spare Parts for Hammer Drill SBE 1100 Plus
We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer Drill SBE 1100 Plus - 00867000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Hammer Drill SBE 1100 Plus
We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer Drill SBE 1100 Plus - 00867000.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Hammer Drill SBE 1100 Plus/00867000 | ||
| # | Part Num. | Description |
| 1 | 14118168 | Retaining ring |
| 2 | 33921092 | Shaft sealing ring |
| 3 | 34151163 | Depth stop |
| 4 | 14112361 | Self-tap. fill. h. screw |
| 5 | 31604279 | Gear housing compl. |
| 6 | 34000401 | Sliding block |
| 7 | 31604194 | Switch housing compl. |
| 8 | 31604281 | Pinion shaft w.slip-clutch |
| 9 | 34409793 | Seal |
| 10 | 31604280 | Gear flange compl. |
| 11 | 34160402 | Drill spindle |
| 12 | 14311579 | BALL BEARING, 15x32x9 |
| 13 | 34105565 | Slotted disc |
| 14 | 31400102 | Side support handle compl. |
| 15 | 14115581 | Ring |
| 16 | 31604196 | Control knob compl. |
| 17 | 34154001 | Guide bolt |
| 18 | 33913307 | Shift fork |
| 19 | 14111699 | Self-tap. fill. h. screw |
| 20 | 34337604 | Sealing ring |
| 21 | 14311580 | Ball bearing, 8x22x7 |
| 22 | 33000183 | Fan |
| 23 | 31000927 | Armature compl.,230 V (w. tacho gen.) |
| 24 | 14311581 | Ball bearing, 6X 19X 6 |
| 25 | 34339393 | Intermediate flange |
| 26 | 14111826 | Self-tap. fill. h. screw |
| 27 | 31101080 | Field coil w.field coil,230 V |
| 28 | 33805345 | Rating plate |
| 29 | 34308334 | Electronic unit,230V 50/60Hz |
| 30 | 34409592 | Rubber buffer |
| 31 | 14319243 | O-ring |
| 32 | 34152023 | Cylindrical pin |
| 33 | 34308160 | Temperature sensor |
| 34 | 31501325 | Motor housing |
| 36 | 31604697 | Carbon brush set,230 V |
| 37 | 31605196 | Brush holder module,230V |
| 38 | 34340925 | Poti switch |
| 39 | 14111602 | Self-tap fill h screw |
| 40 | 34339853 | Pistol grip 2-part, gummed |
| 41 | 34409758 | Rubber plug |
| 42 | 14111706 | Self-tap. fill. h. screw |
| 43 | 34336249 | Cable clip |
| 44 | 34339430 | Cable sleeve |
| 45 | 34449318 | Cable with plug |
| 880 | 34413093 | Grease 50Gr 1,8oz |
| 882 | 34413080 | Grease FG 126 |
| 884 | 34413056 | Grease SF 011 50Gr 1,8oz |
| 886 | 34413103 | Grease 50Gr 1,8oz |
