Meccanica Benassi RL 41 Spare Parts

€14.55
Tax included

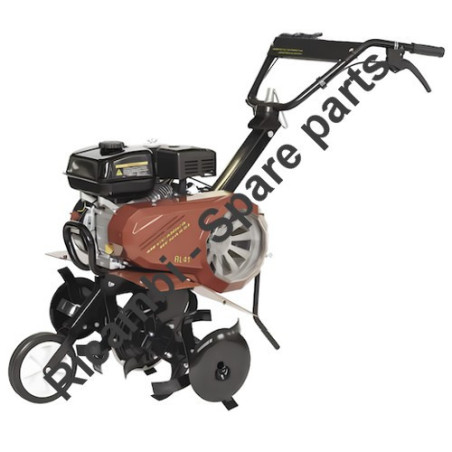

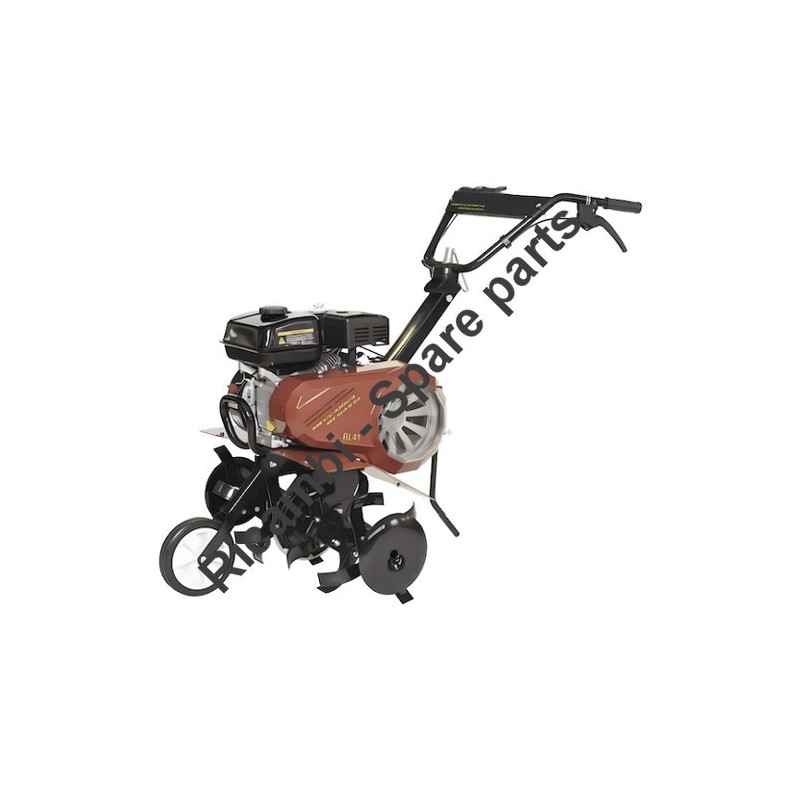

Meccanica Benassi Motor hoe RL 41 Spare Parts

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motor hoe RL 41 - 01/2019.
ITEM CODE: SI0147600
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Meccanica Benassi Motor hoe RL 41 Spare Parts

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motor hoe RL 41 - 01/2019.

In the following table, check codes of the Meccanica Benassi Motor hoe you need.
Meccanica Benassi Motor hoe RL 41 Spare Parts

MOTOR HOE RL 41 - 01/2019
TABLE 1 - Pag.1
# Part Num. Description
1 SI0150211 M8 Flanged locking nut
2 SI0700066 Girder support R
3 SI0700065 Girder support L
4 SI0700075 Hex. spacer
5 SI0300029 M8 Hex. locking nut
6 SI0300032 Screw M8x20
7 SI0149011 Flat washer Ø8
8 SI0150410 Screw M8x25
9 SI0700070 Screw M8x80
10 SI0700042 Girder assembly
11 SI0161106 Tooth plate
12 SI0200077 Spring handle
13 SI0161311 Saddle washer
14 SI0161411 Threaded bush
15 SI0700085 Handle assembly
TABLE 2 - Pag.2
1 SI0162510 Screw M5x35
2 SI0147511 Flat washer Ø5
3 SI0148300 Engine switch
4 SI0148406 Switch support
5 SI0148511 Locking nut M5
6 SI0147600 Throttle lever
7 SI0700013 Handle grip
8 SI0700012 Handle
9 SI0162700 Switch wire
10 SI0147811 Locking nut M6
11 SI0062010 Flat washer Ø6
12 SI0162300 Throttle cable
13 SI0700018 Screw M6x40
14 SI0162606 Pressing line plate
15 SI0052306 Flat washer Ø4
16 SI0148110 Screw
17 SI0700017 Handle panel
18 SI0200901 Lever
19 SI0700014 Cable collector
20 SI0700044 Handle locking screw
22 SI0700015 Forward Cable
23 SI0700045 Pin
24 SI0155711 Cotter pin
25 SI0700043 Girder
TABLE 3 - Pag.3
1 SI0700083 Locking nut
2 SI0149710 Spring washer Ø8
3 SI0152111 Washer 8.5 x 20 x 2
4 SI0700051 Engine bush
5 SI0154610 Screw M8x50
6 SI0300064 Screw M8x55
9 SI0700086 Side plate assembly
10 SI0155310 Flanged screw M8x20
11 SI0300062 Flanged screw M8x16
13 SI0700053 Bush
14 SI0700067 Flat key 4.75 x 5 x 32
15 SI0700052 Driving pulley
16 SI0700072 Washer
17 SI0149710 Spring washer
18 SI0700069 Screw 5/16-24x25
19 SI0700049 Driven pulley
20 SI0700064 Screw
21 SI0300029 Locking nut M8
23 SI0700055 Belt
24 SI0700048 Belt guide
25 SI0149011 Flat washer Ø8
26 SI0400016 Screw M8x30
27 SI0700074 Screw ST4x8-F
28 SI0700073 Transparent cover
29 SI0160310 Screw M8x16
30 SI0700062 Belt cover
TABLE 4 - Pag.4
1 SI0147811 Locking nut M6
2 SI0062010 Flat washer Ø6
3 SI0700031 Nut
4 SI0700020 Side plate
5 SI0150211 Flanged locking nut M8
6 SI0150410 Screw M8x25
7 SI0700028 Screw M12x45
8 SI0700030 Seeger I 32
9 SI0210009 Locking nut M12
10 SI0700026 Spring
11 SI0700021 Hoop for belt
12 SI0700027 Screw M6x12
14 SI0700025 Spacer
15 SI0300030 Washer 8.5 x 24 x 2
16 SI0700029 Bearing 6201-2Z
17 SI0700022 Belt tensioner plate
18 SI0700024 Belt Tensioner
21 SI0700023 Internal bush
TABLE 5 - Pag.5
1 SI0700061 Splash guard R2
2 SI0147811 Locking nut M6
3 SI0062010 Flat washer Ø6
4 SI0700059 Splash guard R1
5 SI0153410 Screw M6x12
6 SI0700060 Splash guard L2
7 SI0155310 Flanged screw M8x20
8 SI0150211 Flanged locking nut
9 SI0152311 Nut M8
10 SI0149710 Spring washer Ø8
11 SI0149011 Flat washer Ø8
12 SI0600049 Walking wheel assy
14 SI0700047 Engine support R
15 SI0700058 Splash guard L1
16 SI0152711 Spacer
17 SI0700050 Spring
18 SI0700079 Bumper
19 SI0700002 Transmission case assy
20 SI0700063 Scew
21 SI0154610 Screw M8x50
22 SI0700057 Support for side plate
23 SI0155711 Cotter pin
24 SI0700077 Screw M6x50
25 SI0062010 Flat washer Ø6
26 SI0061910 Spring washer Ø6
27 SI0700076 Bush
28 SI0159106 Drag strut
29 SI0700078 Rear support
30 SI0159411 Pin
31 SI0159006 Drag strut support
32 SI0150610 Screw M8x35
TABLE 6 - Pag.6
1 SI0200701 Side disc
2 SI0150410 Screw M8x25
3 SI0300001 Dowel
4 SI0700039 Blade L
6 SI0700040 Blade R
7 SI0700038 Blade support 2
8 SI0152311 Nut M8
9 SI0700037 Blade support 1
10 SI0149710 Spring washer
TABLE 7 - Pag.7
1 SI0147811 Locking nut M6
2 SI0700004 Chain case R
3 SI0700007 Sealing gasket
4 SI0700008 Chain
5 SI0700003 Chain case L
6 SI0157700 Bearing 6205-2RS
7 SI0157410 Seeger E 25
8 SI0700010 Shield
9 SI0700006 Output shaft
10 SI0200201 Screw M6x16
11 SI0153410 Screw M6x12
12 SI0300011 Bearing 6202-2RS
13 SI0004910 Seeger E 15
14 SI0700005 Input shaft
15 SI0700009 Bearing 6003-2RS
16 SI0400067 Seeger E 17
17 SI0200025 Chain tensioner
TABLE 8 - Pag.8
1 SI0150211 Flanged locking nut
2 SI0156410 Screw M8x75
3 SI0156311 Bush
4 SI0210028 Rubber wheel
5 SI0156106 Wheel fork
