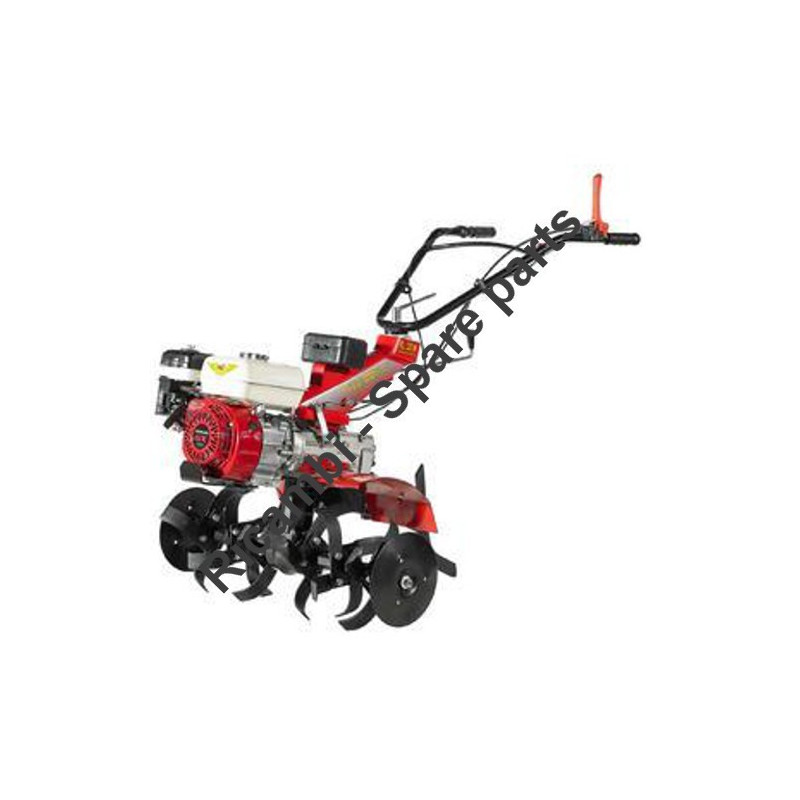

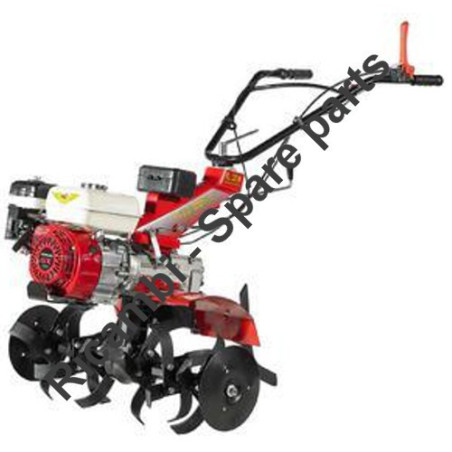

Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L

Name: Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L
Brand: MECCANICA BENASSI S.R.L.
SKU: RL 300 - RL300 L
Price: 3.47 EUR
Availability: InStock

€3.47

Tax included

Meccanica Benassi Spare Parts for Motorhoe RL 300 - RL300 L

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 300 - RL300 L.

ITEM CODE: 30101050

30101050
30101500
30111030
30111040
30201150
30601030
30701150
31801130
31901600
32501250
32501400
32501450
32501600
32502000
37101060
37101080
38001170
38001190
38001210
38011400
38011620
38021050
38021060
3290105T
3290106T
3290107T
3294106T
3322104T
3700104T
3700105T
3700106T
3730105T
3730106T
3931225T
3931285T
3931290T
3931295T
3931300T
5HG00500
6BB01800
6CC03600
6CC11400
6CC12600
6CO050T02
6FC20600
6FC20700
6FC20800
6FC25300
6FC25400
6GF00900
6GP02800
6GP02900
6GP03400
6GQ024001
6GS03000
6GS03800
6GS10800
6GS11100
6HC00150
6HC00920
6HC06220
6HP00260
6HP02250
6HP02650
6HP03050
6HP03450
6LA012001
6LD01600

Quantity

on 10/15 Business Days Approx

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details
Attachments

Meccanica Benassi Spare Parts for Motorhoe RL 300 - RL300 L

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 300 - RL300 L.

In the following table, look for the model of the Tiller and the respective parts of the code.

RL 300 - RL300 L Standard Transmission Group (Fast) Pag.1
#	Part Num.	Description
1	30101500	Seal ring 17x40x7
2	38011400	Seeger \| 40
3	6HP03800	Thickness O 30x39,8x0,2-0,5-0,8
4	32501250	Bearing 17x40x12 (6203)
5	6HP02200	Thickness O 17x30x0.5-0.8
6	6FC20600	Primary shaft Z-18-13-9
7	6HPO0900	Thickness @ 10x21x0,3-0,5-0,8
8	6BQ04500	Bronze bushing
9	6FC18500	R.M. Gear Z-16
10	6G101800	Pin R.M.
11	6GP02900	Stud M 8x31
12	6GQ024001	PTO cover
13	3290106T	Nut M 8
14	38001170	Seeger E 17
15	6FU05700	Spring
16	6HP03050	Thickness © 21.8x35x0.8
17	38001210	Seeger E 21
18	6FC20700	Triple gear Z 27-31-35
19	30701150	Internal ring LR 25x30x20.5
20	6GS03000	Secondary shaft Z-7
21	31901600	Needle Bearing HK 3020
22	6CO050T02	Central body cover
23	6DS13100	Central body gasket
24	6Cl062B0	Central body
25	6GF00900	shoe
26	6FZ00100	Pawl
27	6FUO06TO	Spring
28	6HC00920	Fiber washer @ 14x20x1
29	6LD01600	Pawl holder
30	5HG00500	Gears sector
31	6HPO00800	Thickness O 12x24x0,3-0,5-0,8
32	30101050	Seal ring 12x19x5
33	/	Gear shift lever (1st type)
34	37101080	Wavy washer @ 8
35	3322104T	Low self-locking nut M 8
36	5FLO24TO	Gear shift lever
37	6BQ04700	Bushing
38	38021060	Seeger RS 6
39	30111040	Seal ring 35x62x8 RP
40	38011620	Seeger \| 62
41	6HP04500	Thickness @ 54x62x0,2-0,3
42	32502000	Bearing 35x62x14 (6007)
43	6HC00830	Fiber washer @ 16x22x1.5
44	6LD01TO	Oil cap
45	6C1037001	Crown Holder
46	6CT04300	Spacer
47	6CC12600	cutter control crown Z-24
48	6BB01800	Cutter shaft
49	6HP02650	Thickness O 20x30x0,2-0,5-0,8
50	32501450	Bearing 20x52x15 (6304)
51	6GS11100	Pinion cutter Z-7
52	32501600	Bearing 25x52x15 (6205)
53	6HP03450	Thickness O 25x35x0.8
54	6CC11400	gear transmission crown Z-26
55	38001190	Seeger E 19
56	6GP03400	Stud M 10x35
57	3730106T	Grover washer @ 10
58	3290107T	Nut M 10
59	6C110100	Support cutter
60	6DS07470	Cutter support gasket
61	/	Centering pin
62	3931225T	VTE M 6x16
63	37101060	Wavy washer @ 6
64	39703900	VTC M 6x10
65	6HC00150	Fiber washer @ 6x10x0.8
66	/	Upper Gasket Cutter support
67	30201150	Seal ring OR 115
68	30601030	Breath outlet
69	6GP02800	Stud M 8x36
70	6GP05000	Stud M 8x51
71	3950320T	VTSPEI M 8x35
72	6FU08900	Spring (first type)
73	5HT11800	Lever support (first type)
74	5FL04600	R.M. Link lever (first type)
75	3730105t	Grover washer @ 8
76	3931290T	VTE M 8x20
77	6LM05300	Perforated screw
78	3700106T	Bevelled washer @ 8
79	6CT09700	Spacer
80	3294106T	Nut M 8 low
81	39103500	VSTEI M 8x20 flat tip
82	5DT002TO	Clutch lever guide
83	6HP00260	Thickness @ 8x14x0.5
84	6FU07000	Safe spring R.M.
85	5FL04800	R.M. engagement lever
86	6BF07600	Secure Holder pin
87	38021060	Seeger RS 6
88	6BE007T0	Spring attack
89	6FU045T0O	Spring
90	3290105T	Nut M7
91	6CT033T0	Spacer
92	3700105T	Bevelled washer @ 7
93	6FTOOSTO	terminal
94	31801130	Clutch lever cover
95	6GH03700	Pin for clutch lever
96	6DFO30T0O	Support for clutch lever
97	37101080	Wavy washer @ 8
98	6HP00200	Thickness O 8x14x0,3-0,8
99	38021050	Seeger RS 5
100	6LM05300	Perforated screw
101	6CTO9900	Spacer
RL300 L Transmission Group RL 300 (W / Reducer) Pag.2
1	30101500	Seal ring 17x40x7
2	38011400	Seeger \| 40
3	6HP03800	Thickness @ 30x39.8x0.2-0.5-0.8
4	32501250	Bearing 17x40x12 (6203)
5	6FC25400	Gear 23-32 vel. Z-20-24
6	6FC25300	Z-9 primary shaft
7	6HPO00900	Thickness @ 10x21x0,3-0,58-0,8
8	6BQ04500	Bronze bushing
9	6FC18500	R.M. Gear Z-16
10	6G101800	Pin R.M.
11	6GP01900	Stud M 8x31
12	6GQ024001	PTO cover
13	3290106T	Nut M &
14	38001170	Seeger E 17
15	6HP02250	Thickness @ 17x30x0.8
16	6FU05700	Spring
17	6HP03050	Thickness @ 21.8x35x0.8
18	38001210	Seeger E 21
19	6FC20800	Triple gear Z-21-25-35
20	30701150	Inner ring
21	6GS03000	Secondary shaft Z-7
22	31901600	Needle roller HK 3020
23	6CO050T02	Central body cover
24	6DS13100	Central body gasket
25	6Cl062B0	Central body
26	6GF00900	shoe
27	5HG00700	Sector Gears
28	6FZ00100	Pawl
29	6FUO06TO	Spring
30	6HC00920	Fiber washer @ 14x20x1
31	6LD01600	Pawl holder
32	37101080	Wavy washer @ 8
33	3322104T	Self-locking nut M 8 low
34	38021060	Seeger RS 6
35	6BQ04700	Bushing
36	5FLO24TO	Gear shift lever
37	6HP00800	Thickness @ 12x24x0,3x0,5x0,8
38	30101050	Seal ring 12x19x5
39	6HC0830	Fiber washer @ 16x22x1.5
40	6LD001TO	Oil cap
41	6HC06220	Felt washer @ 35x47x2
42	30111030	Seal ring 35x47x7
43	32502000	Bearing 35x62x14 (6007)
44	6CT06700	Spacer
45	6BB00700	Cutter shaft
46	6CC03800	Z-32 gearbox crown
47	6DS09770	Reducer box gasket
48	6C0079001	Reducer cover
49	3931295T	VTE M 8x25
50	3931300T	VTE M 8x30
51	32501400	Bearing 20x47x14 (6204)
52	6GS03800	Z-13 gear sprocket
53	6CC03600	Z-20 conical crown
54	6HP02600	Thickness @ 20x30x0.2-0.3-0.5
55	6LA012001	Reducer box
56	6DS07470	Cutter support gasket
57	38311020	Centering pin
58	3290107T	Nut M 10
59	3730106T	Grover washer @ 10
60	6C111200	Support cutter
61	6GP03400	Stud M 10x35
62	39703900	VTC M 6x10
63	6HC00150	Fiber washer @ 6x10x0.8
64	3931225T	VTE M 6x16
65	3700104T	Bevelled washer @ 6
67	32501450	Bearing 20x52x15 (6304)
68	6GS10800	Conical pinion Z-7
69	32501600	Bearing 25x52x15 (6205)
70	6HP03450	Thickness @ 25x35x0.8
71	6CC11400	Z-26 gear transmission crown
73	38001190	Seeger E 19
74	30201150	Ring seal OR 115
75	30601030	Vent pipe
76	6DS13200	Seating joints. superior supp. cutter
77	6GP02800	Stud M 8x36
78	6GP05000	Stud M 8x51
79	3950320T	VTSPEI M 8x35
80	6LM05300	Perforated screw
81	6HP00260	Thickness @ 8x14x0.5
82	6FU07000	Safe spring R.M.
83	5FL04800	R.M. engagement lever
84	6BF07600	Secure door pin
85	38021050	Seeger RS 5
86	3730105T	Grover washer @ 8
87	6CT09900	Spacer
88	3700106T	Bevelled washer @ 8
89	3294106T	Nut M 8 low
90	39103500	VSTEI M 8x20 flat tip
91	3931285T	VTE M 8x16
92	5DT002TO	Clutch lever guide
93	37101080	Wavy washer @ 8
94	6HP00200	Thickness @ 8x14x0,3-0,8
95	6DFO30TO	Clutch lever support
96	6GH03700	Pin for clutch lever
97	31801130	Hood for clutch lever
98	6FU045TO	Spring
99	6BE007T0	Spring attack
100	3290105T	Nut M7
101	6CTO33T0	Spacer
102	3700105T	Bevelled washer @ 7
103	6FTOOSTO	terminal
