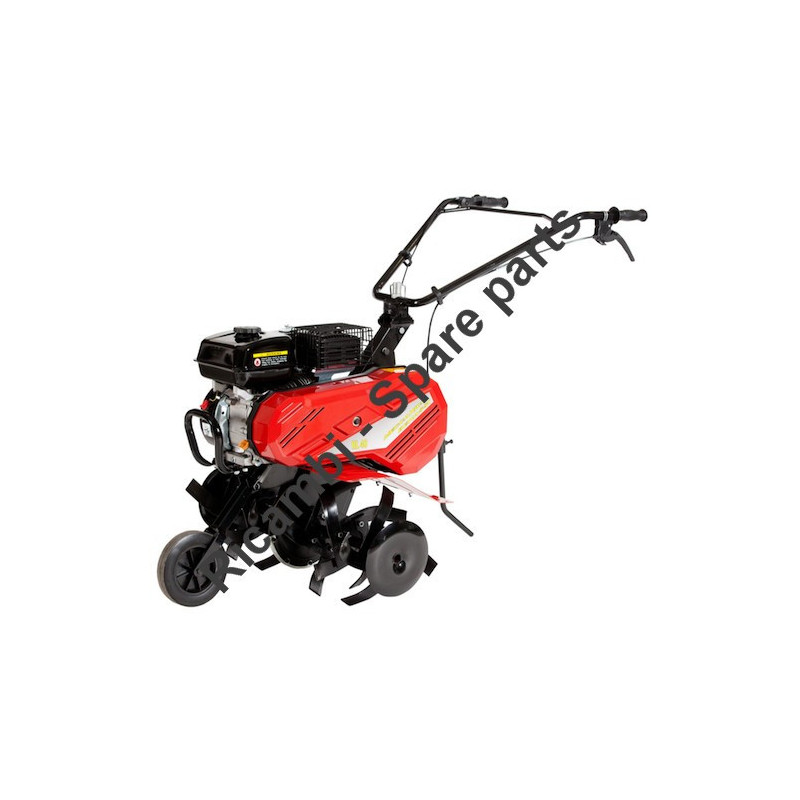

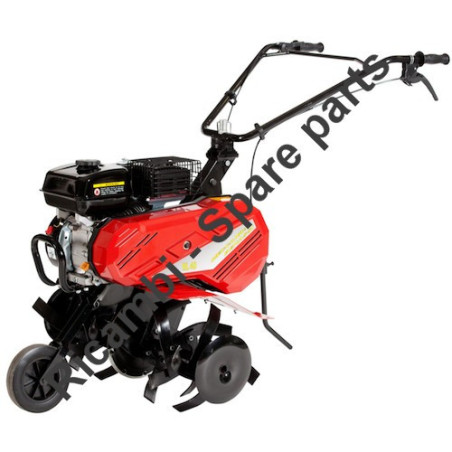

Meccanica Benassi Spare Parts for Tiller RL 40 - 12/2016
€8.58
Tax included
Meccanica Benassi Spare Parts for Motorhoe RL 40 - 12/2016
Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 40 from N°1201240 - 12/2016.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Meccanica Benassi Spare Parts for Motorhoe RL 40 - 12/2016
Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 40 from N°1201240 - 12/2016.
In the following table, look for the model of the Tiller and the respective parts of the code.
| RL 40 da N°1201240 - 12/2016 Tavola 1 Pag.1 |
||
| # | Part Num. | Description |
| 1 | SI0147006 | Handle Grip |
| 2 | SI0162510 | Screw M5x35 |
| 3 | SI0147511 | Flat washer Ø5 |
| 4 | SI0147600 | Throttle Lever |
| 5 | SI0062011 | Flat washer Ø6 |
| 6 | SI0147811 | Nut M6 |
| 7 | SI0148300 | Switch |
| 8 | SI0148406 | Switch support |
| 9 | SI0148511 | Nut M5 |
| 10 | SI0162700 | Stop wire |
| 11 | SI0162300 | Throttle wire |
| 12 | SI0162606 | Wire clamp |
| 13 | SI0052306 | Washer Ø4 |
| 14 | SI0148110 | Screw ST4x12-C |
| 15 | SI0161810 | Screw M5x20 |
| 16 | SI0148706 | Cable sleeve |
| 17 | SI0038311 | Nut M5 |
| 18 | SI0200076 | Bushing (type II handlebar) |
| 19 | SI0200075 | Washer (type II handlebar) |
| 20 | SI0200901 | Clutch lever |
| 21 | SI0161600 | Clutch wire |
| 22 | SI0162206 | Handlebars II type |
| 23 | SI0200077 | Lever spring |
| RL 40 da N°1201240 - 12/2016 Tavola 2 Pag.2 |
||
| 1 | SI0160210 | Screw M8x40 |
| 2 | SI0149011 | Flat washer Ø8 |
| 4 | SI0200074 | Toothed support II type |
| 7 | SI0159500 | Protection plate |
| 8 | SI0160806 | Handlebars support II type |
| 9 | SI0162910 | Screw M10x60 |
| 10 | SI0155310 | Screw M8x20 |
| 11 | SI0161006 | Support Right |
| 12 | SI0159106 | Spur |
| 13 | SI0159411 | Spur jointing pin |
| 14 | SI0159006 | Spur arm |
| 15 | SI0150211 | Nut M8 |
| 16 | SI0158906 | Spur jointing |
| 17 | SI0155711 | cotter |
| 18 | SI0147811 | Nut M6 |
| 19 | SI0200801 | Support Left |
| 20 | SI0150610 | Screw M8x35 |
| 21 | SI0163111 | washer Ø10 |
| 22 | SI0163011 | Nut M10 |
| 23 | SI0149710 | Elastic washer Ø8 |
| 24 | SI0160310 | screw TE M8x16 |
| 25 | SI0300010 | Threaded bush II type |
| RL 40 da N°1201240 - 12/2016 Tavola 3 Pag.3 |
||
| 1 | SI0149011 | Flat washer Ø8 |
| 2 | SI0163306 | Flanged Bolt |
| 3 | SI0152111 | Washer Ø20xØ8.5x2 |
| 4 | SI0150211 | Nut M8 |
| 5 | SI0163206 | Internal casing |
| 6 | SI0164200 | Crank arm |
| 7 | SI0163500 | Key 4.8 (h9) x35 (h14) |
| 8 | SI0164500 | Idler |
| 9 | SI0163600 | Engine pulley |
| 10 | SI0163811 | Washer Ø28xØ8.5x3 |
| 11 | SI0149710 | washer Ø8 |
| 12 | SI0163710 | Screw 5 / 16-24x32 |
| 13 | SI0210056 | belt guide Type II |
| 14 | SI0163900 | Belt 13x1265 LA |
| 16 | SI0164603 | Side hood |
| 17 | SI0153510 | Seeger Ø8 |
| 18 | SI0164110 | Screw M6x40 |
| 19 | SI0147811 | Nut M6 |
| 20 | SI0164000 | Pulley |
| 21 | SI0164412 | Spacer |
| 22 | SI0160310 | Screw M8x16 |
| 23 | SI0164806 | Carter support bracket |
| 24 | SI0162210 | Screw M6x20 |
| 25 | SI0062011 | washer Ø6 |
| 26 | SI0164300 | Fork |
| RL 40 da N°1201240 - 12/2016 Tavola 4/1 Pag.4 |
||
| 1 | SI0150410 | Screw M8x25 |
| 2 | SI0152111 | Washer Ø20xØ8.5x2 |
| 3 | SI0159703 | Protection casing Left |
| 4 | SI0159903 | Extension cutter Protection |
| 5 | SI0160110 | screw M8x60 |
| 6 | SI0159206 | Support of cutter casing |
| 7 | SI0150211 | Nut M8 |
| 8 | SI0159306 | Carter jointing |
| RL 40 da N°1201240 - 12/2016 Tavola 4/2 Pag.5 |
||
| 1 | SI0159903 | Extension cutter Protection |
| 2 | SI0150410 | Screw M8x25 |
| 3 | SI0152111 | Washer Ø20xØ8.5x2 |
| 4 | SI0159803 | Protection casing Right |
| 5 | SI0159206 | Support of cutter casing |
| 6 | SI0159306 | Carter Jointing |
| 7 | SI0150211 | Nut M8 |
| RL 40 da N°1201240 - 12/2016 Tavola 5 Pag.6 |
||
| 1 | SI0150211 | Nut M8 |
| 2 | SI0158806 | Engine support Right |
| 3 | SI0152711 | bushing Ø11.8xØ8.2x13.5 |
| 4 | SI0160310 | Screw M8x16 |
| 5 | SI0147811 | Nut M6 |
| 6 | SI0157006 | Chain Carter Right |
| 7 | SI0157900 | PACKING |
| 8 | SI0157500 | Bearing 6302-2Z |
| 9 | SI0004910 | Seeger Ø15 |
| 10 | SI0157300 | Chain |
| 11 | SI0157100 | Primary pinion |
| 12 | SI0154010 | Seeger Ø20 |
| 13 | SI0157600 | Bearing 6004-2Z |
| 14 | SI0156906 | Chain Carter Left |
| 15 | SI0149011 | Flat washer Ø8 |
| 16 | SI0150211 | Nut M8 |
| 17 | SI0153410 | Screw M6x12 |
| 18 | SI0160011 | Spacer |
| 19 | SI0158706 | Engine Support Left |
| 20 | SI0154610 | Screw M8x50 |
| 21 | SI0200201 | Screw M6x16 |
| 22 | SI0157800 | Nylon bushing |
| 23 | SI0157700 | 6205-2Z bearing |
| 24 | SI0157410 | Seeger Ø25 |
| 25 | SI0200001 | Cutter Shaft |
| 26 | SI0200101 | Carter protection |
| RL 40 da N°1201240 - 12/2016 Tavola 6 Pag.7 |
||
| 1 | SI0155310 | Screw M8x20 |
| 2 | SI0159606 | Bumper |
| 3 | SI0150211 | Nut M8 |
| 4 | SI0156106 | Fork Wheel Support |
| 5 | SI0156206 | Wheel |
| 6 | SI0160711 | washer Ø12 |
| 7 | SI0156311 | bushing Ø11.8xØ8.2x56 |
| 8 | SI0156410 | Screw M8x75 |
| 9 | SI0156011 | Spring |
| 10 | SI0160411 | Washer |
| 11 | SI0149710 | washer Ø8 |
| 12 | SI0160511 | Nut M8 |
| RL 40 da N°1201240 - 12/2016 Tavola 7/1 Pag.8 |
||
| 1 | SI0150410 | Screw M8x25 |
| 2 | SI0200501 | Left Blade |
| 3 | SI0200601 | Right Blade |
| 4 | SI0149710 | washer Ø8 |
| 5 | SI0152311 | Nut M8 |
| 6 | SI0200301 | Inner Hub |
| 7 | SI0300001 | Pin |
| 8 | SI0200401 | Hub II Position |
| 10 | SI0200701 | Side disk |
| RL 40 da N°1201240 - 12/2016 Tavola 7/2 Pag.9 |
||
| 1 | SI0200701 | Side disk |
| 3 | SI0150410 | Screw M8x25 |
| 4 | SI0200501 | Left Blade |
| 5 | SI0200401 | Hub II Position |
| 6 | SI0200601 | Right Blade |
| 7 | SI0149710 | washer Ø8 |
| 8 | SI0152311 | Nut M8 |
| 10 | SI0300001 | Pin |
| 11 | SI0200301 | Inner Hub |
