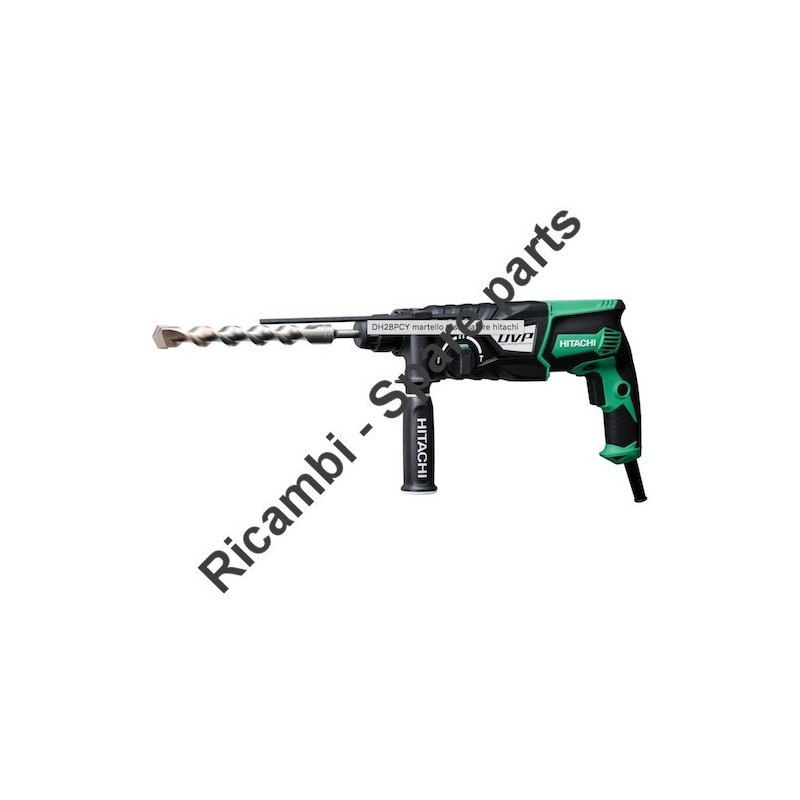

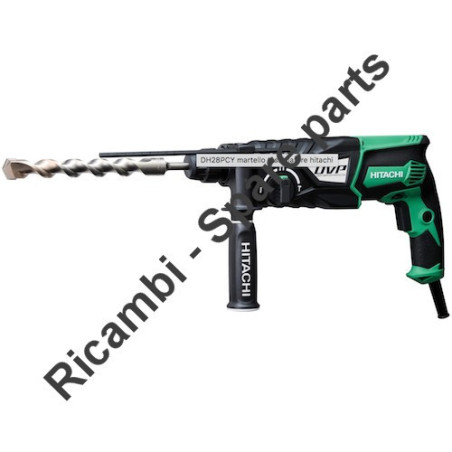

Hitachi Spare Parts for Electric Rotary Hammer DH28PCY
€2.24
Tax included
Hitachi Spare Parts for Electric Rotary Hammer DH28PCY
Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH28PCY.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Electric Rotary Hammer DH28PCY
Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH28PCY.
In the following table , look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer DH28 PCY | ||
| # | Part Num. | Description |
| 1 | 306345 | Front cap |
| 2 | 306340 | Ring Latch |
| 3 | 324527 | Dh24pb3 ring-Pc3 |
| 4 | 324528 | Support Balls Dh24pb3-Pc3-Dva |
| 5 | 324526 | Support Thrust Dh24dva |
| 6 | 322812 | Spring Gate Punta |
| 7 | 335274 | Gear Cover |
| 9 | 335259 | Oil Seal |
| 10 | 335260 | Ball Bearing 6805dd |
| 11 | 322789 | Selector button Dh24pb2 |
| 12 | 317223 | spring |
| 13 | 334011 | Change Lever |
| 14 | 878885 | AnelloO-ring (S-18) |
| 16 | 335800 | Spring (E) |
| 17 | 608vvm | Ball Bearing 608vvm |
| 18 | 335300 | Steel Ball D7.0 (10 Pcs.) |
| 19 | 335261 | Cylinder |
| 20 | 335264 | Pin D2.5 |
| 21 | 335263 | Cylinder Clutch |
| 22 | 335265 | Second Gear |
| 23 | 335266 | Spring (A) |
| 24 | 301679 | washer |
| 25 | 948310 | Ring Type C X D.30 Trees |
| 26 | 335262 | Oil Seal (A) |
| 27 | 335268 | Hammer Holder (C) |
| 28 | 335795 | Sleeve (Fw) |
| 29 | 335269 | Second Hammer |
| 30 | 335267 | Hammer Holder (A) |
| 31 | 322805 | Shock Dh24pb2 |
| 32 | 322808 | O-ring (C) |
| 33 | 324524 | Support Ammo. Dh24pb3-Pc3 |
| 34 | 322807 | Ring Latch |
| 35 | 335246 | Striker |
| 36 | 335247 | O-Ring D17 |
| 37 | 335255 | Piston |
| 38 | 335793 | Piston Pin |
| 39 | 335250 | Bearing Washer |
| 40 | 335794 | Piston Washer |
| 41 | 335275 | Pinion Sleeve |
| 42 | 335276 | Lock Plate |
| 43 | 335278 | Second Pinion |
| 44 | 323182 | Spring Clutch X Dh24pc |
| 45 | 335254 | Clutch |
| 46 | 331315 | washer Dh22ph |
| 47 | 335277 | Second Shaft |
| 48 | 335249 | Reciprocating Bearing |
| 49 | 990079 | Seal Lock Hex. Hd.M5x16 |
| 50 | 335270 | Bearing Holder |
| 51 | 335271 | Bearing Cover |
| 52 | 335253 | First Gear |
| 53 | 335245 | O-Ring D72.2 |
| 54 | 335798 | Inner Cover |
| 55 | 335285 | Weight Damper (A) |
| 56 | 335280 | Weight (A) |
| 57 | 335282 | Leaf Spring |
| 58 | 335281 | Weight (B) |
| 59 | 325241 | Screw Spe.M3x8 Cj110mv-Mva |
| 60 | 322816 | Held Feltr or |
| 61 | 322818 | Packing Washer Dh24pm |
| 62 | 876796 | P.22 O-Ring O-Ring (P-22) |
| 63 | 608ddm | Ball Bearing 608ddm |
| 64 | 982631 | washer |
| 65 | 335279 | cover Plate |
| 66 | 360961e | Armature 220v-230v |
| 66 | 360961f | Armature 240v |
| 67 | 335286 | Weight Damper (B) |
| 68 | 335244 | fan Guide |
| 69 | 961672 | Hex. Hd. Tapping Screw D4x50 |
| 70 | 340850e | Stator 220v-230v |
| 70 | 340850f | Stator 240v |
| 71 | 334008 | Air Cap |
| 72 | 324543 | GUARNIZ. Felt Dh24pb3-Pc3 |
| 73 | 335284 | Spring Damper |
| 74 | 335283 | Spring Holder |
| 75 | 983162 | Seal Lock Hex. socket |
| 76 | 335241 | Housing |
| 77 | 301654 | Tapping Screw (W / Flange) D5x35 |
| 78 | 500390z | Cord |
| 79 | 955203 | brush holder |
| 80 | 999041 | Carbon Brushe (1 pair) |
| 81 | 999072 | Brushes Autobl. (1 pair) |
| 84 | 937631 | terminal Wire Tie |
| 85 | 984750 | Tapp. Screw (W / Flange) D4x16 |
| 86 | 953327 | Sleeve saver D8.8 |
| 86 | 938051 | D.10 saver sleeve, 1 |
| 90 | 322853 | Rev. Button |
| 91 | 335796 | switch |
| 92 | 335242 | handle Cover |
| 93 | 301653 | Tapp. Screw (W / Flange) D4x20 |
| 501a | 337257 | houses |
| 502 | 335273 | Side Handle |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s HITACHI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to HITACHI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
