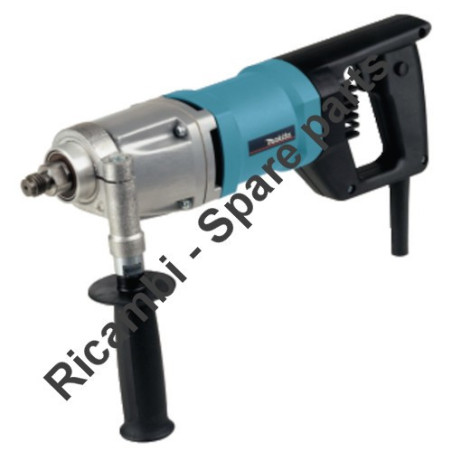

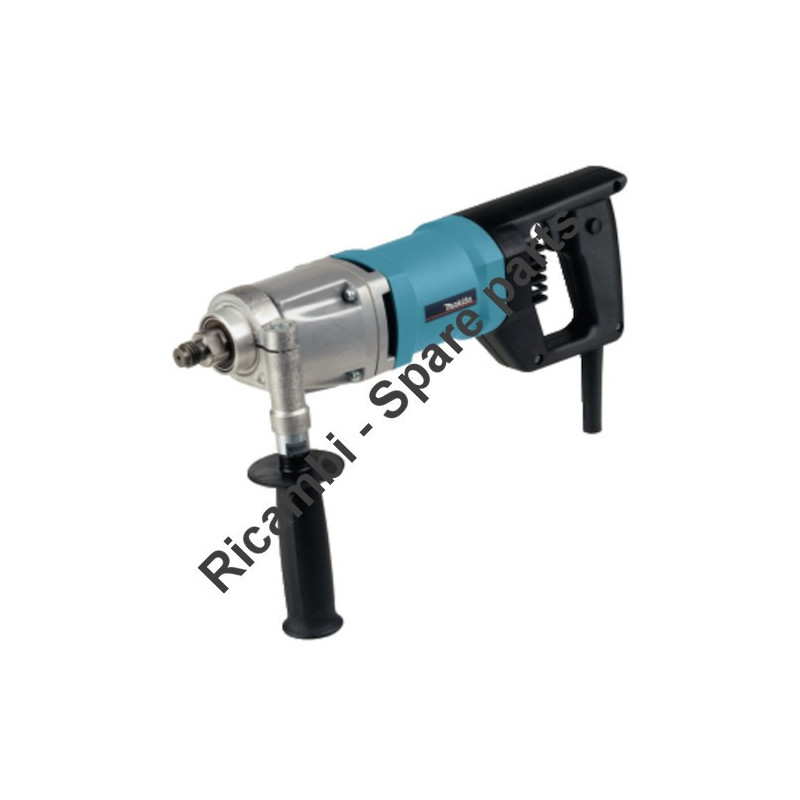

Makita Spare Parts for Diamond Core Drill DBM080

Makita Spare Parts for Diamond Core Drill DBM080

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Diamond Core Drill DBM080.

In the following table, look for the model of Core Drill and the respective parts of the code.

Diamond Core Drill DBM080
#	Part Num.	Description
3	EE73320305	CAPACITOR X DBM080
4	EE80900070	HANDLE CPL. X DBM080
5	EE83000004	SAVE CABLE X DBM080
6	EE80600116	SWITCH X DBM080
7	EE80201272	SCREW 4.2 X 22 X DBM080
8	EE71540330	CLAMP Cable tie X DBM080
9	EE80201270	SCREW 4.2 X 13 X DBM080
10	EE80201267	SCREW 4.8 X 45 X DBM080
11	EE73110620	SEAL X DBM080
12	210024-0	BEARING X HR5001C
13	EE83000036	LOOP 22 X 2.5 X DBM080
14	EE80201196	HOLDERS X DBM080
15	7132A22S	CARBON BRUSHE SET X DBM080 (2PCS)
16	EE80201180	SCREW 4 X 12 X DBM080
17	EE80201385	WASHER X DBM080
18	EE80900169	HOUSING MOTOR X DBM080
19	EE80201265	SCREW 3.9 X 70 X DBM080
20	EE73110140	BAFFLE X DBM080
21	EE80201333	RETAINING RING 28 X DBM080
22	211142-7	BEARING 6001LLB X GD0800C
23	EE73110125	SEAL X DBM080
24	EE73110430	GEAR X DBM080
25	EE80200504	WASHER 15 X DBM080
26	211251-2	BEARING 6003LLB X DA631
27	EE73113400	HOUSING GEAR X DBM080
28	211256-2	BEARING X AM4024LG
29	EE73113420	POST X DBM080
37	EE80200582	PIN 4 X DBM080
41	212004-2	ROLLER 810 X9218S
42	EE73116493	CLUTCH X DBM080
43	212102-2	BEARING ROLLERS BK 1210
44	EE73113610	RETAINING BEARING X DBM080
45	EE73116100	ARMATURE X DBM080
46	EE73116150	STATOR X DBM080
47	EE80601133	CHECKLIST X DBM080
48	EE80201252	SCREW 2.9 X 13 X DBM080
49	EE80900012	CAP X DBM080
51	EE85000061	WASHER 5 X DBM080
52	EE83000035	RING 4.9 X 1.9 X DBM080
53	EE73116695	HANDLE CPL LAT. X DBM080
