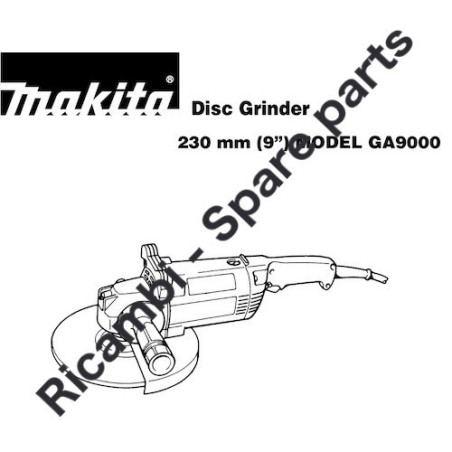

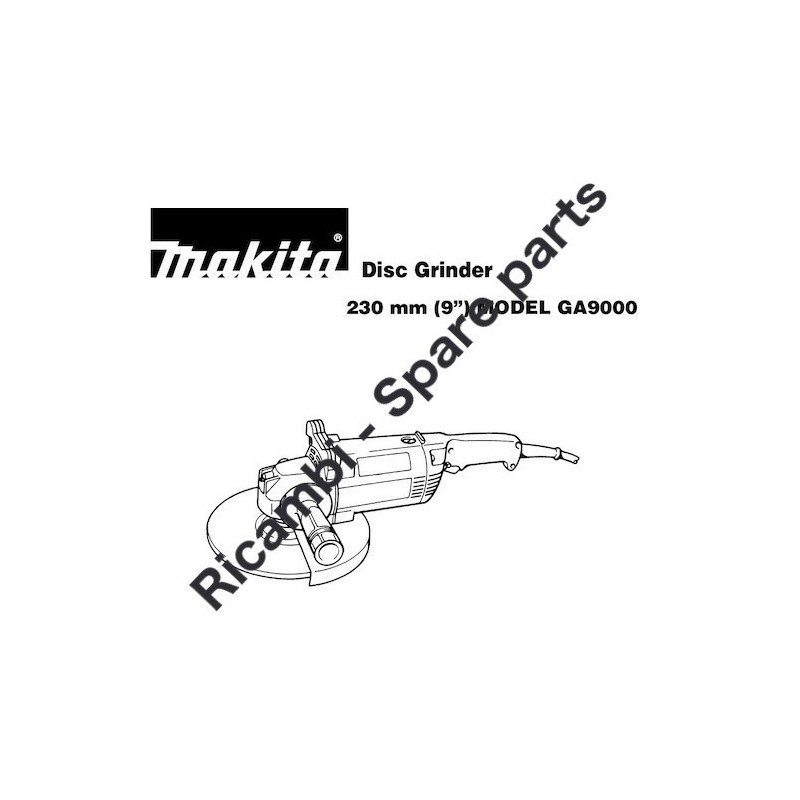

Makita Grinder GA9000 Spare Parts
€1.47
Tax included
Makita Angle Grinder GA9000 Spare Parts
Distribution and Sale at attractive prices of Makita Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder GA9000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Angle Grinder GA9000 Spare Parts
Distribution and Sale at attractive prices of Makita Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder GA9000.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| MAKITA GA9000 ANGLE GRINDER SPARE PARTS | ||
| # | Part Num. | Description |
| 1 | 911263-2 | P.H. SCREW 5 X 40 /5620DWA |
| 2 | 962062-5 | RETAINING RING R-12 /3612BR |
| 3 | 256615-3 | SHAFT LOCK PIN 6 /GA9000 |
| 4 | 231037-8 | COMPRESSION SPRING 7 /9300/GA5020X01 |
| 6 | 156451-6 | GEAR HOUSING /GA9000 |
| 7 | 263005-3 | RUBBER PIN 6 /DHS680/DGA504/DST221/DLM46 |
| 8 | 961051-7 | RETAINING RING /DP4001K/DP4003K |
| 9 | 257062-1 | RING 11 /GA9000 |
| 10 | 221322-7 | SPIRAL BEVEL GEAR 17 /GA9000 |
| 11 | 211132-0 | BALL BEARING 6301DDW/GA9020/GA9030 |
| 12 | 341403-2 | PLATE |
| 13 | 254001-2 | WOODRUFF KEY 4/EB7650/JN3201/4107RH |
| 15 | 514933-8 | ARMATURE /GA9000 |
| 17 | 211087-9 | BALL BEARING 6200DDW/HM1812/KP0810 |
| 18 | 524613-8 | FIELD /GA7000/GA9000 |
| 22 | 643650-4 | BRUSH HOLDER CAP /2703/HR5001C/4107RH |
| 23 | 181044-0 | CARBON BRUSH PAIR CB-153 (194985-1) |
| 24 | 263002-9 | RUBBER PIN 4 /9207SPC |
| 25 | 156738-6 | MOTOR HOUSING |
| 27 | 911248-8 | (+) P.H. SCREW M5 X 28 /9741 |
| 28 | 181908-8 | HANDLE SET /GA9000 |
| 29 | 651142-9 | SWITCH C3D-15CS /GA9000 |
| 30 | 645089-7 | NOISE SUPPRESSOR/JN3201/JS3201/RT0700 |
| 31 | 682505-8 | CORD GUARD/GS5000/LS1013//LS1040 |
| 33 | 687001-1 | STRAIN RELIEF /4107RH |
| 34 | 911126-2 | P.H. SCREW M4X16/DFR450/6016/1902 |
| 35 | 421279-4 | DUST COVER /GA9000 |
| 36 | 911111-5 | P.H.SCREW M4X10/DLS713/DUH523 |
| 37 | 911143-2 | PAN HEAD SCREW M4X22 /PM7650H/BHX2500 |
| 38 | 911248-8 | PAN HEAD SCREW M5X28 /PM7650H/BHX2500 |
| 39 | 911136-9 | PAN HEAD SCREW M4X20 /PM7650H/BHX2500 |
| 40 | 224543-0 | SUPER LOCK NUT 47MM / GA9000 / 9059 / 9069 |
| 41 | 224490-5 | INNER FLANGE 102MM / 9059 / 9069 / GA9020 / 9030 |
| 42 | 164392-2 | WHEEL COVER /9609NB |
| 43 | 342555-2 | WHEEL COVER HOLDER /GA9000 |
| 45 | 911223-4 | P.H. SCREW M5X16 /9005B/GA9000 |
| 46 | 321218-3 | SPINDLE DIN-TYPE /GA9000 |
| 47 | 254001-2 | WOODRUFF KEY 4/EB7650/JN3201/4107RH |
| 48 | 256047-4 | PIN 6 /GA9000 |
| 49 | 911226-8 | P.H. SCREW M5X18/HS7000/HS7600/1902 |
| 50 | 315003-4 | BEARING BOX /GA9000 |
| 51 | 443036-0 | FELT RING 25 /GA9000 |
| 52 | 253772-8 | FLAT WASHER 28 /GA9000 |
| 53 | 211490-4 | BALL BEARING 6203LLB/GS5000/2703X1/5900B |
| 54 | 962157-4 | RETAINING RING R-40 /GF600/9069/4107RH |
| 55 | 221323-5 | SPIRAL BEVEL GEAR /GA9000 |
| 56 | 961057-5 | RETAINING RING S-17 /EM4350/RT0700C |
| 57 | 322465-9 | SPINDLE LOCK BUSH /9609NB/GA9000 |
| 58 | 253214-2 | FLAT WASHER 9 /GA9000 |
| 59 | 211092-6 | BALL BEARING 629LB |
| 60 | 273404-1 | HANDLE SET |
| 61 | 654019-7 | GARTER SPRING |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
