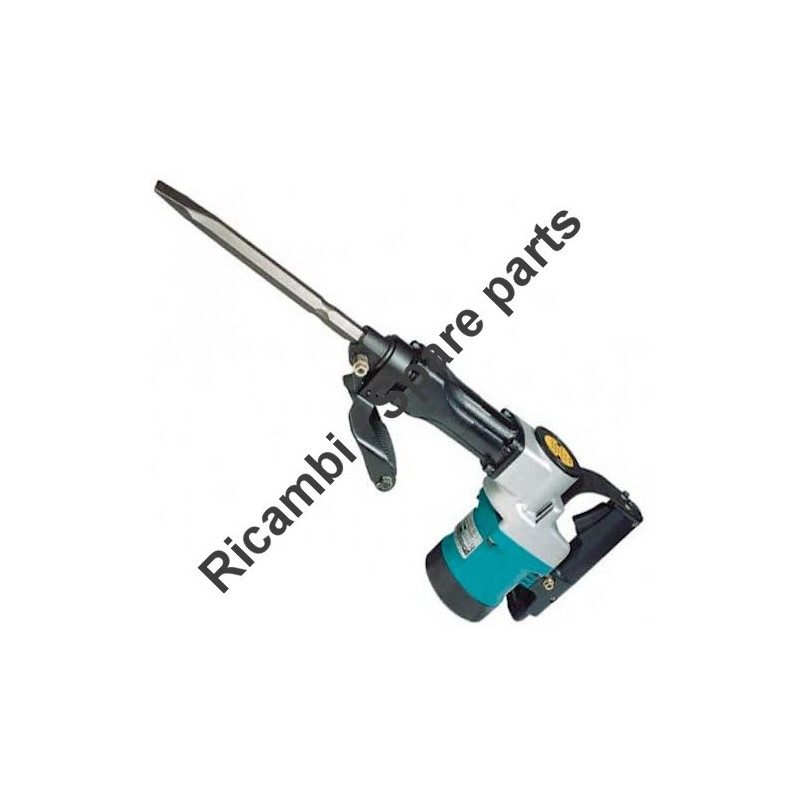

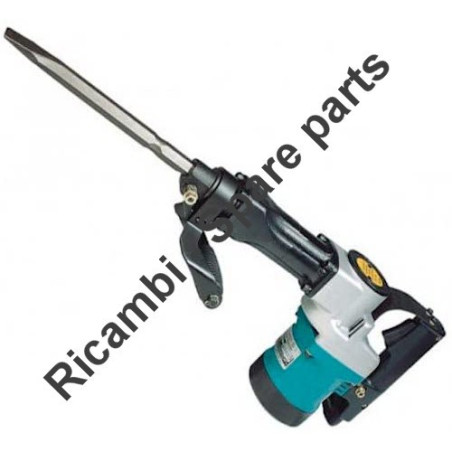

Makita Spare Parts for Demolition Hammer HM1200K
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for HM1200K Corded 19mm (3/4'') A/f Hex Shank Demolition Hammer.
Open File PDF in this page for to see spare parts.
In the following table, look for the model of the Hammer HM 1200K and the respective parts of the code.
| HM1200K Corded 19mm (3/4'') A/f Hex Shank Demolition Hammer | ||
| # | Part Num. | Description |
| 1 | 151310-9 | BARREL COMPLETE HM1200 |
| 2 | 922451-6 | HEX.SOCKET SCREW M8X30, LS1013 |
| 4 | 213655-4 | O-RING 56, 483 |
| 5 | 321732-9 | STRIKER HM1200 |
| 6 | 412049-2 | PISTON RING 40 |
| 7 | 341862-0 | INNER RING 36 |
| 8 | 412049-2 | PISTON RING 40 |
| 9 | 341862-0 | INNER RING 36 |
| 10 | 256120-0 | PIN 10 FOR HM1200 |
| 12 | 414218-1 | CRANK CAP |
| 13 | 213754-2 | O RING 71 |
| 14 | 315419-3 | CONNECTING ROD |
| 15 | 212208-6 | NEEDLE BEARING 1516 |
| 16 | 152180-9 | ECCENTRIC SHAFT |
| 17 | 254001-2 | WOOD RUFF KEY 4, 4100NH |
| 18 | 962251-2 | RETAINING RING R-52 |
| 19 | 211327-5 | BEARING 6304 |
| 20 | 213656-2 | O-RING 53, HM0830 |
| 21 | 156863-3 | CRANK HOUSING COMPLETE |
| 22 | 213306-9 | OIL SEAL 20, 5377MG |
| 23 | 221701-9 | HELICAL GEAR 50 |
| 24 | 211228-7 | BALL BEARING 6202DDW, GA9010 |
| 25 | 256111-1 | PIN 6 |
| 26 | 157072-7 | GEAR HOUSING |
| 27 | 321441-0 | PISTON |
| 28 | 267059-2 | FLAT WASHER 32 |
| 29 | 261069-1 | NYLON WASHER 33 |
| 30 | 253976-2 | FLAT WASHER 33 |
| 31 | 322256-8 | IMPACT BOLT |
| 32 | 213468-3 | O RING 32 |
| 33 | 213428-5 | X RING 28 |
| 34 | 213604-1 | O RING 50 |
| 35 | 321932-1 | TOOL HOLDER |
| 36 | 331132-5 | TOOL RETAINER |
| 38 | 922451-6 | HEX.SOCKET SCREW M8X30, LS1013 |
| 39 | 231281-7 | COMPRESSION SPRING 15 |
| 41 | 252046-4 | HEX. NUT M8-13 |
| 42 | 417003-1 | SIDE HANDLE |
| 43 | 416397-1 | HANDLE BASE 48 |
| 44 | 344560-5 | HANDLE SPRING 48 |
| 45 | 252640-2 | WING NUT M8 HR4000C |
| 46 | 265439-6 | HEX. BOLT M8X150 HR4000C HM1200 |
| 47 | 134944-3 | NEW HANDLE |
| 48 | 417002-3 | SIDE HANDLE CAM |
| 50 | 331180-4 | SEAL |
| 51 | 213460-9 | O RING 35, LF1000 |
| 52 | 211228-7 | BALL BEARING 6202DDW, GA9010 |
| 53 | 213202-1 | DUST SEAL 15 |
| 54 | 241638-4 | FAN 94 |
| 55 | 514778-4 | ARMATURE ASSY HM1200 |
| 56 | 681646-7 | INSULATION WASHER HM1800 |
| 57 | 211087-9 | BALL BEARING 6200DDW, 9069 |
| 58 | 213406-5 | O RING 30, HR2810 |
| 59 | 410163-8 | BAFFLE PLATE |
| 60 | 265347-1 | HEX. BOLT M5X45 |
| 61 | 524633-2 | FIELD ASSY HR3851 |
| 64 | 159034-1 | MOTOR HOUSING |
| 65 | 643650-4 | HOLDER CAP *, LS1040 |
| 66 | 181048-2 | CARBON BRUSH CB-155 |
| 67 | 284055-5 | REAR COVER |
| 68 | 942101-7 | SPRING WASHER 5, 4100NH |
| 69 | 922222-1 | H.S.H.BOLT M5*16, HR3850 |
| 70 | 922371-4 | HEX. SOCKET HEAD BOLT M6X |
| 72 | 941151-9 | WASHER 6, 5806B |
| 73 | 252014-7 | HEX LOCK NUT M6*10, N5900B |
| 74 | 942151-2 | SPRING WASHER 6, 5806B |
| 75 | 941151-9 | WASHER 6, 5806B |
| 76 | 911243-8 | PAN HEAD SCREW M5X25, DK1804 |
| 77 | 182077-8 | HANDLE SET |
| 78 | 911129-6 | PAN HEAD SCREW M4X16 |
| 79 | 651145-3 | SWITCH C3D-H-MS |
| 80 | 421265-5 | DUST COVER |
| 82 | 685700-9 | SPONGE M802/HR3850B |
| 83 | 922316-2 | HEX. SOCKET HEAD BOLT M6X |
| 85 | 922341-3 | SOCKET HEAD BOLT, 9803 |
| 87 | 343755-7 | CUSHION PLATE |
| 89 | 321210-9 | HANDLE SHAFT |
| 90 | 682505-8 | CORD GUARD 10-90, 5806B |
| 92 | 687001-1 | STRAIN RELIEF B04510 |
| 93 | 911133-5 | PAN HEAD SCREW M4X8 WITH WR, 438 |
| 96 | 262051-3 | RUBBER RING 9-6 XHR3850 |
| 97 | 262052-1 | RUBBER RING 9-3 XHR3850 |
| 98 | 257636-8 | SLEEVE 6 FOR HM0810 |
| 99 | 654020-2 | RING TERMINAL, 4100NH |
| 999 | 193279-1 | HAMMER SERVICE KIT |
