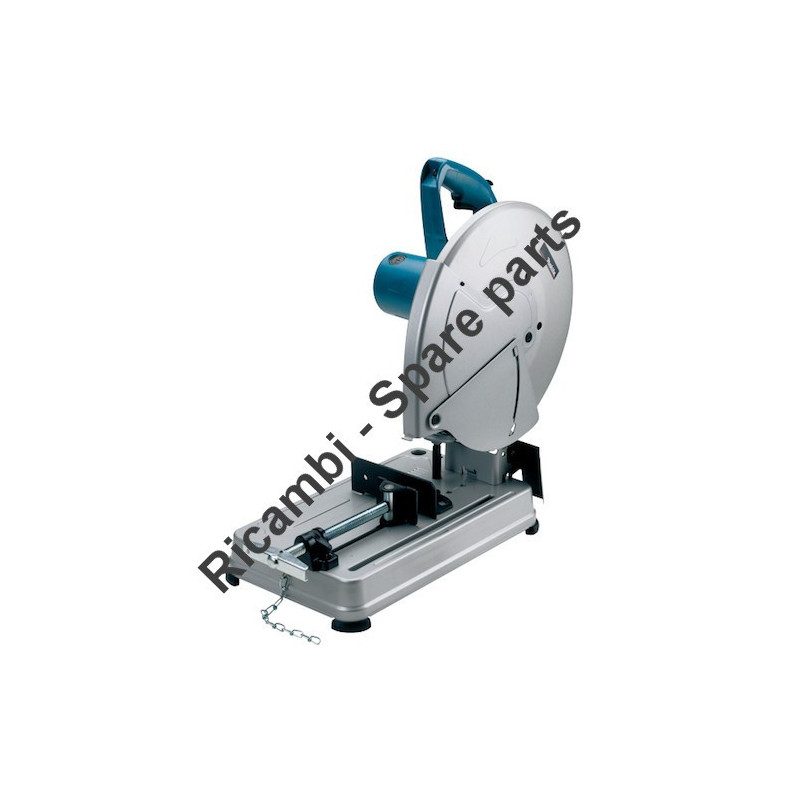

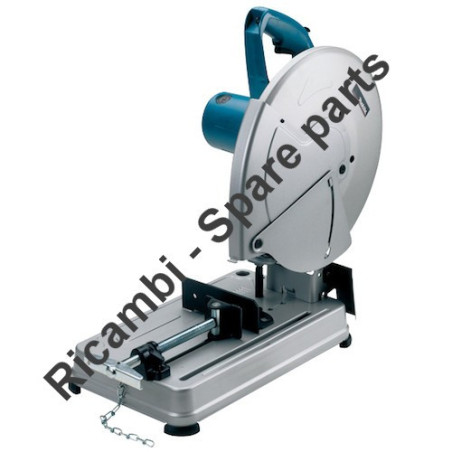

Makita Spare Parts for Abrasive Cut Off Saw 2414B
search
  • Makita Spare Parts for Abrasive Cut Off Saw 2414B
  • Makita Spare Parts for Abrasive Cut Off Saw 2414B

Makita Spare Parts for Abrasive Cut Off Saw 2414B

€7.71
Tax included

Makita Spare Parts for Abrasive Cut Off Saw 2414B

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Abrasive Cut Off Saw 2414B.
ITEM CODE: 152463-7
Quantity
on 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Abrasive Cut Off Saw 2414B

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Abrasive Cut Off Saw 2414B.

In the following table, look for the model of the hammerr and the respective parts of the code.
Makita 2414B

Abrasive Cut Off Saw Makita 2414B
# Part Num. Description
2 168275-8 BLADE COMPLETE GUIDE COVER
3 251680-7 BOLT C / BORDINO 10X25
4 224299-5 INNER FLANGE 90 2414B
6 265121-7 SCREW M 6 X MT240
7 213162-7 SEAL 14 AN5010
8 257185-5 RING 17
9 224299-5 INNER FLANGE 90
10 257185-5 RING 17
12 211490-4 BEARING 6203LLU X SG150-2
13 316527-3 BEARING
14 226415-5 GEAR 41
15 322633-4 POST
16 211061-7 BALL BEARING 6000
17 182628-7 HANDLE COMPLETE
18 645200-1 CAPACITOR
19 651922-3 SWITCH
20 231397-8 SPRING COMPRESSION 4
21 411478-6 BUTTON SWITCH
22 281207-9 BRACKET
23 256012-3 PIN
25 265995-6 M4X18 SCREW
26 911271-3 HEAD SCREW CILIND. M5x50
27 152463-7 LEVER SWITCH. COMPLETE
28 415366-9 ROCKER
29 682503-2 SLEEVE PROTECTING_COVER
31 687052-4 CLAMP cable tie
32 265995-6 M4X18 SCREW
33 322049-3 HOOK
34 231240-1 SPRING 7
35 322665-1 STILL
36 263005-3 RUBBER PIN 6
38 211228-7 BALL BEARING 6202
39 267714-6 WASHER 15
40 510240-7 ARMATURE 2414EN
41 681633-6 WASHER
42 211092-6 BALL BEARING 629
43 415369-3 BAFFLE PLATE
44 911908-2 HEAD SCREW CILIND. M5X80
45 636008-4 STATORE
46 159750-5 CASING MOTOR COMPL. 2414NB
47 911271-3 HEAD SCREW CILIND. M5x50
49 191953-5 CARBOB BRUSHES CB-203
50 643710-2 PLUG BRUSH XHM1500
87 415661-7 STOPPER
88 911258-5 SCREW M5x35
89 253903-9 WASHER 6 3700B
51 951163-4 PIN 5-20
52 272021-4 KNOB
53 322239-8 VICE SCREW
54 951066-2 PIN 3-18
56 322209-7 BOLT CLAMP
57 911451-1 HEAD SCREW CILIND. M8x30
58 253731-2 FLAT WASHER 8
59 321680-2 SCREW M8
60 342679-4 JAW PLATE
61 253752-4 FLAT WASHER 8
62 942201-3 WASHER 8
63 931402-8 NUT M8
64 265201-9 HEXAGON BOLT M10x25
65 344087-5 PLATE GUIDE
68 265406-1 BOLT M10 X 130
69 267713-8 WASHER 10
71 331428-4 TUBE 16-113
72 267713-8 WASHER 10
73 252130-5 NUT M10-17
75 344088-3 PLATE
76 922312-0 BOLT M6 X 12
77 942151-2 WASHER 6
78 252014-7 NUT M6-10
79 233113-4 COMPRESSION SPRING 45
80 165066-8 HARD STOPS SPRING 2414B
81 265407-9 NUT M10
82 421487-7 LEG STRETCH
84 282016-9 CHAIN ​​X 2414B
