Makita Bruschcutter RBC520 Parts
€119.88
Tax included
Makita Spare Parts for Engine Bruschcutter RBC520
Makita original spare parts for to replace broken parts for to fix Engine Bruschcutter RBC520.Fix Your Bruschcutter. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Engine Bruschcutter RBC520

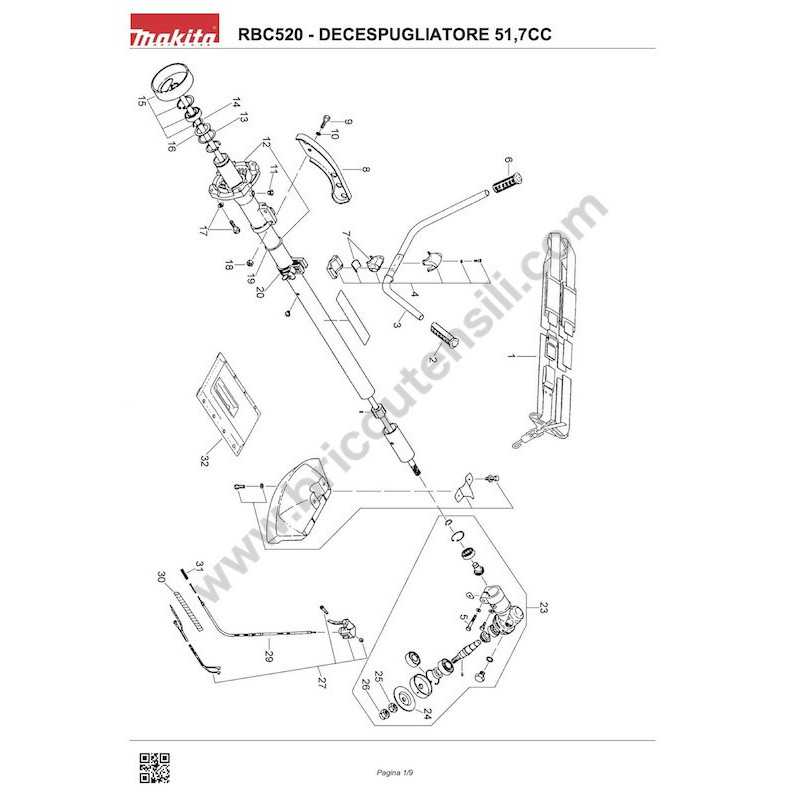

Fix Your Engine Bruschcutter RBC520. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following table, look for the model of Brusch Cutter and the respective parts of the code.
| RBC520 Petrol String Brush Cutter Spare Parts | ||
| Pag.1 | ||
| # | Part Num | Description |
| 1 | 6457001003 | SUPPORT STRAP FOR RBC520 |
| 2 | 6164500000 | RIGHT HANDLE FOR RBC520 |
| 3 | 6404501000 | GRIP FOR RBC 520 |
| 4 | 6404024000 | BLOCKING CLAMP FOR RBC520 |
| 5 | 0016706350 | SCREW FOR RBC520 |
| 6 | 6414501400 | LEFT HANDLE X RBC520 |
| 7 | 6404018000 | ADJUSTABLE CLAMP X RBC520 |
| 8 | 6307500300 | HOOK X RBC 520 |
| 9 | 0016606200 | SCREW M6X20 X RBC520 |
| 10 | 0032006000 | ELASTIC WASHER X RBC/RBK410-G2400R |
| 11 | 6301501300 | PLUG X RBC 520 |
| 12 | 6301009000 | CLUTCH BOX COMPLETE X RBC520 |
| 13 | 6301501600 | WASHER X RBC520 |
| 14 | 0031517000 | EXTERNAL STOP X RBC 410 RBK410 |
| 15 | 6401028001 | COMPLETE SHAFT NEW RBC520 |
| 16 | 0230259980 | SPACER X RBC 520 |
| 17 | 0016606250 | SCREW 6X25 X RBC 520 |
| 18 | 0021806000 | NUT X RBC 410/RBC520 |
| 19 | 0062630280 | STOP RING X RBC 520 |
| 20 | 140629-1 | COMPL. CONNECTOR X RBC410 RBC520 |
| 23 | 6453008000 | GEARBOX X RBC520 |
| 24 | 346441-9 | EXT FLANGE |
| 25 | 264058-5 | NUT X RBC 410/RBC520 |
| 26 | 6308503300 | NUT X RBC 410/RBC520 |
| 27 | 6455001000 | LEVEL GAUGE X RBC520 |
| 29 | 6455002000 | CONTROL WIRE X RBC520 |
| 30 | 0091912600 | SPRING X RBC 520 |
| 31 | 6255500900 | SPRING X RBC520 |
| 32 | 6407500000 | GUARD X RBC 520 |
| Pag.2 | ||
| 34 | 5503001000 | VALVE SILENCER X RBC520 |
| 35 | 0043505080 | SCREW M5X8 X RBC520 |
| 36 | 0022808000 | NUT M8 X RBC520 |
| 37 | 0032008000 | WASHER X RBC520 - G.2400R-G.3500 |
| 38 | 6302002000 | CLUTCH X RBC520 |
| 39 | 0053203101 | KEY RBC/RBK 410 |
| 40 | 5502500400 | PISTON X RBC520 |
| 41 | 233995-4 | PISTON PIN RING |
| 42 | 5503500100 | GASKET X RBC520 |
| 43 | 0032006000 | ELASTIC WASHER X RBC/RBK410-G2400R |
| 44 | 0170069960 | NUT X RBC520 |
| 45 | 5501500300 | CYLINDER X RBC520 |
| 46 | 054002-10 | SPRING NGK - BM7A (10PCS) |
| 48 | 0043706140 | SCREW 5X14 X RBC520 |
| 49 | 0566079970 | CLAMP X RBC520 |
| 50 | 5503500501 | GASKET MS5250 |
| 51 | 5506500100 | INSULATOR X RBC520 |
| 52 | 5503500501 | GASKET MS5250 |
| 53 | 0043506200 | SCREW AND WASHER X RBC520-G5500R |
| 54 | 5501500400 | GASKET X RBC520 |
| 55 | 5602500900 | PISTON RING X RBC520 |
| 56 | 5602501100 | PISTON PIN X RBC520 |
| 57 | 233995-4 | PISTON PIN RING |
| 58 | 0610129961 | ROLLER BEARING X RBC520 |
| 59 | 0053204201 | PIN X RBC520 |
| 60 | 0655009940 | CAND. CAP X RBC410/RBK410RBC520 |
| 61 | 0241059960 | CABLE |
| 62 | 0043605180 | SCREW COMP. X RBC230/RBC520 |
| 64 | 5505001050 | STARTER CABLE X RBC 520 |
| 65 | 5505500000 | BLOWER WINDING RBC520 |
| 66 | 5305002110 | STARTER KNOB X RBC260/RBK41 |
| 68 | 0043706140 | SCREW 5X14 X RBC520 |
| 69 | 5505001000 | STARTER REWINDING RBC520 |
| 70 | 0043506200 | SCREW AND WASHER X RBC520-G5500R |
| 71 | 5505001020 | SPIRAL SPRING X RBC520 |
| 73 | 5105015060 | RETURN SPRING X RBC310/RBC520 |
| 74 | 5105015020 | WING PAWL X RBC 310/RBC520 |
| 75 | 5105015050 | CLUTCH SPRING X RBC 310/520 |
| 76 | 5505001030 | CLUTCH PLATE X RBC 310/RBC520 |
| 77 | 5105015110 | SCREW X RBC260/230/520 |
| 78 | 0022810000 | NUT M10 XRBC520 |
| 79 | 0032010000 | WASHER X RBC520/G.5500R |
| 80 | 0031010000 | WASHER X RBC520/G.5500R |
| 81 | 5507001010 | FAN X RBC520 |
| 82 | 0043506400 | SCREW M6X40 XRBC520 |
| 83 | 5501500200 | GASKET X RBC 520 |
| 84 | 5501003000 | COMPLETE BOX X RBC 520 |
| 85 | 5502001000 | ECCENTRIC SHAFT COMPLETE XRBC520 |
| 86 | 0851199980 | TUBE X RBC520 |
| 87 | 0561059990 | FILTER STOPPER BAND X RBC230-310/520 |
| 88 | 0032006000 | ELASTIC WASHER X RBC/RBK410-G2400R |
| 89 | 0119069970 | SCREW X RBC520 |
| 90 | 6455500100 | SUPPORT X RBC520 |
| 91 | 0230039980 | SPACER X RBC520 |
| 92 | 0561080010 | TUBE STOPPER X RBC 260/RBC520 |
| 93 | 5106503001 | FUEL PUMP X RBC520 |
| 94 | 0230259980 | SPACER X RBC 520 |
| 95 | 0230039980 | SPACER X RBC520 |
| 96 | 5106501200 | TUBE X RBC520 |
| 97 | 216039-5 | BALL X RBC 520 |
| 98 | 5106502500 | ELEMENT X RBC520 |
| 99 | 5106503300 | ELEMENT X RBC520 |
| 100 | 5106502400 | ELEMENT X RBC520 |
| 101 | 0043506250 | SCREW AND WASHER X RBC520-G5500 |
| 102 | 0031206000 | WASHER G.24/35-RBC225-255 |
| 103 | 0230069910 | BUSH X RBC 520 |
| 104 | 5506500200 | VALVE DRAFT X RBC520 |
| 105 | 0566079970 | CLAMP X RBC520 |
| 106 | 5506500000 | TANK X RBC520 |
| 107 | 0031206000 | WASHER G.24/35-RBC225-255 |
| 108 | 0031206000 | WASHER G.24/35-RBC225-255 |
| 109 | 452920-8 | TANK CAP |
| Pag.3 | ||
| 110 | 5106043020 | AIR REGULATION SCREW X RBC520 |
| 111 | 5106043030 | AIR REGULATION SPRING X RBC520 |
| 112 | 5106048230 | LOCKING SCREW FOR RBC520 |
| 113 | 5106048240 | SPRING ADJUSTMENT SCREW X RBC520 |
| 114 | 0032005000 | WASHER X RBC520 |
| 115 | 0043105550 | SCREW M5X55 XRBC520 |
| 117 | 0043104300 | SCREW M4X30 X RBC520 |
| 118 | 0230049980 | SPACER X RBC 520 |
| 119 | 5103502700 | SPONGE ELEMENT X RBC520 |
| 120 | 5503005000 | AIR FILTER X RBC520 |
| 121 | 5106042320 | DIAPHRAGM X RBC520 |
| 122 | 5106042310 | GASKET X RBC520 |
| 123 | 5106041320 | SPRING X RBC 520 |
| 124 | 5506001000 | CARBURETOR X RBC 520 |
| 125 | 5106041340 | NEEDLE VALVE X RBC520 |
| 126 | 5106043130 | PIN X RBC520 |
| 127 | 5506001250 | SPRING X RBC520 |
| 128 | 0043503080 | SCREW M3X8 X RBC520 |
| 129 | 5506001120 | COVER X RBC 520 |
| 130 | 5506001040 | GASKET X RBC520 |
| 131 | 5506001030 | PLATE X RBC520 |
| 132 | 5106043150 | CONTROL LEVER X RBC520 |
| 133 | 5106043120 | CONTROL LEVER SPRING RBC520 |
| 134 | 5106042120 | ADJUSTMENT SPRING RBC520 |
| 135 | 5106042060 | LOCKING RING FOR RBC520 |
| 136 | 5506001110 | MAIN ADJUSTMENT SCREW FOR RBC520 |
| 137 | 5106042160 | AUT.MAIN ADJUSTMENT FOR RBC520 |
| 138 | 0851159990 | PIPE FOR RBC230/520 |
| 203 | 6459020000 | KEY KIT FOR RBC520 |
| Pag.4 | ||
| 5 | 0016706350 | SCREW FOR RBC520 |
| 23 | 6453008000 | GEARBOX FOR RBC520 |
| 24 | 346441-9 | EXT FLANGE |
| 25 | 264058-5 | NUT FOR RBC 410/RBC520 |
| 26 | 6308503300 | NUT FOR RBC 410/RBC520 |
| 139 | 6453006000 | SHAFT SET FOR RBC520 |
| 140 | 0310049990 | PIN X RBC520 |
| 141 | 6308503000 | BEARING BOX X RBC520 |
| 142 | 6453500600 | SPACER X RBC520 |
| 143 | 266671-5 | OIL CAP |
| 144 | 0600109980 | BALL BEARING 6000 |
| 145 | 0600129940 | BALL BEARING X DCS520 |
| 146 | 6453500500 | OIL SEAL X RBC520 |
| 147 | 0011306120 | BOLT M6X12 X RBC310/520 |
| 148 | 0031428000 | INNER RING X RBC410/520 |
| 149 | 0031435000 | INTERNAL STOP X RBC410/520/RBK410 |
| 150 | 0031512000 | EXTERNAL RING X RBC260/520RBK410 |
| 151 | 0032006000 | ELASTIC WASHER X RBC/RBK410-G2400R |
| 152 | 0037108000 | SEAL X RBC520 |
| 153 | 0037110000 | SEAL X RBC520 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
