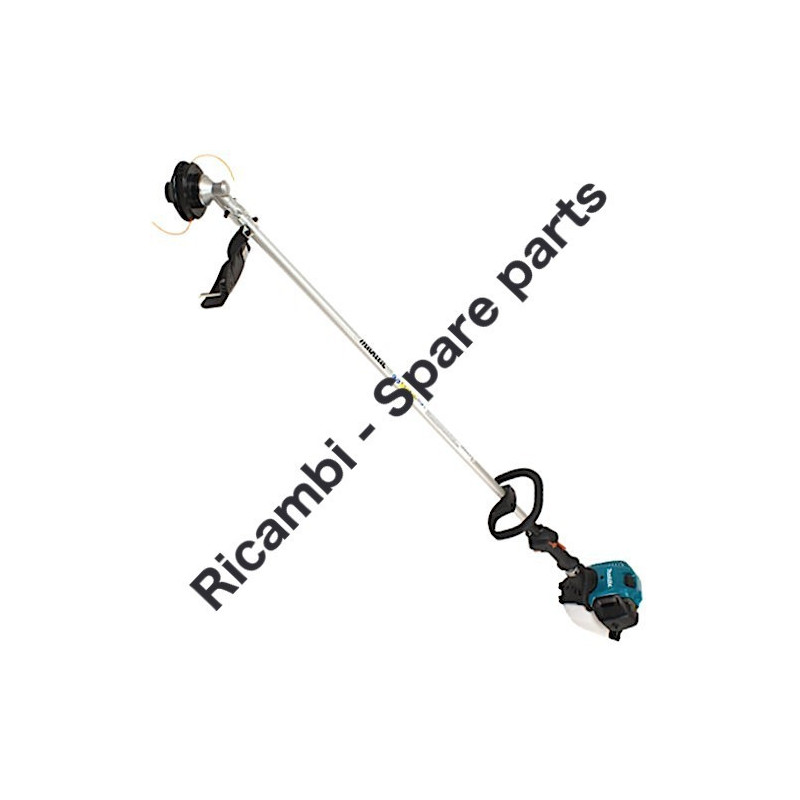

Makita EM2650LH 4-stroke Brushcutter Parts
€22.58
Tax included
Makita EM2650LH 4-stroke Petrol Brush Cutter 25.4cc Spare Parts
We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Makita EM2650LH 4-stroke Petrol Brush Cutter 25.4cc.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita EM2650LH 4-stroke Petrol Brush Cutter 25.4cc Spare Parts
We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Makita EM2650LH 4-stroke Petrol Brush Cutter 25.4cc.
In the following table, look for the model of Brusch Cutter and the respective parts of the code.
| MAKITA EM2650LH 4-stroke Petrol Brush Cutter 25.4cc Spare Parts Pag.1 | ||
| # | Part Num. | Description |
| 1 | 195215-3 | LOOP HANDLE SET |
| 2 | 451601-1 | SPACER EBH252L |
| 4 | 195143-2 | HANGER SET |
| 5 | 911233-1 | PAN HEAD SCREW M5X20 |
| 6 | 140431-2 | SHAFT PIPE COMPLETE |
| 9 | 324893-4 | DRIVE SHAFT EBH252L |
| 10 | 922218-2 | H.S.H.BOLT M5X14 WITH WR |
| 11 | 123833-7 | GEAR CASE ASSEMBLY |
| 14 | 210217-9 | BALL BEARING 609ZZ |
| 15 | 961005-4 | RETAINING RING S9 |
| 16 | 962103-7 | RETAINING RING R-24 GN900SE |
| 17 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 |
| 18 | 265590-2 | +HEX.BOLT M8X10 WITH R |
| 19 | 211019-6 | BALL BEARING 626 |
| 20 | 183K10-9 | GEAR CASE BBC300LR |
| 23 | 210115-7 | BALL BEARING 6001LLU EBH252L |
| 24 | 961108-4 | RETAINING RING S-28 |
| 25 | 331861-0 | RECEIVE WASHER EBH252L |
| 26 | 346355-2 | CLAMP WASHER |
| 27 | 168526-9 | CUP EBH341U |
| 28 | 264025-0 | HEX. NUT M10-17 |
| 29 | 452260-4 | PROTECTOR EBH252L |
| 30 | 451097-6 | PROTECTOR COVER EBH252L |
| 31 | 266280-0 | HEX. SOCKET HEAD BOLT M6X25 |
| 32 | 347012-5 | PROTECTOR CLAMP |
| 33 | 265620-9 | TAPPING SCREW 4X18 |
| 35 | 347050-7 | CUTTER |
| 37 | 135753-3 | PROTECTOR EXTENSION ASSY |
| 56 | 911253-5 | SCREW M 5 X 30 X JR3030T |
| 57 | 451598-4 | HANDLE 24 X BBC300LR |
| 58 | 451599-2 | HANDLE BASE 24 X BBC300LR |
| 59 | 413143-3 | WASHER MS335.4C |
| EM2650LH - 4-stroke Petrol Brush Cutter 25.4cc.25,4CC 360 Pag.2 | ||
| Rif. | Codice | Description |
| 38 | 126488-7 | CONTROL LEVER ASSEMBLY |
| 39 | 266130-9 | TAPPING SCREW BIND PT 3X16 |
| 40 | 451595-0 | SWITCH COVER MS335.4C |
| 41 | 451594-2 | SWITCH LEVER MS335.4C |
| 42 | 232251-9 | LEAF SPRING EBH341U |
| 43 | 188832-6 | LEVER CASE SET EX2650LH |
| 44 | 346248-3 | CLAMP 24 EX2650LH |
| 45 | 922218-2 | H.S.H.BOLT M5X14 WITH WR |
| 46 | 451593-4 | LOCK LEVER MS335.4C |
| 47 | 233541-3 | TORSION SPRING 7 EBH341U |
| 48 | 168571-4 | CONTROL CABLE EX2650LH |
| 49 | 233540-5 | TORSION SPRING 11 EBH341U |
| 50 | 455313-8 | THROTTLE LEVER |
| 51 | 638714-7 | LEAD UNIT EX2650LH |
| 52 | 638713-9 | LEAD UNIT EX2650LH |
| 53 | 452071-7 | CORRUGATE TUBE EX2650LH |
| 54 | 265620-9 | TAPPING SCREW 4X18 |
| EM2650LH - 4-stroke Petrol Brush Cutter 25.4cc.25,4CC 360 Pag.3 | ||
| Rif. | Codice | Description |
| 60 | 123499-3 | CLEANER COVER ASSEMBLY EX2650LH |
| 61 | 265791-2 | THUMB SCREW M4 |
| 62 | 443171-4 | AIR CLEANER ELEMENT EX2650LH |
| 63 | 443169-1 | AIR CLEANER ELEMENT EX2650LH |
| 64 | 266618-9 | HEX. SOCKET HEAD BOLT M5X60 EX2650LH |
| 65 | 123501-2 | CLEANER PLATE ASSEMBLY |
| 66 | 162346-3 | SEPARATOR EX2650LH |
| 67 | 213540-1 | O RING 15 EBH341U |
| 68 | 424316-3 | CHECK VALVE EBH341U |
| 69 | 422099-9 | PIPE EX2650LH |
| 70 | 325665-0 | JOINT PIPE EX2650LH |
| 71 | 442153-3 | CARBURETTOR GASKET EX2650 |
| 72 | 266787-6 | H.S.H.BOLT M5X18 WITH WR |
| 73 | 451825-9 | CLAMP EX2650LH |
| 74 | 451729-5 | INSULATOR EX2650LH |
| 75 | 213547-7 | O-RING 12 EX2650LH |
| 76 | 422109-2 | BREATHER PIPE EX2650LH CS246.4C |
| 77 | 345918-1 | CLAMP EBH341U |
| 78 | 318745-9 | ROCKER COVER OUTER |
| 79 | 922222-1 | HEX. SOCKET HEAD BOLT M5X16 |
| 80 | 453860-3 | ROCKER COVER INNER |
| 81 | 162304-9 | ROCKER COVER GASKET |
| 82 | 424302-4 | SPARK PLUG CAP EH7500S |
| 83 | 324891-8 | SPARK PLUG CAP SPRING EBH341 |
| 84 | 168534-0 | SPARK PLUG NGKCMR4A EBH341U |
| 85 | 125554-7 | ROCKER ARM ASSEMBLY |
| 86 | 256200-2 | PIN 5 FOR 2704 |
| 87 | 256865-0 | ROD 2.5 EBH252L |
| 88 | 325668-4 | SPRING RETAINER |
| 89 | 143823-4 | CLUTCH CASE COMPLETE |
| 90 | 922228-9 | H.S.H.BOLT M5X18 WITH WR |
| 91 | 450569-8 | SPACER EBH252L |
| 92 | 961052-5 | EXT DIN 471 CIRCLIP-12 |
| 93 | 210111-5 | BALL BEARING 6201LLU |
| 94 | 962151-6 | RETAINING RING R32 |
| 95 | 168809-7 | CLUTCH DRUM |
| 96 | 266864-4 | SHOULDER HEX. BOLT M6X25 |
| 97 | 267817-6 | WASHER 8 EBH252L |
| 98 | 126135-0 | CLUTCH ASSEMBLY |
| 99 | 161332-1 | CLUTCH SHOE X MH-246.4DF |
| 100 | 231881-3 | TENSION SPRING 7 EX2650LH |
| 101 | 267812-6 | WASHER 6 EBH252L |
| 102 | 264039-9 | CONED DISK SPRING HEXNUT M 8-13 |
| 103 | 318569-3 | FLYWHEEL EX2650LH |
| 104 | 444021-6 | TUBE EX2650LH |
| 105 | 266602-4 | HEX. SOCKET HEAD BOLT M4X20 |
| 106 | 452049-0 | SPACER EX2650LH |
| 107 | 161483-0 | IGNITION COIL |
| 108 | 5923500501 | CAM SHAFT MS251.4 |
| 109 | 125552-1 | CAM GEAR EBH341U |
| 110 | 313169-4 | CAM LIFTER |
| 112 | 268239-3 | PIN 4 EBH341U |
| 113 | 162274-2 | LATER COVER GASKET EBH341 |
| 114 | 318443-5 | SIDE COVER EBH341U |
| 115 | 922222-1 | HEX. SOCKET HEAD BOLT M5X16 |
| 116 | 135478-9 | CYLINDER BLOCK ASSEMBLY |
| 117 | 922222-1 | HEX. SOCKET HEAD BOLT M5X16 |
| 118 | 424201-0 | CHECK VALVE |
| 119 | 346331-6 | MUFFLER GASKET EX2650LH |
| 120 | 168554-4 | EXHAUST MUFFLER |
| 121 | 266440-4 | HEX SOCKET HEAD BOLT M5X40 |
| 122 | 168483-1 | STARTER PULLEY EBH252L |
| 123 | 451731-8 | MUFFLER PLATE |
| 124 | 922218-2 | H.S.H.BOLT M5X14 WITH WR |
| 125 | 638707-4 | LEAD UNIT |
| 126 | 638708-2 | LEAD UNIT |
| 128 | 922218-2 | H.S.H.BOLT M5X14 WITH WR |
| 129 | 453266-5 | CYLINDER COVER |
| 130 | 922218-2 | H.S.H.BOLT M5X14 WITH WR |
| 131 | 424082-2 | BUFFER RUBBER |
| 132 | 922211-6 | H.S.H.BOLT M5X12 WITH W |
| 133 | 922226-3 | HEX. SOCKET HEAD BOLT M5X18 |
| 134 | 318249-1 | PIPE HOLDER |
| 135 | 318250-6 | PIPE HOLDER |
| 136 | 424083-0 | BUFFER RUBBER |
| 137 | 424200-2 | SPACER EBH341U |
| 138 | 234108-0 | COMPRESSION SPRING 9 EBH252L |
| 140 | 326366-3 | EXHAUST VALVE |
| 143 | 326367-1 | INTAKE VALVE |
| 144 | 195145-8 | PISTON RING (TOP) 34 |
| 145 | 257299-0 | PISTON RING (SECOND) 34 |
| 146 | 257300-1 | PISTON RING 34 |
| 147 | 197453-3 | PISTON CPL |
| 148 | 254040-2 | WOODRUFF KEY 3 |
| 149 | 123774-7 | CRANK SHAFT ASSEMBLY |
| 150 | 213769-9 | OIL SEAL 10 |
| 151 | 267400-9 | FLAT WASHER 23 |
| 152 | 213089-1 | OIL SEAL 12 |
| 153 | 257781-9 | PISTON PIN EBH252L |
| 154 | 233976-8 | CLIP |
| 155 | 162345-5 | OIL CASE GASKET |
| 156 | 346083-9 | LEAD VALVE |
| 157 | 318910-0 | RETAINER PLATE |
| 158 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 |
| 159 | 318588-9 | OIL CASE |
| 160 | 922222-1 | HEX. SOCKET HEAD BOLT M5X16 |
| 161 | 424344-8 | DAMPER |
| 162 | 346305-7 | GASKET |
| 163 | 266611-3 | HEX BOLT M6X8 |
| 164 | 213548-5 | O-RING 20 |
| 165 | 325665-0 | JOINT PIPE |
| 166 | 282020-8 | HOSE CLAMP |
| 167 | 5926500300 | FITTING X MS251.4 |
| 168 | 424301-6 | OIL TUBE |
| 169 | 452047-4 | OIL TANK CAP FOR BHX2501 |
| 170 | 424343-0 | GASKET BHX2501 |
| 171 | 452048-2 | OIL PIPE EX2650LH |
| 172 | 922218-2 | H.S.H.BOLT M5X14 WITH WR |
| 173 | 127112-5 | FUEL TANK CAP |
| 175 | 168755-4 | FUEL HOSE EX2650LH |
| 176 | 282020-8 | HOSE CLAMP |
| 177 | 163518-3 | GASOLINE FILTER |
| 178 | 451736-8 | FUEL TANK |
| 179 | 424080-6 | BUFFER RUBBER |
| 180 | 424081-4 | RUBBER FOR DBC260U |
| 181 | 451737-6 | TANK GUARD |
| 182 | 922218-2 | H.S.H.BOLT M5X14 WITH WR |
| 183 | 195308-6 | RECOIL STARTER ASSEMBLY |
| 184 | 424319-7 | STARTER KNOB |
| 185 | 424359-5 | DAMPER |
| 187 | 266585-8 | TAPPING SCREW 5X12 |
| 188 | 325923-4 | SWING ARM |
| 189 | 451938-6 | REEL |
| 190 | 451937-8 | SPIRAL SPRING |
| 191 | 232258-5 | STARTING SPRING EBH252L |
| 192 | 444023-2 | STARTER ROPE |
| 193 | 451733-4 | STARTER CASE |
| 194 | 922223-9 | H.S.H.BOLT M5X16 WITH WR |
| EM2650LH - 4-stroke Petrol Brush Cutter 25.4cc.25,4CC 360 Pag.4 | ||
| Rif. | Codice | Description |
| 197 | 168762-7 | CARBURETTOR EX2650LH CS246.4C |
| 198 | 325922-6 | CARBURETTOR SWIVEL EBH341U |
| 199 | 413140-9 | WASHER EBH341U |
| 200 | 266581-6 | PAN HEAD SCREW M3X8 WITH W |
| 201 | 257964-1 | STOP RING E-3 |
| 202 | 213538-8 | O RING 2 |
| 203 | 325985-2 | JET |
| 204 | 234183-6 | CONICAL COMPRESSION SPRING 5-9 |
| 205 | 442155-9 | PUMP GASKET |
| 206 | 168575-6 | PUMP DIAPHRAGM |
| 207 | 141737-1 | PUMP BODY EX2650LH CS246.4C |
| 208 | 352021-1 | INLET SCREEN |
| 209 | 442154-1 | METERING DIAPHRAGM GASKET |
| 210 | 168620-7 | METERING DIAPHRAGM |
| 211 | 140438-8 | AIR PURGE BODY |
| 212 | 424314-7 | PRIMER PUMP |
| 213 | 346270-0 | PRIMER PUMP COVER |
| 214 | 266582-4 | TAPPING SCREW 3X24 |
| 215 | 810455-9 | CAUTION PLATE |
| 216 | 891985-9 | INDICATION LABEL |
| 216-1 | 800F73-7 | INDICATION LABEL |
| 217 | 941152-7 | FLAT WASHER 6 |
| 218 | 443170-6 | FELT |
| 219 | 352020-3 | SEPARATOR MESH |
| 220 | 453865-3 | SEPARATOR CASE |
| 221 | 453862-9 | OIL CASE PLATE |
| 222 | 808723-2 | CAUTION LABEL |
| 223 | 801D19-4 | SERIAL NO. LABEL |
| 224 | 135599-7 | SHORT BLOCK ASS'Y 25.4CC |
| 224-1 | 135668-4 | SHORT BLOCK ASS'Y 25.4CC |
| A01 | 125516-5 | BAND ASSEMBLY |
| A02 | 242072-1 | OIL BOTTLE |
| A03 | 783013-3 | BOX DRIVER 16-17 |
| A04 | 783217-7 | HEX. WRENCH 5 |
| A04-1 | 783232-1 | HEX. WRENCH 5 |
| A04-2 | 783217-7 | HEX. WRENCH 5 |
| A05 | 783223-2 | HEX. WRENCH 4 |
| A05-1 | 783202-0 | HEX. WRENCH 4 |
| A06 | 831304-7 | ACCESSORY BAG |
| A07 | B-05125 | ULTRA AUTO 4 M BRAND MHI |
| A10 | 195500-4 | OIL SET |
| A10-1 | 197007-6 | OIL SET |
| A10-2 | 191A18-9 | OIL SET |
| A10-3 | 197007-6 | OIL SET |
| E01 | 266427-6 | TAPPING SCREW 4X12 |
| E02 | 452219-1 | CHOKE PLATE |
| E03 | 452220-6 | CHOKE LEVER |
| E05 | 801P53-6 | GAS EMISSION APPROVAL LABEL |
| E05-1 | 809L93-4 | GAS EMISSION APPROVAL LABEL |
| F21 | 198502-9 | NYLON CORD 2.4-30M SET |
| F22 | 198503-7 | NYLON CORD 2.4-120M SET |
| F23 | 198504-5 | NYLON CORD 2.4-180M SET |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
