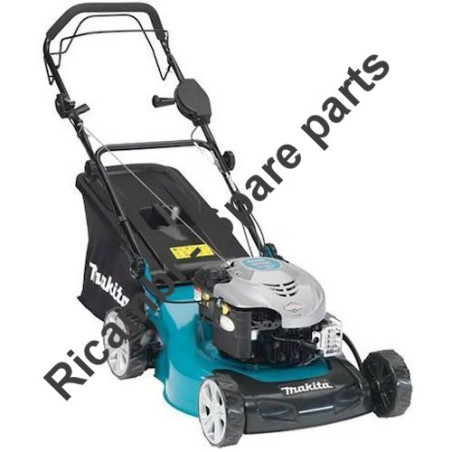

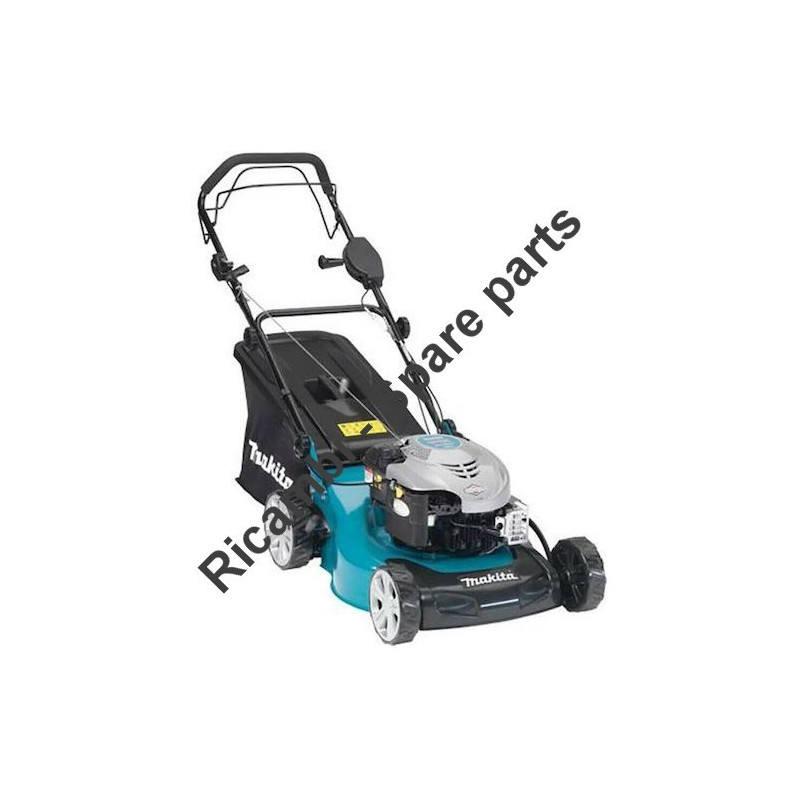

Makita Spare Parts for Lawn Mower PLM4622
€14.62
Tax included
Makita Spare Parts for Lawn Mower PLM4622
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4622.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Lawn Mower PLM4622
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4622.
In the following table, look for the model of Lawn Mower and the respective parts of the code.
| Makita PLM4622 46cm 190cc 4-Stroke Petrol Lawn Mower | ||
| # | Part Num. | Description |
| 1 | 671006065 | BLADE TIGHTEN SCREW |
| 2 | 671010730 | LID SHAPE WASHER |
| 3 | 671001451 | BLADE |
| 4 | 671015252 | BLADE SUPPORT |
| 5 | 671007046 | FLAT WASHER |
| 6 | 671090002 | FLAT KEY |
| 7 | 671003005 | HEXAGON HEAD BOLT |
| 8 | 671401201 | PULLEY |
| 9 | 671020282 | V-BELT |
| 10 | 671006066 | SCREW |
| 11 | 671001037 | SELF-TAPPING SCREW |
| 12 | 671005008 | HEXAGONAL LOCKING NUT |
| 13 | 671658001 | BELT COVER |
| 14 | 671001539 | FIXED PLATE |
| 15 | 671005024 | HEXAGONAL LOCKING NUT |
| 16 | 671003044 | SPECIAL SCREW |
| 17 | 671006025 | HEXAGON BOLT |
| 18 | 671003024 | SPECIAL SCREW |
| 19 | 671008002 | SPRING RING |
| 20 | 671007007 | WASHER |
| 21 | 671001062 | SELF-TAPPING SCREW |
| 22 | 671001176 | WHEEL COVER |
| 23 | 671005028 | HEXAGONAL LOCKING NUT |
| 24 | 671004012 | BALL BEARING |
| 25 | 671020150 | WHEEL ASSY. |
| 26 | 671418001 | FIXED BRACKET |
| 27 | 671002028 | TRIGGER BOLT |
| 28 | 671659001 | FRONT COVER |
| 29 | 671445001 | PRESSING PLATE OF BRACKET |
| 30 | 671005005 | LOCKING NUT |
| 31 | 671001786 | FRONT WHEEL AXLE |
| 32 | 671011125 | EXTENSION SPRING OF FRONT WHEEL AXLE |
| 33 | 671001177 | WHEEL COVER |
| 34 | 671020170 | WHEEL ASSY. |
| 35 | 671464001 | TEETH RING |
| 36 | 671001005 | SELF-TAPPING SCREW |
| 37 | 671465001 | INNER WHEEL COVER |
| 38 | 671144002 | CONNECTING ROD |
| 39 | 671001529 | DECK BLUE |
| 40 | 671001018 | HEIGHT ADJUSTMENT PLATE |
| 41 | 671002019 | TRIGGER BOLT |
| 42 | 671090020 | SAFETY WASHER |
| 43 | 671003001 | GEAR WHEEL, LEFT |
| 44 | 671004023 | BEARING |
| 45 | 671002035 | BEARING HOUSING |
| 46 | 671090001 | CYLINDRICAL PIN |
| 47 | 671001244 | RING OF AXLE FIXING |
| 48 | 671502017 | GEAR BOX |
| 49 | 671003002 | RIGHT GEAR |
| 50 | 671001521 | FIXING PLATE |
| 51 | 671001717 | FIXED PLATE OF GEAR BOX |
| 52 | 671008003 | SPRING WASHER |
| 53 | 671001057 | DRIVEN AXLE |
| 54 | 671010550 | PULLEY, LOWER |
| 55 | 671010540 | PULLEY, UPPER |
| 56 | 671011122 | SPRING |
| 57 | 671001457 | CLAMP WASHER |
| 58 | 671009020 | RING |
| 59 | 671008004 | SPRING WASHER |
| 60 | 671006123 | BOLT |
| 61 | 671009003 | SAFETY WASHER |
| 62 | 671144602 | REAR AXLE ASSY. |
| 63 | 671002029 | TRIGGER BOLT |
| 64 | 671001430 | LEVER, HEIGHT ADJUSTMENT |
| 65 | 671005011 | HEXAGONAL LOCKING NUT |
| 66 | 671102602 | LEVER, HEIGHT ADJUSTMENT CPL. |
| 67 | 671006064 | HEXAGON HEAD BOLT |
| 68 | 671001180 | BRACKET HANDLE, RIGHT |
| 69 | 671009017 | OPEN BLOCK RING |
| 70 | 671001518 | LONG POLE |
| 71 | 671011101 | SPRING OF REAR COVER BOARD |
| 72 | 671001179 | BRACKET HANDLE, LEFT |
| 73 | ENGINE | |
| 74 | 671010830 | PULLING CORD COMPRESSION |
| 75 | 671003012 | SCREW |
| 76 | 671001116 | CONTROL CABLE, GEARBOX |
| 77 | 671010630 | SELF-TAPPING SCREW |
| 78 | 671001513 | SLEEVE |
| 79 | 671470001 | CASE, LEFT |
| 80 | 671001514 | CONNECTING BOARD CPL. |
| 81 | 671006063 | HEXAGON BOLT |
| 82 | 671317001 | PRESSING PLATE SPRING |
| 83 | 671011005 | SPRING |
| 84 | 671316004 | LOCKING BUTTON |
| 85 | 671660001 | MULCHING BLOCK |
| 86 | 671001511 | FIXED PLATE |
| 87 | 671470002 | CASE RIGHT |
| 88 | 671011123 | SPRING OF SPEED ADJUSTMENT WHEEL |
| 89 | 671001458 | LEVER |
| 90 | 671001047 | SELF-TAPPING SCREW |
| 91 | 671471001 | GRIP PLATE, LEFT |
| 92 | 671001731 | LEVER, DRIVING |
| 93 | 671001448 | LEVER, MOTOR BRAKE |
| 94 | 671001524 | PRESSING PLATE |
| 95 | 671002002 | HANDLE, UPPER PART |
| 96 | 671471002 | GRIP PLATE, RIGHT |
| 97 | 671001113 | CONTROL CABLE (MOTOR BRAKE) |
| 98 | 671001115 | CONTROL CABLE (WHEEL DRIVE) |
| 99 | 671336001 | FIXED BRACKET |
| 100 | 671005016 | HEX. LOCK NUT |
| 101 | 671007008 | WASHER |
| 102 | 671001137 | HANDLE / CABLE, THROTTLE |
| 103 | 671006059 | BOLT |
| 104 | 671177001 | CABLE CLIP |
| 105 | 671001647 | CABLE HOOK |
| 106 | 671005007 | NUT |
| 107 | 671453001 | STAR KNOB |
| 108 | 671001085 | WASHER |
| 109 | 671006004 | FLAT HEAD BOLT |
| 110 | 671178001 | CORD PROTECTING SHEATH |
| 111 | 671001453 | HANDLE, LOWER PART |
| 112 | 671006118 | FLAT HEAD BOLT |
| 113 | 671454001 | HANDLE OF GRASS CATCHER |
| 114 | 671467001 | GRASS-BOX, UPPER |
| 115 | 671468001 | REAR COVER BOARD |
| 116 | 671001443 | GRASS CATCHER BRACKET |
| 117 | 671001436 | TIGHTEN PRESSING PLATE |
| 118 | 671001203 | PRESSING PLATE OF FRONT WHEEL AXLE |
| 119 | 671001055 | SELF-TAPPING SCREW |
| 120 | 671001054 | SELF-TAPPING SCREW |
| 121 | 671001353 | PRESSING BAR |
| 122 | 671001418 | GRASS CATCHER |
| 123 | 671011021 | SPRING |
| 124 | 671003042 | FIXED BOLT |
| 125 | 671001455 | FIXED BOARD OF SPEED ADJUSTMENT WHEEL |
| 126 | 671001056 | PULLEY |
| 127 | 671004015 | BALL BEARING |
| 128 | 671009021 | RING |
| 129 | 671001533 | PRESSING PLATE OF FIXED BOARD |
| 130 | 671001456 | LEVER |
| 131 | 671001078 | BOX SPANNER |
| 132 | 671001079 | SPANNER POLE |
| 133 | 671011156 | SPRING |
| 134 | 671002038 | SHAFT SHEATH |
| 135 | 671011136 | SPRING |
| 136 | 671006011 | BOLT |
| 137 | 671002075 | WASHER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
