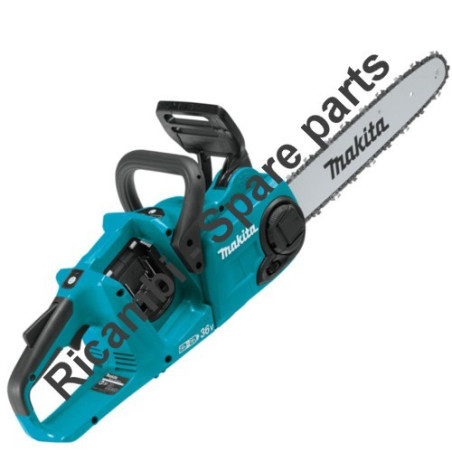

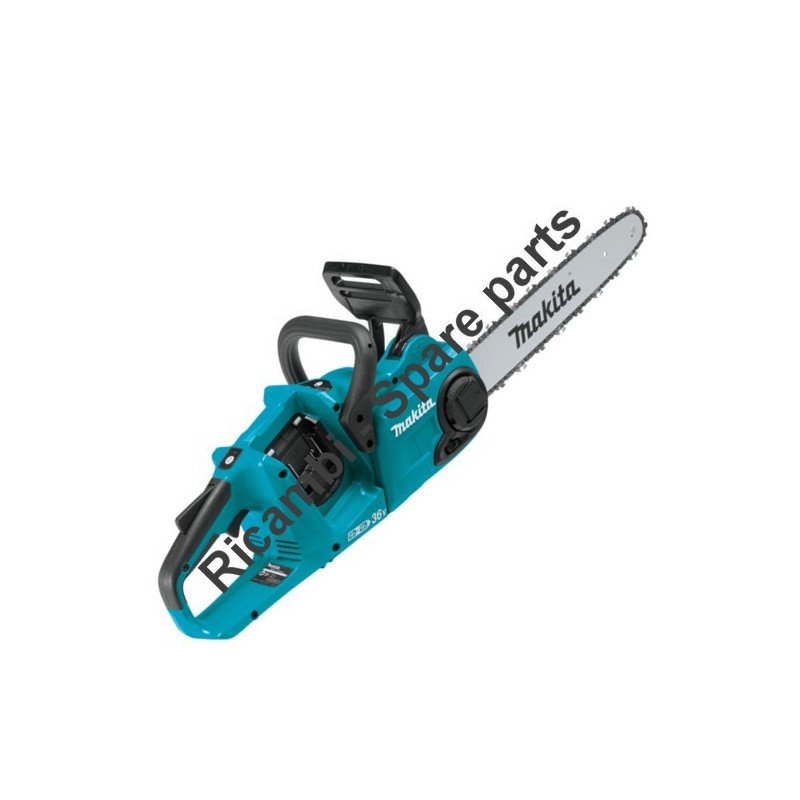

Makita Spare Parts for Cordless Chain Saw DUC353Z
€178.37
Tax included
Makita Spare Parts for Cordless Chain Saw DUC353Z
We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC353Z.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Cordless Chain Saw DUC353Z
We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC353Z.
In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
| Makita DUC353Z Cordless Chain Saw Spare Parts | ||
| # | Part Num. | Description |
| 2 | 183F61-2 | HOUSING SET DUC353 |
| 3 | 266326-2 | SCREW 4X18 X MT601 |
| 4 | 457007-1 | FRONT HANDLE |
| 5 | 266326-2 | SCREW 4X18 X MT601 |
| 6 | 457013-6 | CATCH LEVER DUC353 |
| 7 | 457006-3 | SWITCH LEVER DUC353 |
| 8 | 232318-3 | TORSION SPRING 10 DUC353 |
| 9 | 650781-2 | SWITCH C3JW-6B-P DUC353 |
| 10 | 457010-2 | HOUSING L COVER DUC353 |
| 11 | 266326-2 | SCREW 4X18 X MT601 |
| 12 | 183F15-9 | TERMINAL BOX SET DUC353 |
| 13 | 266326-2 | SCREW 4X18 X MT601 |
| 15 | 266326-2 | SCREW 4X18 X MT601 |
| 16 | 643874-2 | TERMINAL |
| 17 | 519411-3 | ROTOR ASSY DUC353 |
| 18 | 210137-7 | BALL BEARING 606ZZ |
| 19 | 592H45-5 | STATOR ASSY DUC353 |
| 20 | 210059-1 | BALL BEARING 6000 HR2010 |
| 21 | 962105-3 | RETAINING RING R26 |
| 22 | 266326-2 | SCREW 4X18 X MT601 |
| 23 | 257402-3 | SLEEVE 10 DUC353 |
| 24 | 144254-0 | CONTROLLER DUC353 |
| 25 | 168508-1 | TANK CAP ASS'Y A3600F |
| 26 | 458418-3 | FRONT HAND GUARD DUC353 |
| 29 | 266326-2 | SCREW 4X18 X MT601 |
| 30 | 911233-1 | HEAD SCREW M5X20 3600H |
| 31 | 142156-4 | OIL PUMP |
| 32 | 424904-6 | CONNECTOR B DUC353 |
| 33 | 452666-6 | NIPPLE PS32CTLC |
| 34 | 234207-8 | COMPRESSION SPRING 6 PS32CTLC |
| 35 | 266326-2 | TAPPING SCREW 4X18 X MT601 |
| 36 | 424903-8 | CONNECTOR A DUC353 |
| 37 | 632H47-0 | SWITCH UNIT |
| 38 | 231298-0 | COMPRESSION SPRING 6 HM 1500 |
| 39 | 163448-8 | LINKPLATE COMP DCS230T |
| 40 | 232319-1 | COMPRESSION SPRING 9 |
| 41 | 345454-7 | RAKE BAND DCS230T |
| 42 | 267195-4 | FLAT WASHER 4 UC3530A/DCS230T |
| 43 | 266326-2 | TAPPING SCREW M4X18 BHR2 X MT601 |
| 44 | 221427-3 | WORM GEAR |
| 45 | 161526-8 | BRAKE DRUM COMPLETE |
| 46 | 221464-7 | SPROCKET 6 3/8 " |
| 47 | 961013-5 | EXT E-RING JIS JE-7 X JN3200 |
| 48 | 457004-7 | HOUSING R COVER |
| 49 | 266326-2 | TAPPING SCREW M4X18 BHR2 X MT601 |
| 50 | 347078-5 | SPIKE BUMPER |
| 51 | 266326-2 | TAPPING SCREW M4X18 BHR2 X MT601 |
| 52 | 347079-3 | CHAIN CATCHER |
| 53 | 266326-2 | TAPPING SCREW M4X18 BHR2 X MT601 |
| 54 | 346694-0 | GUIDE PLATE ES A3600F |
| 55 | 266166-8 | TRILOBULAR SCREW M3XM8 X 6908DW |
| 56 | 346699-0 | GUIDE PLATE CS EA3600F |
| 57 | 227496-2 | SPIRAL BEVEL GEAR 14 UC4020A FOR UC3020A |
| 58 | 326310-0 | ADJUST PIN |
| 59 | 326312-6 | ADJUST SCREW |
| 60 | 266427-6 | TAPPING SCREW 4X12 ER2650LH MT923 |
| 61 | 142235-8 | SPROCKET COVER NUT COMPLETE |
| 62 | 454519-5 | NUT COVER |
| 63 | 457000-5 | SPROCKET COVER |
| 64 | 142288-7 | WHEEL COMPLETE |
| 65 | 213060-5 | O-RING 10 |
| A01 | 182229-1 | OIL SUPPLY 100CC |
| A02 | 165246-6 | SPROCKET BAR 14" 35CM 3/8" .43G 1,1MM |
| A03 | 419288-5 | CHAIN COVER FOR 12-14" |
| A04 | 511291752 | 3/8" CHAIN 14" EXTRAGUARD 52 Link |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
