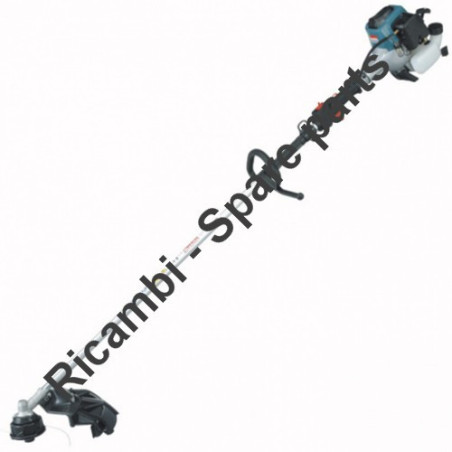

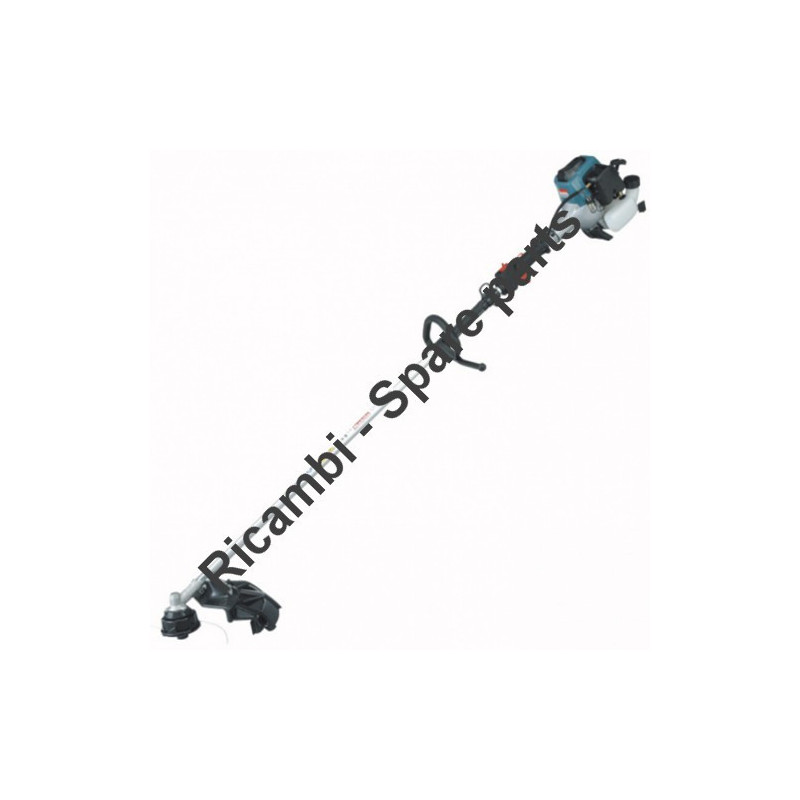

Makita Spare Parts for Bruschcutter 30,5CC RBC321
€88.87
Tax included
Makita Spare Parts for Bruschcutter 30,5CC RBC321
Makita Genuine spare parts or replacement parts for to repair Bruschcutter RBC321.Fix Your Brusch Cutter Makita RBC321. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Bruschcutter 30,5CC RBC321
Fix Your Brusch Cutter Makita RBC321. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Brusch Cutter and the respective parts of the code.
| RBC321 - BRUSHCUTTER 30,5CC MAKITA Pag.1 | ||
| # | Part Num. | Description |
| 1 | 127021-8 | GEAR CASE ASSEMBLY |
| 2 | 210049-4 | BALL BEARING 609ZZ EBH252L |
| 3 | 266671-5 | OIL BOLT |
| 4 | 412099-7 | GUARD X BRUSHCUTTER |
| 5 | 264018-7 | NUT M8 RBC2510 |
| 6 | 6273013000 | CUTTER SHAFT GEAR SET MS2810 |
| 7 | 6253502600 | OUTER SNAP RING X RBC310 / RBK410 |
| 8 | 6258500001 | CLAMP WASHER X RBC 310 / RBK410 |
| 9 | 327195-7 | RECEIVE WASHER |
| 10 | 6253501300 | SPACER |
| 18 | 6254023000 | HANGER ASSEMBLY X RBC321 |
| 19 | 6271007000 | SHAFT PIPE COMPLETE CPL X RBC321 |
| 20 | 6218008003 | PROTECTOR ASSEMBLY FOR BRUSHCUTTER |
| 21 | 6271500802 | SHAFT X RBC321 |
| 22 | 0011306120 | BOLT M6X12 X RBC310 / 520 |
| 24 | 0031424000 | H.S.H.BOLT M5X25 WITH W DUR X RBC260-230-225- |
| 25 | 0031430000 | INNER SNAP RING X RBC310 / RBK410 |
| 26 | 922213-2 | SCREW M5X12 EBH341U |
| 27 | 0600109970 | BALL BEARING 6200DDU RBC321 |
| 28 | 0600079990 | BALL BEARING 627 X RBC415 |
| 29 | 0043605200 | WASHER AND SCREW X RBC321 |
| 30 | 6155500100 | CONTROL CABLE X RBC230 |
| 104 | 0150059940 | SCREW X RBK250-RBC225-RBC255 |
| 106 | 6274004010 | HANDLE RBC201 |
| 107 | 6274004020 | LOWER HANDLE RBC201 |
| 108 | 174545200N | STRAP UNIT RBC201/420/MS20C* RBC281 |
| 109 | 6274004040 | SCREW M6 X 20 RBC201 |
| 110 | 6271501501 | SPACER RBC201 |
| 111 | 6275001001 | CONTROL LEVER CPL X MS2810 |
| RBC321 - BRUSHCUTTER 30,5CC MAKITA Pag.2 | ||
| 32 | 6202006000 | BOLT X RBC310 |
| 33 | 266457-7 | SCREW M6X25 EBH252L |
| 34 | 452920-8 | TANK CAP |
| 35 | 6271004001 | CLUTCH HOUSING CPL RBC321 |
| 36 | 6272002002 | CLUTCH DRUM CPL RBC321 |
| 37 | 6272003000 | CLUTCH X RBC321 |
| 38 | 5315503900 | CYLINDER COVER X RBC321 |
| 39 | 5317500700 | SPARK PLUG COVER X RBC321 |
| 40 | 5313503800 | MUFFLER COVER X MS2810 |
| 41 | 5311007000 | Crankcase Complete /Ms2800/Ms2810/Ms3200 X RBC321 |
| 42 | 5311501200 | Crank Case GASKET Ms3200 - RBC321 |
| 43 | 5312007001 | CRANKSHAFT X MS2810 |
| 44 | 319255-9 | CYLINDER |
| 45 | 5216500200 | DAMPER X RBC230-225-255 |
| 46 | 5315504100 | DAMPER X RBC321 |
| 47 | 5316503100 | DAMPER X RBC321 |
| 48 | 5317010030 | PLUG CAP RBC321 |
| 49 | 5317010020 | IGNITION COIL X RBC321 |
| 50 | 5317010010 | FLYWHEEL X RBC321 |
| 51 | 442177-9 | GASKET |
| 52 | 5311500301 | CYLINDER GASKET X MS2810 |
| 53 | 5313502300 | INSULATING GASKET X RBC321 |
| 54 | 5313502200 | MUFFLER GASKET X RBC321 |
| 55 | 5313500500 | INSULATOR X RBC 310 |
| 56 | 5313009001 | MUFFLER X RBC321 |
| 57 | 5312500400 | PISTON PIN X RBC 310 |
| 58 | 319248-6 | PISTON |
| 59 | 424102-2 | SHOCK ABSORBER EBH341U |
| 60 | 424103-0 | SHOCK ABSORBER EBH341U |
| 61 | 5982500200 | PISTON RING X RBC 230/310 |
| 62 | 5315012000 | RECOIL STARTER CPL X RBC321 |
| 63 | 5245007000 | STARTER CUP |
| 64 | 5315007010 | REEL X RBC321 |
| 65 | 5315007020 | SCREW X RBC351 |
| 66 | 5415003020 | STARTER SPRING X RBC260 |
| 67 | 5215002110 | STARTER HANDLE X RBC 230-225-255 |
| 68 | 5235024022 | STARTER ROPE X RBK250-RBC225-2 |
| 69 | 163447-0 | FUEL FILTER X DCS230T |
| 70 | 5316502001 | TANK MS3210 |
| 71 | 6272500000 | WASHER X RBC321 |
| 72 | 0011605200 | BOLT X RBC321 |
| 73 | 0016606160 | BOLT M6X16 X RBC321 |
| 74 | 0021705000 | NUT M5 X RBC415 |
| 75 | 0031512000 | OUTER SNAP RINGX RBC260 / 520RBK410 |
| 76 | 0062610060 | RING X RBC321 |
| 77 | 0031432000 | INNER SNAP RINGX RBC260 / 310/410 |
| 78 | 0600129950 | BALL BEARING X RBC260 |
| 79 | 0032006000 | WASHER X RBC / RBK410-G2400R |
| 80 | 922253-0 | SCREW M5X30 |
| 81 | 0119059630 | BOLT M5X20 X PB500R |
| 83 | 0119059670 | SCREW M5X55 X RBC415 |
| 84 | 0119059730 | BOLT X RBC 260/230/225/255 |
| 85 | 0119059950 | BOLT M5X18 XRBC230 / 310/225 / |
| 86 | 911218-7 | PAN HEAD SCREW M5x14 |
| 87 | 0200069920 | WASHER M6 X RBC310 / 410 / RBK410 |
| 88 | 267817-6 | WASHER 8 EBH252L |
| 89 | 0323039990 | WOODRUFF KEY X RBC350-RBC420 |
| 90 | 233976-8-4 | CIRCLIP EBH252L (4pcs) |
| 91 | 0610089990 | NEEDLE BEARING X RBC260 / 230/310 / |
| 92 | 0650149721-10 | SPARK PLUG X RBK250 |
| 93 | 0654009931 | PIN X RBC415-225-255 |
| 94 | 6165500200 | EARTH WIRE X HT2276E |
| 95 | 0851179972 | FUEL TUBE MS2810 |
| 96 | 6271500301 | PIPE BRACKET 1 RBC321 |
| 97 | 6271500401 | PIPE BRACKET 2 RBC321 |
| 98 | 6271500105 | PIPE DAMPER X MS2810 |
| 99 | 6271500205 | PIPE DAMPER X MS2810 |
| 100 | 0119059950 | BOLT M5X18 XRBC230 / 310/225 / |
| 101 | 0119059900 | BOLT M5X12 X RBC225-255 |
| 102 | 140436-2 | STRAP COMPLETE EBH341U |
| 103 | 6272003020 | CLUTCH SPRING |
| RBC321 - BRUSHCUTTER 30,5CC MAKITA Pag.3 | ||
| 102 | 5316021000 | CARBURETOR X RBC321 |
| 103 | 5236046130 | PUMP BODY CPL X RBC350-RBC42 |
| 104 | 5236046060 | COMPLETE AIR FILTER BODY RBC350 |
| 105 | 5236052020 | CABLE SUPPORT RBC350-RBC420 |
| 106 | 5236046050 | PUMP COVER X RBC350-RBC42 |
| 107 | 168574-8 | DIAPHRAGM CPL EBH341U |
| 108 | WJ00009599 | PUMP DIAPHRAGM X DCS230T |
| 109 | 442154-1 | EBH341U DIAPHRAG GASKET |
| 110 | 5246001030 | PUMP GASKET RBC260-230-310- |
| 111 | 5036002010 | JET X RBC230 / 310/225/255 |
| 112 | 5316005450 | ADJUSTABLE NUT RBC260 / 310 |
| 113 | 5246001010 | GASKET X RBC 260/230/310 / |
| 114 | 424314-7 | PRIMING PUMP EBH341 |
| 115 | 5236018020 | GASKET X RBC 260/230 / 310 |
| 116 | 5316005120 | RING X RBC 260/230/310/225/2 |
| 117 | 5016004010 | FITTING X RBC 260/230/310/225 |
| 118 | 266582-4 | SCREW 3X24 EBH341U |
| 120 | 5316020020 | SCREW X CABLE RBC321 |
| 121 | 5236018040 | ACC. CABLE XRBC230-260-310-225- |
| 122 | 5236052030 | WASHER X RBC321 |
| 123 | 5313503200 | AIR FILTER COVER RBC321 |
| 124 | 443167-5 | AIR FILTER RBC2510 |
| 125 | 5013502400 | AIR FILTER PLATE CPL RBC321 |
| 126 | 5313015000 | AIR FILTER SUPPORT RBC321 |
| 127 | 0140059730 | SCREW M5X50 X RBC260 / 310 |
| 128 | 0031104000 | WASHER X RBC225-255 |
| 129 | 0150049980 | SCREW M4X8 X RBC225-255 |
| 130 | 911218-7 | CYLINDER HEAD SCREW M5x14 |
| 201 | 6417015003 | BRACES CPL X RBC420E |
| 202 | B-02945 | TAP & GO NYLON HEAD M8-M10X1.25F |
| 203 | 6119019000 | SERV.ICE KEYS KIT X RBC225-255 |
| 204 | 0717049990 | WRENCH X NUTS RBC350-RBC420 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
