Kawasaki Spare Parts for 2 Stroke Engine TH034D

€148.39
Tax included

Kawasaki Spare Parts for 2 Stroke Engine TH034D

We have the original Kawasaki Spare Parts for 2 Stroke Engine TH034D, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your 2 Stroke Engine TH034D KAWASAKI - AA50 - BA50. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Full Guarantee.
ITEM CODE: 11005-2140
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Kawasaki Spare Parts for 2 Stroke Engine TH034D

Fix Your 2 Stroke Engine TH034D KAWASAKI - AA50 - BA50. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Bruschcutter and the respective parts of the code.

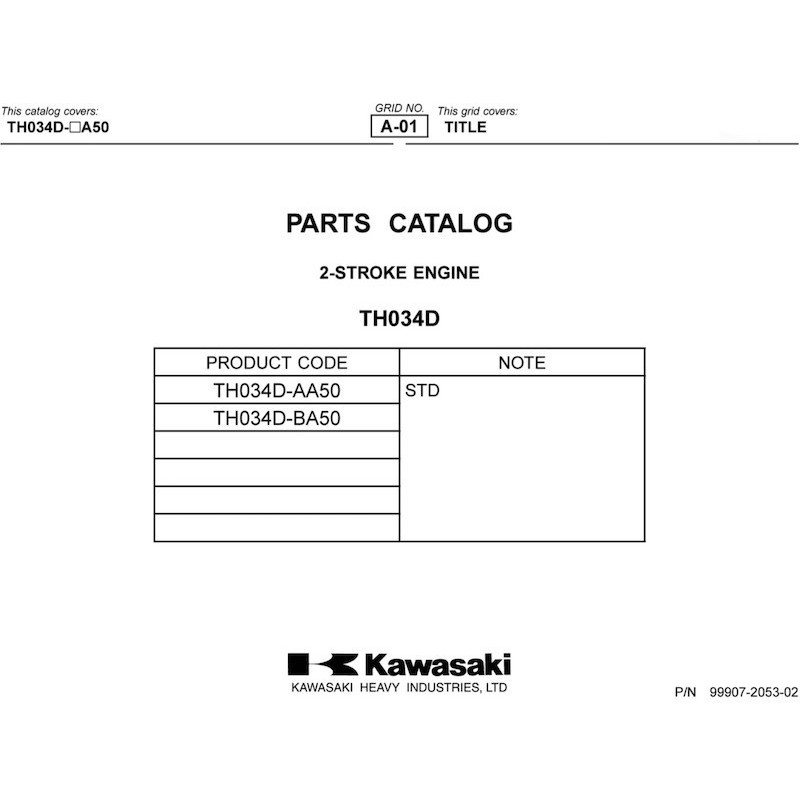

AMA TH034D KAWASAKI AA50 BA50

2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.1
# Part Num. Description
11005 11005-2140 CYLINDER-ENGINE
11060 11060-2435 GASKET,CYLINDER
14002 14002-2331 CRANKCASE
14002A 14002-2332 CRANKCASE TH034-043608
14002B 14002-2335 CRANKCASE TH034-043609
14002C 14002-2347 CRANKCASE
14002D 14002-2347 CRANKCASE
34001 34001-2086 STAND
92002 92002-2163 BOLT
92009 92009-2115 SCREW
92043 92043-1302 PIN
92045 92045-2058 BEARING-BALL,6201C3
92049 92049-2108 SEAL-OIL
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.2
13001 13001-2147 PISTON-ENGINE
13002 13002-2059 PIN-PISTON
13008 13008-6045 RING-SET-PISTON
13033 13033-2052 BEARING-SMALL END
49119 49119-2190 CRANKSHAFT-ASSY
92025 92025-2104 SHIM,T=0.20
92025A 92025-2105 SHIM,T=0.40
92025B 92025-2106 SHIM,T=0.60
92033 92033-2061 RING-SNAP
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.3
16073 16073-2197 INSULATOR
49089 49089-2479 SHROUD-ENGINE
49089A 49089-2535 SHROUD-ENGINE
49089B 49089-2598 SHROUD-ENGINE
49089C 49089-2598 SHROUD-ENGINE
55020 55020-2125 GUARD
59066 59066-2724-9B HOUSING-FAN
59066A 59066-2724-9B HOUSING-FAN
59066B 59066-2793-9B HOUSING-FAN
92009 92009-2394 SCREW,5X16
92071 92071-2157 GROMMET
92200 92200-2063 WASHER,5.5X13.8X2.0
92200A 92200-2156 WASHER
92200B 92200-2156 WASHER
233 233B0516 SCREW-PAN-WP+-
551 551A0410 PIN-DOWEL
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.4
16073 16073-2198 INSULATOR
21050 21050-2282 FLYWHEEL
21050A 21050-2301 FLYWHEEL
21050B 21050-2301 FLYWHEEL
21130 21130-2056 CAP-SPARK PLUG
21169 21169-2051 TERMINAL
21171 21171-2234 COIL-ASSY-IGNITION
26011 26011-2113 WIRE-LEAD
26011A 26011-2361 WIRE-LEAD,L=230
26011B 26011-2376 WIRE-LEAD,L=230
26011C 26011-2376 WIRE-LEAD,L=230
92002 92002-2197 BOLT,4X20
92070 92070-2108 PLUG-SPARK,BPMR6A(NGK),SOLID
92170 92170-2041 CLAMP
315 315B0800 NUT-HEX-FINE
410 410B0800 W-PLAIN-S
461 461F0800 WASHER-SPRING
510 510A3100 KEY-WOODRUFF
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.5
11009 11009-2757 GASKET
11049 11049-2006 BRACKET
11060 11060-2111 GASKET
11060A 11060-2404 GASKET,CARBURETOR
11060B 11060-2437 GASKET,INSULATOR
13168 16055-2051 LEVER
14043 14043-2051 FILTER
14090 14090-2017 COVER, PRIMER PUMP
15003 15003-2688 CARBURETOR-ASSY
15003A 15003-2936 CARBURETOR-ASSY
16030 16030-2078 VALVE-FLOAT
16073 16073-2202 INSULATOR
16160 16160-2089 BODY
16160A 16160-2103 BODY
16185 16185-2024 VALVE-ASSY-THROTTLE
21083 21083-2073 ARM
43028 43028-2054 DIAPHRAGM
43028A 43028-2067 DIAPHRAGM
43049 43049-2060 PACKING
49043 49043-2067 PUMP-PRIMING
92009 92009-2249 SCREW,5X20
92009A 92009-2277 SCREW
92009B 92009-2336 SCREW
92009C 92009-2337 SCREW
92009D 92009-2354 SCREW
92009E 92009-2420 SCREW,5X52
92015 92015-2145 NUT
92033 92033-2078 RING-SNAP
92043 92043-2094 PIN
92055 92055-2147 RING-O
92063 92063-2356 JET-MAIN,#37.5
92144 92144-2308 SPRING
92200 92200-2074 WASHER
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.6
11010 11010-2526 FILTER-ASSY-AIR
11013 11013-2184 ELEMENT-AIR FILTER
11038 11038-2069 CASE-ASSY-AIR FILTER
11060 11060-2436 GASKET,MUFFLER
11065 11065-2072 CAPAIR FILTER
14091 14091-2053 COVER,MUFFLER
18020 18020-2082 BAFFLE
49070 49070-2693 MUFFLER-COMP
92009 92009-1002 SCREW,5X10
92009A 92009-2393 SCREW,5X12
92009B 92009-2410 SCREW,5X10
92151 92151-2108 BOLT,5X60
92172 92172-0007 SCREW,5X10
92172A 92172-0007 SCREW,5X10
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.7
49019 49019-2111 FILTER-FUEL
49116 49116-2064 VALVE-ASSY
51001 51001-2299 TANK-COMP-FUEL
51001A 51001-2314 TANK-COMP-FUEL
51001B 51001-2314 TANK-COMP-FUEL
51001C 51001-2321 TANK-COMP-FUEL
51048 51048-2078 CAP-ASSY-TANK
92009 92009-2383 SCREW,5X20
92071 92071-2142 GROMMET,FUEL TANK
92143 92143-2161 COLLAR, TANK
92143A 92143-2161 COLLAR, TANK
92170 92170-2080 CLAMP,FUEL FILTER
92190 92190-2174 TUBE,3X6X90
92191 92191-2102 TUBE,3X5X182
99996 99996-6060 KIT,CAP-ASSY-TANK
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.8
13165 13165-2084 PAWL,RECOIL STARTER
13169 13169-2386 PLATE, RECOIL STARTER
32099 32099-2358 CASE, RECOIL STARTER
46075 46075-2128 GRIP,RECOIL STARTER
49080 49080-2134 PULLEY-STARTING
49088 49088-2500 STARTER-RECOIL
59101 59101-2085 REEL,RECOIL STARTER
59106 59106-2151 ROPE
92009 92009-2358 SCREW
92009A 92009-2412 SCREW
92033 92033-2010 RING-SNAP
92144 92144-2054 SPRING
92144A 92144-2157 SPRING
92172 92172-2063 SCREW
92172A 92172-2063 SCREW
315 315B0800 NUT-HEX-FINE
410 410B0800 W-PLAIN-S
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.9
13081 13081-2220 CLUTCH-ASSY
49049 49049-2075 SHOE-CLUTCH
92022 92026-2125 WASHER
92043 92043-2210 PIN,CLUTCH
92144 92144-2390 SPRING
92200 92200-2064 WASHER,SPRING,10.5X14.5X0.3
2 STROKE ENGINE TH034D KAWASAKI - AA50 - BA50 pag.10
56039 56039-2890 LABEL-PRODUCT
56070 56070-2020 LABEL-VWARNING
56080 56080-2166 LABEL-BRAND
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AMA TH034D KAWASAKI AA50 BA50
