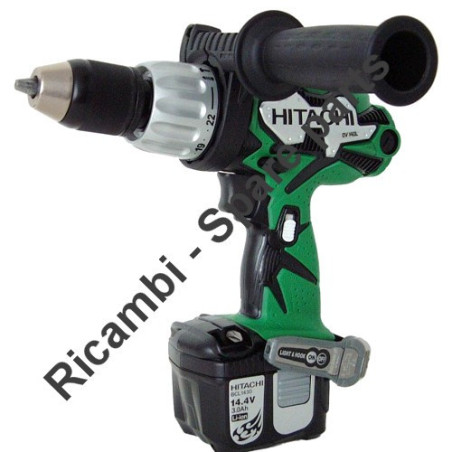

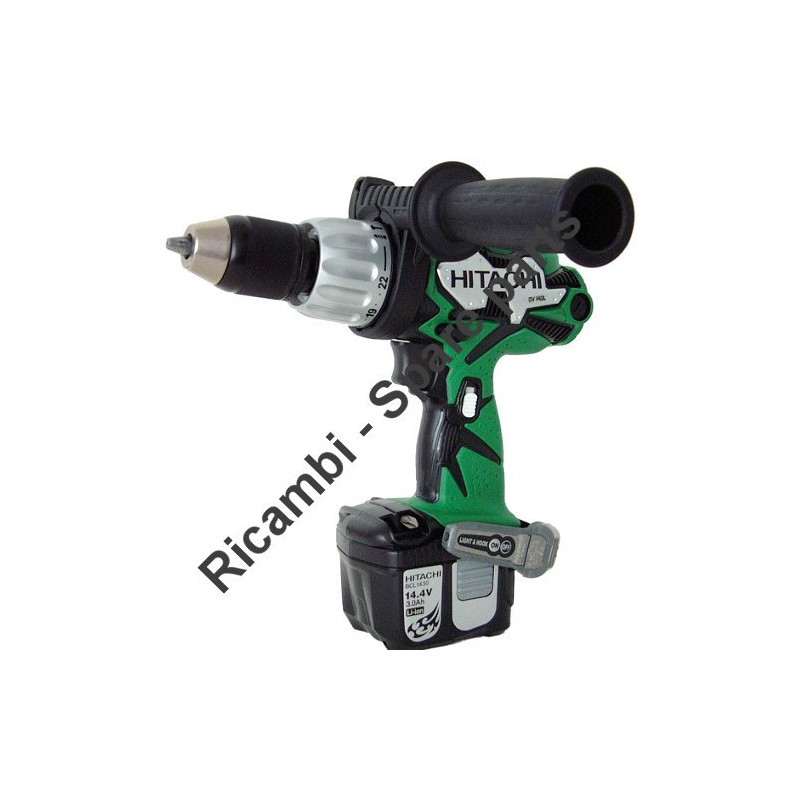

Hitachi Spare Parts for Cordless Impact Driver Drill DV14DL

€8.78
Tax included

Hitachi Spare Parts for Cordless Impact Driver Drill DV14DL

Hitachi-HIKOKI original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Cordless Impact Driver Drill DV14DL.
ITEM CODE: 306952
Quantity
on 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Hitachi Spare Parts for Cordless Impact Driver Drill DV14DL

Hitachi-HIKOKI original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Cordless Impact Driver Drill DV14DL.

In the following table, look for the model of the Cordless Impact Driver Drill and their spare part.
Hitachi DV14DL

Cordless Impact Driver Drill DV14DL
# Part Num. Description
3 324061 GEAR BOX ASS'Y
4 324074 FRONT CAP
5 324136 SWITCH PLATE
6 324064 NUT
7 324135 SPRING
8 324063 THRUST WASHER
9 322972 STOPPER
10 322971 STOPPER SPRING
11 324062 FRONT CASE
12A 323231 CLICK SPRING
13 322975 PIN SET (6 PCS.)
14 324065 WASHER (D)
15 322976 LOCK RING
16 324066 RING GEAR
17 322978 CARRIER
18 324067 PLANET GEAR (C) SET (5 PCS.)
19 322980 WASHER (A)
20 322981 REAR CASE
21 322990 SHIFT ARM
23 324069 SLIDE RING GEAR
24 324068 PINION (C)
25 324070 PLANET GEAR (B) SET (4 PCS.)
26 324071 PINION (B)
27 324073 PLANET GEAR (A) SET (4 PCS.)
28 324072 FIRST RING GEAR
29 322988 WASHER (B)
30 322989 MOTOR SPACER
31A 360997 ARMATURE AND PINION SET
32 322996 MAGNET
33A 338733 BRUSH BLOCK
34 999054 CARBON BRUSH 5X6X11.5 (1 PAIR)
35 319918 BRUSH CAP
38 326280 HOUSING (A).(B) SET
39 326279 PLATE (A)
40 326276 LEVER (A)
41 324137 SHIFT KNOB
42 326277 LEVER (B)
43 326493 SUPPORT (D)
44 333640 DC-SPEED CONTROL SWITCH
46 322997 PUSHING BUTTON
47 333640 DC-SPEED CONTROL SWITCH
49 996118 HOLDER SPRING
50 323003 TERMINAL
51 320997 TERMINAL PIECE
52 322995 TERMINAL
53 320287 HOOK ASS'Y
55 306952 STRAP (BLACK)
56 319926 HOOK SPRING
57 320881 SPECIAL SCREW (A) M5
59 321918 HOOK ASS'Y (W/LIGHT)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
