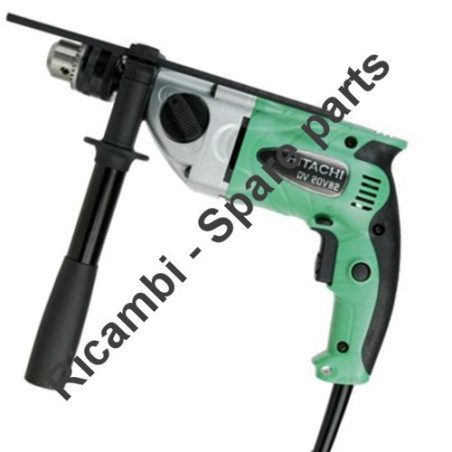

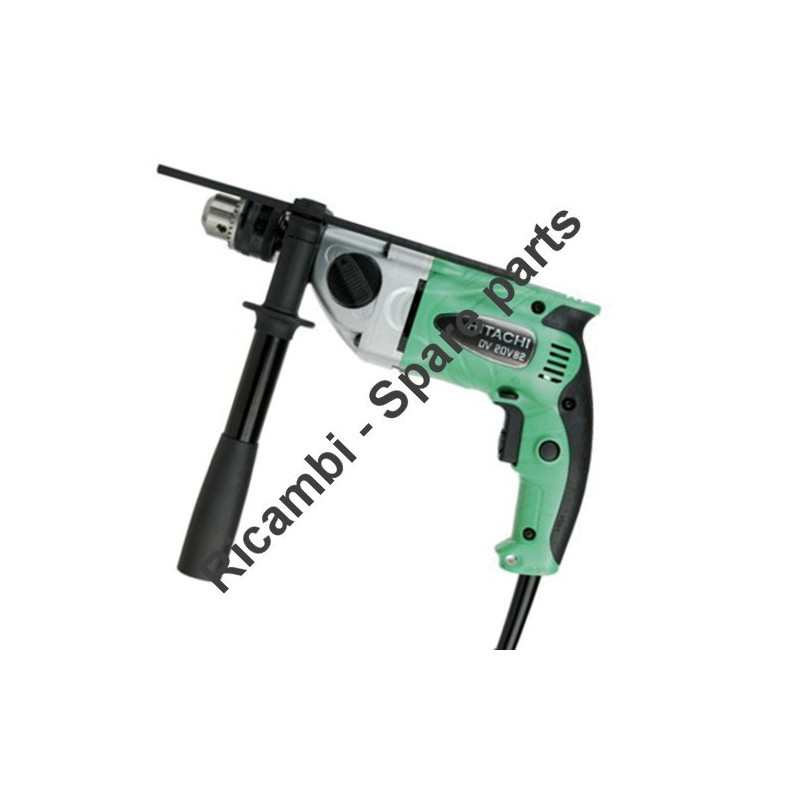

Hitachi Spare Parts for Impact Drill DV20VB2
€1.79
Tax included
Hitachi Spare Parts for Impact Drill DV20VB2
Distribution and Sale at attractive prices of Hitachi-HIKOKI Tanaka Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Impact Drill DV20VB2.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Impact Drill DV20VB2
Distribution and Sale at attractive prices of Hitachi-HIKOKI Tanaka Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Impact Drill DV20VB2.
In the following table look for the model of the impact drill and the respective parts of the code .
| Impact Drill DV 20VB2 | ||
| # | Part Num. | Description |
| 1 | 995344 | Flat Hd. Screw (A) M6x25 |
| 2 | 987576 | Chuck Wrench For 13vlb |
| 3 | HFAM231220 | Drill Chuck 1,5-13MM 1:2X20 |
| 4 | 322857 | Shaft Dv20vb2 |
| 4 | 322866 | Spindle (A) |
| 5 | 939556 | Ring Type C X D.35 Holes |
| 6 | 322851 | Oil Seal Dv20vb2 |
| 7 | 6202dd | Ball Bearing 6202dd |
| 8 | 322850 | Toothed ring Dv20vb2 |
| 9 | 984101 | spring |
| 10 | 959150 | Steel Ball D.6 |
| 11 | 322845 | Graft (B) |
| 12 | 316321 | Tapp. Screw (W / Flange) D5x45 |
| 12 | 322869 | Tapp.Screw (W / Flange) D5x50 |
| 13 | 322852 | washer Dm20v |
| 14 | 322858 | According Pinion Dv20vb2 |
| 14 | 322867 | according Pign.Compl.D13vbFor |
| 15 | 322841 | Clutch Lever Dv20vb2 |
| 16 | 322842 | Cover Lever Dv20vb2 |
| 17 | 322840 | bracket Exchange |
| 18 | 322859 | Cop. Inp. Internal (B) |
| 18 | 322868 | Inner Cover (A) |
| 19 | 322847 | Clutch Lever |
| 21 | 322848 | roll |
| 22 | 306353 | O-ring (S-22) |
| 23 | 981328 | Spring H Dh24dva |
| 24a | 335299 | Steel Ball D3.5 (10 Pcs.) |
| 25 | 322844 | Cop. Gears Compl. (A) |
| 26 | 323048 | Ring Seal (E-Type) |
| 27 | 322849 | hook |
| 28 | 322860 | Without Dv18v |
| 28 | 984104 | pin D.5 |
| 29 | 322846 | September Dv20vb2 Gear |
| 31 | 608ddm | Ball Bearing 608ddm |
| 32 | 939553 | Seeger Dm20v Retaining Ring |
| 33 | 360652e | 230v led Dv20vb2Armature |
| 33 | 360652f | Armature 240v |
| 33 | 360781f | Armature 240v |
| 34 | 322843 | Help Air Dv18v |
| 35 | 961672 | Hex. Hd. Tapping Screw D4x50 |
| 36 | 340587e | Stator Stator 230v Dv20vb2 |
| 36 | 340587f | Stator 240v |
| 37a | 698vvc | bearing 698vvc |
| 38a | 331663 | carcass |
| 40 | 301653 | Tapp. Screw (W / Flange) D4x20 |
| 42 | 322853 | Rev. Button |
| 43 | 322854 | switch |
| 43 | 327061 | Switch (1p Pillar Type) 730W |
| 46 | 999041 | Brushes (1 pair) |
| 47 | 955203 | brush holder |
| 49 | 994273 | filter Dampers |
| 52 | 321634 | Cable Blue Interior |
| 53 | 984750 | Tapp. Screw (W / Flange) D4x16 |
| 54 | 937631 | terminal Wire Tie |
| 55 | 953327 | Sleeve saver D8.8 |
| 56 | 500409z | Cord |
| 57 | 309929 | bushing |
| 501 | 323130 | houses |
| 502 | 323050 | Side Handle Dv20vb2 |
| 503 | 303709 | delimiter Depth |
