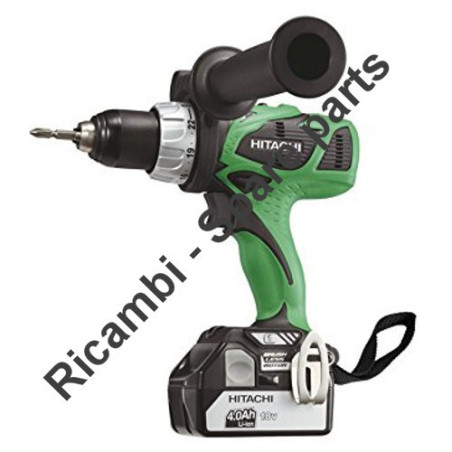

and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Driver Drill DS18DBL.
In the following table, look for the model of the CORDLESS DRILL and theirs spare part.![]()
| CORDLESS DRIVER DRILL DS18DBL | ||
| 1 | 311959 | SPECIAL SCREW (LEFT HAND) M6X23 |
| 2 | 331914 | DRILL CHUCK 13VLRR-N (W/O CHUCK WRENCH) |
| 3 | 331709 | GEAR BOX ASS'Y till 06.2012 |
| 3A | 334974 | GEAR BOX ASS'Y since 07.2012 |
| 4 | 331880 | FRONT CAP |
| 5 | 331881 | NUT |
| 9 | 331885 | STOPPER |
| 10 | 331886 | STOPPER SPRING |
| 11 | 331887 | FRONT CASE |
| 12 | 331905 | CLICK SPRING |
| 13 | 331909 | WASHER (A) |
| 14 | 331903 | LOCK RING (A) |
| 15 | 331904 | LOCK CAM |
| 16 | 331888 | NEEDLE ROLLER SET (6PCS.) |
| 17 | 331889 | RING GEAR |
| 18 | 331890 | CARRIER |
| 19 | 331891 | PLANET GEAR (C) SET (5 PCS.) |
| 20 | 331892 | WASHER (A) |
| 21 | 331893 | REAR CASE |
| 22 | 315817 | SCREW SET D3X12 (6 PCS.) |
| 23 | 331894 | SHIFT ARM |
| 24 | 331896 | SLIDE RING GEAR |
| 25 | 331897 | PINION (C) |
| 26 | 331898 | PLANET GEAR (B) SET (4 PCS.) |
| 27 | 330579 | SCREW SET D2X3.5 (2 PCS.) |
| 28 | 331899 | PINION (B) |
| 29 | 331926 | NEEDLE BEARING SET (4 PCS.) |
| 30 | 331900 | PLANET GEAR (A) SET (4 PCS.) |
| 31 | 331901 | FIRST RING GEAR |
| 32 | 322988 | WASHER (B) |
| 33 | 331902 | MOTOR SPACER |
| 34 | 331710 | ROTOR PINION SET |
| 35 | 331711 | HOUSING (A).(B) SET |
| 36 | 331907 | PUSHING BUTTON |
| 37 | 340765 | STATOR FET PCB |
| 38B | 334267 | SHIFT KNOB |
| 39 | 331956 | LED HOLDER |
| 40 | 331715 | DC-SPEED CONTROL SWITCH |
| 41 | 994532 | MACHINE SCREW (W/SP. WASHER) M3X5 |
| 42 | 313687 | TAPPING SCREW (W/FLANGE) D3X16 (BLACK) |
| 45 | 330662 | PANEL SHEET (B) |
| 46 | 332824 | HOOK |
| 47 | 327001 | TRUSS HD. SCREW M4 (BLACK) |
| 48 | 327002 | LOCK NUT M4 (BLACK) |
| 49 | 330854 | PACKING |
| 50 | 331716 | CONTROLLER TILL 6.2012 |
| 50A | 333689 | CONTROLLER SINCE 7.2012 |
| 51 | 306952 | STRAP (BLACK) |
| 52 | 330068 | BATTERY BSL 1830 (EUROPE,AUS,NZL) |
| 55 | 332546 | CLUTCH PARTS SET TILL 6.2012 |
| 59 | 336090 | SUMI TUBE |
