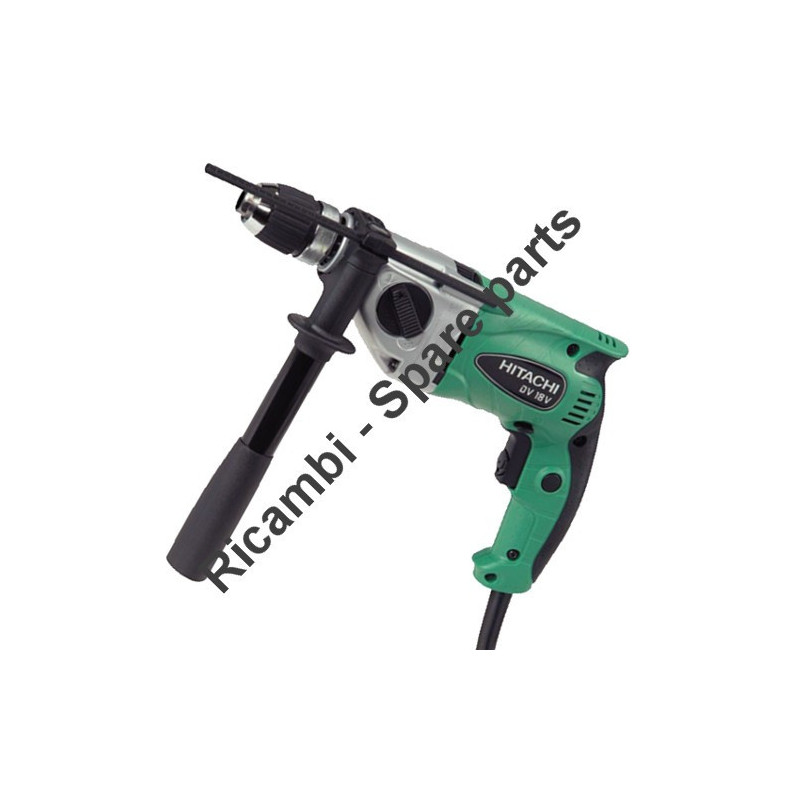

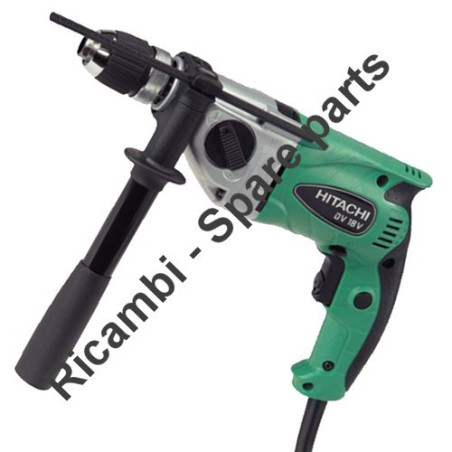

Hitachi Spare Parts for Impact Drill DV18V
€1.79
Tax included
Hitachi Spare Parts for Percussion Drill DV18V
Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill DV18V.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Percussion Drill DV18V
Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill DV18V.
In the following table , look for the model of the impact drill and the respective parts of the code .
| Percussion Drill DV 18V | ||
| # | Part Num. | Description |
| 1 | 995344 | Flat Hd. Screw (A) M6x25 |
| 2 | 987576 | Chuck Wrench For 13vlb -> HTA100106 |
| *3 | 322357 | Drill Chuck 13vlrh-N (W / O |
| 3 | HFAM231220 | Keyless Chuck 1.5-13 mm 1/2"x20 |
| 4 | 322857 | Spindle Dv20vb2 |
| 5 | 939556 | Ring Type C X D.35 Holes |
| 6 | 322851 | Oil Seal Dv20vb2 |
| 7 | 6202dd | Ball Bearing 6202dd |
| 8 | 322850 | Toothed ring Dv20vb2 |
| 9 | 984101 | spring |
| 10 | 959150 | Steel Ball D.6 |
| 11 | 322845 | Graft (B) |
| 12 | 316321 | Tapp. Screw (W / Flange) D5x45 |
| 13 | 322852 | washer Dm20v |
| 14 | 322858 | According Pinion Dv20vb2 |
| 15 | 322841 | Clutch Lever Dv20vb2 |
| 16 | 322842 | Cover Lever Dv20vb2 |
| 17 | 322840 | bracket Exchange |
| 18 | 322859 | Cop. Inp. Internal (B) |
| 19 | 322847 | Clutch Lever |
| 21 | 322848 | roll |
| 22 | 306353 | O-ring (S-22) |
| 23 | 981328 | Spring H Dh24dva |
| 24a | 335299 | Steel Ball D3.5 (10 Pcs.) |
| 25 | 322844 | Cop. Gears Compl. (A) |
| 26 | 323048 | Ring Seal (E-Type) |
| 27 | 322849 | hook |
| 28 | 322860 | Without Dv18v |
| 29 | 322846 | September Dv20vb230 Gear |
| 31 | 939553 | Seeger Dm20vRetaining |
| *32 | 360655e | induced D13vh |
| *32 | 360655f | Armature 240v |
| 33 | 322843 | Help Air Dv18v |
| 34 | 981824 | Hex. Hd. Tapping Screw D4x45 |
| *35 | 340589e | Stator 220v-230v D13vh |
| *35 | 340589f | Stator 240v |
| 36a | 698vvc | bearing 698vvc |
| 37a | 331663 | Complete carcass |
| 39 | 301653 | Tapp.Screw (W / Flange) D4x20 |
| 41 | 322853 | Rev. Button |
| 42 | 322854 | switch |
| *44 | 322517 | Internal cable Marr. 220v-240v |
| 45 | 999041 | Brushes (1 pair) |
| 46 | 955203 | brush holder |
| 52 | 984750 | Tapp. Screw (W / Flange) D4x16 |
| 53 | 937631 | terminal Wire Tie |
| 54 | 953327 | Sleeve saver D8.8 |
| *55 | 500231z | Cord |
| 56 | 309929 | bushing |
| 501 | 323130 | houses |
| 502 | 323050 | Impugn.Laterale Dv20vb2 |
| 503 | 303709 | delimiter Depth |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
