Hitachi Spare Parts for Impact Drill FDV16VA
€2.05
Tax included
Hitachi Spare Parts for Impact Drill FDV16VA
Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill FDV16VA.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Impact Drill FDV16VA

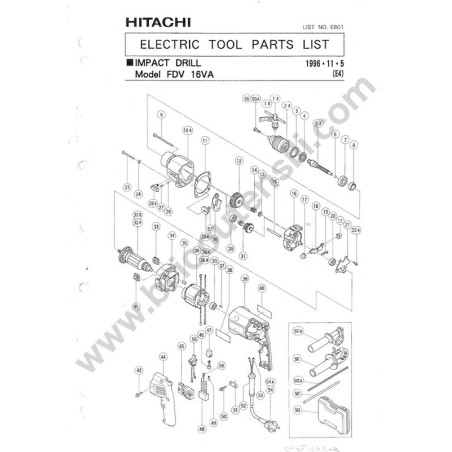

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill FDV16VA.In the following table , look for the model of the impact drill and the respective parts of the code .
| Hitachi FDV16VA spares and accessories | ||
| # | Part Num. | Description |
| 1A | 879355 | Chuck Wrench 10g |
| 1B | 987576 | Chuck Wrench For 13vlbd,13vlrd |
| 2A | 879353 | Drill Chuck 13vlr |
| 3 | 948001 | Retaining Ring For D32 Hole |
| 4 | 971654 | Dust Seal |
| 5A | 994740 | Spindle |
| 6 | 959149 | Steel Ball D4.76 (10 Pcs.) |
| 7 | 6002DD | Ball Bearing 6002ddcmpsal |
| 8 | 994450 | Ratchet (b) |
| 9 | 981539Z | Tapping Screw (w/washer) D5x85 |
| 10A | 991977 | Gear Cover |
| 11 | 992000 | Packing |
| 12 | 994742 | Gear |
| 13 | 971657 | Washer |
| 14 | 971656 | Spring |
| 15 | 984104 | Pin D5 |
| 16 | 991985 | Inner Cover |
| 17 | 991976 | Change Knob |
| 18 | 991982 | Change Plate |
| 19 | 963226 | Spring (a) |
| 20 | 608VVM | Ball Bearing 608vvc2psz2l |
| 21 | 991981 | Bearing Holder |
| 22A | 993126 | Seal Lock Screw (w/sp. Washer) M5x12 |
| 23 | 955912 | Tapping Screw D5x45 |
| 24 | 949424 | Washer M5 (10 Pcs.) |
| 26A | 994750 | Shift Lever |
| 27 | 981328 | Spring (h) |
| 28 | 959155 | Steel Ball D3.97 (10 Pcs.) |
| 29A | 994751 | Shift Plate |
| 30 | 991978 | Shift Arm |
| 31 | 994741 | Second Pinion |
| 32A | 360029E | Armature 220v230v |
| 32A | 360029F | Armature 230v240v |
| 32B | 360326U | Armature Ass’y 110v127v |
| 33 | 991974 | Piece (b) |
| 34 | 991975 | Fan Guide |
| 35 | 994343 | Rubber Bushing |
| 36 | 340060C | Stator 115v |
| 36 | 340060E | Stator 220v |
| 36 | 340O060F | Stator 230v240v |
| 36A | 340060J | Stator 220v230v |
| 36A | 340060K | Stator 230v240v |
| 36B | 340050G | Stator 220v230v |
| 37 | 946362 | Bearing Lock |
| 38 | 994840 | Hitachi Label |
| 39 | 311139 | Housing (off Black Green) |
| 39 | 994821 | Housing (moss Green) |
| 41 | 991973 | Piece (a) |
| 42 | 982095 | Tapping Screw (w/washer) D4x20 |
| 44 | 311140 | Handle Cover (off Black Green) |
| 44 | 994823 | Handle Cover (moss Green) |
| 45 | 994744 | Switch (2p Pillar Type) W/lock - DISCONTINUED |
| 45 | 994843 | Switch (2p Pillar Type) W/lock - DISCONTINUED |
| 46 | 999041 | Carbon Brush (1 Pair) |
| 47 | 930483 | Brush Holder |
| 48 | 994273 | Noise Suppressor |
| 50 | 984750 | Tapping Screw (w/flange) D4x16 |
| 51 | 960266 | Cord Clip |
| 52 | 930487 | Cord Armor D8.2 |
| 52 | 930026 | Cord Armor D10.2 |
| 53 | 981373 | Tube (d) |
| 54 | 500212Z | Cord |
| 54A | 500436Z | Cord |
| 54 | 500395Z | Cord |
| 54 | 500231Z | Cord |
| 54 | 500240Z | Cord |
| 54 | 500423Z | Cord |
| 54 | 500439Z | Cord |
| 54 | 500409Z | Cord |
| 54 | 500245Z | Cord |
| 55 | 981122 | Special Screw M6x22 |
| 55A | 995344 | Flat Hd. Screw (a) (left Hand) M6x25 |
| 57 | 673489 | Retaining Ring (etype) For D5 Shaft |
| 58 | 302488 | Earth Terminal |
| 501A | 303659 | Side Handle |
| 502 | 971677 | Stopper |
| 502A | 303709 | Depth Gauge |
| 503 | 310904 | Case |
