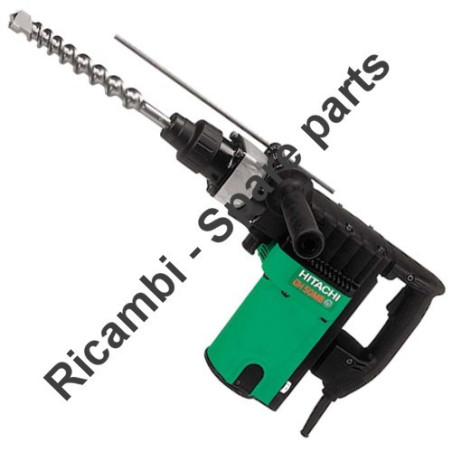

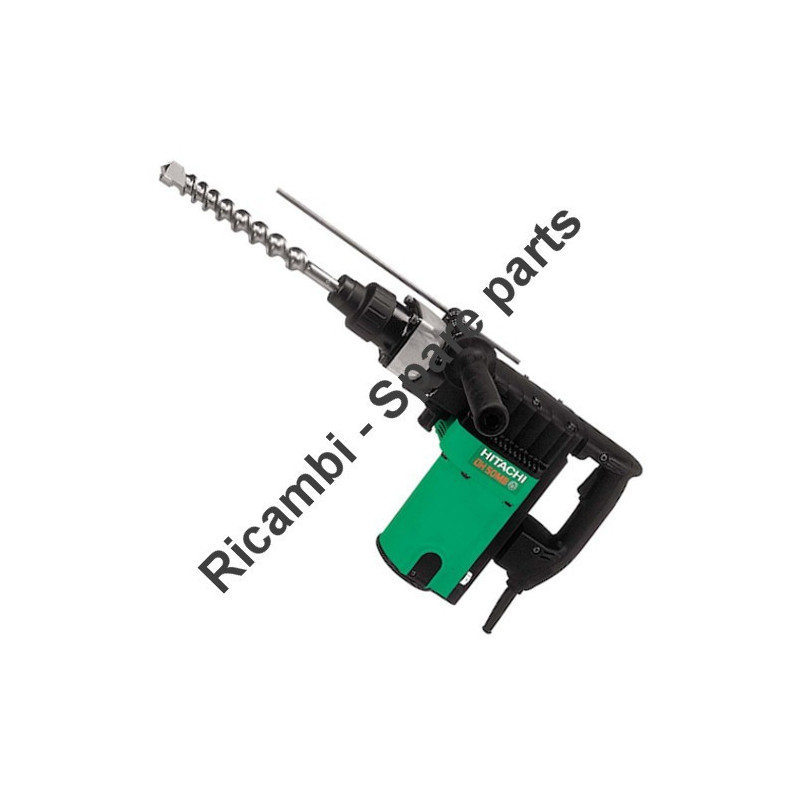

Hitachi Spare Parts for Hammer Drill DH50MB

€4.79
Tax included

Hitachi Spare Parts for Hammer Drill DH50MB

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH50MB.
ITEM CODE: 313415
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Hitachi Spare Parts for Hammer Drill DH50MB

Hitachi-HIKOKI Tanaka authorized repair center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH50MB.

In the following table, look for the model of the hammer and the respective parts of the code.
Hitachi DH50MB

HITACHI HAMMER DRILL DH50MB Pag.1
# Part Num. Description
1 313415 FRONT CAP
2 318608 RING DH50MB
3 318590 RING
4 313413 ROLLER SEAT
5 313419 SPRING
6 318589 SEAL SPRING DH50MB
8 318587 FRONT COVER DH50MB
9 878863 RUBBER RING (S-70)
10 318588 SEAL
11 318586 URETHANE RING
12 318585 RING SUPPORT DH50MB
13 318582 STILL
14 6008CM BALL BEARING 60008CM DH50MB
15 318581 DH50MB SIDE COVER
16 318551 PINION DH50MB
17 944109 KEY 3X3X8
18 6202DD BALL BEARING 6202DD
19 313058 WASHER
20 318552 CLUTCH RING SUPPORT DH50MB
21 318554 GEAR SUPPORT
22 318555 CLUTCH SPRING DH50MB
23 313057 NEEDLE PIN D. 6X6
24 318553 SECOND GEAR DH50MB
25 318556 THICKNESS
26 629VVM BALL BEARING 629VVM
27 318550 CLUTCH COMPL. DH50MB
29 945072 FEATHER KEY 5X5X15
30 944525 BEARING WASHER (C)
31 313082 SCREW C / FLANGE M5X16
32 991711 SPACER
33 318584 CRANKCASE COVER DH50MB
34 313084 SEAL
35 318543 GEAR CASE DH50MB
36 980750 GUIDE PLATE
37 980727 SHOCK ABSORBERS
39 939542 RING TYPE C X SHAFTS D.12 (10 PCS)
40 318544 CRANKSHAFT DH45SA-DH50MB
41 6205DD BALL BEARING 6205DD
42 965469 RING TYPE C X SHAFTS D.25
43 318548 BEARING DH50MB COVER
44 318545 SECOND PINION DH50MB
45 318546 FIRST GEAR DH50MB
46 318547 DISTANCE RING DH50MB
47 967261 SAFETY RING
48 318549 SEAL
49 939299 NEEDLE BEARING M661
50 318595 GEAR COVER
51 313421 OVAL ROLLER
52 318580 TABLE HOLDER
53 986104 O-RING
54 318564 SECOND STRIKER DH50MB
55 318565 SHOCK ABSORBERS
56 318566 SHOCK ABSORBERS
57 318567 SHOCK ABSORBERS
58 318568 CANNON FOR DH50MB
59 318451 SCREW TO BRUGOLA FLANG. M6X35 CR13VA
60 318560 NEEDLE BEARING DH50MB
61 981973 WASHER
62 985779 O-RING (D)
63 318659 NEEDLE BEARING
64 318559 ROTOR GEAR DH50MB
65 313057 NEEDLE D. 6X6
66 971750 KEY 3X3X20
67 318558 CYLINDER DH50MB
68 318583 RING
69 318563 CYLINDER SPRING DH50MB
70 318562 RING
71 318631 SPRING DH50MB
72 318630 STRIKER DH50MB
73 318917 O-RING (D)
74 318561 CLUTCH
75 985772 PISTON FOR DH50SA / SA1 / SB
76 318557 ROD DH45SA-DH50MB
77 980756 NEEDLE BEARING AJ501203
78 955593 PIN
79 318574 SIDE HANDLE
80A 331096 HANDLE GRIP SUPPORT
81 318576 HANDLE BOLT
82 971786 DEPTH ROD
83 873095 O-RING P16
84 318577 ROTO-STOP SPINDLE
85 318578 COVER
86 313411 SHAFT COVER
87 318579 BOLT M4X12
88 313410 ROTO LEVER STOP
89 307605 SPRING
90 313424 SPACER
91 313077 SCREW M5X25
92 318596 SEAL
93 6203VV BALL BEARING 6203VV
94 318597 SPACER
95 318594 WASHER
96 318918 FAN
97 360520E ARMATURE FOR DH50MB
98 318633 FAN COVER DH50MB
100 340463E STATOR FIELD FOR DH50MB 220-230V
101 958032 TERMINAL
102 318607 MOTOR BOX DH50MB
105 307811 SCREW
106 318599 CARBON BRUSH COVER PROTECTION
107 940540 CARBON BRUSH COVER
108 999077 SELF-LOCKING CARBON BRUSHE (1 PAIR)
109 980487 CARBON BRUSH HOLDER
111 959141 JOINT
112 313948 COLLAR
114 318632 PRISM
115 318593 CARBON BRUSH HOLDER DX DH50MB
117 944954 BALL BEARING WASHER
118 6201VV BALL BEARING 6201VV
119 318598 LOWER COVER DH50MB
122 318571 HOUSING COVER DH50MB
123 318572 GASKET IMP. (A)
124 991711 SPACER
125 318601 HANDLE GRIP DH50MB
126 313093 SWITCH
127 318602 HANDLE COVER DH50MB
129 318573 HANDLE GASKET DH50MB
130 940778 SLEEVE 10.7
131 992810 TERMINAL
132 960266 WIRE CLAMP
134 714520 CABLE 5M 2X1.5 WITH PLUG
135 318605 ELECTRONIC CONTROL DH50MB+A129:C129
136 313142 CONNECTOR (A) WITH CABLES AND FILTER
137 959141 JOINT
138 318648 CONNECTOR (B)
139 938307 PILLAR TERMINAL (OLD 938307Z / 512-31
140 318603 CONNECTOR SUPPORT
STANDARD ACCESSORIES Pag.2
501 318646 CASE (PLASTIC)
502 944458 ALLEN KEY
503 944459 KEY
504 872422 ALLEN KEY
505 981840 GREASE 30GR
506 308471 GREASE 70GR
507 980927 GREASE 500GR
