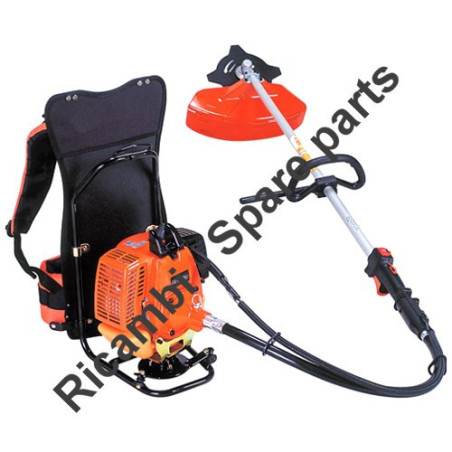

Hitachi Spare Parts for Engine Brush Cutter CG40EF-L
€2.65
Tax included
Hitachi Spare Parts for Engine Brush Cutter CG40EF-L
Buy at the lowest prices, Hitachi-HIKOKI original spare parts to Make maintenance on damaged parts of the Engine Brush Cutter CG40EF-L.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Engine Brush Cutter CG40EFL
Buy at the lowest prices, Hitachi-HIKOKI original spare parts to Make maintenance on damaged parts of the Engine Brush Cutter CG40EF-L.
In the following table, look for the model of the chainsaw and ripettivo spare part.
| ENGINE BRUSH CUTTER CG40EFL | ||
| B45 01 CYLIND ER/PISTON/CRANK SHAFT Pag.1 | ||
| # | Part Num. | Description |
| 6 | 6687466 | SPARK PLUG CAP ASS'Y |
| 8 | 6685086 | SPARK PLUG BPMR6A |
| 11 | 6685474 | CYLINDER SET |
| 12 | 6684668 | HEX.HOLE BOLT M5X20/S 4 |
| 14 | 6685740 | CYLINDER GASKET |
| 15 | 6686123 | PISTON RING |
| 16 | 6685888 | PISTON SET |
| 17 | 6686007 | PISTON PIN 10X30 |
| 18 | 6686032 | PISTON PIN CIRCLIP |
| 21 | 6686191 | CRANK SHAFT COMP. |
| 31 | 6686457 | WOODRUFF KEY 3X13X5 |
| 43 | 6687655 | IGNITION COIL COMP. |
| 44 | 6684602 | RUBBER CAP |
| 45 | 6687885 | HIGHT TENSION CORD |
| 50 | 6687853 | SPECIAL CORD B190M |
| 55 | 6687657 | IGNITION COIL ASS'Y |
| 56 | 6684599 | HEX.HOLE BOLT M4X18/WS |
| 63 | 6688011 | CORD CLAMP COMP. |
| B45 02 CRANK CASE Pag.2 | ||
| 7 | 6688346 | SPARK PLUG COVER |
| 9 | 6684634 | HEX.HOLE BOLT 5X20/PS |
| 23 | 6695139 | SMALL NUT 10 |
| 26 | 6686556 | CRANK CASE ASS'Y |
| 27 | 6686714 | CRANK CASE GASKET |
| 28 | 6695637 | OIL SEAL UD15257 |
| 29 | 6695557 | BALL BEARING #6202, 35MM |
| 32 | 6686472 | CRANK SHAFT SHIM 0.20 V |
| 32 | 6686473 | CRANK SHAFT SHIM 0.30 V |
| 36 | 6684786 | HEX. SOCKET HD. BOLT M5X |
| 51 | 6687372 | MAGNETO ROTOR COMP. |
| 52 | 6695198 | WASHER 10 |
| 54 | 6695139 | SMALL NUT 10 |
| 66 | 6686982 | FAN CASE |
| 67 | 6684668 | HEX.HOLE BOLT M5X20/S |
| 69 | 6688057 | |
| B45 03 ENGINE Pag.3 | ||
| 31 | 6689885 | INLET MANIFOLD GASKET |
| 32 | 6689955 | CARB.INSULATOR SET, SPAR |
| 33 | 6689833 | CARBURETOR GASKET |
| 34 | 6690430 | COLLAR |
| 35 | 6690802 | COLLAR |
| 36 | 6690099 | CLEANER BODY COMP. |
| 37 | 6691258 | CHOKE VALVE |
| 38 | 6690843 | BLOW OVER CHECK BOARD |
| 39 | 6690352 | CLEANER ELEMENT 6T |
| 40 | 6684658 | WAVE WASHER 8 |
| 41 | 6690397 | CLEANER COVER ASS'Y |
| 42 | 6689737 | SPECIAL SCREW |
| 43 | 6695353 | SCREW 5X57/S |
| 45 | 6690474 | CARBURETOR SET WYJ389 |
| 49 | 6695515 | HEX. HOLE BOLT 5X25WS |
| 63 | 6684618 | FUEL PIPE |
| 64 | 6684619 | CLIP,6.3 DIA. |
| 65 | 6692273 | PUMP FILTER BODY ASS'Y |
| 66 | 6691533 | FUEL TANK |
| 68 | 6692244 | COLLAR 5.8 |
| 70 | 6691763 | TANK CAP D ASS'Y, BLACK |
| 76 | 6695505 | HEX. HOLE BOLT 5X18PS |
| 78 | 6684880 | FUEL PIPE 3X5X80 |
| 80 | 6688156 | FUEL PIPE GROMMET |
| 86 | 6684625 | |
| B45 04 ENGINE Pag.4 | ||
| 1 | 6692780 | MUFFLER PROTECTOR |
| 2 | 6684918 | WASHER M5 |
| 3 | 6684667 | HEX.HOLE BOLT M5X12/S |
| 4 | 6695512 | HEX. HOLE BOLT 5X15 WS |
| 5 | 6695067 | HEX.HOLE BOLT 6X65 |
| 6 | 6684639 | WASHER 6 |
| 7 | 6692469 | MUFFLER SET |
| 14 | 6692741 | MUFFLER GASKET |
| 16 | 6687243 | HEAT SHIELD |
| 52 | 6692593 | TAIL PIPE COMP. |
| 53 | 6694865 | SCREW 4X12 |
| 54 | 6685069 | NUT M4 |
| 81 | 6689645 | CLUTCH WASHER B |
| 82 | 6688614 | CLUTCH ARM COMP. |
| 83 | 6689428 | CLUTCH SPRING |
| 84 | 6695203 | WAVE WASHER 10 |
| 85 | 6689632 | CLUTCH STEP BOLT |
| B45 05 RECOIL STARTER Pag.5 | ||
| 0 | 6692970 | RECOIL STARTER BODY ASS'y |
| 1 | 6693025 | RECOIL STARTER BODY COMP |
| 2 | 6693007 | STARTER ROPE REEL |
| 3 | 6693114 | RECOIL SPRING |
| 9 | 6693165 | STARTER ROPE |
| 12 | 6693607 | STARTER HANDLE CAP |
| 14 | 6693232 | STARTER HANDLE |
| 17 | 6693634 | SET SCREW |
| 19 | 6693302 | STARTER PAWL |
| 20 | 6684683 | STOP RING E5 |
| 23 | 6684634 | HEX.HOLE BOLT 5X20/PS |
| 24 | 6693345 | STARTER PAWL SPRING |
| 25 | 6693395 | STARTER PULLEY |
| B45 06 CARBURETOR Pag.6 | ||
| 2 | 6684879 | PUMP BODY COMP. |
| 3 | 6684687 | PRIMING PUMP COMP. |
| 4 | 6684688 | DIAPHRAGM COVER |
| 5 | 6684689 | PRIMING BODY |
| 6 | 6690827 | METERING DIAPHRAGM COMP. |
| 7 | 6684691 | DIAPHRAGM GASKET |
| 8 | 6684693 | PUMP DIAPHRAGM |
| 9 | 6691457 | PUMP GASKET |
| 11 | 6684695 | ORING |
| 12 | 6684696 | STOP RING |
| 13 | 6684697 | SWIVEL |
| 15 | 6684870 | THROTTLE SET SCREW |
| 16 | 6684873 | CABLE ADJUSTER STAY |
| 17 | 6684872 | LOCK NUT M6 |
| 18 | 6684871 | CABLE ADJUSTER |
| 19 | 6684875 | CLEANER PACKING |
| 20 | 6684699 | SET SCREW |
| 21 | 6684874 | THRUST WASHER |
| 201 | 6684700 | INLET SCREEN |
| B45 07 FRAME Pag.7 | ||
| 1 | 6688276 | SHOULDER FRAME COMP |
| 3 | 6692872 | SHOULDER BELT ASS'Y |
| 9 | 6695380 | SCREW 5X10/PS |
| 10 | 6688149 | ENGINE BASE |
| 11 | 6689125 | CUSHION RUBBER COMP. |
| 12 | 6695170 | FLANGE NUT 6 |
| 13 | 6684611 | WASHER M8 |
| 16 | 6695558 | BALL BEARING #6202ZZ |
| 17 | 6689768 | BEARING HOLDER |
| 20 | 6695438 | BOLT 5X10/S |
| 21 | 6684965 | NUT M5 |
| 42 | 6688131 | ENGINE BASE COMP. |
| 50 | 6688304 | SHOULDER PLATE HOLDER B. |
| 51 | 6696295 | BOLT 6X25 |
| 52 | 6695170 | FLANGE NUT 6 |
| 53 | 6684668 | HEX.HOLE BOLT M5X20/S |
| 58 | 6695165 | NYLON LOCK NUT 8 |
| B45 08 CLUTCH /FLEXIBLE SHAFT Pag.8 | ||
| 1 | 6689232 | CLUTCH DRUM COMP |
| 3 | 6695558 | BALL BEARING #6202ZZ |
| 4 | 6695285 | STOP RING C15, OUTER |
| 6 | 6689216 | CLUTCH CASE |
| 7 | 6684826 | S.WASHER 6 |
| 8 | 6685064 | HEX. SOCKET HD. BOLT (W/ |
| 9 | 6689817 | LOCK PIN COMP. |
| 10 | 6687586 | PROTECTION TUBE 10X700L |
| 11 | 6687632 | PROTECTION TUBE 7X130L |
| 15 | 6695672 | ORING P18 |
| 17 | 6688016 | CORD CLAMP |
| 20 | 6689591 | FLEXIBLE SHAFT ASS'Y |
| 21 | 6689589 | FLEXIBLE SHAFT COMP |
| 22 | 6689554 | FLEXIBLE LINNER COMP. |
| B45 09 OPERATION PIPE Pag.9 | ||
| 1 | 6688537 | JOINT PIPE ASS'Y |
| 3 | 6684709 | HEX.HOLE BOLT M5X25/S |
| 4 | 6695492 | HEX. HOLE BOLT 5X22/S |
| 7 | 6689138 | SPACER |
| 8 | 6684819 | SPACER |
| 9 | 6689638 | CLUTCH WASHER A |
| 11 | 6695042 | HEX. HOLE BOLT 5X10 |
| 16 | 6687599 | PROTECTION TUBE 13X100L |
| 26 | 6691036 | HANDLE |
| 27 | 6691231 | BARRIER, 26 DIA, BLACK |
| 28 | 6684838 | BOLT 6X43/P (BLACK) |
| 30 | 6684821 | STOP RING C10,OUTER |
| 31 | 6684835 | HEX.NUT 6 |
| 32 | 6689346 | DRIVE SHAFT COMP. |
| 33 | 6689513 | BUSHING ASS'Y |
| 35 | 6689459 | DRIVE SHAFT, 1507L |
| 36 | 6692596 | CHOKE SHIM 0.8 |
| 38 | 6694031 | CONNECTOR CASE |
| 39 | 6693905 | THROTTLE WIRE |
| 47 | 6685191 | TAPPING SCREW D4.5X20 |
| 50 | 6688550 | JOINT COVER |
| B45 10 THROTTLE LEVER Pag.10 | ||
| 25 | 6693759 | THROTTLE LEVER ASSY 26 |
| 84 | 6694019 | THROTTLE WIRE |
| 85 | 6687455 | STOP SWITCH |
| 98 | 6684721 | SAFETY LEVER |
| 100 | 6693599 | RETURN SPRING |
| 103 | 6684724 | BLIND PLUG |
| 110 | 6684803 | SCREW M5X20 |
| 111 | 6684727 | CONTAL NUT 5 |
| 112 | 6684725 | SCREW M4X20 (BLACK) |
| 125 | 6684804 | THROTTLE LEVER |
| B45 11 GEAR CASE Pag.11 | ||
| 1 | 6696497 | GEAR CASE SET PN |
| 2 | 6684709 | HEX.HOLE BOLT M5X25/S |
| 4 | 6695294 | RETAINING RING C26, INNER |
| 5 | 6695315 | STOP RING OUTER 10 |
| 6 | 6695526 | BALL BEARING #6000Z, 26M |
| 7 | 6695524 | BALL BEARING #6000, 26MM |
| 9 | 6688770 | GEAR CASE 26 DIA |
| 11 | 6684667 | HEX.HOLE BOLT M5X12/S |
| 12 | 6689109 | OILING BOLT |
| 13 | 6684734 | BALL BEARING 609 |
| 15 | 6688924 | GEAR SHAFT |
| 16 | 6695554 | BALL BEARING 6201D, 32MM |
| 17 | 6695295 | STOP RING C32, INNER |
| 18 | 6689032 | CUTTER HOLDER |
| 19 | 6689055 | CUTTER HOLDER CAP |
| 21 | 6688995 | PROTECTION COVER B |
| 22 | 6689073 | FIXING NUT M10X1.25 |
| 23 | 6689159 | GEAR CASE WASHER |
| 26 | 6684714 | HEX.HOLE BUTTON SCREW 6X |
| 28 | 6690315 | COVER BRACKET 26 |
| 29 | 669024 | 2 GUARD 26 CE |
| 29 | 6690276 | GUARD 26CE |
| 30 | 6684748 | SAFETY COVER HOLDER |
| 31 | 669037 | 2 COVER GUARD |
| 31 | 6690376 | BLADE GUARD |
| 32 | 669338 | 6 KNIFE |
| 32 | 6684750 | KNIFE |
| 34 | 669533 | 4 SCREW 5X12/S |
| 34 | 6684751 | TAPPING SCREW 4X14 |
| 35 | 6688875 | GEAR/PINION SET, SPARE |
| 36 | 6684965 | NUT M5 |
| 38 | 6684753 | TAPPING SCREW 5X20 |
| B45 12 TOOLS Pag.12 | ||
| 15 | 6684764 | BOX WRENCH (HEX. SOCKET |
| 16 | 6684813 | HEX. BAR WRENCH 4MM |
| 17 | 6684768 | CUTTER COVER |
| 18 | 6693434 | CUTTING BLADE 4TX255, TY |
| 30 | 6684765 | SAFETY GLASSES |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
